AUTOMATIC TRANSMISSION OVERHAUL

23B-47

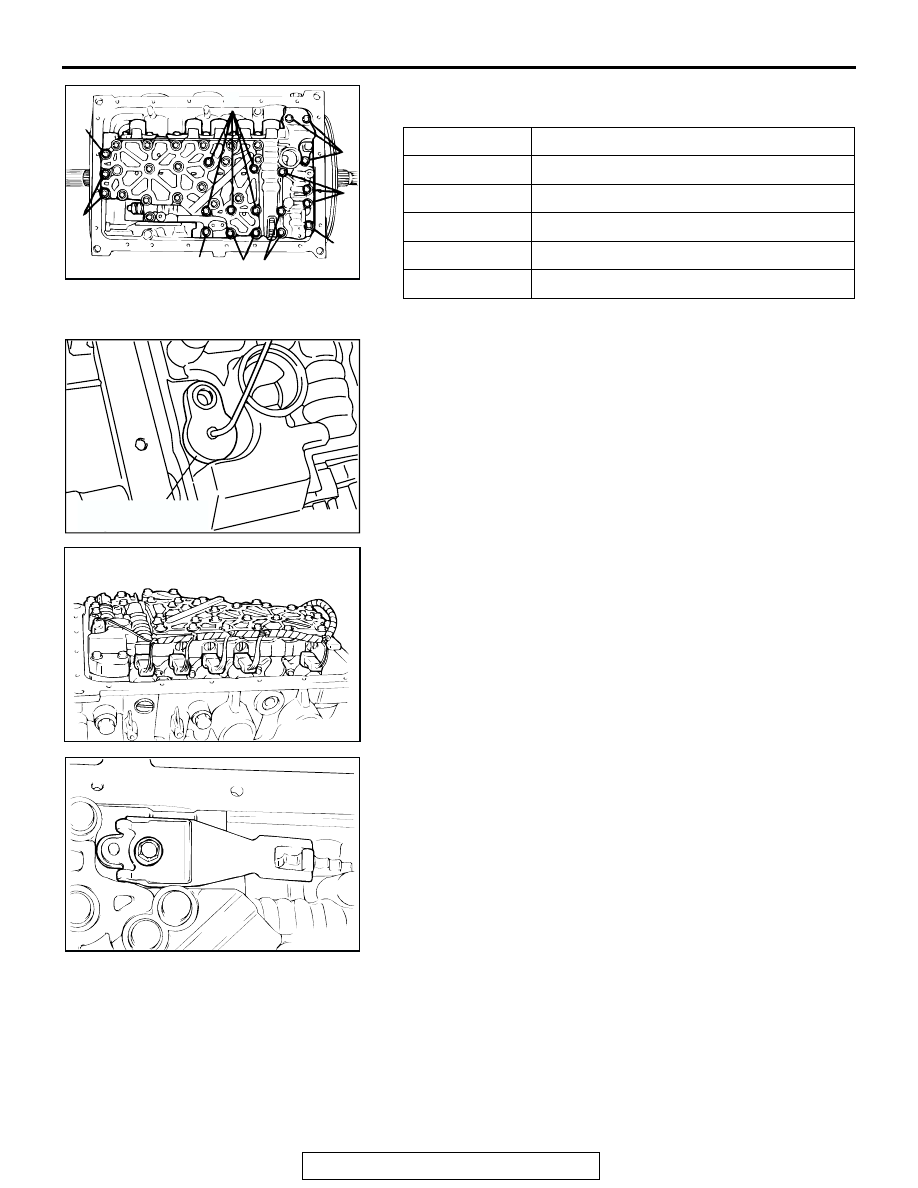

59.Tighten the twenty valve body mounting bolts to the

specified torque.

Specified torque: 11

± 1 N⋅m (97 ± 9 in-lb)

60.Install the oil temperature sensor.

61.Connect the connector to the valve body.

62.Install the detent spring.
63.Tighten the detent spring mounting bolt to the specified

torque.

Specified torque: 5.9

± 1 N⋅m (52 ± 9 in-lb)

BOLT

LENGTH mm (in)

A

25 (1.0)

B

30 (1.2)

C

40 (1.6)

D

45 (1.8)

E

55 (2.2)

AKX00115

E

D

D

B

C

D

C

D

A

AB

AK101326

OIL TEMPERATURE
SENSOR

AB

AKX00028

AKX00027

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-48

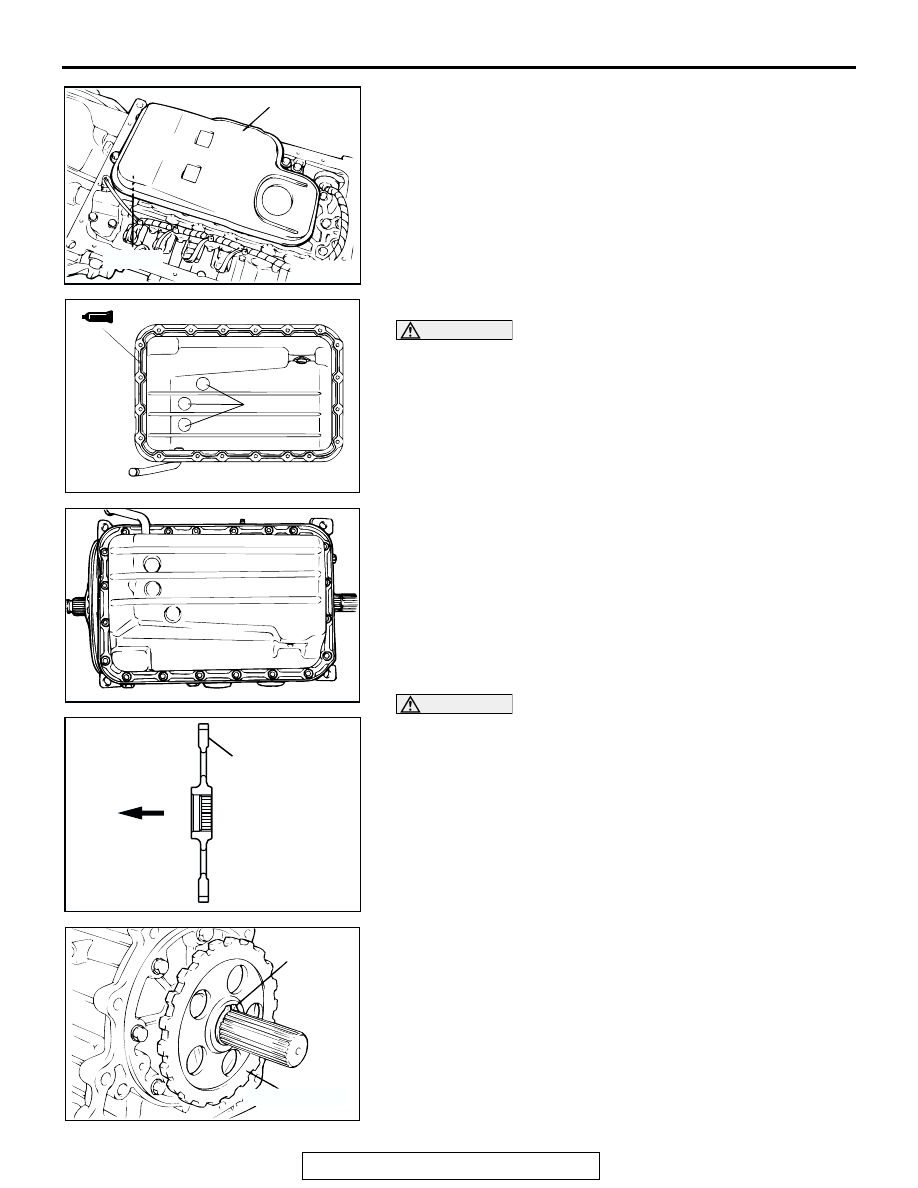

64.Install the oil filter and a new O-ring.

65.Install the magnet.

CAUTION

Evenly squeeze out the sealant so that it is not insufficient
or excessive.
66.Apply the sealant MITSUBISHI genuine sealant part number

MR166584 or equivalent on the oil pan.

67.Install the oil pan.
68.Tighten the oil pan mounting bolts to the specified torque.

Specified torque: 11

± 1 N⋅m (97 ± 9 in-lb)

CAUTION

• Install the parking gear so that the side without the

spline cut faces the transmission side.

• Heat the parking gear to 160 − 180°C (320 − 356°F) and

shrink fit up to the stepped section of the output shaft.
(Only the type with three identification grooves.) Do not
heat for longer than necessary at this time.

69.Install the parking gear and snap ring.

AKX00026

OIL FILTER

O-RING

AB

AKX00116

3mm (0.12in) DIAMETER

AB

MAGNET

AKX00117

AKX00118

IDENTIFICATION
GROOVE
(TWO GROOVES:
NORMAL TYPE
THREE GROOVES:
SHRINK FIT TYPE)

TRANSMISSION
SIDE

AB

AKX00024

SNAP RING

PARKING GEAR

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-49

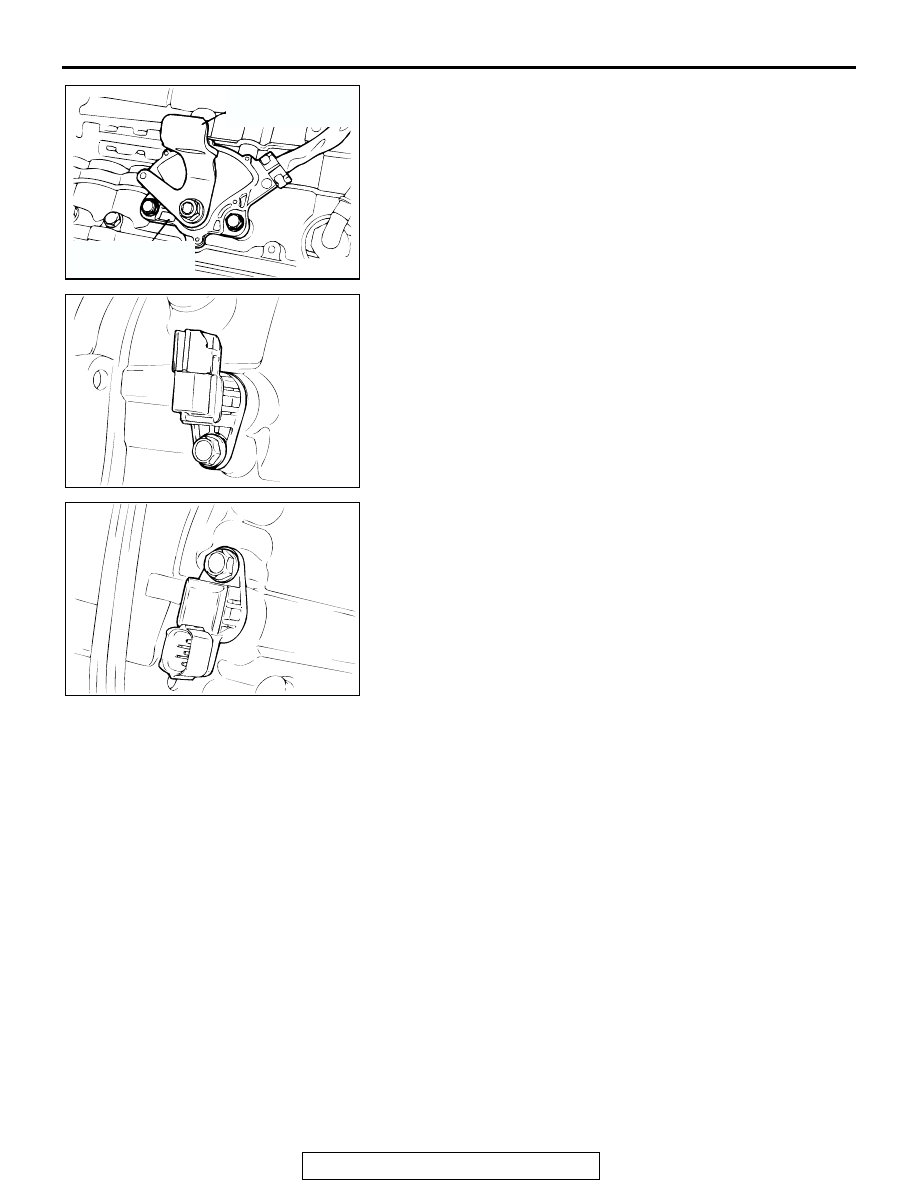

70.Install the park/neutral position switch and manual control

lever.

71.Install the output shaft speed sensor.

72.Install the input shaft speed sensor.

AKX00023

MANUAL CONTROL
LEVER

PARK/NEUTRAL
POSITION SWITCH

AB

AKX00022

AKX00021

REVERSE AND OVERDRIVE CLUTCHES

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-50

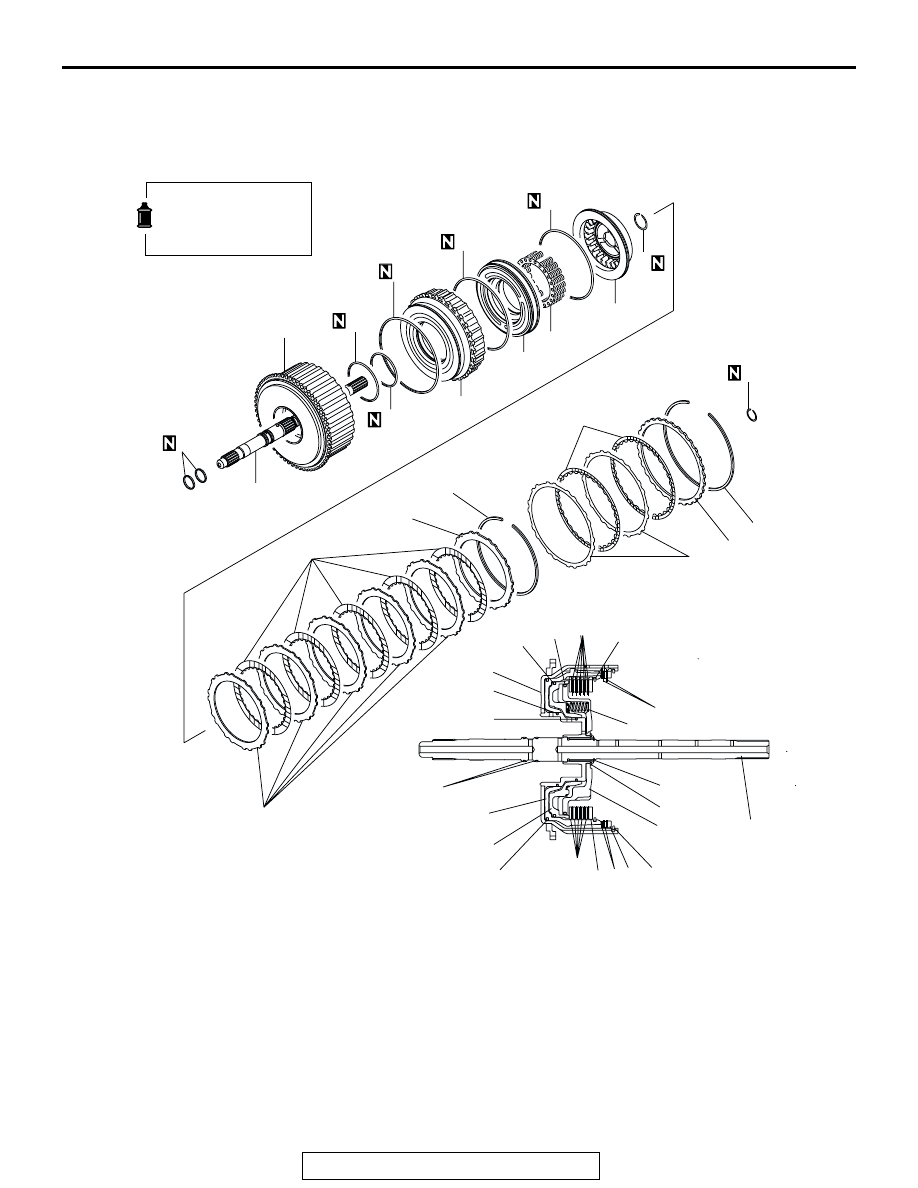

REVERSE AND OVERDRIVE CLUTCHES

DISASSEMBLY AND ASSEMBLY

M1233021200159

AKX00121

4

5

6

1

2

3

7

8

9

14

15

16

11

12

13

17

18

21

22

10

20

4

5

6

1

2

3

7

8

9

14

15

16

11

12

13

17

18

19

21

22

10

20

AB

19

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

DISASSEMBLY STEPS

1.

SEAL RING

2.

SNAP RING

3.

INPUT SHAFT

>>H<<

4.

SNAP RING

>>G<<

5.

REACTION PLATE

>>G<<

6.

CLUTCH DISC

>>G<<

7.

CLUTCH PLATE

>>F<<

8.

SNAP RING

>>E<<

9.

REACTION PLATE

>>E<<

10. CLUTCH DISC

>>E<<

11. CLUTCH PLATE

<<A>>

>>D<<

12. SNAP RING

DISASSEMBLY STEPS
(Continued)
