Mitsubishi Montero (2004+). Manual - part 424





TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-23

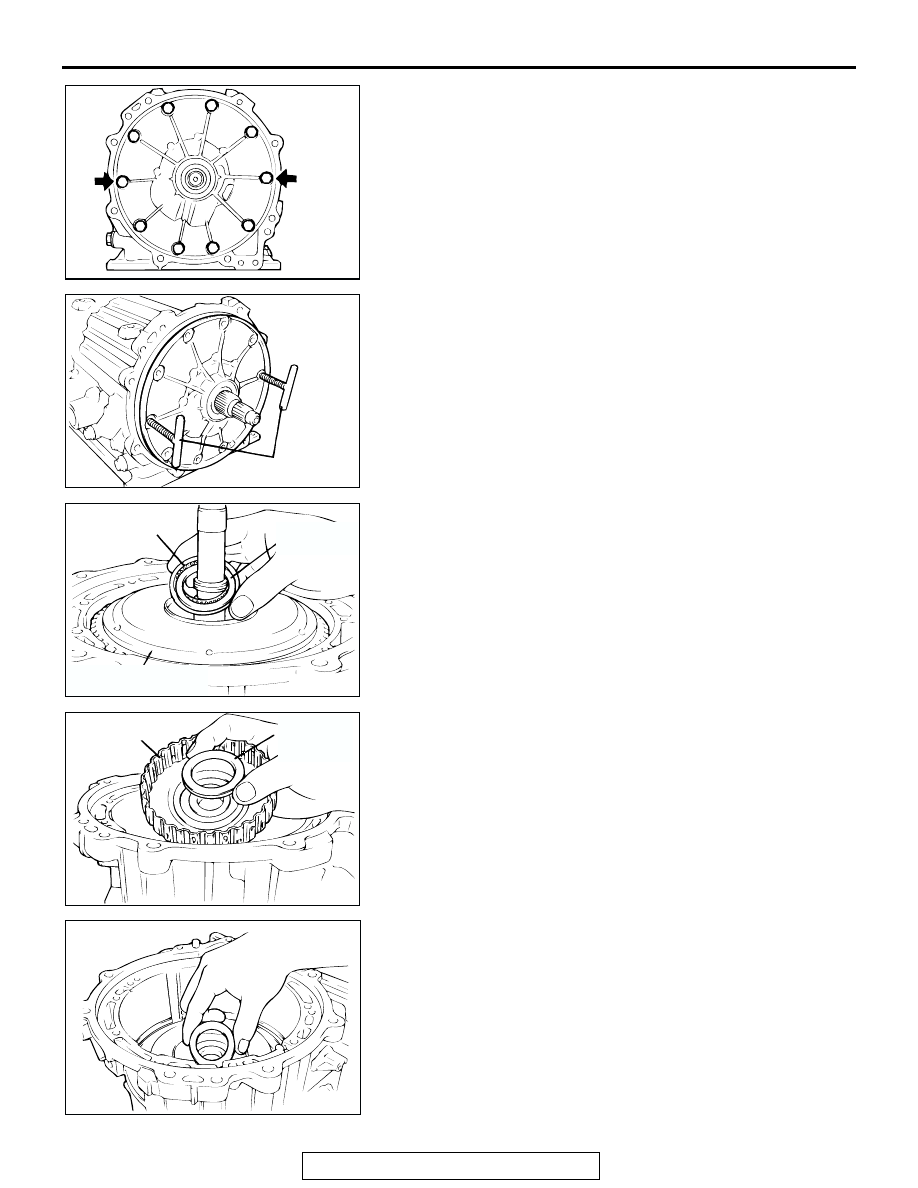

16.Remove the ten oil pump mounting bolts.
17.Install special tool MD998333 into the bolt hole shown in the

illustration.

18.While screwing in special tool MD998333 evenly, remove

the oil pump.

19.Remove the oil pump gasket.

20.Remove the reverse and overdrive clutch, thrust race

number 1 and thrust bearing number 2.
NOTE: The thrust race number 1 may be attached to the oil
pump.

21.Remove the overdrive clutch hub and thrust bearing number

3.

22.Remove the thrust bearing number 4.

NOTE: The thrust bearing number 4 may be attached to the
overdrive clutch hub.

AKX00037

AKX00038

MD998333

AB

AKX00039

THRUST
BEARING
NO.2

THRUST
RACE NO.1

REVERSE AND
OVERDRIVE CLUTCH

AB

AKX00040

THRUST
BEARING
NO.3

OVERDRIVE
CLUTCH HUB

AB

AKX00041

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-24

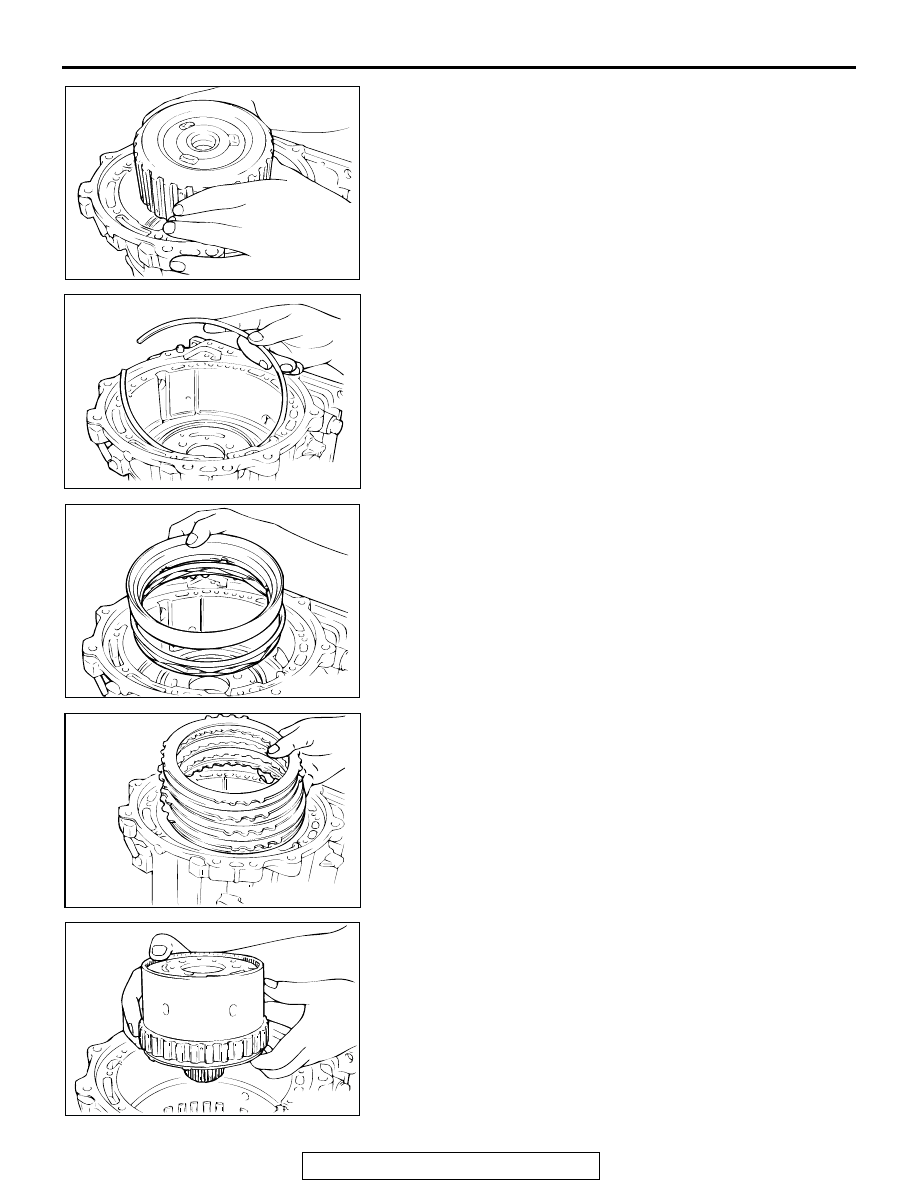

23.Remove the reverse sun gear.

24.Remove the snap ring.

25.Remove the second brake and return spring.

26.Remove the pressure plate, brake plate and brake disc.

27.Remove the low/reverse annulus gear.

AKX00042

AKX00043

AKX00044

AKX00045

AKX00046

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-25

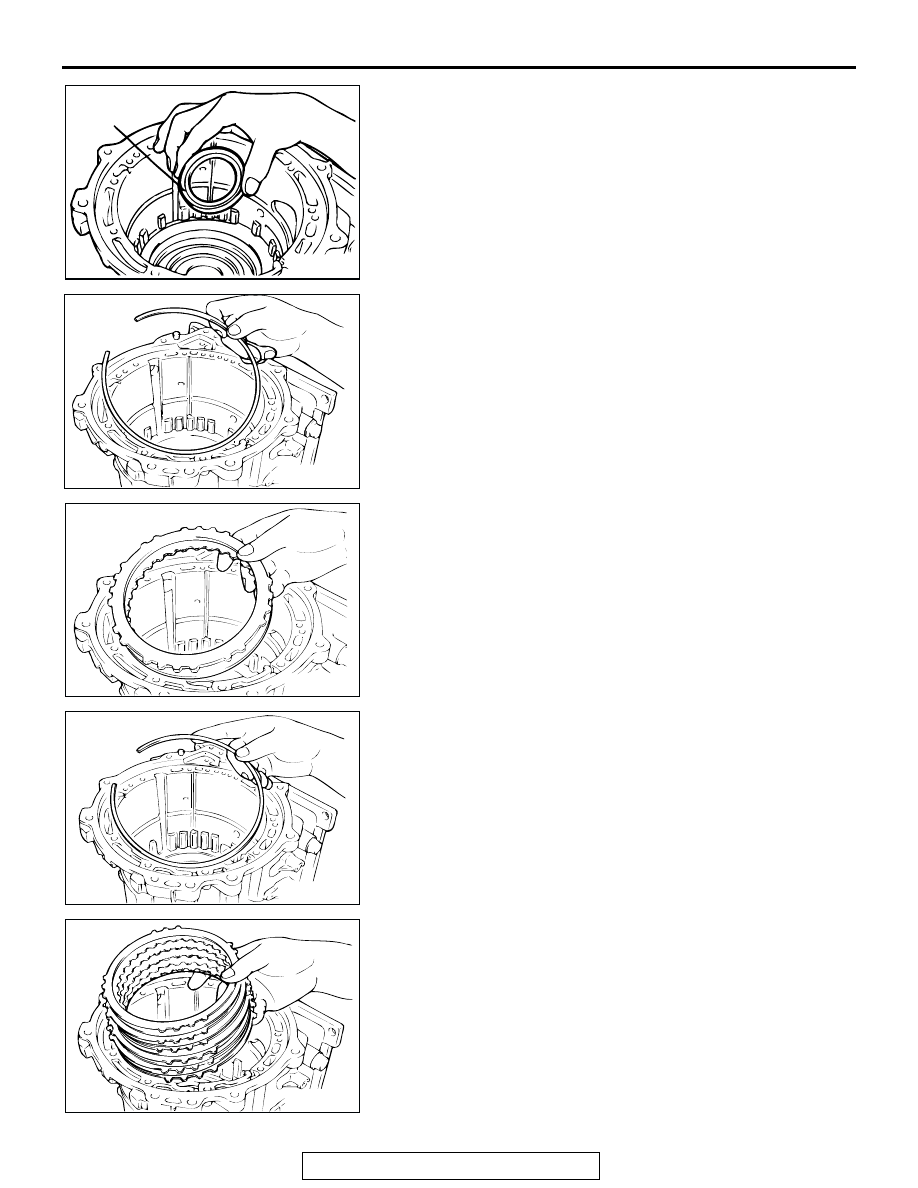

28.Remove the thrust bearing number 7.

NOTE: The thrust bearing number 7 may be attached to the
low/reverse annulus gear.

29.Remove the snap ring.

30.Remove the reaction plate and one brake disc.

31.Remove the snap ring.

32.Remove the brake plate, brake disc, and pressure plate.

AKX00047

THRUST
BEARING
NO.7

AB

AKX00048

AKX00049

AKX00050

AKX00051

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-26

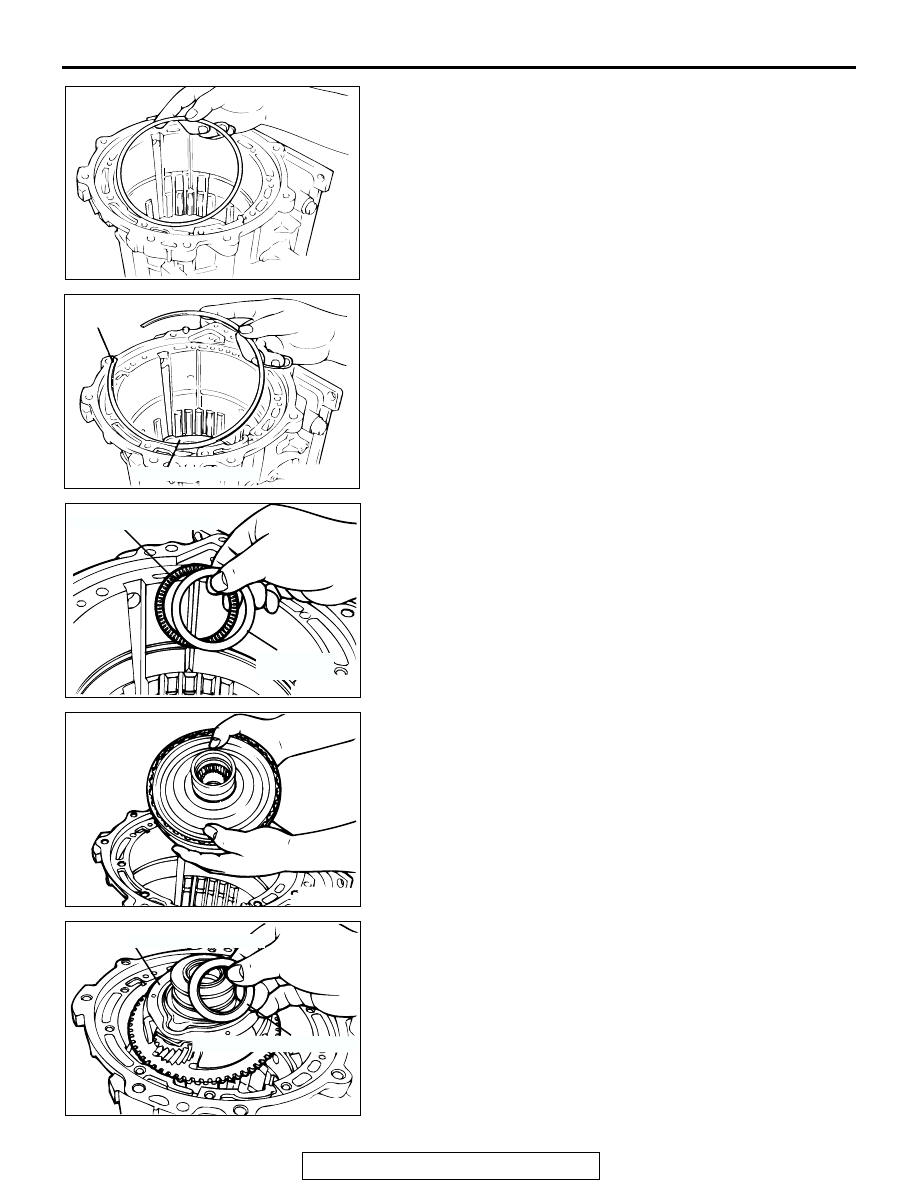

33.Remove the wave spring.

34.Remove the snap ring and center support.

35.Remove the thrust race number 8 and thrust bearing

number 9.
NOTE: The thrust race number 8 may be attached to the
center support.

36.Remove the direct annulus gear.

37.Remove the thrust bearing number 12 and direct planetary

carrier.
NOTE: The thrust bearing number 12 may be attached to
the direct annulus gear.

AKX00052

AKX00053

SNAP RING

CENTER SUPPORT

AB

AKX00301

THRUST
RACE NO.8

THRUST BEARING NO.9

AC

AKX00302

AKX00303

THRUST BEARING NO.12

DIRECT PLANETARY CARRIER

AC
