TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-19

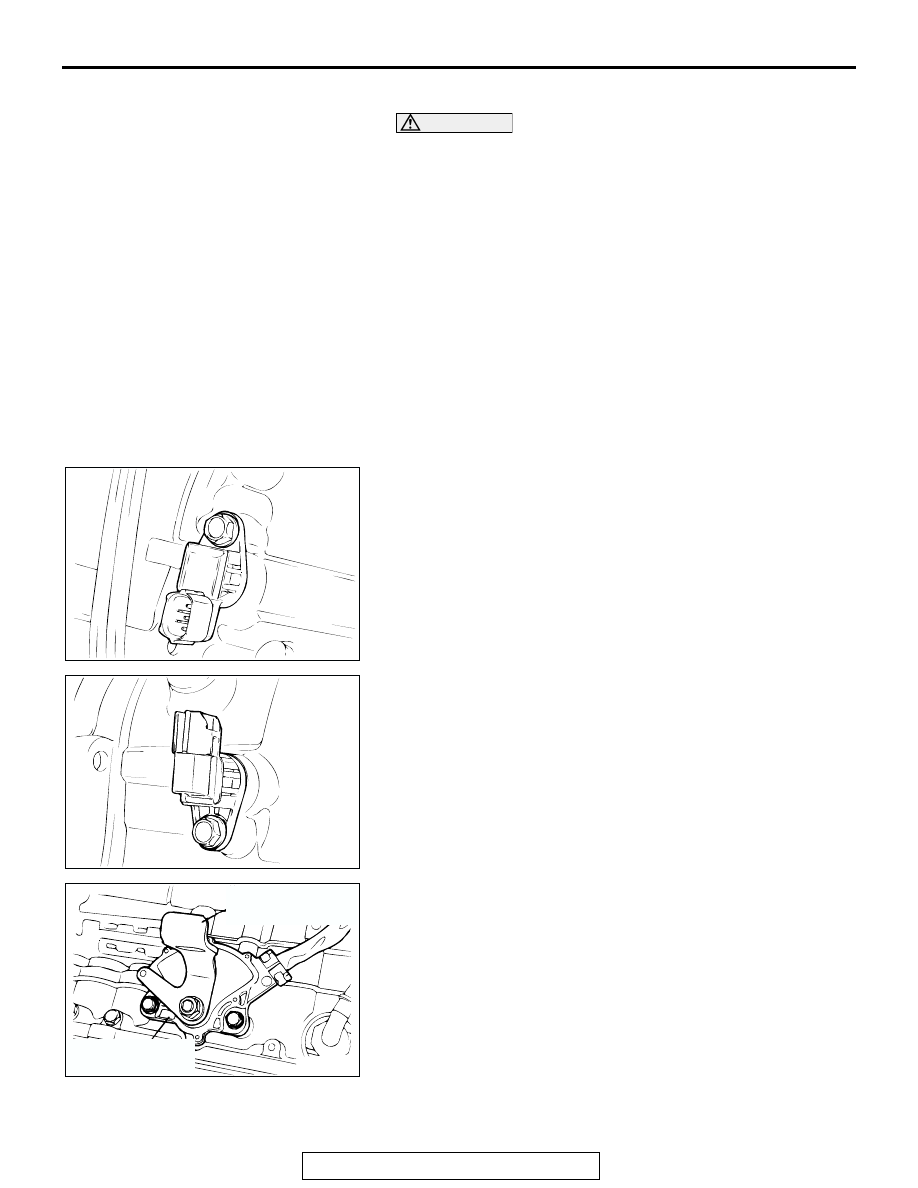

DISASSEMBLY

CAUTION

• Because the automatic transmission is manufactured

from high-precision parts, sufficient care must be taken
not to scratch or damage these parts during disassem-
bly and reassembly.

• During the work, always use bare hands or vinyl

gloves. Do not use cotton gloves. Use nylon cloth or
paper towels when necessary. Do not use shop towels.

• Parts which have been disassembled should be

cleaned. Metal parts can be cleaned with normal deter-
gent, but they should be dried completely using com-
pressed air.

• Clutch discs, plastic thrust race and rubber parts

should be cleaned with ATF automatic transmission
fluid so that they do not become dirty.

• If the transmission body has been damaged, disassem-

ble and clean the cooler system also.

.

1. Remove the input shaft speed sensor.

2. Remove the output shaft speed sensor.

3. Remove the manual control lever, and then remove the

park/neutral position switch.

AKX00021

AKX00022

AKX00023

MANUAL CONTROL
LEVER

PARK/NEUTRAL
POSITION SWITCH

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-20

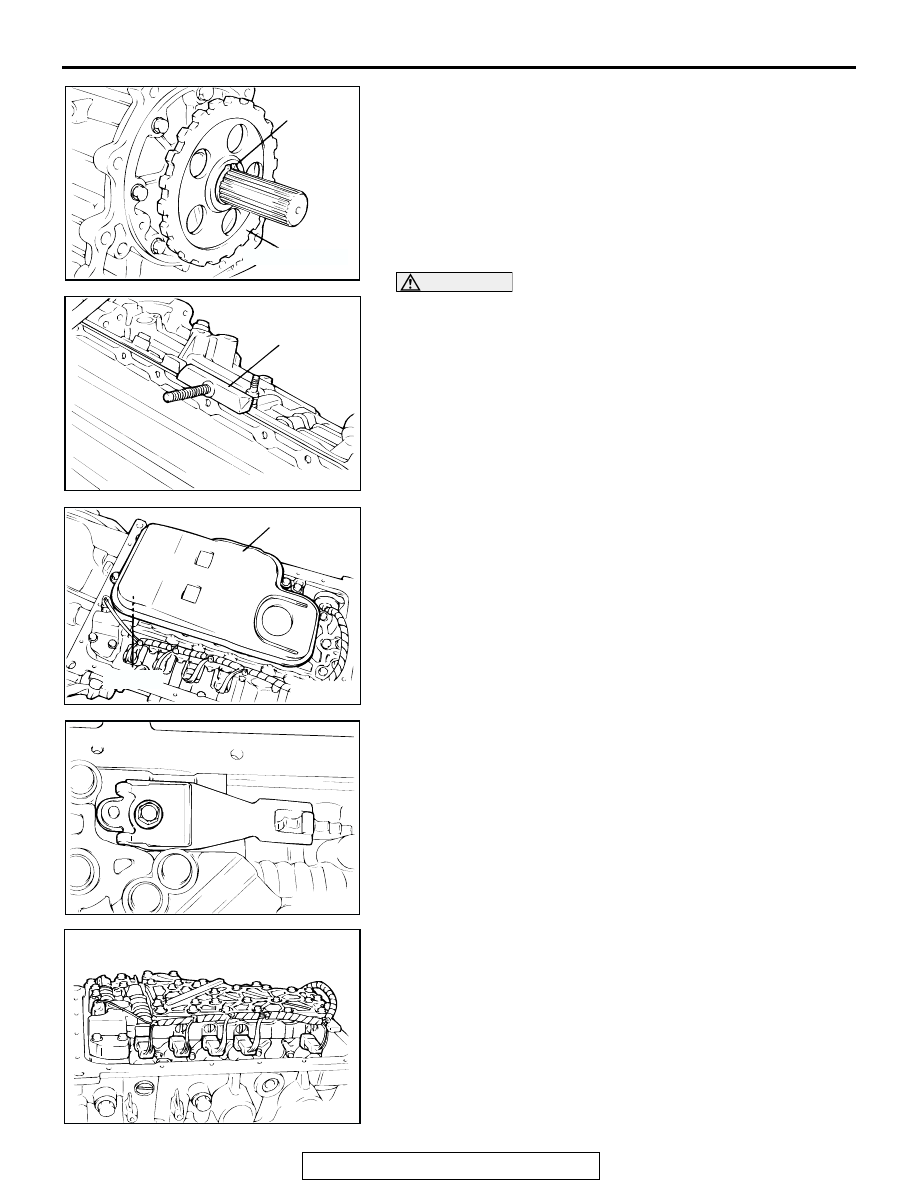

4. Remove the snap ring, and remove the parking gear using a

puller [corresponding load approximately 9,800 N (2,200
pounds)].
NOTE: Some parking gear may be removed without using a
puller.

CAUTION

Carefully hammer the special tool so that the oil pan
mounting surface is not damaged.
5. Remove the twenty oil pan mounting bolts and then using

the special tool MD998727 to remove the oil pan.

6. Remove the oil filter and O-ring.

7. Remove the detent spring.

8. Disconnect the valve body harness connectors.

AKX00024

SNAP RING

PARKING GEAR

AB

AKX00025

MD998727

AB

AKX00026

OIL FILTER

O-RING

AB

AKX00027

AKX00028

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-21

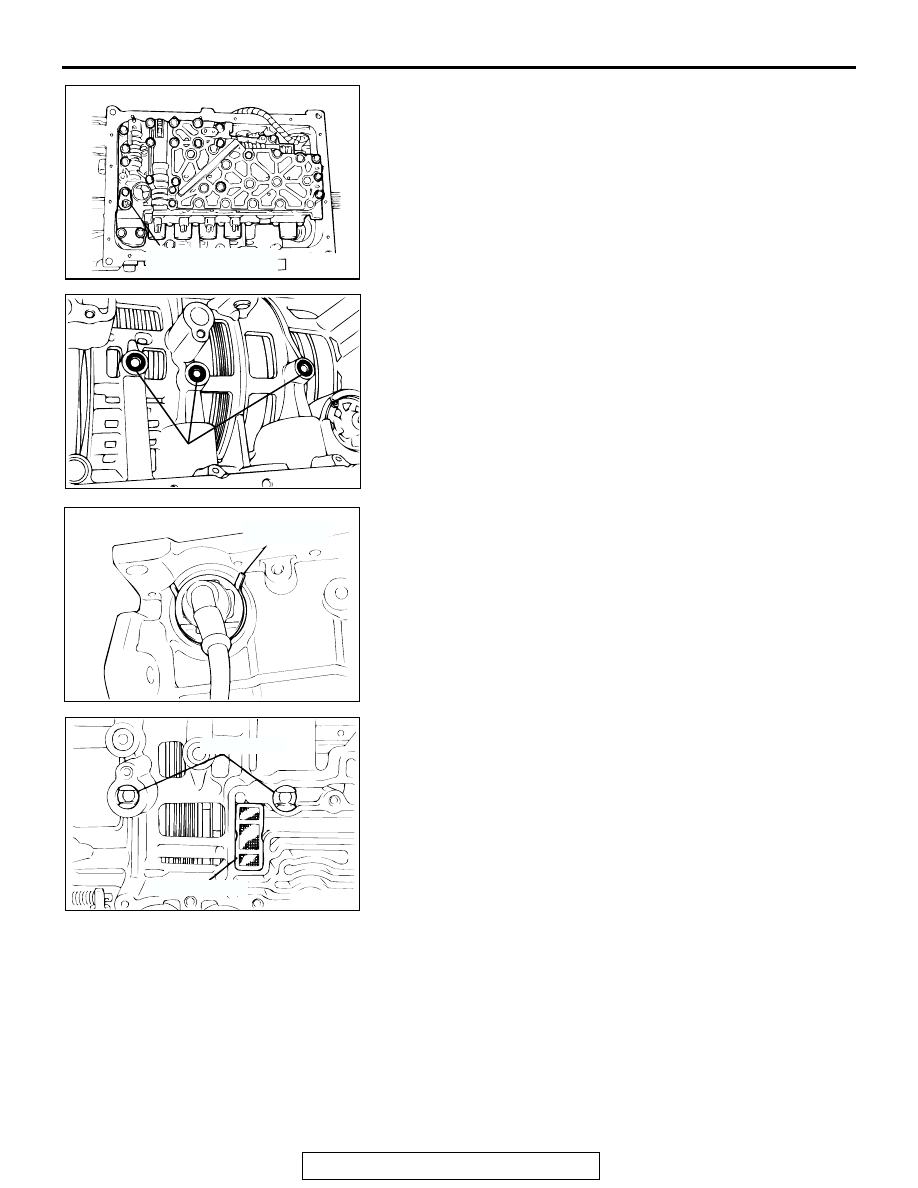

9. Remove the twenty valve body mounting bolts and then

remove the valve body, O-ring and oil temperature sensor.
NOTE: The twenty valve body mounting bolts are plated
bolts.
NOTE: The O-ring is mounted on the transmission case side
as shown in the illustration. However there may be cases
when it will come off with the valve body.

10.Remove the snap ring and disconnect the solenoid valve

harness.

11.Remove the oil strainer and two oil seals.

AKX00029

OIL TEMPERATURE
SENSOR

AB

AKX00299

O-RING

AC

AKX00031

SNAP RING

AB

AKX00032

OIL SEALS

OIL STRAINER

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-22

12.Remover each accumulator piston, seal ring, spring, snap

ring , accumulator cover, O-ring .

NOTE: To make assembly easier, attach an identification tag
on the removed accumulator piston.

13.Remove the detent lever spring pin.

14.Remove the pin, and then remove the manual control shaft,

two O-rings, detent lever and parking roller rod.

15.Remove the eight converter housing mounting bolts, and

then the converter housing.

NO.

NAME

1

FOR OVERDRIVE CLUTCH

2

FOR SECOND BRAKE

3

FOR LOW/REVERSE BRAKE

4

FOR UNDERDRIVE CLUTCH

5

FOR REDUCTION BRAKE

6

FOR DIRECT CLUTCH

AKX00033

1

2

3

4

AB

AKX00300

6

5

AC

AKX00034

SPRING PIN

AB

AKX00035

DETENT
LEVER

MANUAL
CONTROL
SHAFT

PARKING
ROLLER
ROD

PIN

AB

AKX00036
