MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-943

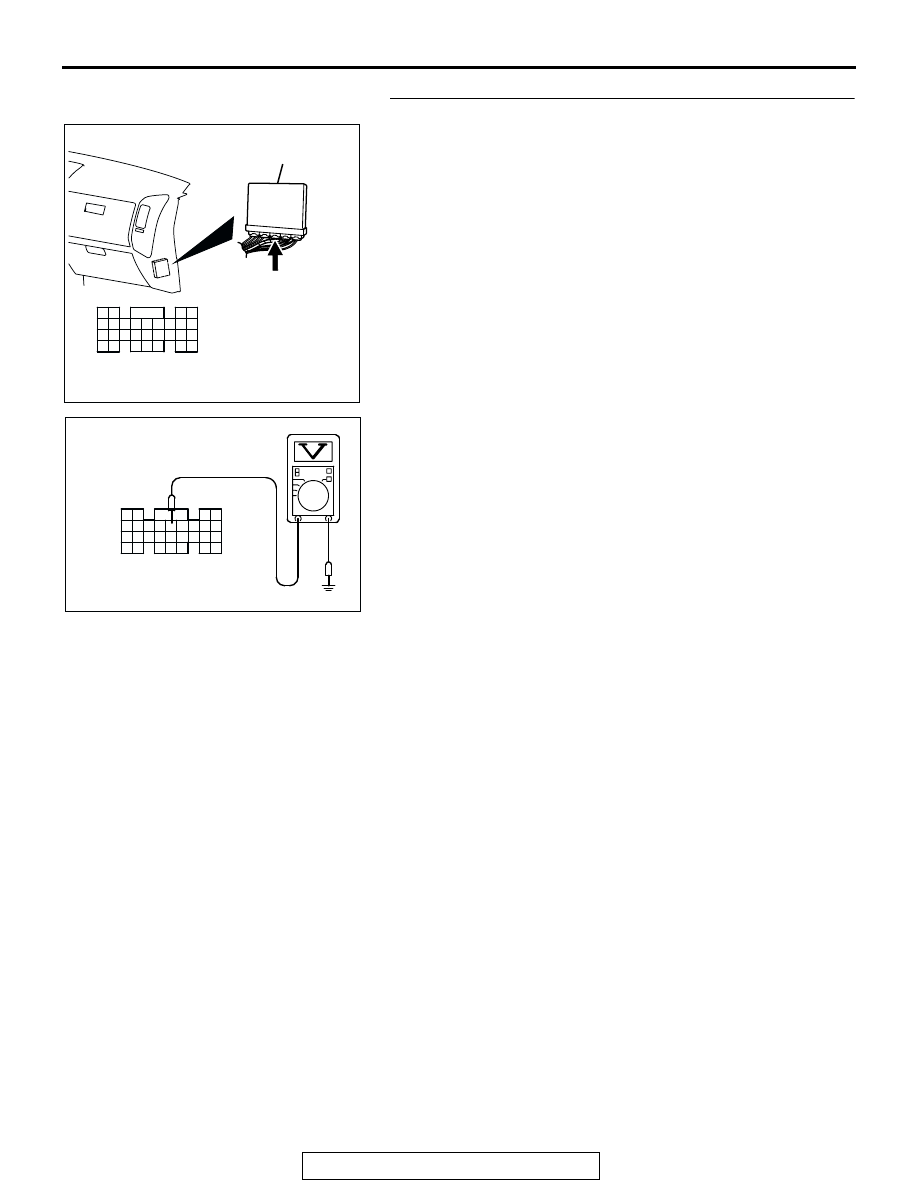

STEP 3. Check the circuit at PCM connector D-134.
(1) Disconnect the connectors D-134 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 69 and ground.

• Voltage should be 1 volt or less when the A/C switch is

"OFF".

• Voltage should be battery positive voltage when the A/C

switch is "ON".

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Replace the PCM. Then confirm that the malfunction

symptom is eliminated.

NO :  Refer to GROUP 55, Diagnosis

− Introduction To

Heater, Air Conditioning And Ventilation Diagnosis

P.55A-5

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

AK201388

D-134 HARNESS

CONNECTOR:

COMPONENT SIDE

AK201388AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-944

INSPECTION PROCEDURE 33: Accelerator Pedal Position Switch

.

CIRCUIT OPERATION

• A 5-volt voltage is applied on the accelerator

pedal position switch output terminal (terminal
No. 4) from the PCM (terminal No. 38) via the
resistor in the PCM.

• The ground terminal (terminal No.5) is grounded

with PCM (terminal No.96).

.

YELLO

W

-BLA

CK

BLA

CK

AK201165

ACCELERATOR PEDAL

POSITION

SWITCH (BUILT INTO

ACCELERATOR

PEDAL

POSITION SENSOR)

POWERTRAIN CONTROL MODULE(PCM)

5V

96

38

4

5

D-138

(MU802073)

31

35363738394041 42 43
444546474849

50 51

5253

545556

57 58

32

33 34

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

D-133

(MU803803)

D-135

(MU803805)

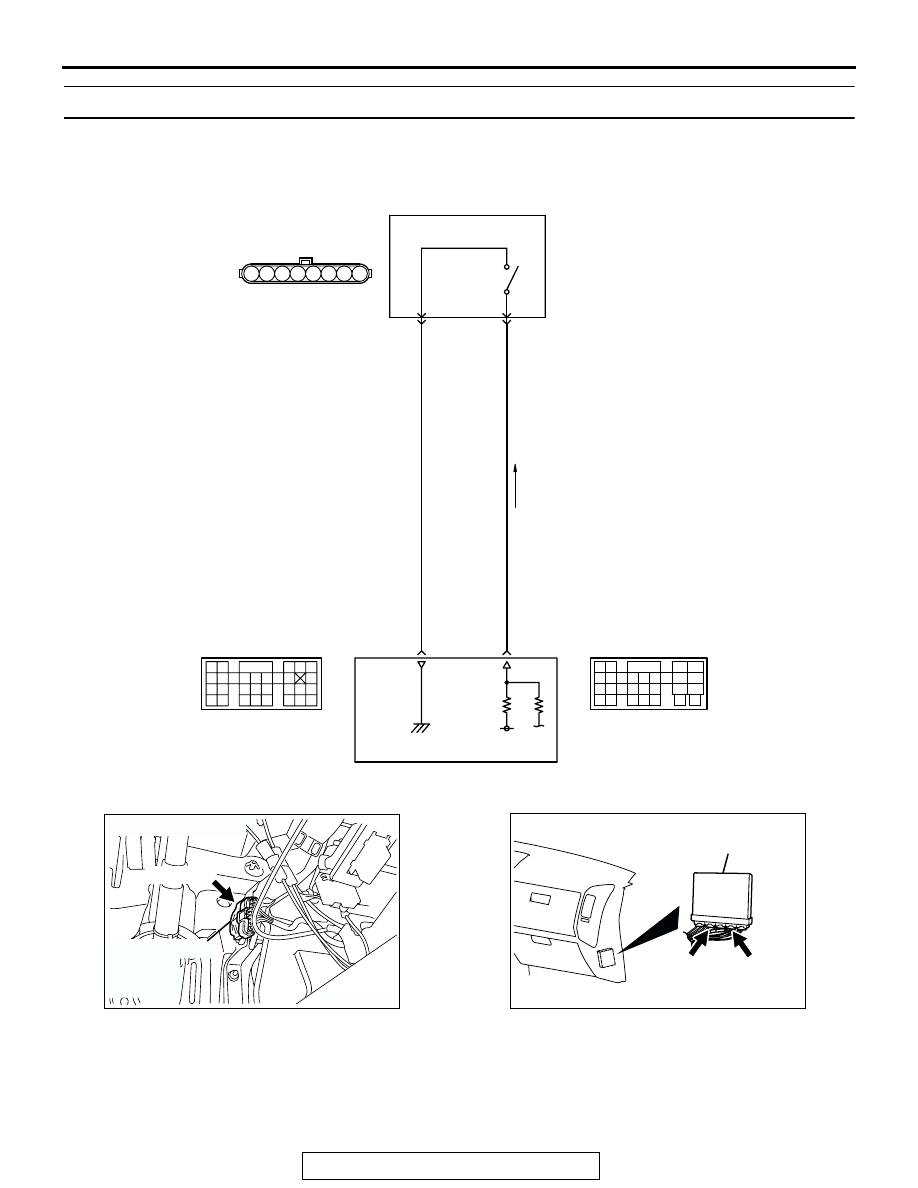

Accelerator Pedal Position Switch Circuit

6 7 8

1 2 3 4 5

AK200944AC

CONNECTOR: D-138

ACCELERATOR
PEDAL
POSITION
SWITCH

D-138(GR)

AK201038AL

CONNECTORS: D-133, D-135

PCM

D-135(GR)

D-133(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-945

COMMENT

• Accelerator pedal position switch turns OFF

when the amount of travel of the accelerator
pedal exceeds the prescribed value.

• PCM uses the signal that is input by the accelera-

tor pedal position switch for determining the
abnormal characteristics of the accelerator pedal
position sensor (sub).

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Accelerator pedal position switch failed.

• Open or shorted accelerator pedal position switch

circuit, or loose connector.

• PCM failed.

DIAGNOSIS

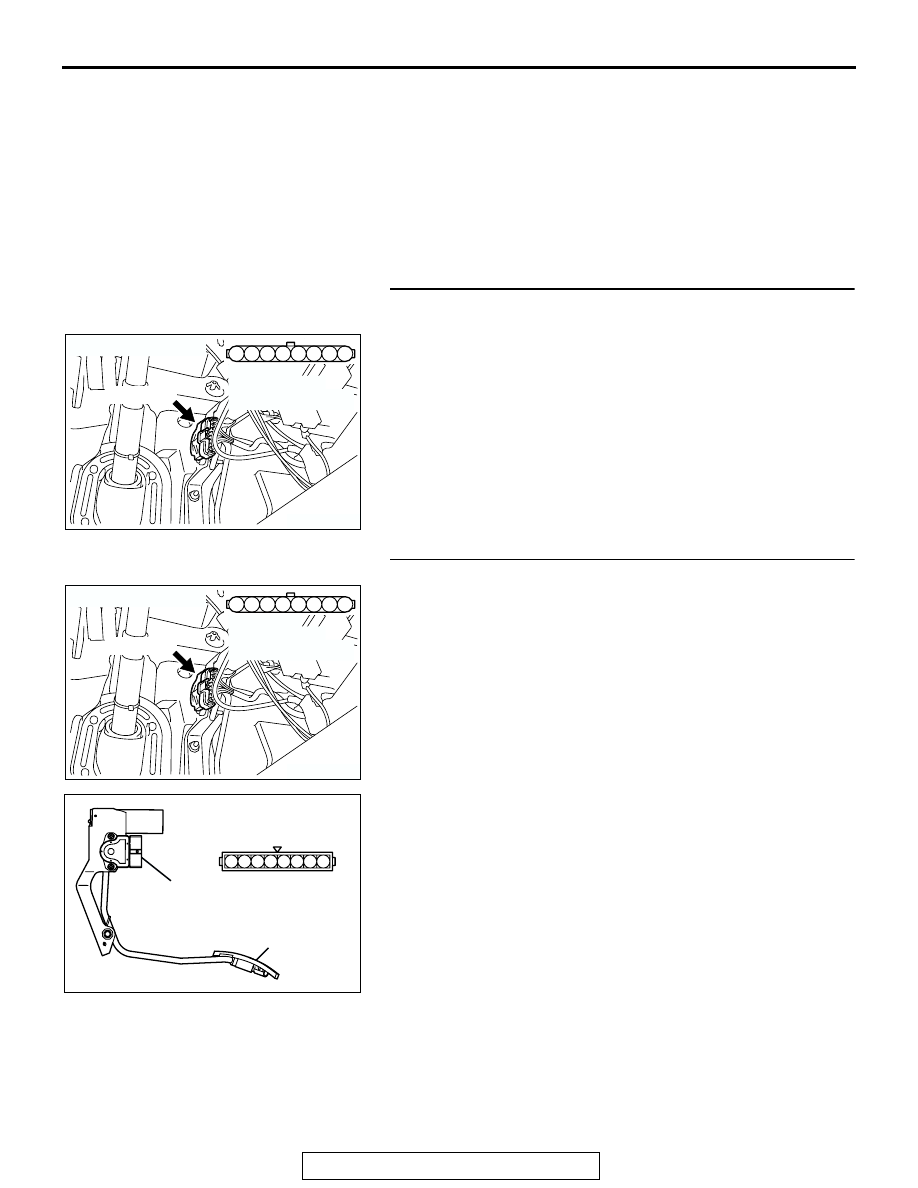

STEP 1. Check connector D-138 at accelerator pedal
position switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 2. Check the accelerator pedal position switch.
(1) Disconnect the accelerator pedal position switch connector

D-138.

(2) Check for continuity between the accelerator pedal position

switch side connector terminal No. 4 and No. 5.

• There should be continuity when the accelerator pedal

is not depressed. (400 ohms or less)

• There should be continuity when the accelerator pedal

is depressed.

Q: Does continuity exist?

YES : Go to Step 3.
NO :  Replace the accelerator pedal position sensor

P.17-8

After converting the accelerator pedal position sensor,
adjust the accelerator pedal position sensor

P.13A-994

. Confirm that the malfunction symptom is

eliminated.

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

1 2 3 4 5 6 7 8

AK201309 AC

Equipment side
connector

ACCELERATOR PEDAL
POSITION SWITCH

ACCELERATOR
PEDAL

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-946

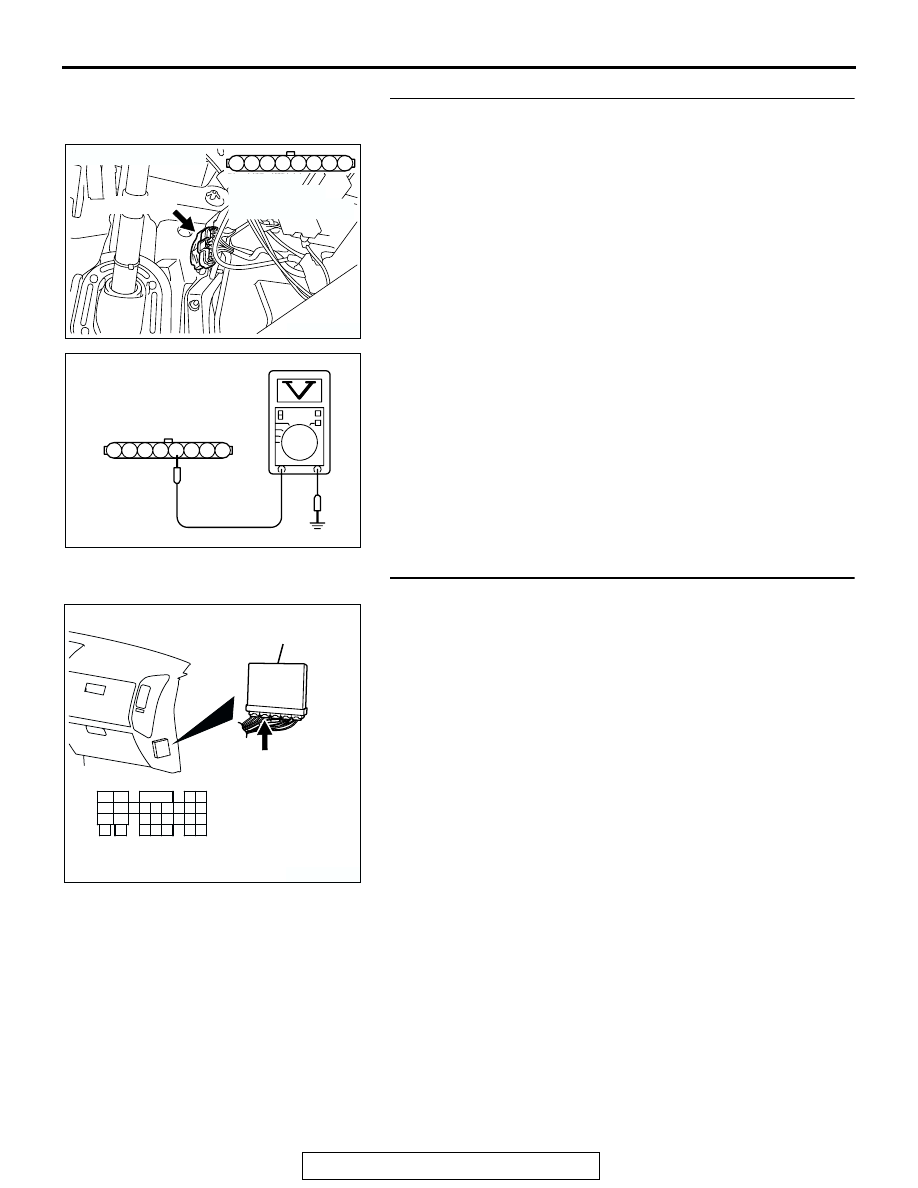

STEP 3. Measure the switch supply voltage at accelerator
pedal position switch connector D-138.
(1) Disconnect the accelerator pedal position switch connector

D-138.

(2) Measure the voltage between terminal No. 4 and ground.

• Voltage should be 4 volts or more.

Q: Is the voltage normal?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check connector D-133 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Confirm that the

malfunction system is eliminated.

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

3

4

5

1

2

8

6

7

AK201398

D-138 HARNESS
CONNECTOR:
COMPONENT SIDE

AK201398AB

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)
