MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

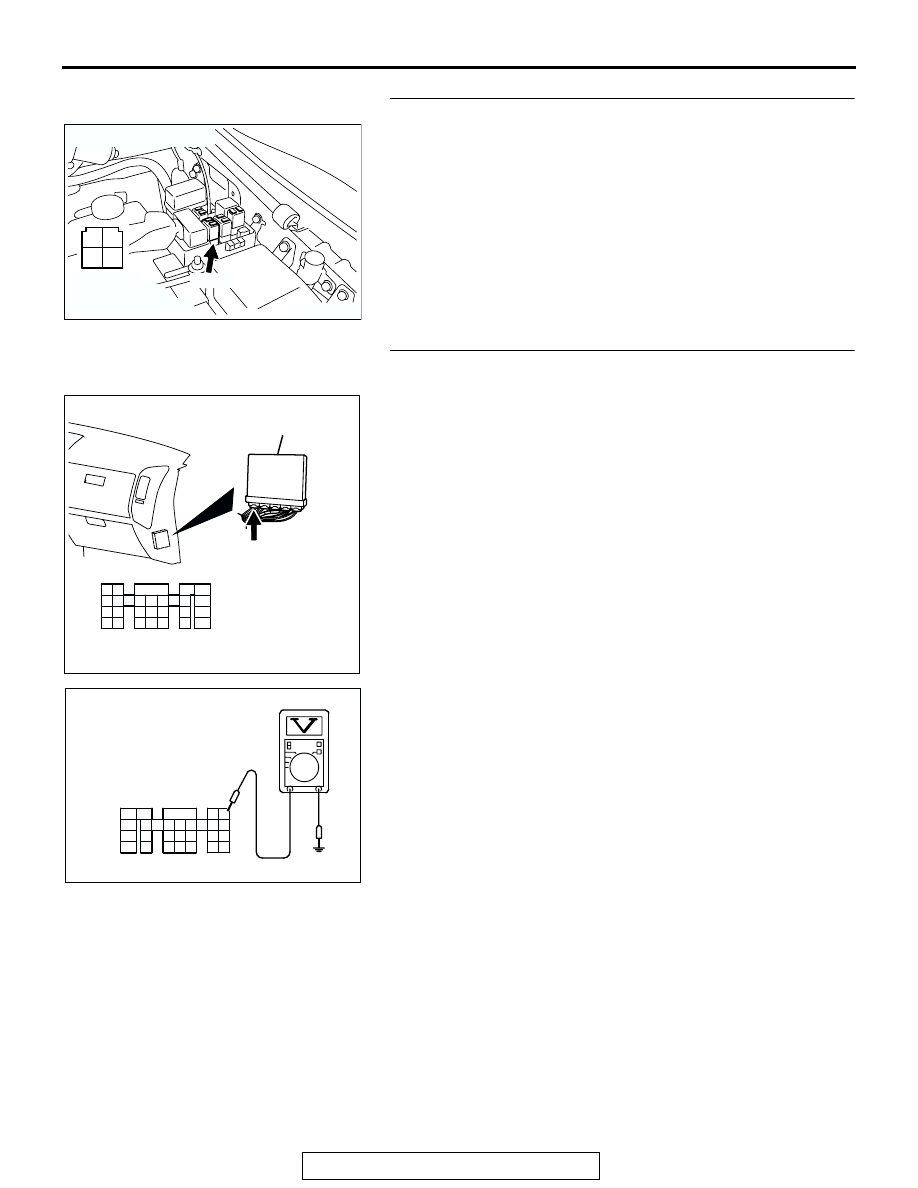

MULTIPORT FUEL INJECTION (MFI)

13A-703

STEP 5. Check connector B-22X at MFI relay for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector

B-22X terminal No. 1 and intake manifold tuning
solenoid connector B-04 terminal No. 1 because of
open circuit or short circuit to ground. Then go to Step
12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 6. Measure the power supply voltage at PCM
connector D-132 by backprobing.
(1) Do not disconnect the connector D-132.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 4 and ground by

backprobing.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 9.
NO :  Go to Step 7.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK201426

2

3 4

5

6 7 8 9

1

10

14 15

161718

1920

21 22

232425

2627

111213

AB

D-132 HARNESS
CONNECTOR:
HARNESS SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

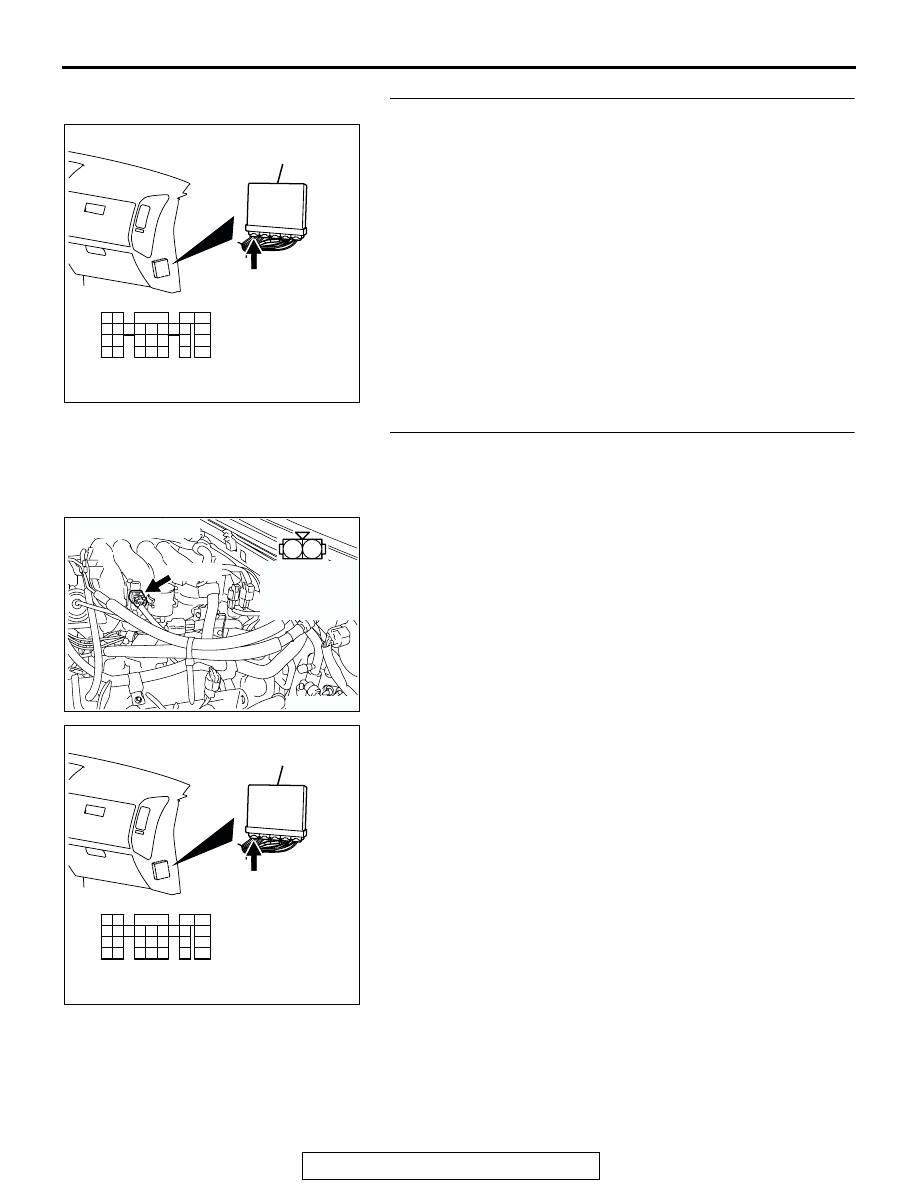

MULTIPORT FUEL INJECTION (MFI)

13A-704

STEP 7. Check connector D-132 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 8. Check for open circuit and short circuit to ground
between intake manifold tuning solenoid connector B-04
(terminal No. 2) and PCM connector D-132 (terminal No.
04).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK200971

1

2

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

CONNECTOR: B-04

B-04(B)

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

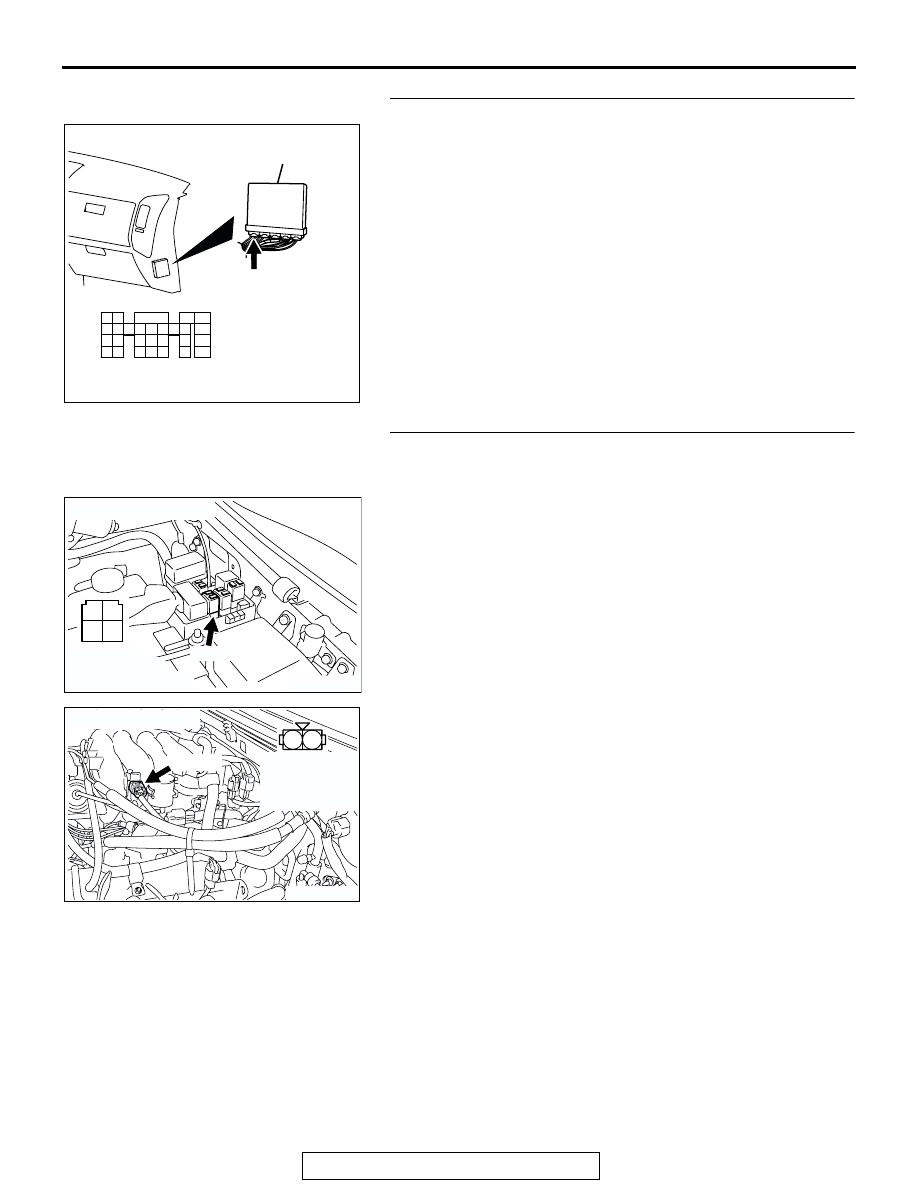

MULTIPORT FUEL INJECTION (MFI)

13A-705

STEP 9. Check connector D-132 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 10. Check for harness damage between MFI relay
connector B-22X (terminal No. 1) and intake manifold
tuning solenoid connector B-04 (terminal No. 1).
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200971

1

2

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

CONNECTOR: B-04

B-04(B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

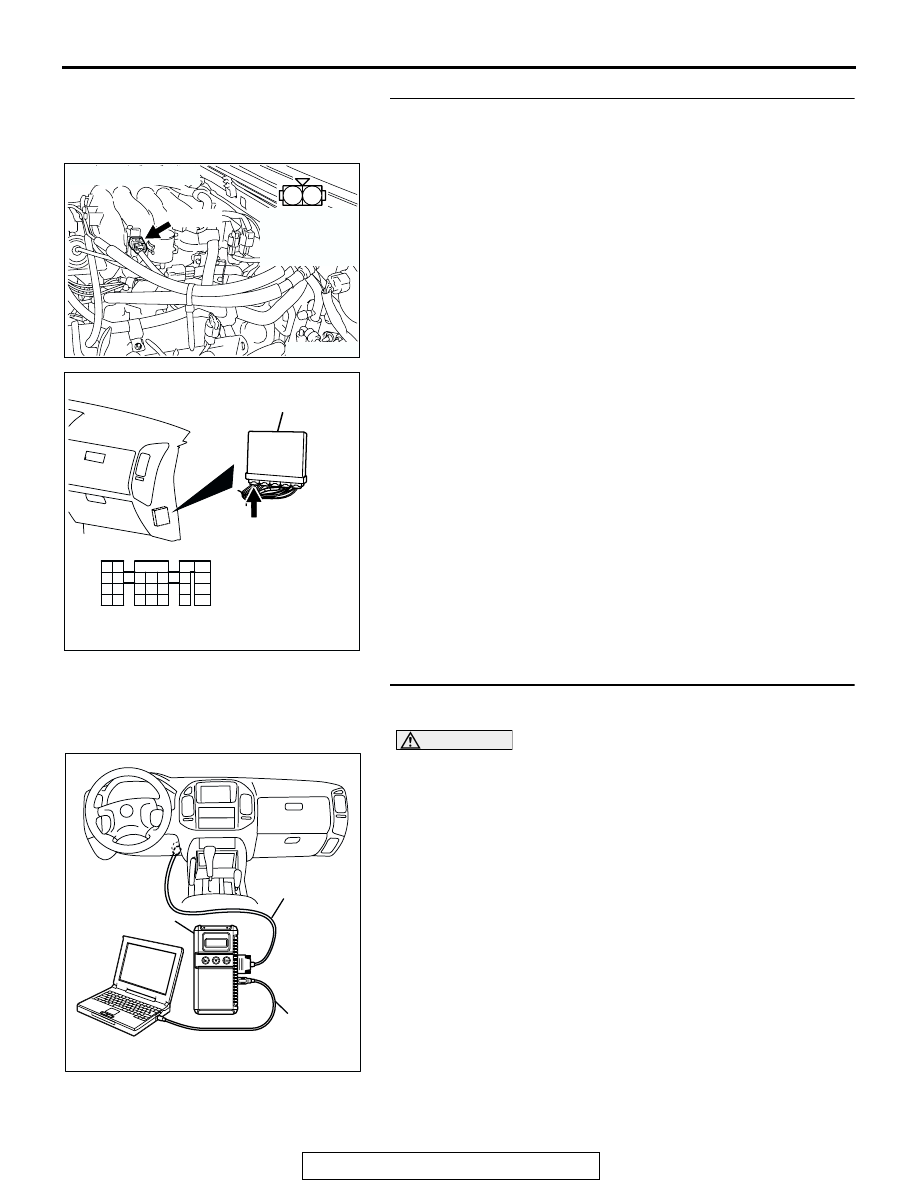

MULTIPORT FUEL INJECTION (MFI)

13A-706

STEP 11. Check for harness damage between intake
manifold tuning solenoid connector B-04 (terminal No. 2)
and PCM connector D-132 (terminal No. 4).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 12. Using scan tool MB991958, check actuator test
item 11: Variable Induction control Solenoid.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the actuator test mode for item

11, Intake manifold tuning solenoid.

• An operation sound should be heard and vibration

should be felt when the intake manifold tuning solenoid
is operated.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid operating properly?

YES : The inspection is complete.
NO :  Retry the troubleshooting.

AK200971

1

2

AB

HARNESS
CONNECTOR:
COMPONENT
SIDE

CONNECTOR: B-04

B-04(B)

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK302970

AB

MB991911

MB991824

MB991827
