MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-691

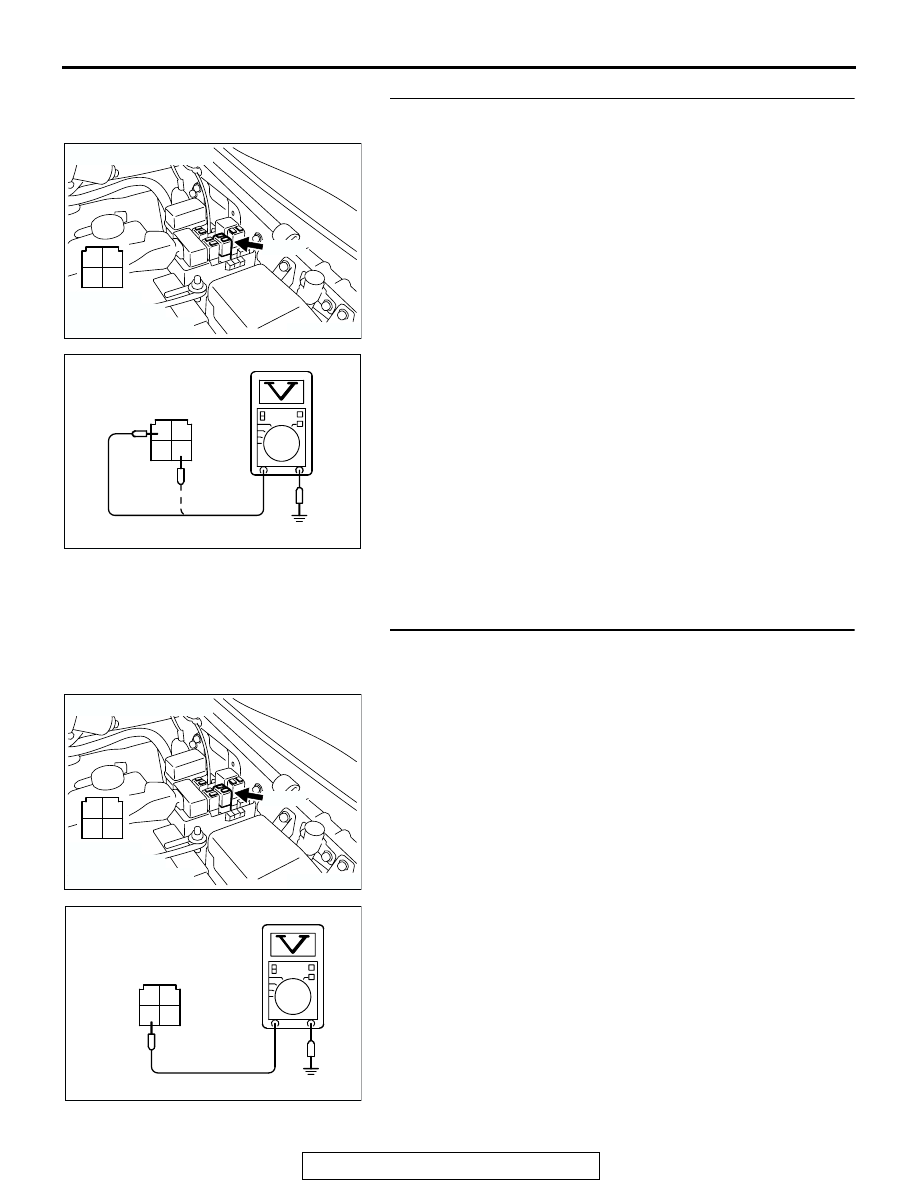

STEP 3. Measure the power supply voltage at throttle
actuator control motor relay harness side connector B-23X
(1) Disconnect the connector B-23X and measure at the

harness side.

(2) Measure the voltage between terminal No. 3 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 4.
NO :  Check harness connector A-03 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector A-03 is

in good condition, repair it because of open circuit or
short circuit to ground between fusible link (5) and
throttle actuator control motor relay connector B-23X
(terminal No. 3). Then go to Step 14.

STEP 4. Measure the power supply voltage at throttle
actuator control motor relay harness side connector
B-23X.
(1) Disconnect the connector B-23X and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 4 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 6.
NO :  Go to Step 5.

AK201172

2 1

3

4

B-23X

AB

CONNECTOR: B-23X

HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

3

4

AK201382AC

B-23X HARNESS
CONNECTOR:
COMPONFNT SIDE

AK201172

2 1

3

4

B-23X

AB

CONNECTOR: B-23X

HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

3

4

AK201383

B-23X HARNESS
CONNECTOR:
COMPONFNT SIDE

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-692

STEP 5. Check connector B-22X at MFI relay for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector

B-22X (terminal No. 1) and throttle actuator control
motor relay connector B-23X (terminal No. 4)
because of open circuit or short circuit to ground.
Then go to Step 14.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

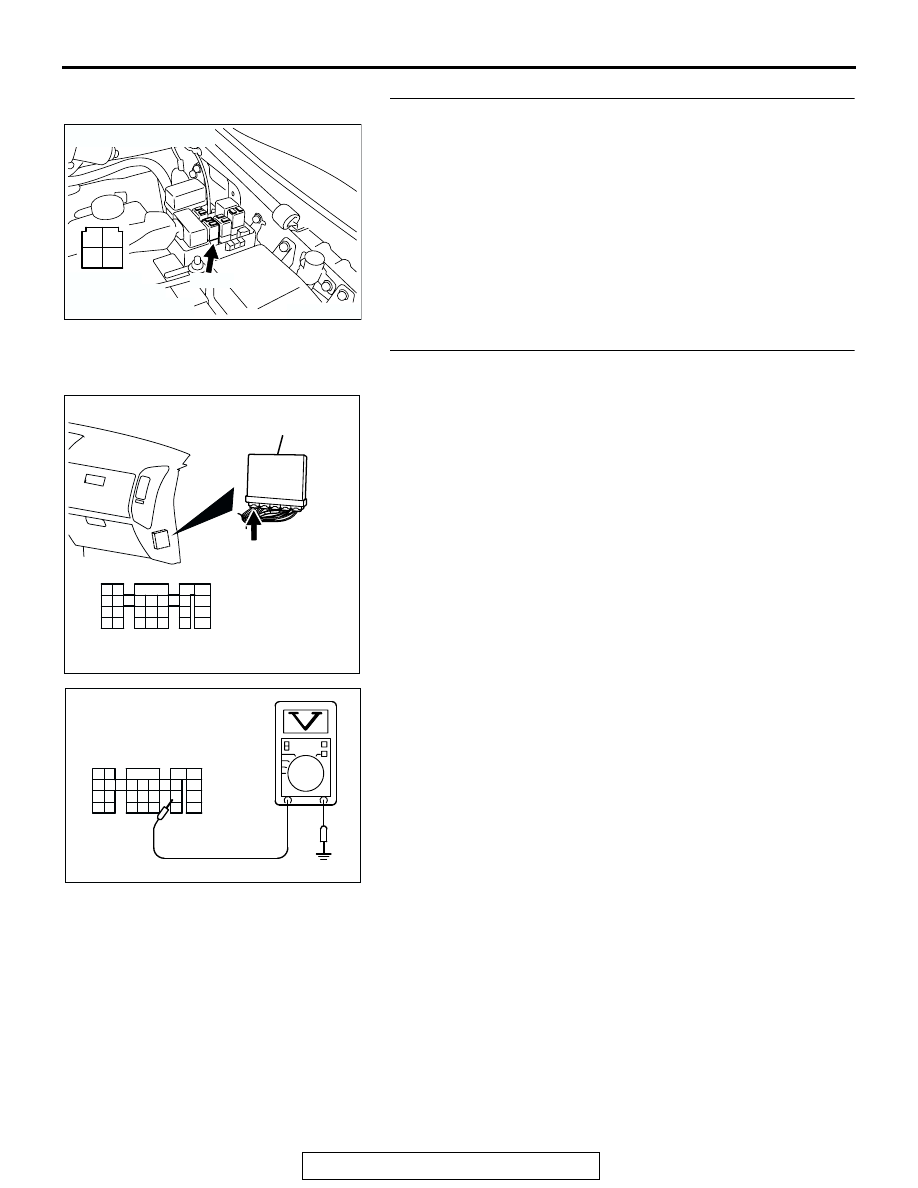

STEP 6. Measure the power supply voltage at PCM harness
side connector D-132.
(1) Disconnect the connector D-132 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 15 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 7.
NO :  Repair harness wire between throttle actuator control

motor relay connector B-23X (terminal No. 2) and
PCM connector D-132 (terminal No. 15) because of
open circuit or short circuit to ground. Then go to Step
14.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AK201447

D-132 HARNESS
CONNECTOR:
COMPONENT SIDE

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-693

STEP 7. Measure the power supply voltage at PCM harness
side connector D-136.
(1) Disconnect the connector D-136 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 132 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 10.
NO :  Go to Step 8.

AK201170

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

CONNECTOR: D-136

PCM

D-136(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

AK201448

AB

D-136 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-694

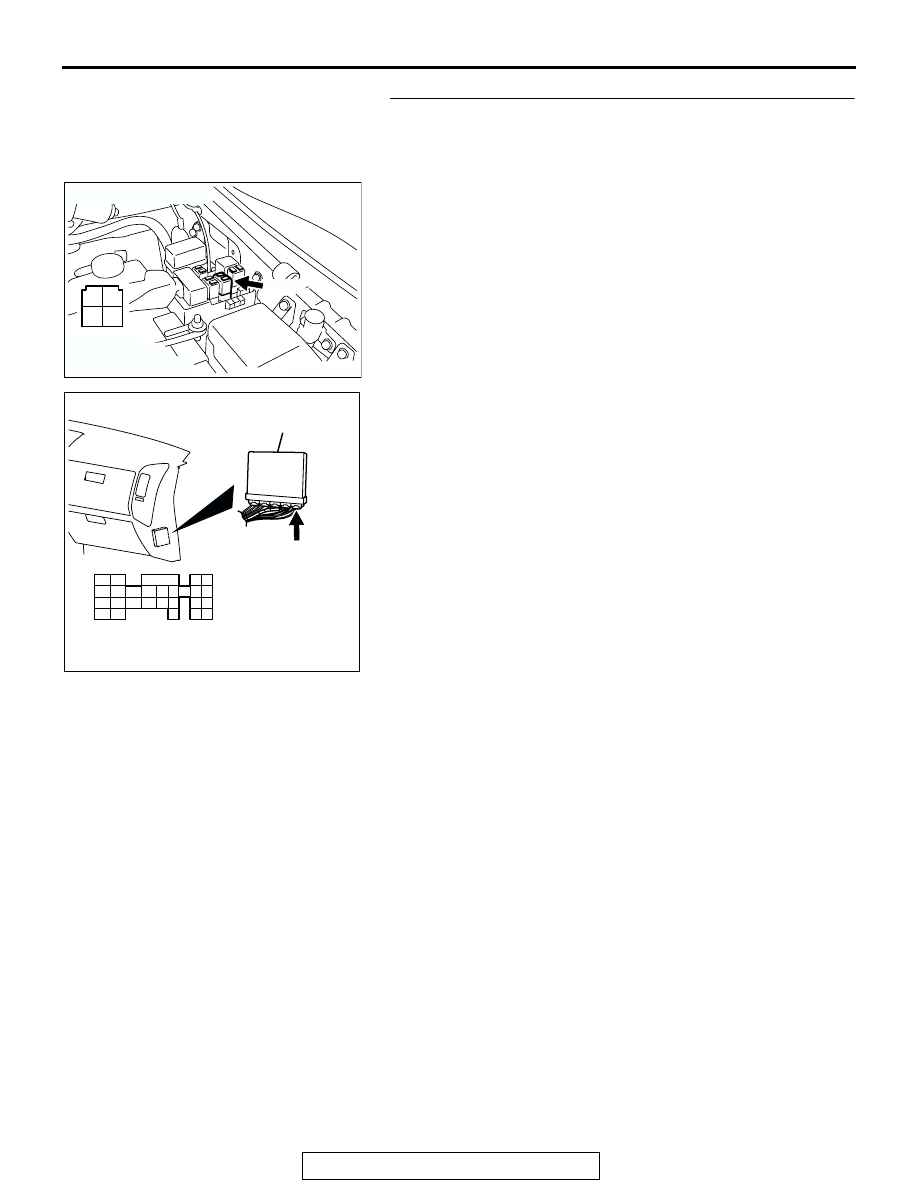

STEP 8. Check for open circuit and short circuit to ground
between throttle actuator control motor relay connector
B-23X (terminal No. 1) and PCM connector D-136 (terminal
No. 132).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 14.

AK201172

2 1

3

4

B-23X

AB

CONNECTOR: B-23X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201170

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

CONNECTOR: D-136

PCM

D-136(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB
