Mitsubishi Montero (2004+). Manual - part 252





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-495

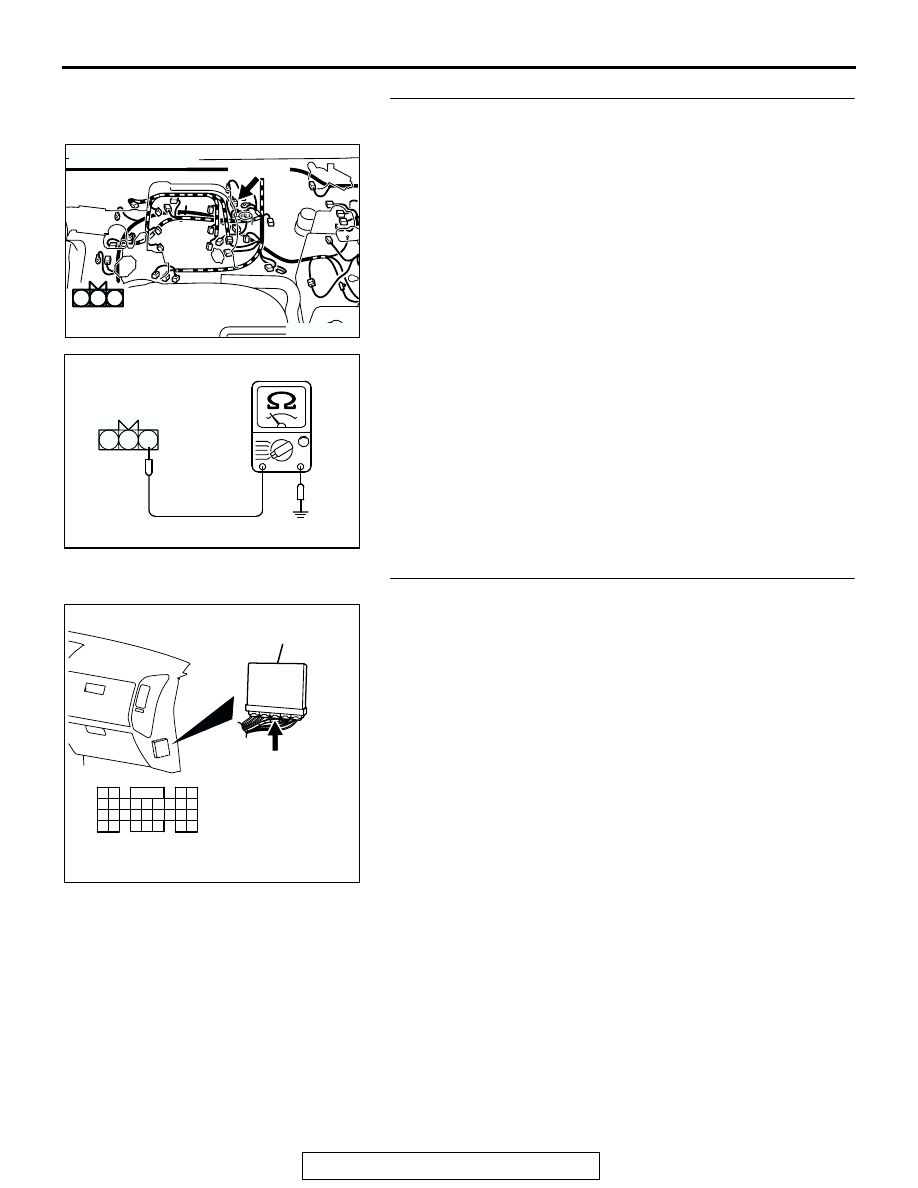

STEP 12. Check the continuity at camshaft position sensor
intermediate connector B-08.
(1) Disconnect the connector B-08 and measure at the female

side.

(2) Check for the continuity between terminal No. 1 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 15.
NO :  Go to Step 13.

STEP 13. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK302432

3 2 1

B-08(GR)

3 2 1

AB

CONNECTOR: B-08

HARNESS CONNECTOR:
COMPONENT SIDE

3 2 1

1

2

3

AK302949

B-08 HARNESS
CONNECTOR:
MALE SIDE

AB

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-496

STEP 14. Check for open circuit and harness damage
between camshaft position sensor intermediate connector
B-08 (terminal No. 1) and PCM connector D-134 (terminal
No. 88).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 21.
NO :  Repair it. Then go to Step 21.

STEP 15. Check connector B-22X at the MFI relay for
damage.
Q: Is the connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK302432

3 2 1

B-08(GR)

3 2 1

AB

CONNECTOR: B-08

HARNESS CONNECTOR:
COMPONENT SIDE

3 2 1

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-497

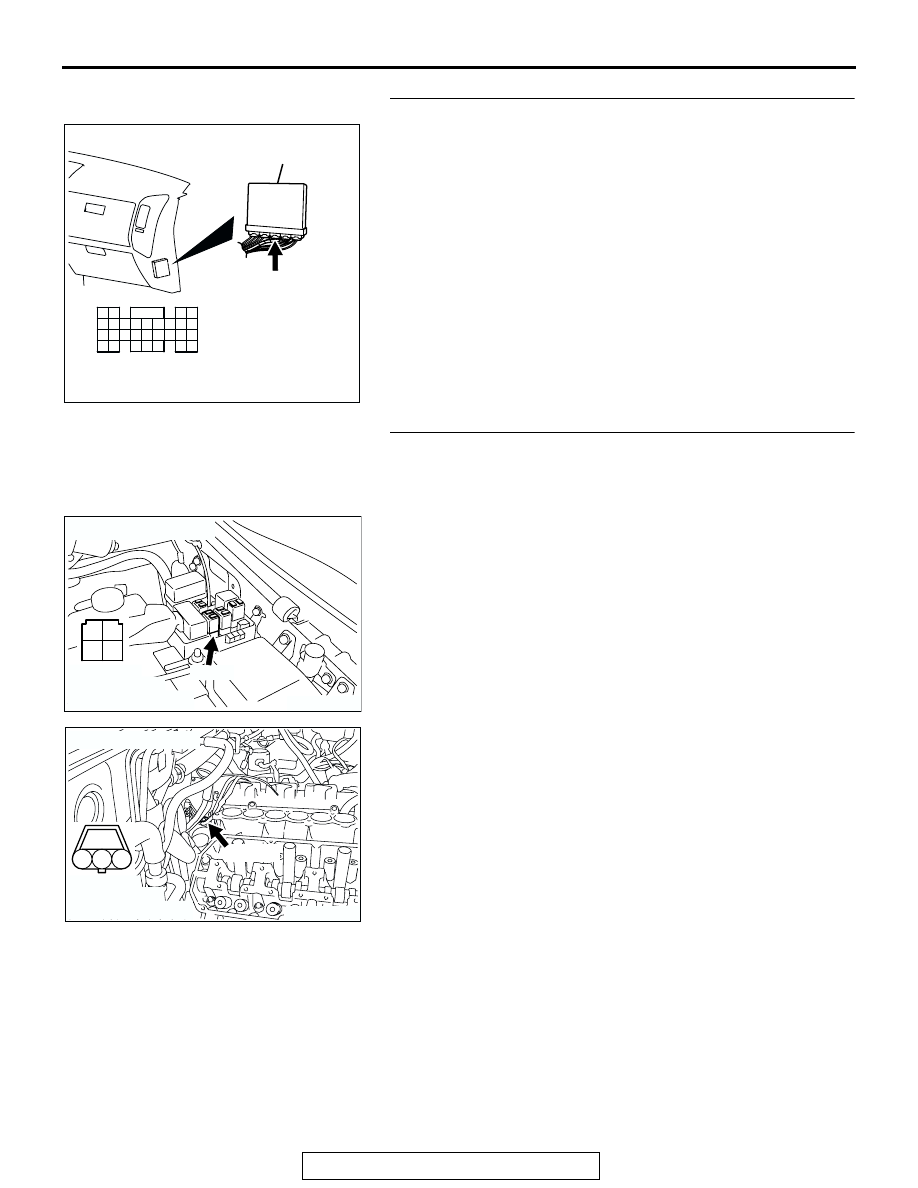

STEP 16. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

STEP 17. Check for open circuit or short circuit to ground
or harness damage between MFI relay connector B-22X
(terminal No. 1) and camshaft position sensor connector
B-10 (terminal No. 3).

NOTE: Check harness after checking intermediate connector
B-08. If intermediate connector B-08 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 21.

Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 21.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-498

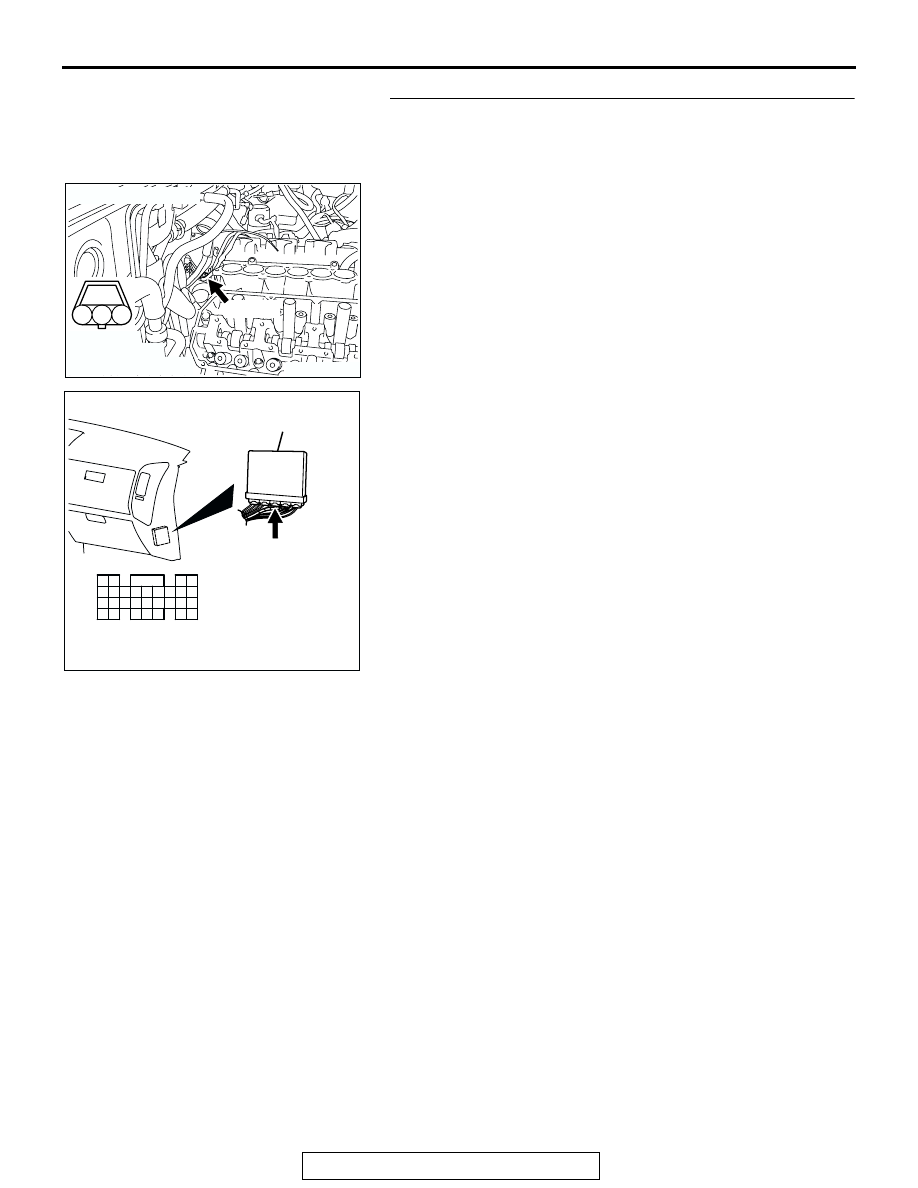

STEP 18. Check for open circuit or short circuit to ground
or harness damage between camshaft position sensor
connector B-10 (terminal No. 2) and PCM connector D-134
(terminal No. 71).

NOTE: Check harness after checking intermediate connector
B-08. If intermediate connector B-08 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 21.

Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 21.

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
