MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-475

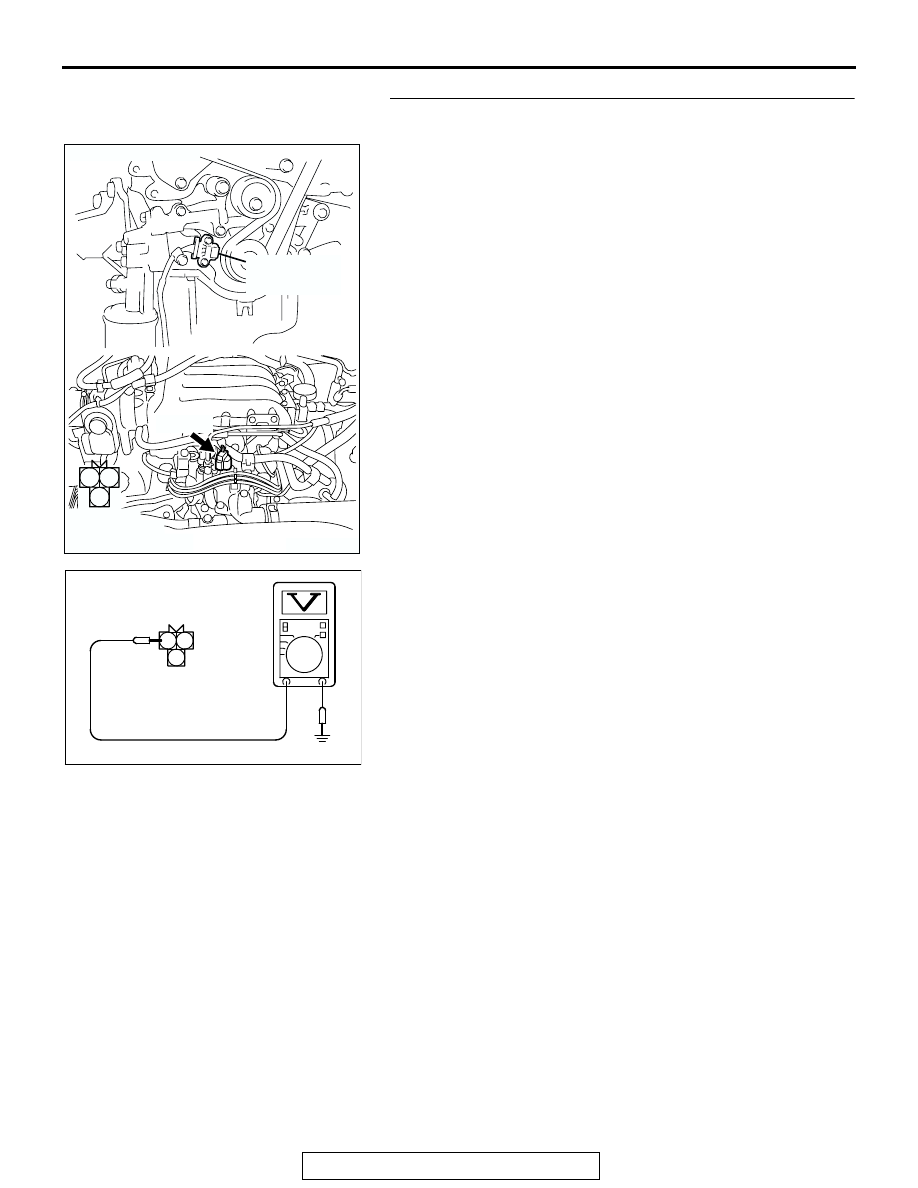

STEP 6. Measure the sensor supply voltage at crankshaft
position sensor harness side connector B-36.
(1) Disconnect the connector B-36 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 2 and ground.

• Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 11.
NO :  Go to Step 7.

AK200962

1

2

3

AB

CONNECTOR: B-36

B-36(B)

CRANKSHAFT
POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01416 AQ

2 1

3

B-36 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-476

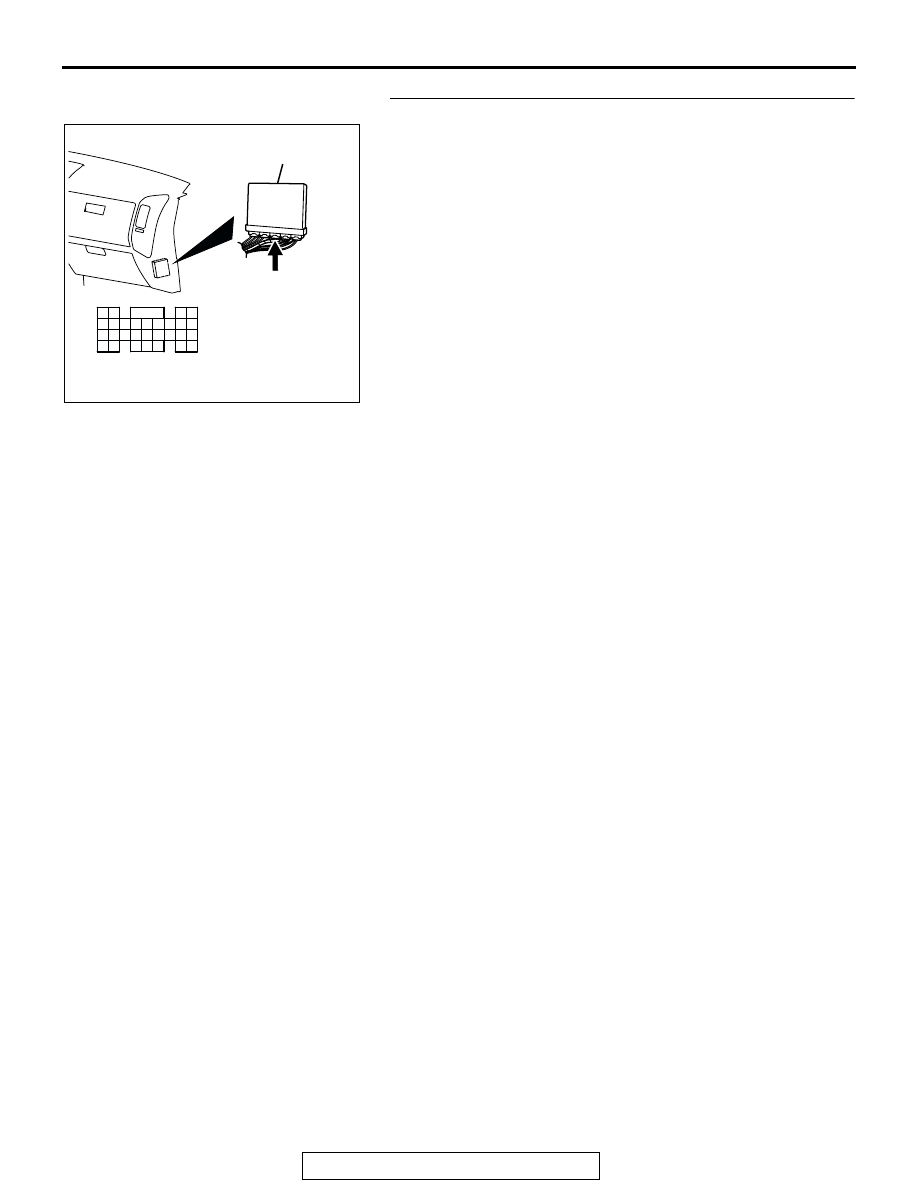

STEP 7. Measure the sensor supply voltage at PCM
connector D-134 by backprobing.
(1) Do not disconnect the PCM connector D-134.
(2) Disconnect the crankshaft position sensor connector B-36.
(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal No. 70 and ground

by backprobing.

• Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 8.
NO :  Go to Step 9.

STEP 8. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Repair it because of open circuit between crankshaft

position sensor connector B-36 (terminal No. 2) and
PCM connector D-134 (terminal No. 70). Then go to
Step 21.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK201416

61
656667686970 717273
74757677787980 8182
8384

858687

8889

62

6364

AB

D-134 HARNESS
CONNECTOR:
HARNESS SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-477

STEP 9. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-478

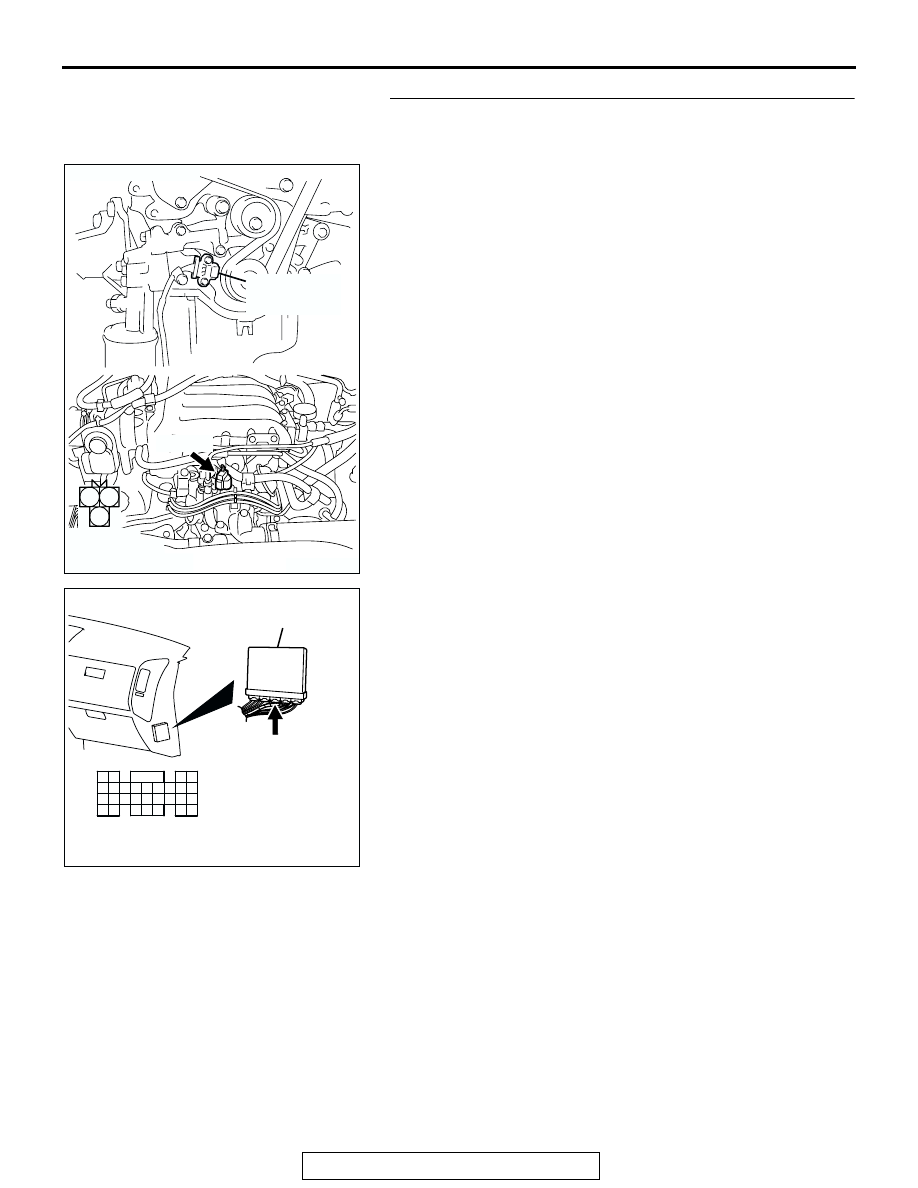

STEP 10. Check for short circuit to ground between
crankshaft position sensor connector B-36 (terminal No. 2)
and  PCM connector D-134 (terminal No. 70).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 21.
NO :  Repair it. Then go to Step 21.

AK200962

1

2

3

AB

CONNECTOR: B-36

B-36(B)

CRANKSHAFT
POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
