MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-279

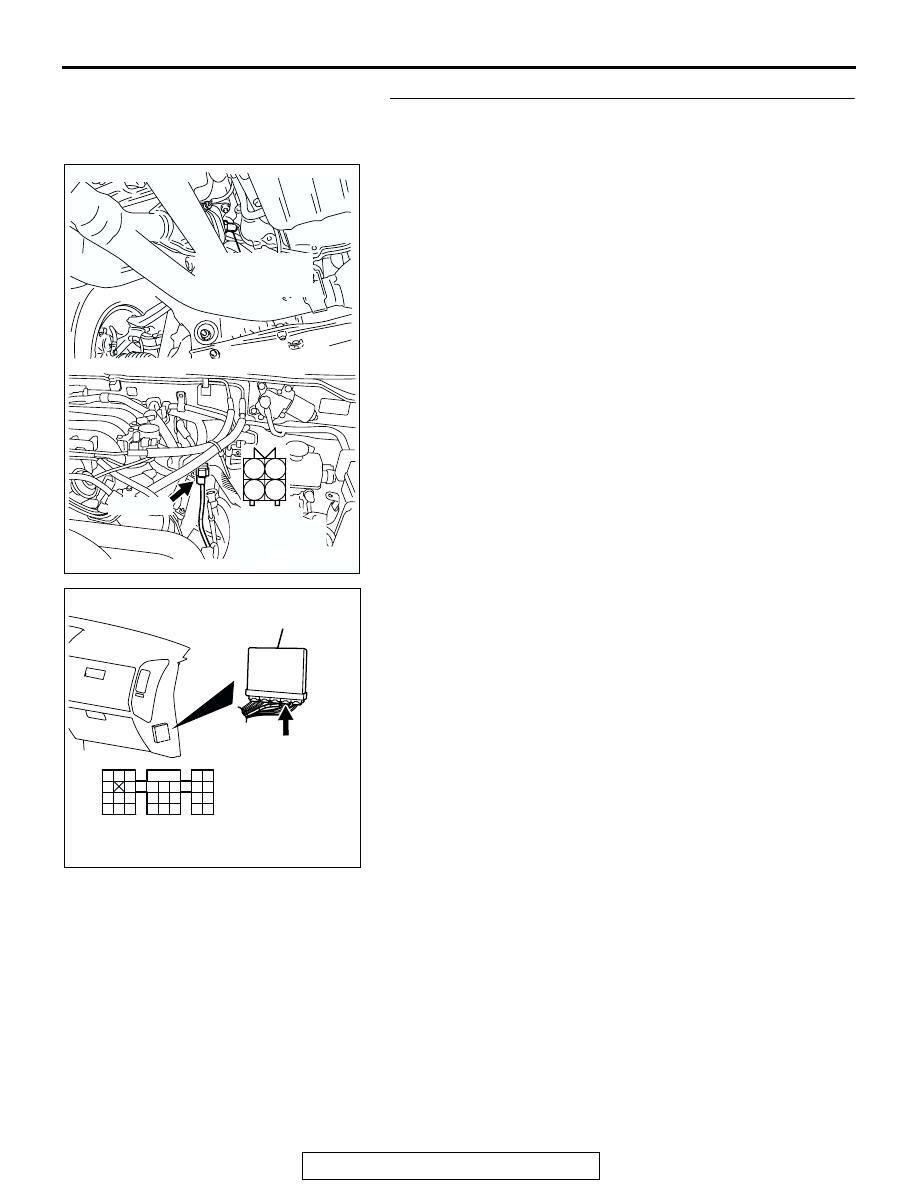

STEP 10. Check for open circuit and harness damage
between left bank heated oxygen sensor (front) connector
B-26 (terminal No. 2) and PCM connector D-135 (terminal
No. 96).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AC

HARNESS
CONNECTOR:
COMPONENT
SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-280

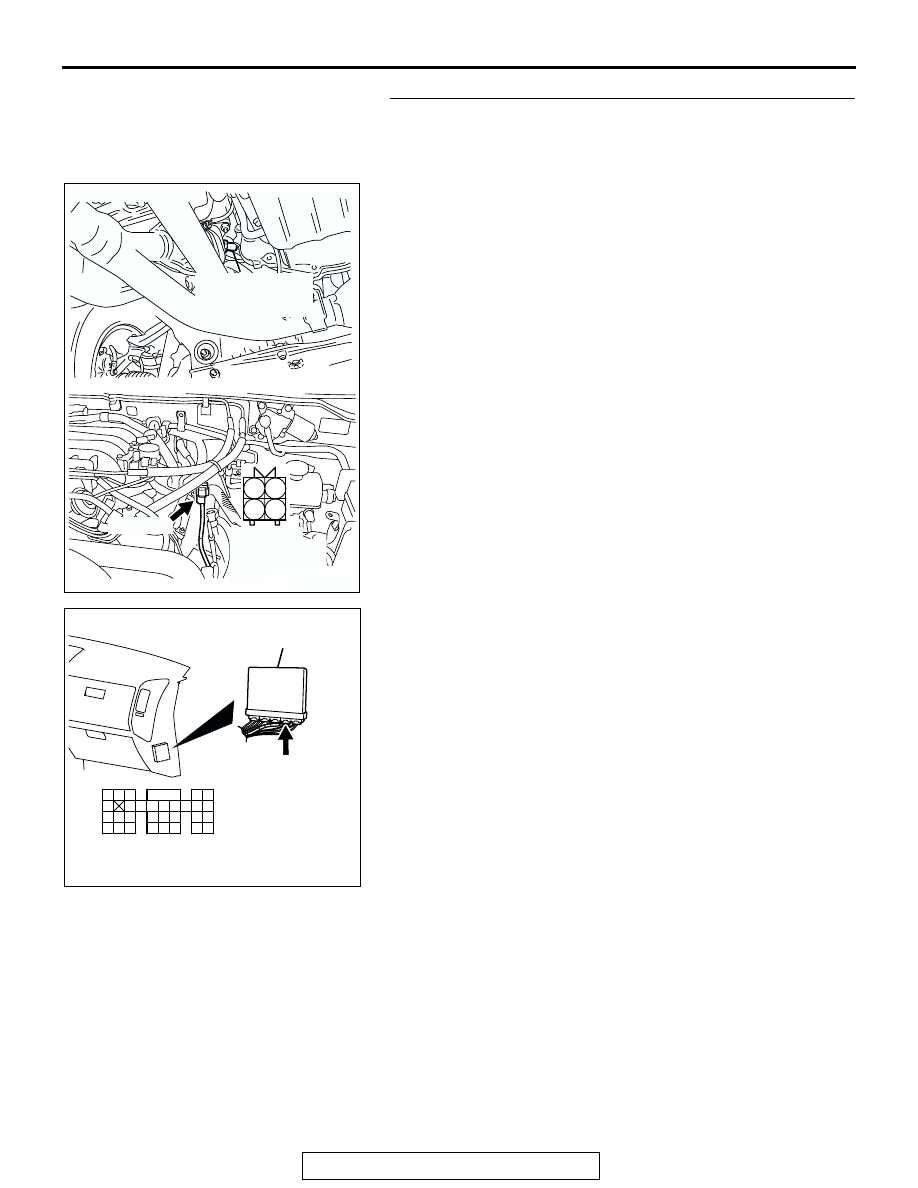

STEP 11. Check harness connector D-135 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Then go to Step 15.

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-281

STEP 12. Check for harness damage between left bank
heated oxygen sensor (front) connector B-26 (terminal No.
2) and PCM connector D-135 (terminal No. 96).

Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AC

HARNESS
CONNECTOR:
COMPONENT
SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-282

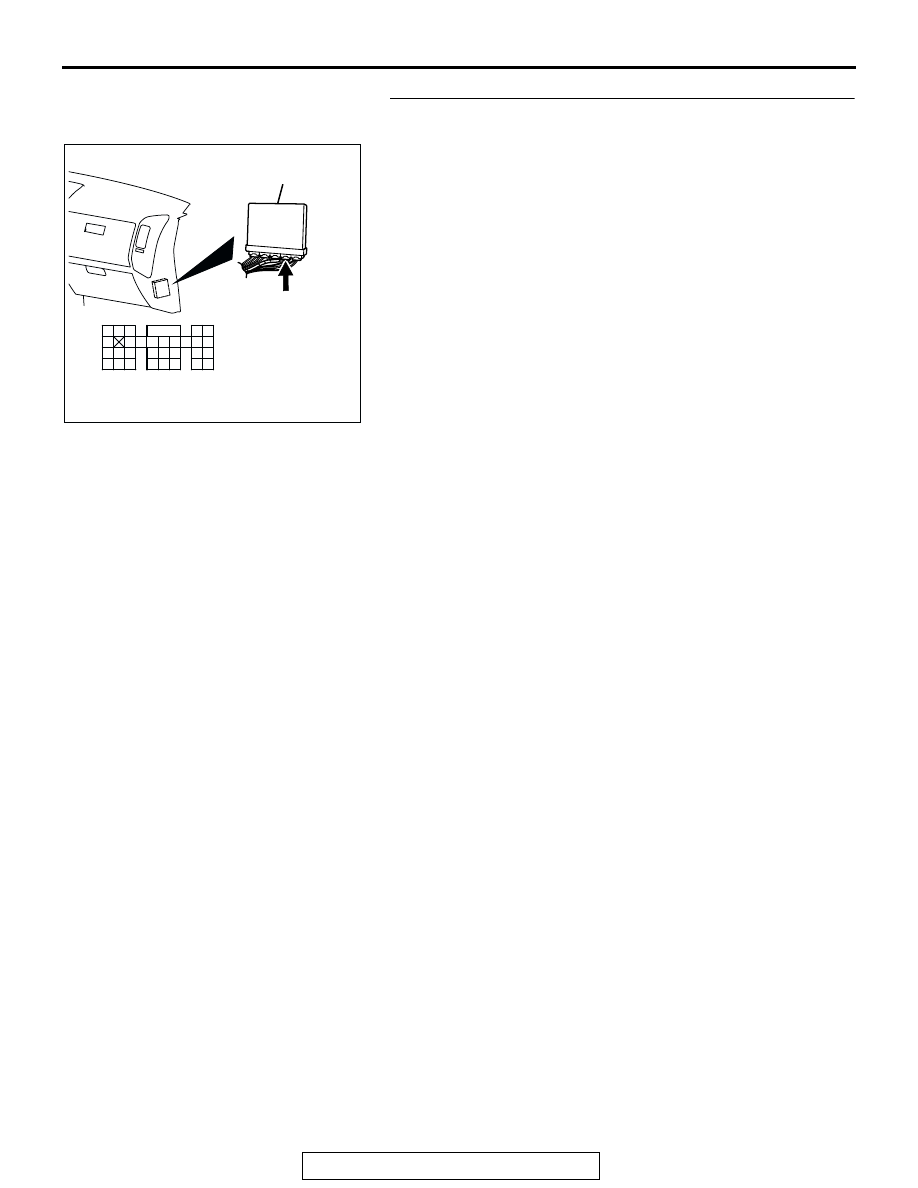

STEP 13. Check for short circuit to ground and harness
damage between left bank heated oxygen sensor (front)
connector B-26 (terminal No. 4) and PCM connector D-135
(terminal No. 108).

Q: Is the harness wire in good condition?

YES : Go to Step 14.
NO :  Repair it. Then go to Step 15.

AK201278

1

2

3

4

CONNECTOR: B-26

B-26(GR)

AC

HARNESS
CONNECTOR:
COMPONENT
SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)
