MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-255

STEP 3. Check harness connector C-14 at right bank
heated oxygen sensor (rear) and harness connector D-135
at PCM for damage.

Q: Is the harness connector in good condition?

YES : Replace the PCM.Then go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 4.

STEP 4. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0139 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK201276

1

2

3

4

CONNECTOR: C-14

C-14(GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-256

DTC P0141: Heated Oxygen Sensor Heater Circuit (bank 1, sensor 2)

TO PCM

TO PCM

WHITE-

BL

ACK

WHITE-

BL

ACK

AK201134

RED

YELL

OW

-BL

ACK

YELL

OW

-BL

ACK

RED

RIGHT BANK HEATED
OXYGEN SENSOR (REAR)

4

1 2
3

B-22X

3

2

4

1

BATTERY

4

12

9

6

10

17

18

29

2

3 4

7 8

19 20

30 31

12

11

24

33 34 35

21

32

27

26

36 37

28

38

25

13

15

14

16

23

22

1

5

E-114

1

3

2

4

24

MFI
RELAY

POWERTRAIN
CONTROL
MODULE (PCM)

4

3

1 2

C-14

MU802665

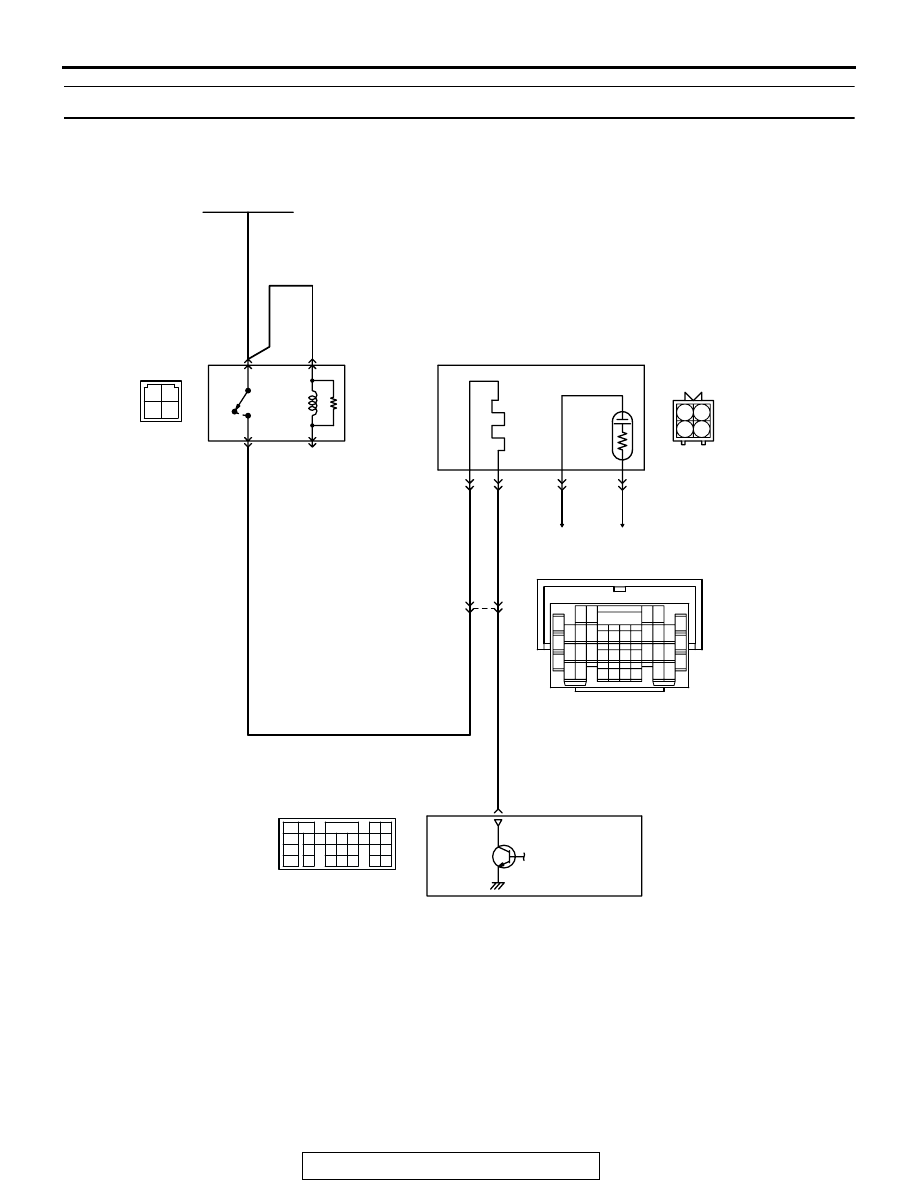

Right Bank Heated Oxygen Sensor (rear) Heater Circuit

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

D-132

(MU803802)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-257

.

CIRCUIT OPERATION

• Power is supplied from the MFI relay (terminal

No. 1) to the right bank heated oxygen sensor
(rear) heater.

• The PCM (terminal No. 24) controls continuity to

the right bank heated oxygen sensor (rear)
heater by turning the power transistor in the PCM
"ON" and "OFF".

.

TECHNICAL DESCRIPTION

• The PCM checks whether the heater current is

within a specified range when the heater is ener-
gized.

.

DESCRIPTIONS OF MONITOR METHODS
Right bank heated oxygen sensor heater (rear) cur-

rent is out of specified range when engine coolant
temperature is over 20

°C (68°F).

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

.

AK201039

MFI RELAY

B-22X

AB

CONNECTOR: B-22X

AK201275

CONNECTOR: C-14

C-14(GR)

AB

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK201038

CONNECTOR: D-132

AB

PCM

D-132(GR)

AK201052

CONNECTOR: E-114

E-114

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-258

DTC SET CONDITIONS

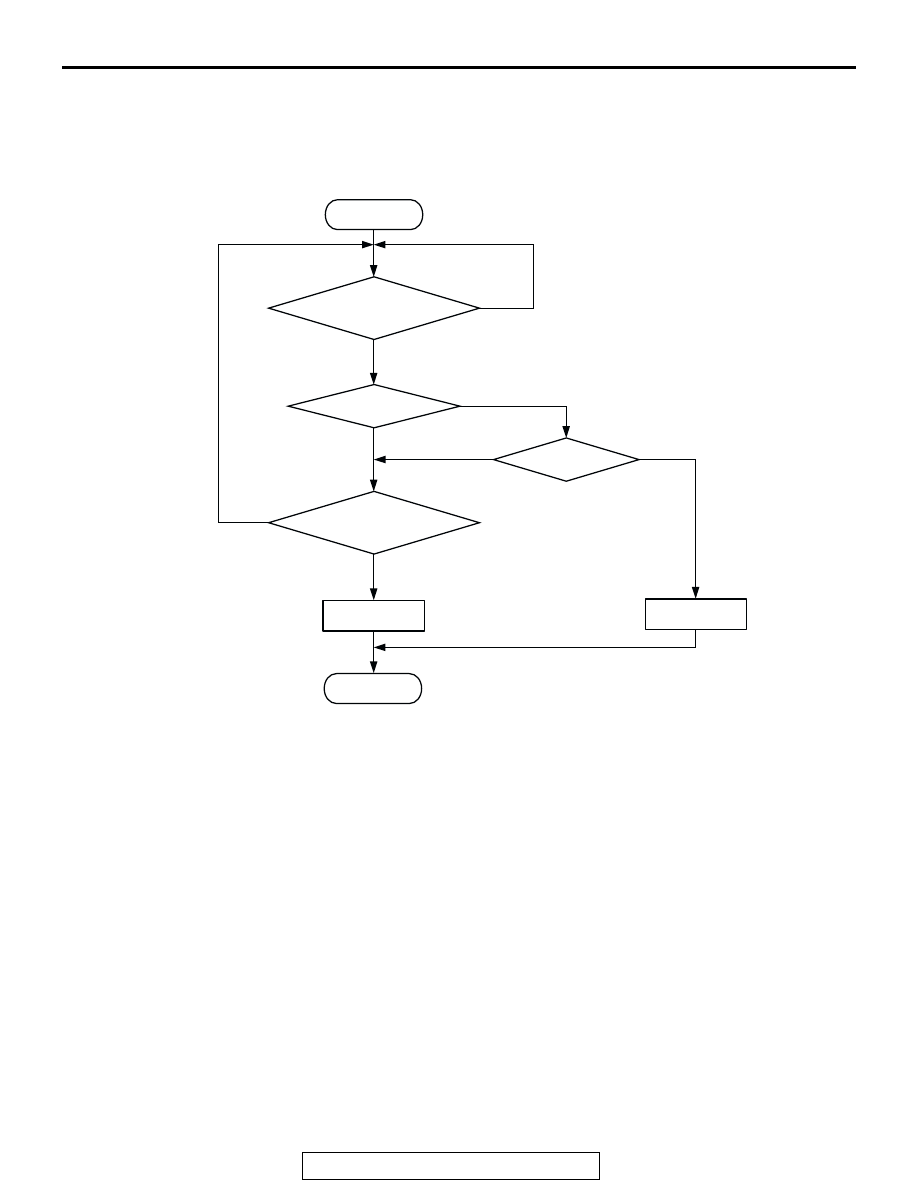

Logic Flow Chart

.

Check Conditions

• 60 seconds have elapsed from the start of the

previous monitoring.

• Engine coolant temperature is higher than 20°C

(68

°F).

• While the right bank heated oxygen sensor (rear)

heater is on.

• Battery positive voltage is at between 11 and 16.5

volts.

Judgment Criteria

• The right bank heated oxygen sensor (rear)

heater current has continued to be lower than
0.16 ampere or higher than 5.0 ampere for 4 sec-
onds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Right bank heated oxygen sensor (reat) deterio-

rated.

• Open or shorted right bank heated oxygen sen-

sor (rear) heater circuit or harness damage.

• Connector damage.

• PCM failed.

START

END

YES

YES

YES

YES

NO

NO

NO

NO

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 4secs

MONITORING

CONDITIONS

CURRENT < 0.16A

CURRENT > 5.0A
