Mitsubishi Montero (2004+). Manual - part 190





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-247

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the engine

starting sequence was completed.

Judgment Criteria

• Right bank heated oxygen sensor (rear) output

voltage has continued to be 1.2 volts or higher for
2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Short circuit in right bank heated oxygen sensor

(rear) output line.

• Connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

END

NO

NO

YES

YES

MALFUNCTION

GOOD

2secs HAVE PASSED?

OUTPUT VOLTAGE > 1.2V

NO

YES

MONITORING

CONDITIONS

AK302931

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-248

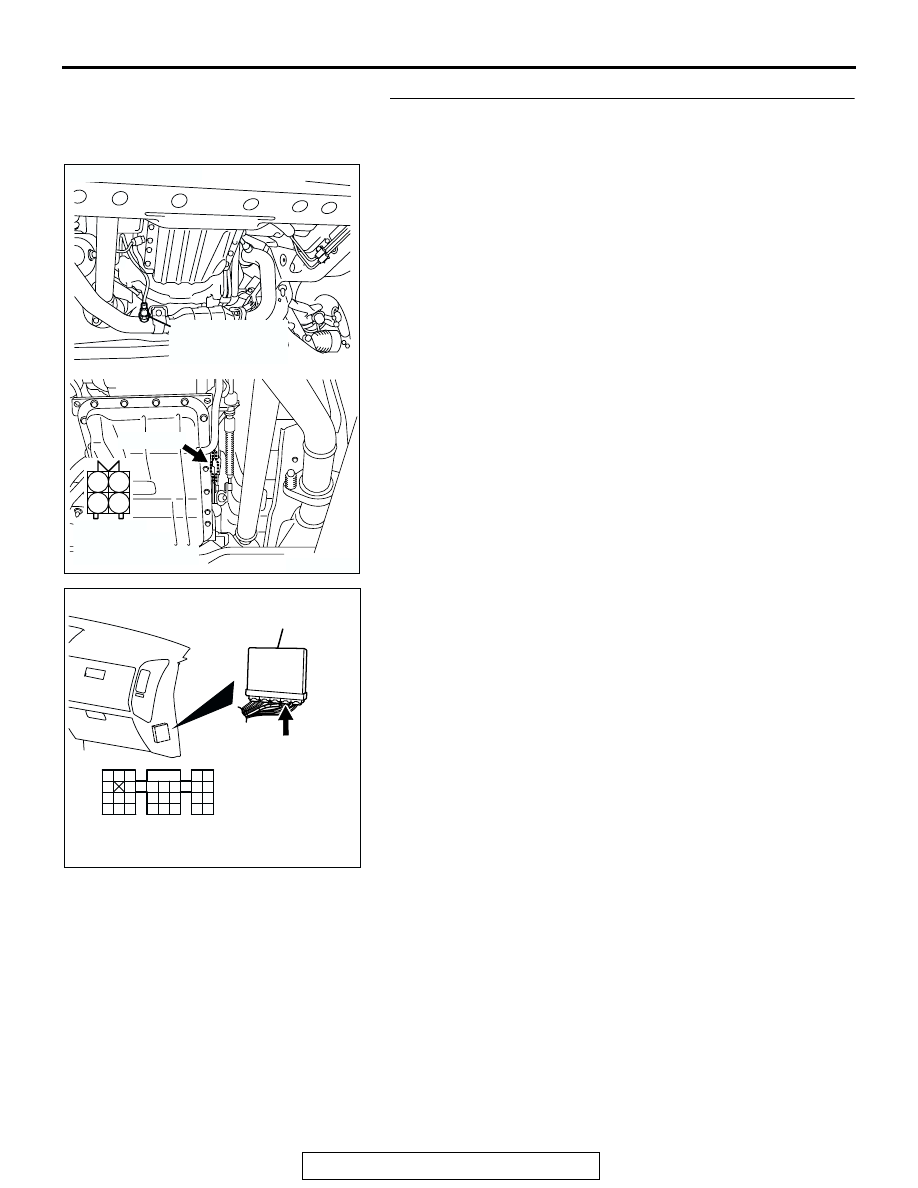

STEP 1. Check connector C-14 at right bank heated
oxygen sensor (rear) and connector D-135 at PCM for
damage.

Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 3.

AK201276

1

2

3

4

CONNECTOR: C-14

C-14(GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-249

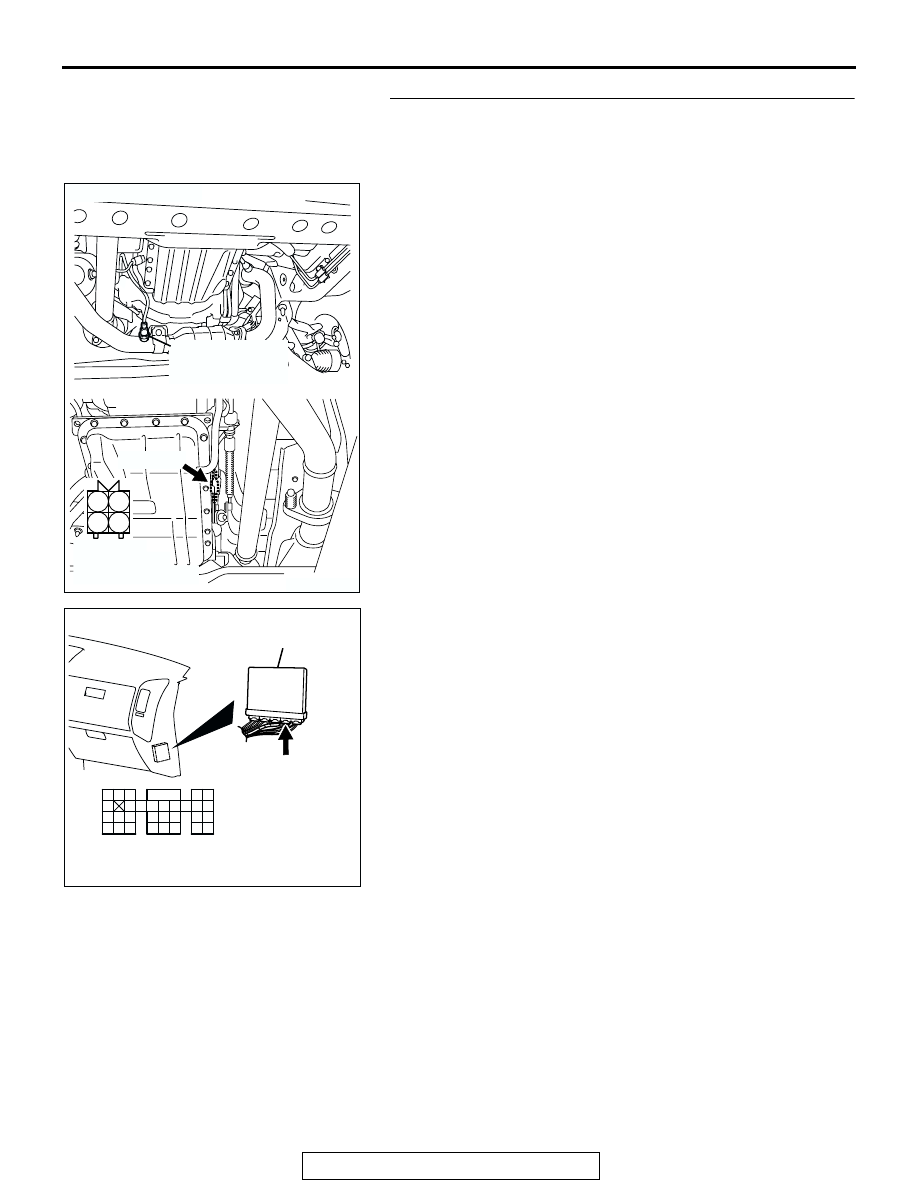

STEP 2. Check for short circuit to power supply between
right bank heated oxygen sensor (rear) connector C-14
(terminal No. 4) and PCM connector D-135 (terminal No.
117).

NOTE: Check harness after checking intermediate connector
E-112. If intermediate connector E-112 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 3.

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 3.
NO :  Repair it. Then go to Step 3.

AK201276

1

2

3

4

CONNECTOR: C-14

C-14(GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-250

STEP 3. Perform the OBD-II drive cycle.

(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0138 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

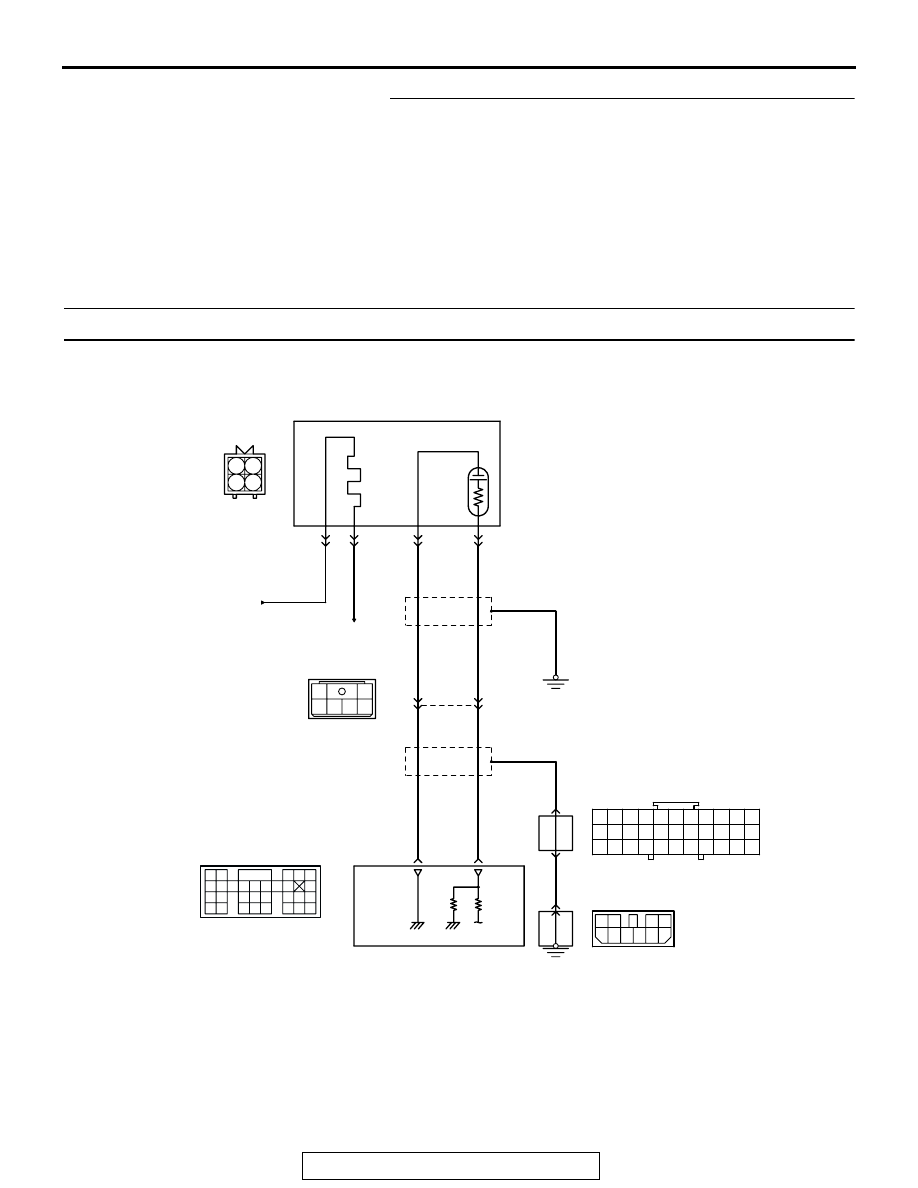

DTC P0139: Heated Oxygen Sensor Circuit Slow Response (bank 1, sensor 2)

WHITE

BL

ACK

BL

ACK

WHITE

BL

ACK

BL

ACK

BL

ACK

2

1

4 5 6

3

AK201133

TO PCM

FROM MFI RELAY

96

117

2

4

3

1

1

12

23 24 25 26

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20 21 22

27 28 29 30 31 32 33

10 11

D-116

1
5

7 8

3 4
9 10

2
6

D-14

MU801335

E-112

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

POWERTRAIN CONTROL
MODULE (PCM)

9

9

5

4

7

4

3

1 2

C-14

MU802665

Right Bank Heated Oxygen Sensor (rear) Circuit

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

D-135

(MU803805)
