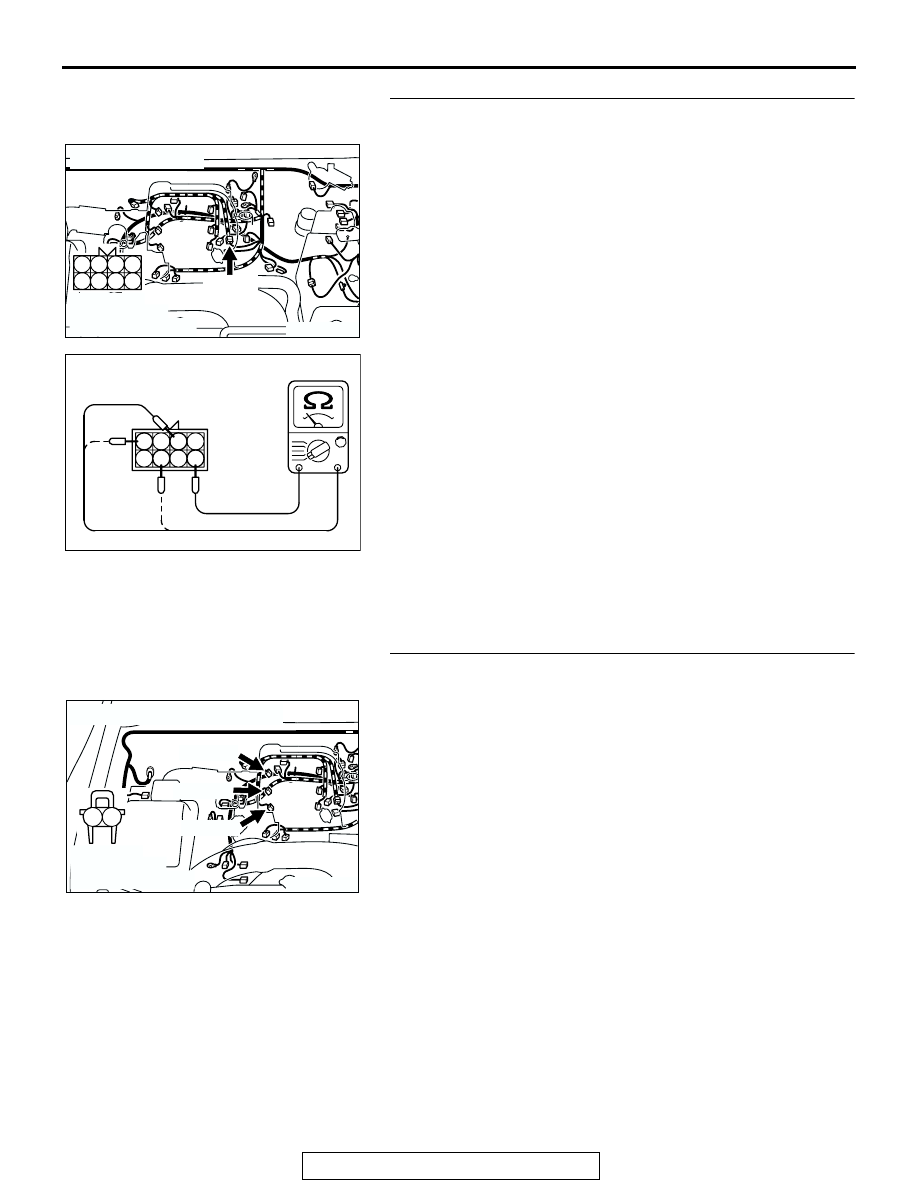

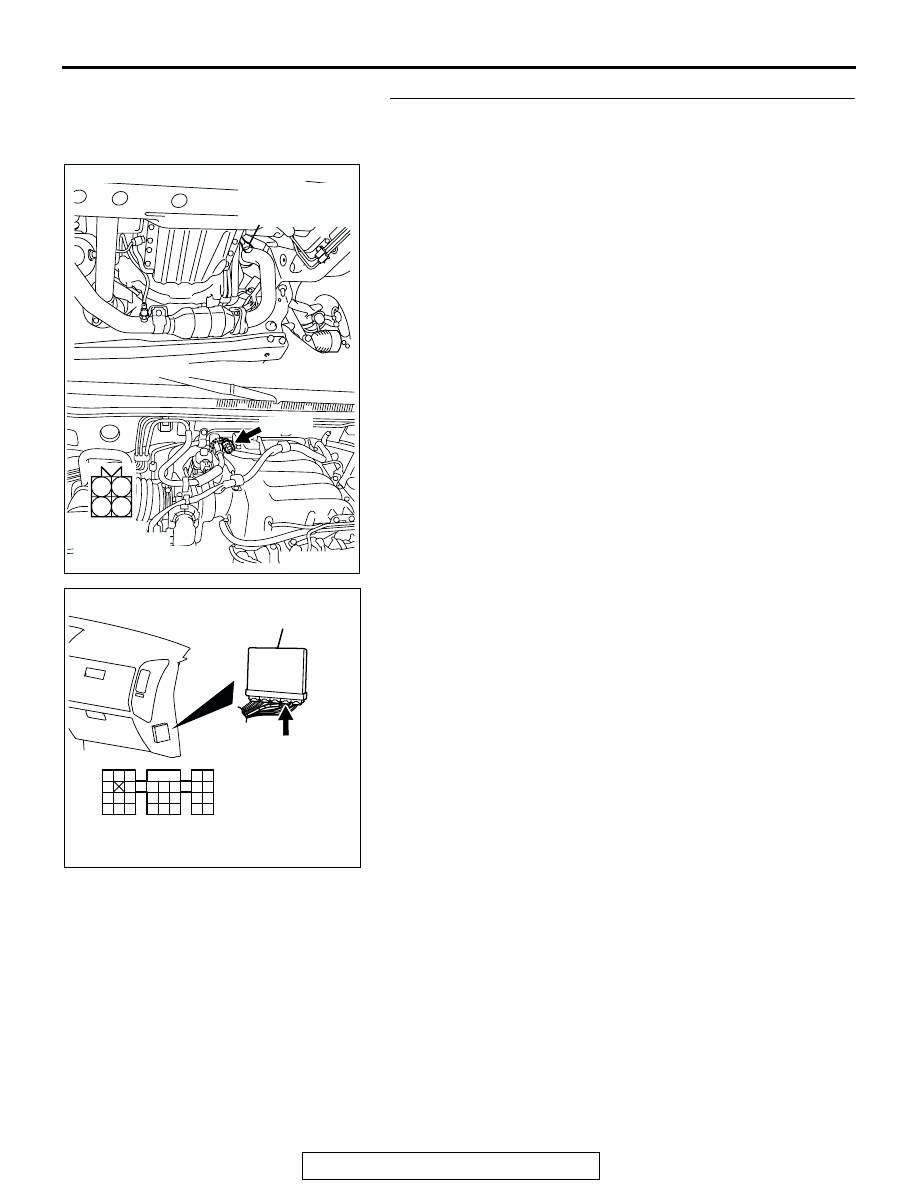

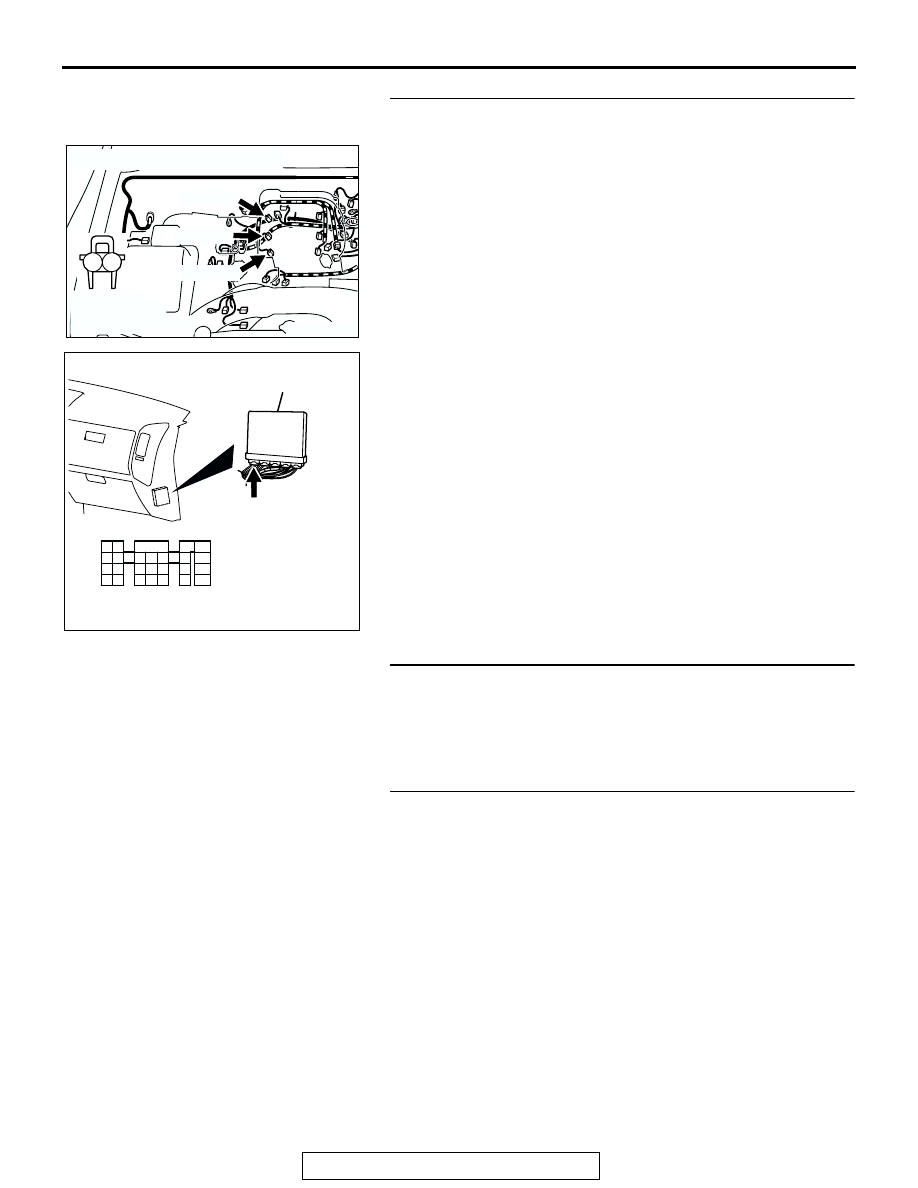

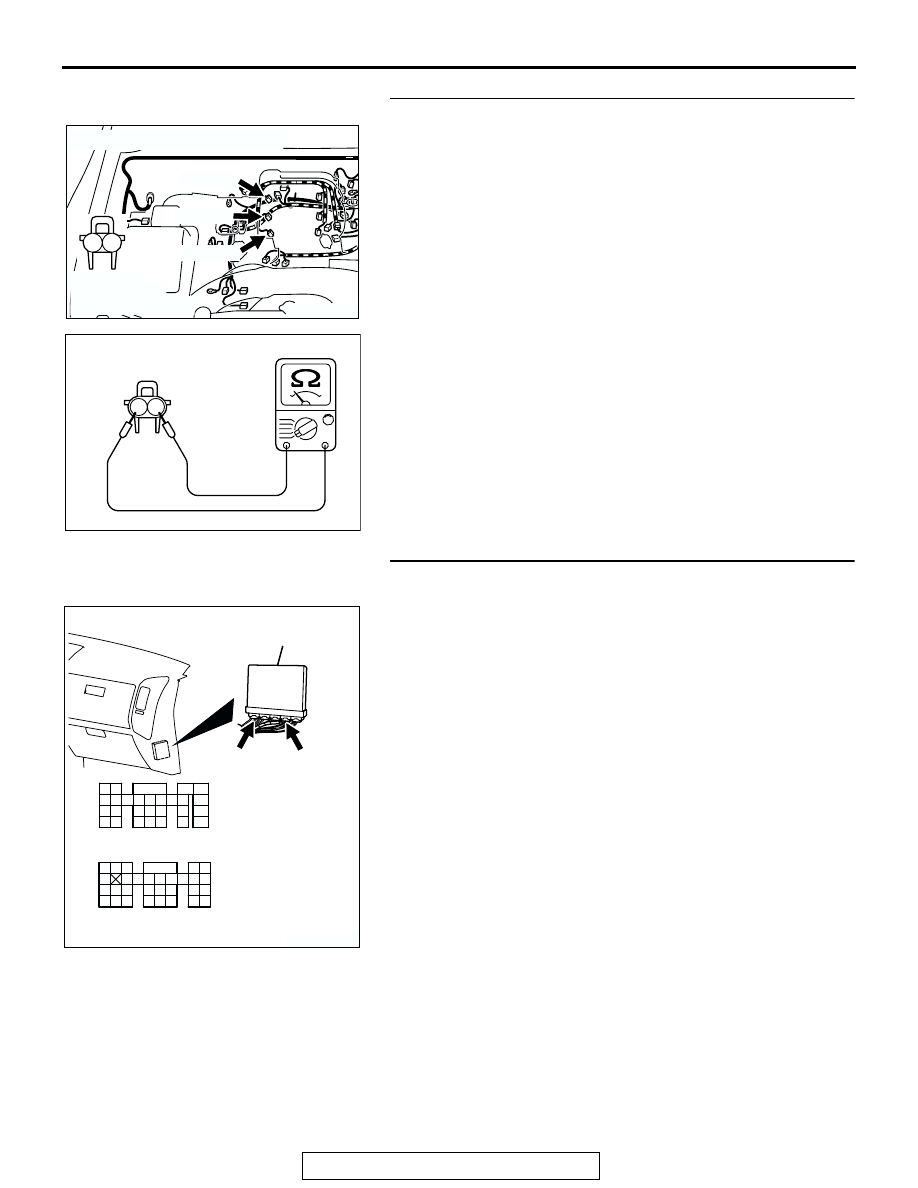

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) 13A-207 STEP 7. Measure the right bank injector resistance at (1) Disconnect the injector intermediate connector B-44. (2) Measure the resistance between each injector side connector terminal. a. Measure the resistance between terminal No. 3 and No. 8 at No. 1 cylinder. b. Measure the resistance between terminal No. 1 and No. 8 at No. 3 cylinder. c. Measure the resistance between terminal No. 6 and No. 8 at No. 5 cylinder. • Resistance should be between 13 and 16 ohms [at 20°C (68 ° F)]. Q: Is the measured resistance between 13 and 16 ohms [at 20 °C (68°F)]? YES : Go to Step 10. STEP 8. Check connector B-01, B-02, B-03 at right bank (1) Remove the intake manifold. from the standard value at Step 7. Q: Is the connector in good condition? YES : Go to Step 9. Connector Inspection . Then go to Step 13. AK200949 3 4 7 8 1 2 5 6 B-44(B) CONNECTOR: B-44 AB HARNESS AK000452 6 3 4 1 2 INJECTOR AB AK200950 1 2 B-03(GR) B-02(GR) B-01(GR) CONNECTORS: B-01, B-02, B-03 AB HARNESS |
