MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-163

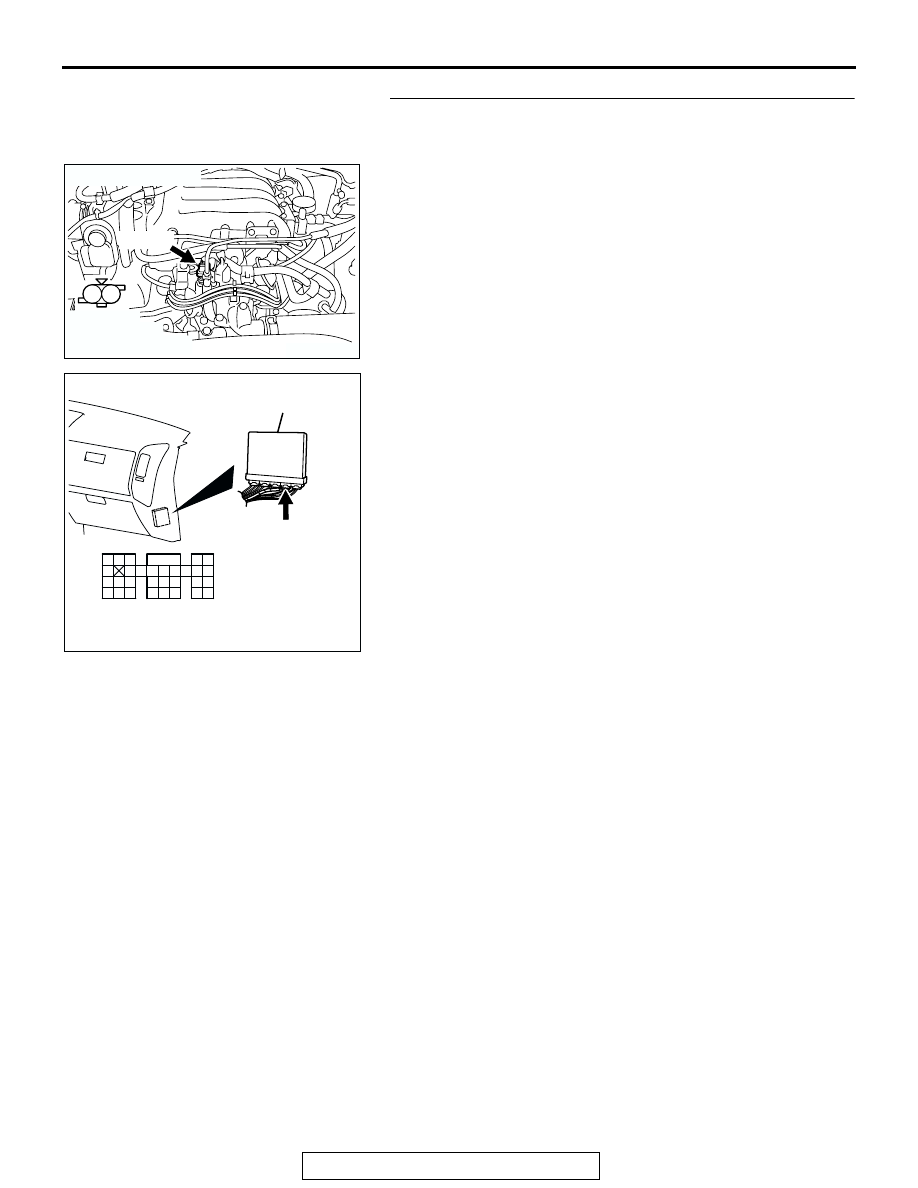

STEP 10. Check for harness damage between engine
coolant temperature sensor connector B-37 (terminal No.
2) and PCM connector D-135 (terminal No. 96).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 14.
NO : Repair it. Then go to Step 14.

AK200943

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-37

B-37(B)

AK200947

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-164

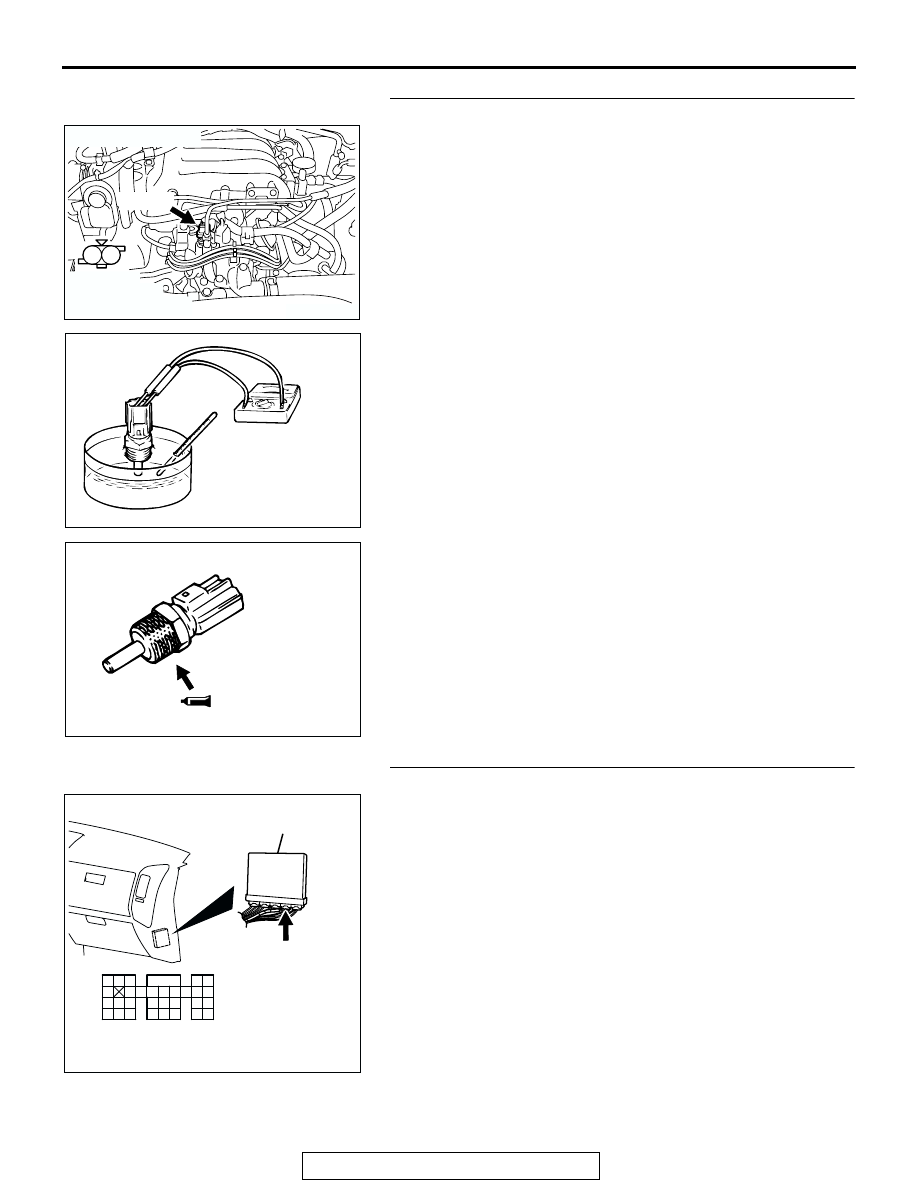

STEP 11. Check the engine coolant temperature sensor.
(1) Disconnect the engine coolant temperature sensor

connector B-37.

(2) Remove the engine coolant temperature sensor.

(3) With the temperature sensing portion of engine coolant

temperature sensor immersed in hot water, check
resistance.

Standard value:

− 17 kΩ [at −20°C (−4°F)]

5.1

− 6.5 kΩ [at 0°C (32°F)]

2.1

− 2.7 kΩ [at 20°C (68°F)]

0.9

− 1.3 kΩ [at 40°C (104°F)]

0.48

− 0.68 kΩ [at 60°C (140°F)]

0.26

− 0.36 kΩ [at 80°C (176°F)]

(4) Apply 3M

 AAD part number 8731 or equivalent on the

screw section of the engine coolant temperature sensor.

(5) Install the engine coolant temperature sensor, and tighten

to the specified torque.

Tightening torque: 29

± 10 N⋅m (22 ± 7 ft-lb)

Q: Is the resistance at the standard value?

YES : Go to Step 12.
NO : Replace the engine coolant temperature sensor. Then

go to Step 14.

STEP 12. Check connector D-135 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 13.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK200943

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-37

B-37(B)

AKX01622

AKX01623 AB

AK200947

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-165

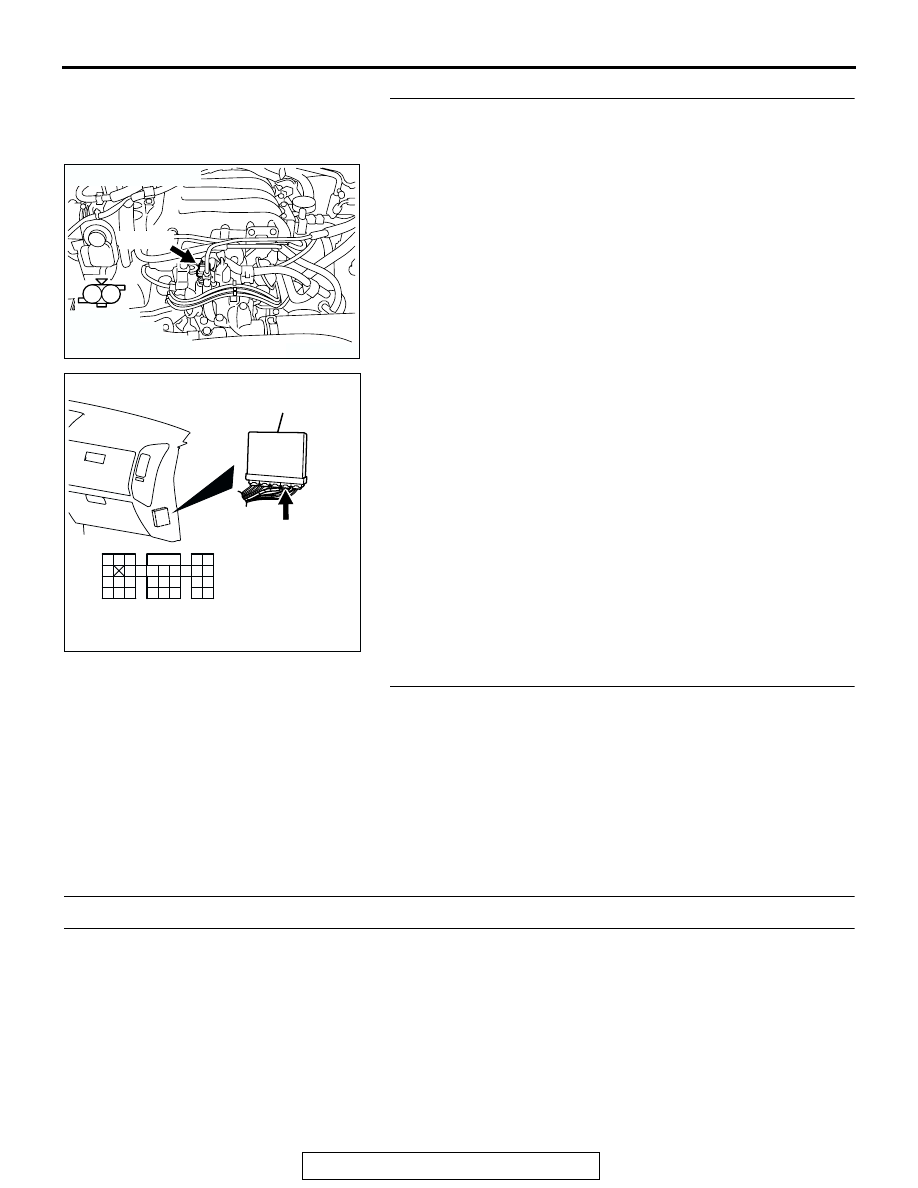

STEP 13. Check for harness damage between engine
coolant temperature sensor connector B-37 (terminal No.
1) and PCM connector D-135 (terminal No. 98).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 14.
NO : Repair it. Then go to Step 14.

STEP 14. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0125 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

DTC P0128: Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)

TECHNICAL DESCRIPTION

• The PCM checks the time for the cooling water

temperature to reach the judgment temperature.

DESCRIPTIONS OF MONITOR METHODS
Engine coolant temperature does not reach 77

°C

(171

°F) within specified period after cold start.

MONITOR EXECUTION
Once per driving cycle

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

AK200943

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-37

B-37(B)

AK200947

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-166

Sensor (The sensor below is determined to be

normal)

• Volume airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

DTC SET CONDITIONS

Logic Flow Chart

Check Conditions

• Engine coolant temperature is between −10°C

(14

°F) and 77°C (171°F) when the engine is

started.

• The engine coolant temperature − intake air tem-

perature is 5

°C (9°F) or less when the engine is

started.

• The intake air temperature when the engine is

started

− intake air temperature is 5°C (9°F) or

less.

• The volume airflow sensors output frequency is in

the low frequency state for 300 seconds or less.

Judgment Criteria

• The time for the engine coolant temperature to

rise to 77

°C (171°F) takes longer than approxi-

mately 13 to 20 minutes.

• The PCM monitors for this condition once during

the drive cycle.

OBD-II DRIVE CYCLE PATTERN
None.

START

END

YES

MALFUNCTION

GOOD

TIME HAVE PASSED

AFTER STARTING?*

ENGINE COOLANT TEMP.

>=77˚C (171˚F)

*: See DTC SET CONDITIONS-JUDGMENT CRITERIA

MONITORING

CONDITIONS?

YES

AK302929
