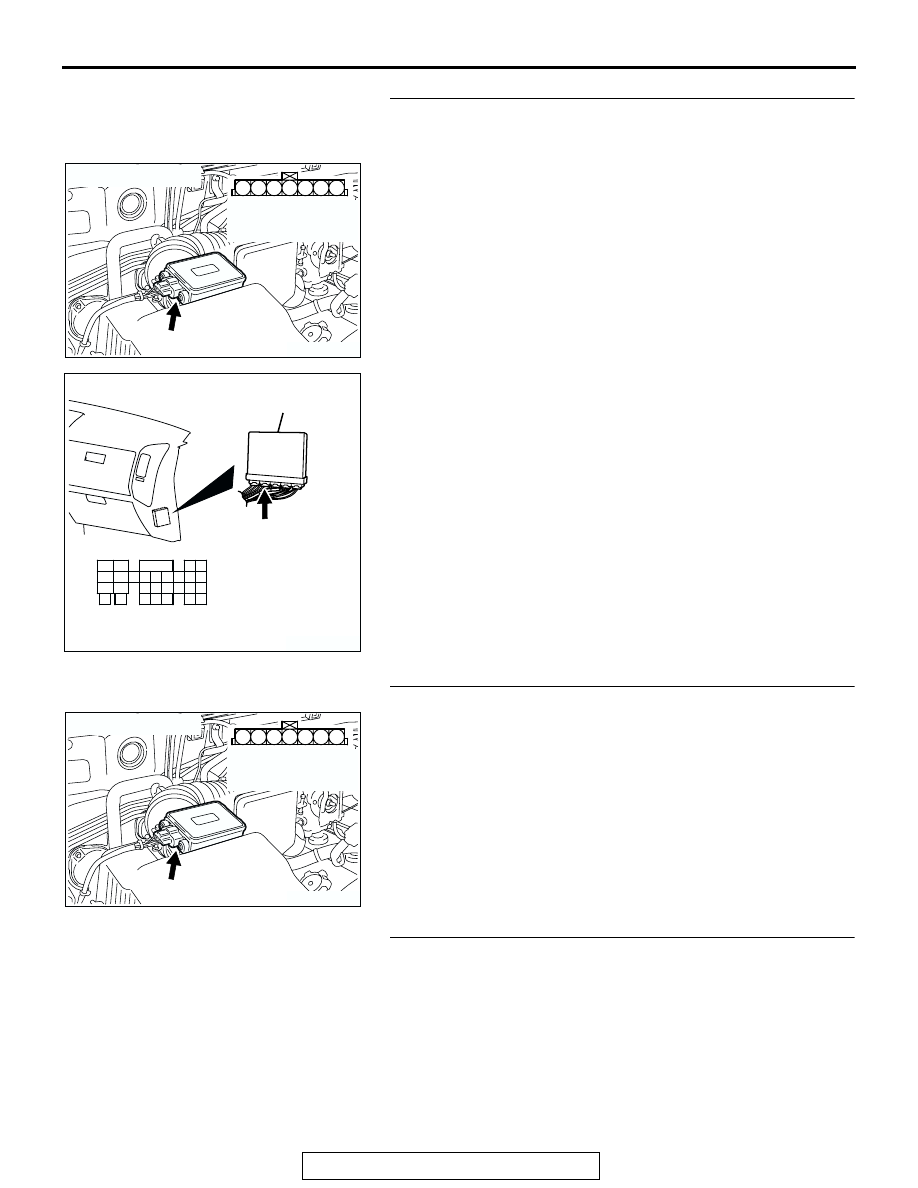

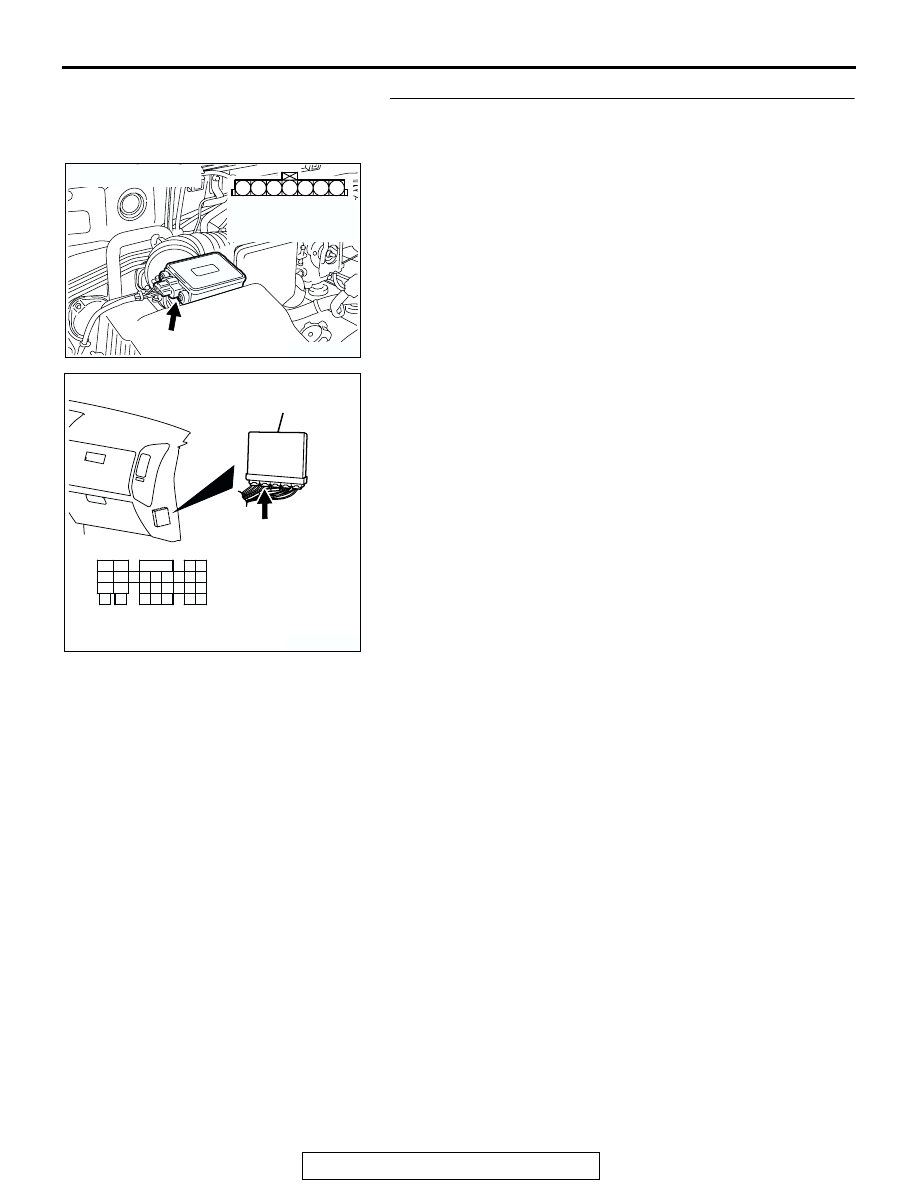

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-39

STEP 4. Check for short circuit to ground between volume
airflow sensor connector B-48 (terminal No. 7) and PCM
connector D-133 (terminal No. 37).
Q: Is the harness wire in good condition?

YES : Replace the volume airflow sensor. Then go to Step

9.

NO :  Repair it. Then go to Step 9.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

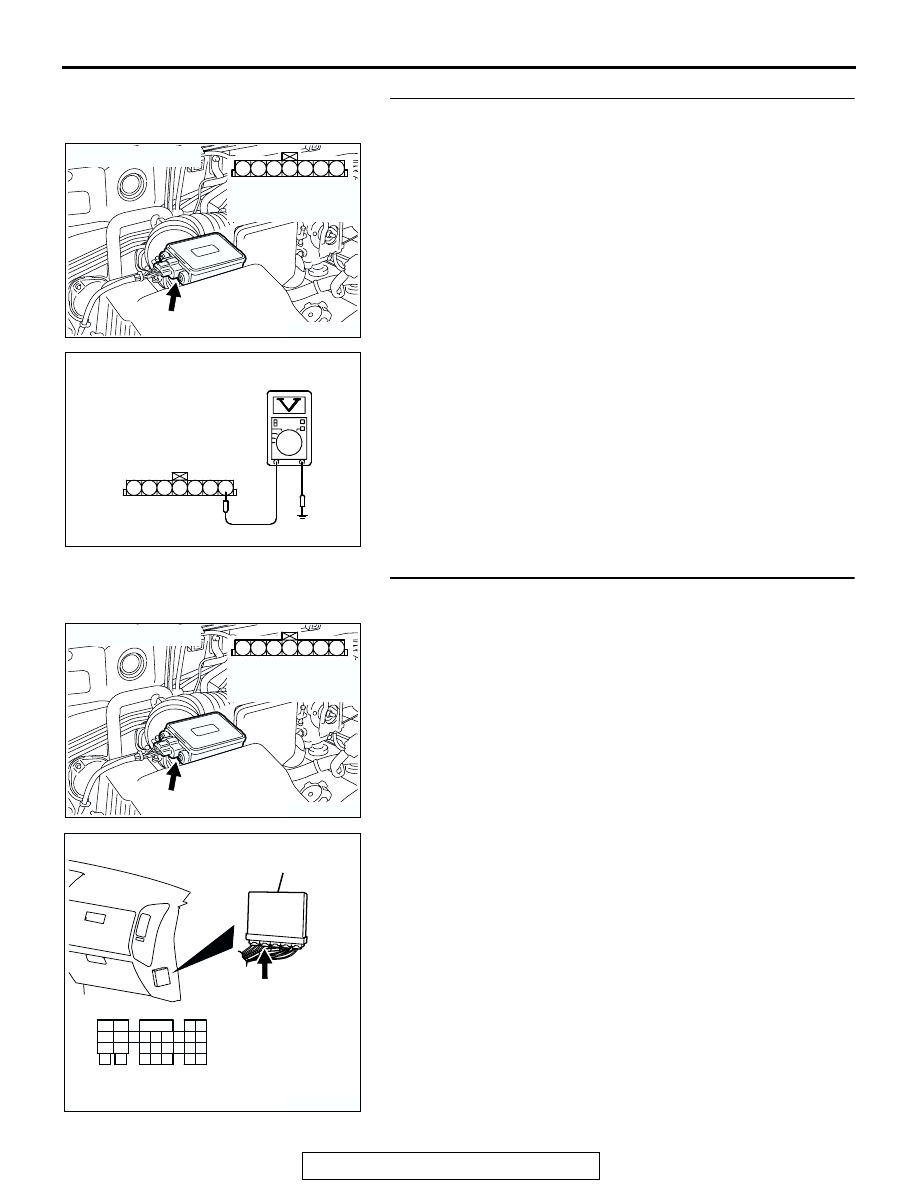

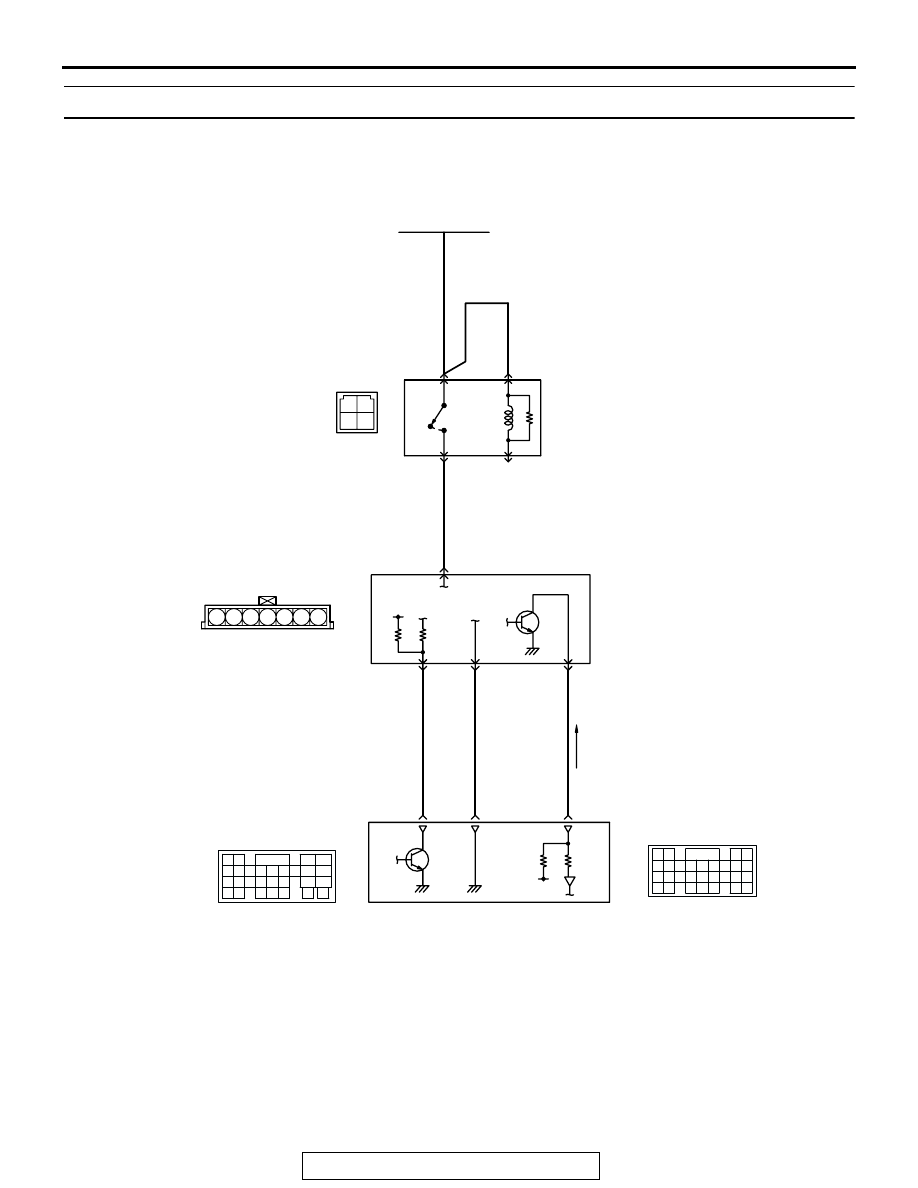

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-40

STEP 5. Measure the reset signal voltage at volume airflow
sensor connector B-48 by backprobing.
(1) Do not disconnect the connector B-48.
(2) Start the engine and run at idle.

(3) Measure the voltage between terminal No. 7 and ground by

backprobing.

• When the engine idling, voltage should be 1.0 volt or

less.

• When the engine speed is 3,000 r/min, voltage should

be between 6.0 and 9.0 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check connector B-48 at volume airflow sensor
and connector D-133 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AKX01515

6 7

1 2 3 4 5

AKX01515

AJ

B-48 HARNESS
CONNECTOR:
HARNESS SIDE

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-41

STEP 7. Check for open circuit and harness damage
between volume airflow sensor connector B-48 (terminal
No. 7) and PCM connector D-133 (terminal No. 37).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 9.
NO :  Repair it. Then go to Step 9.

STEP 8. Replace the volume airflow sensor.
(1) Replace the volume airflow sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P0101 set?

YES : Replace the PCM. Then go to Step 9.
NO :  The inspection is complete.

STEP 9. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0101 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-42

DTC P0102: Volume Airflow Circuit Low Input

1 2 3 4 5 6 7

3 4

1 2

RED

GREEN

WHITE-BLA

CK

SKY B

U

LE

WHITE-

BLA

CK

WHITE-

BLA

C

K

AK201126

B-48

B-22X

MFI
RELAY

BATTERY

VOLUME AIRFLOW
SENSOR

POWERTRAIN CONTROL MODULE(PCM)

5 V

37

7

88

63

4

3

2

5

3

1

4

Volume Airflow Sensor Circuit

31

35363738394041 42 43
444546474849

50 51

5253

545556

57 58

32

33 34

D-133

(MU803803)

61
656667686970 717273
74757677787980 8182
8384

858687

8889

62

6364

D-134

(MU803804)
