SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-195

STEP 2. Check the harness wires for open circuit or short
circuit between SRS-ECU connector E-07 (terminal No.40
and 42) and side impact sensor (RH) connector F-19
(terminal No.1 and 2).

NOTE: After inspecting intermediate connector E-16, inspect
the wiring harness. If the intermediate connector E-16 is dam-
aged, repair or replace it (Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

). Then go to Step 3.

Q: Are the harness wires between SRS-ECU connector

E-07 (terminal No.40 and 42) and side impact sensor
(RH) connector F-19 (terminal No.1 and 2) in good
condition?
YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 94 sets, replace
the SRS-ECU (Refer to

P.52B-215

). Then go to Step

3.

NO :  Repair the harness wires between SRS-ECU

connector E-07 and side impact sensor (RH)
connector F-19. Then go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Q: Is DTC 94 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

).

ACX01478AJ

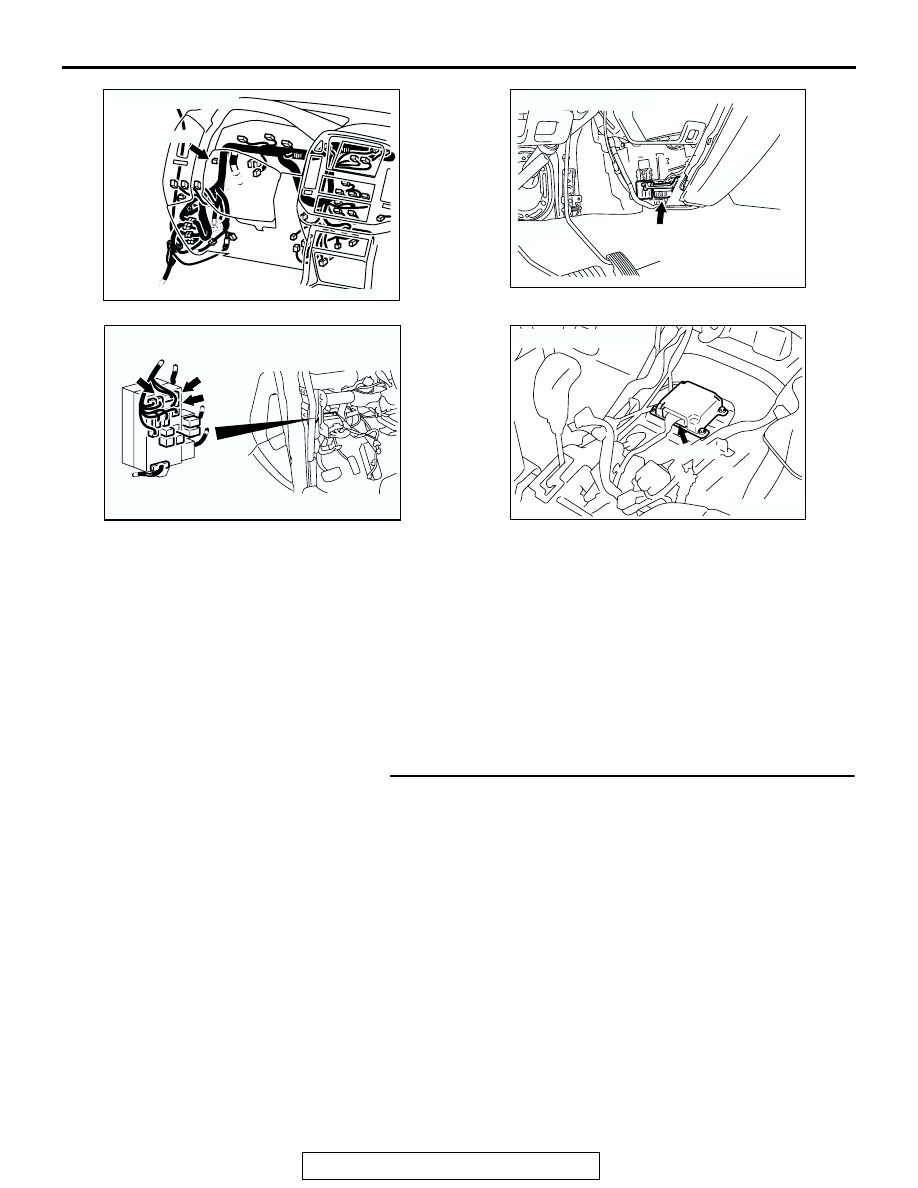

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204129

AD

CONNECTOR: F-19

SIDE IMPACT
SENSOR

F-19 (Y)

CENTER
PILLER

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2

1

AC204603AE

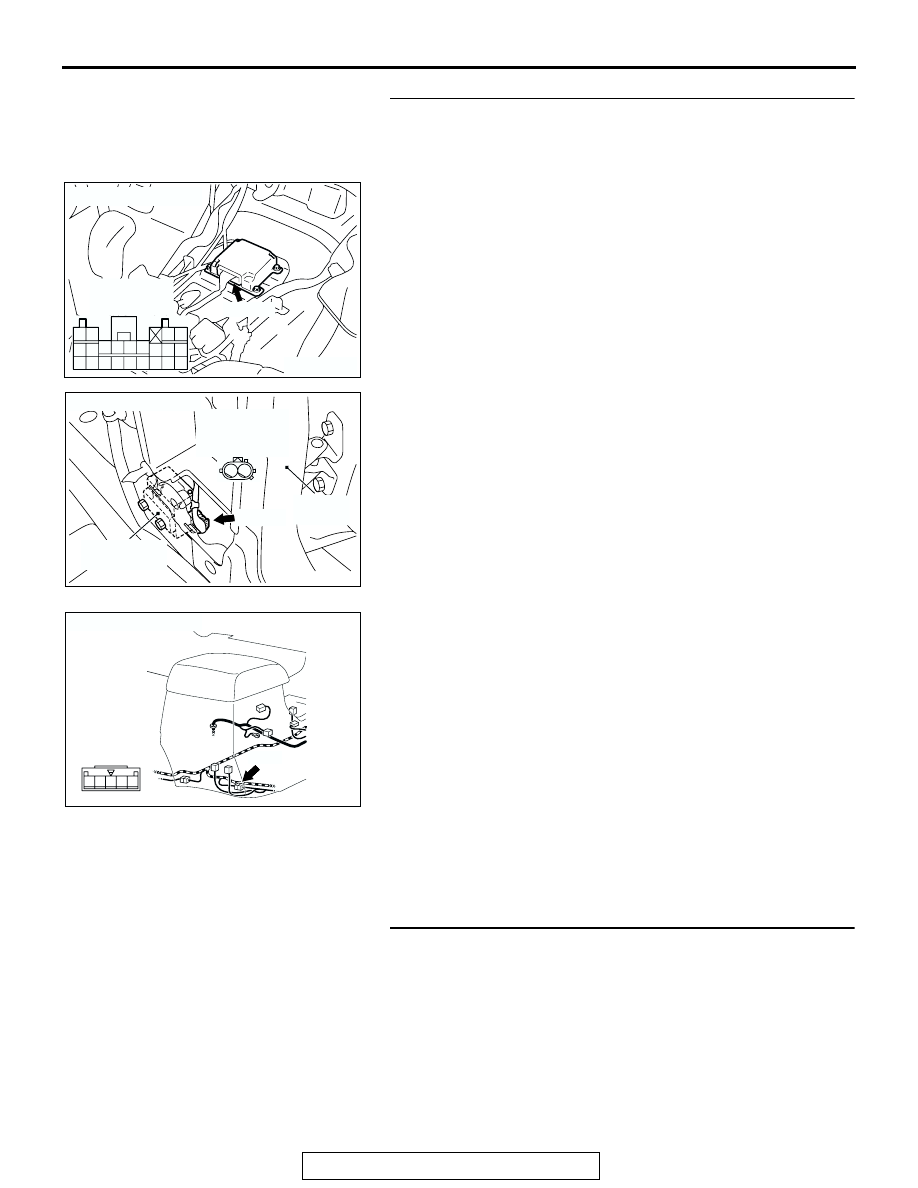

CONNECTOR: E-16

FLOOR
CONSOLE

E-16

5

4

3

2

1

E-16

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-196

TROUBLE SYMPTOM CHART

M1524003400547

SYMPTOMS

INSPECTION PROCEDURE NO. REFERENCE PAGE

Communication with scan tool MB991502 is not
possible (Communication with all systems is not
possible).

-

GROUP 13A,
DIAGNOSIS

P.13A-831

.

Communication with scan tool MB991502 is not
possible (Communication is not possible with
SRS).

1



P.52B-197

When the ignition switch is turned to the "ON"
position (engine stopped), the SRS warning
light does not illuminate.

Refer to DTC No.43.



P.52B-99

After the ignition switch is turned to the "ON"
position the SRS warning light does not go off
within approximately seven seconds.

Refer to DTC No.43.



P.52B-105

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-197

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Communication with scan tool MB991502 is not possible
(Communication is not possible with SRS).

AC204441AB

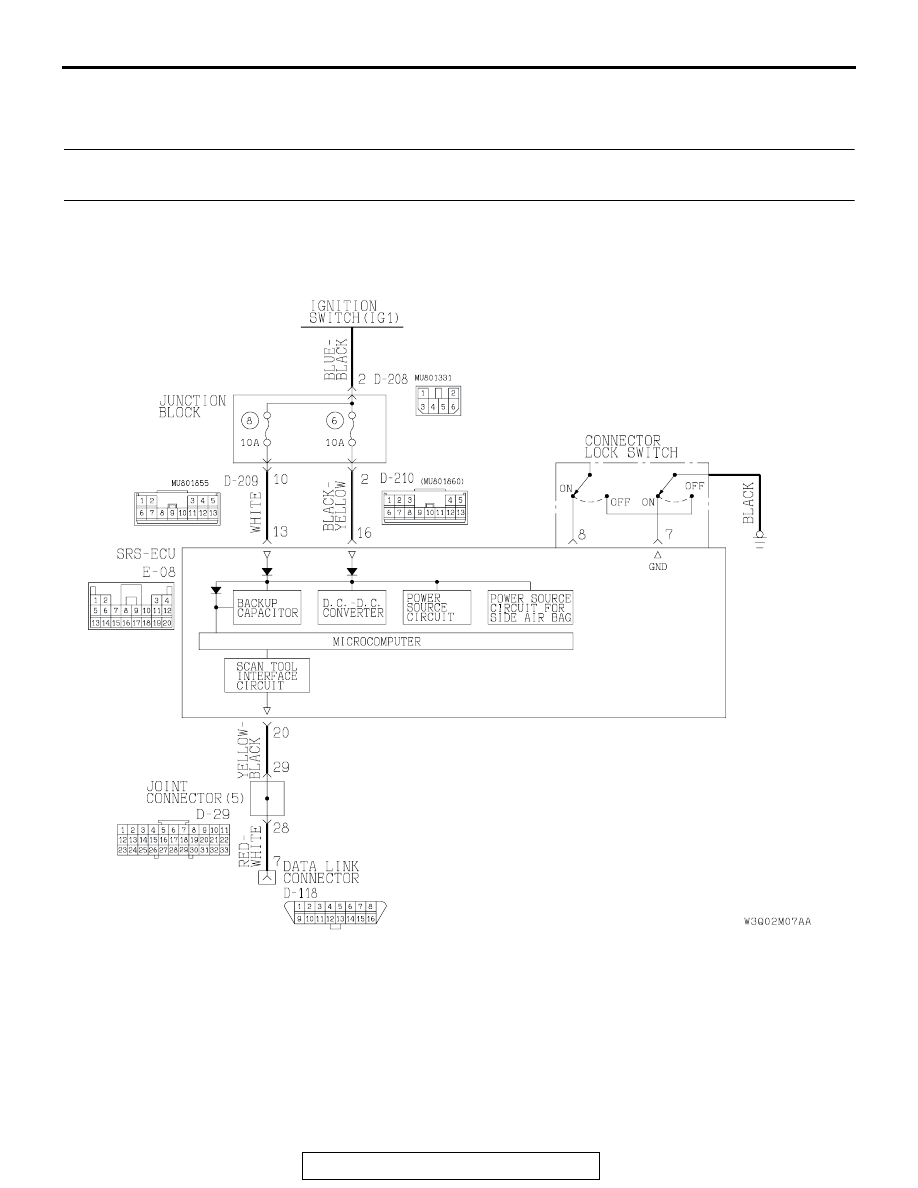

SRS-ECU Power Supply Circuit

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-198

.

CIRCUIT OPERATION

• The SRS-ECU is powered from the ignition

switch (IG1).

• The SRS-ECU power is supplied from two cir-

cuits. Even if one circuit is shut off, the air bag
can inflate.

• The SRS system diagnosis can be done by con-

necting scan tool MB991502 to the data link con-
nector.

.

TECHNICAL DESCRIPTION (COMMENT)
If communication is not possible with the SRS only,
the cause is probably an open circuit in the on-board
diagnostic output circuit of the SRS or in the power
circuit (including ground circuit).

.

TROUBLESHOOTING HINTS

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

.

DIAGNOSIS

STEP 1. Check that the scan tool can communicate with
the other systems.
Q: Can the scan tool communicate with the other systems?

YES : Go to Step 2.
NO :  Refer to GROUP 13A, Diagnosis

P.13A-831

.

AC204230

CONNECTOR : D-29

AE

D-29

AC204695

CONNECTOR : D-118

AB

D-118 (B)

ACCELLATOR PEDAL

ACX01632

CONNECTORS: D-208, D-209, D-210

D-208

D-210

JUNCTION BLOCK
(FRONT VIEW)

AJ

D-209

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)
