POWER STEERING GEAR BOX ASSEMBLY

TSB Revision

POWER STEERING

37A-29

<<C>> GEAR BOX ASSEMBLY REMOVAL

CAUTION

Be sure not to damage the bellows and the tie rod end dust
cover when removing the gear box assembly.

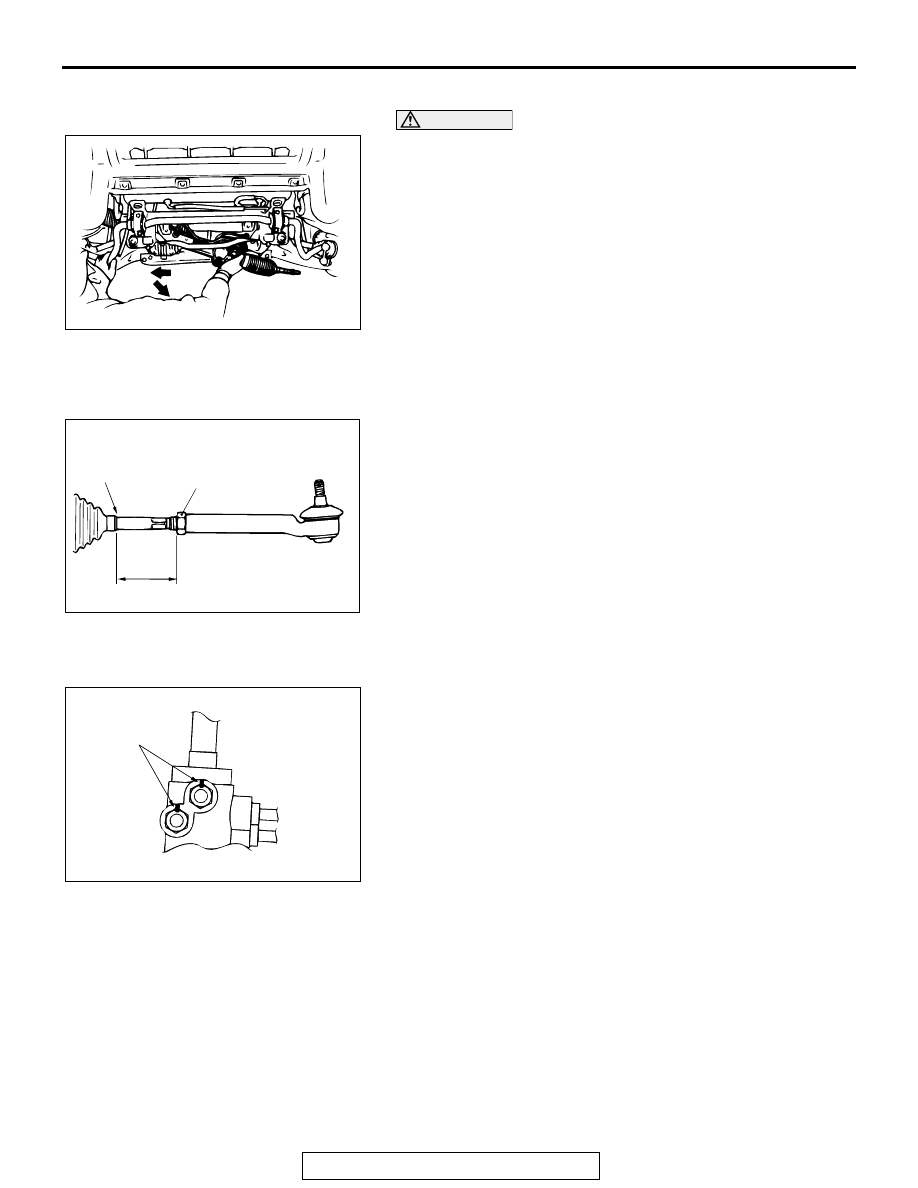

INSTALLATION SERVICE POINTS

.

>>A<< TIE ROD END (LH) INSTALLATION
Screw the tie rod to the dimension shown in the illustration and
secure it temporarily with the jam nut.
NOTE: Tighten the locknut to the specified torque after install-
ing the gearbox onto the body and adjusting the toe-in.

.

>>B<< RETURN TUBE/PRESSURE HOSE ASSEMBLY
INSTALLATION
Align the markings at the gearbox side and the tube side.

.

>>C<< TIE ROD END AND KNUCKLE CONNECTION
If the tie rod end is disengaged from the knuckle, renew the tie
rod end dust cover and retainer by following the procedure
below.
1. Unclip the spring ring to remove the dust cover.

AC000663 AB

(2)

(1)

ACX01140AC

57 mm
(2.2 in)

JUM NUT

BELLOWS
END

AC000664 AB

MATING MARKS

POWER STEERING GEAR BOX ASSEMBLY

TSB Revision

POWER STEERING

37A-30

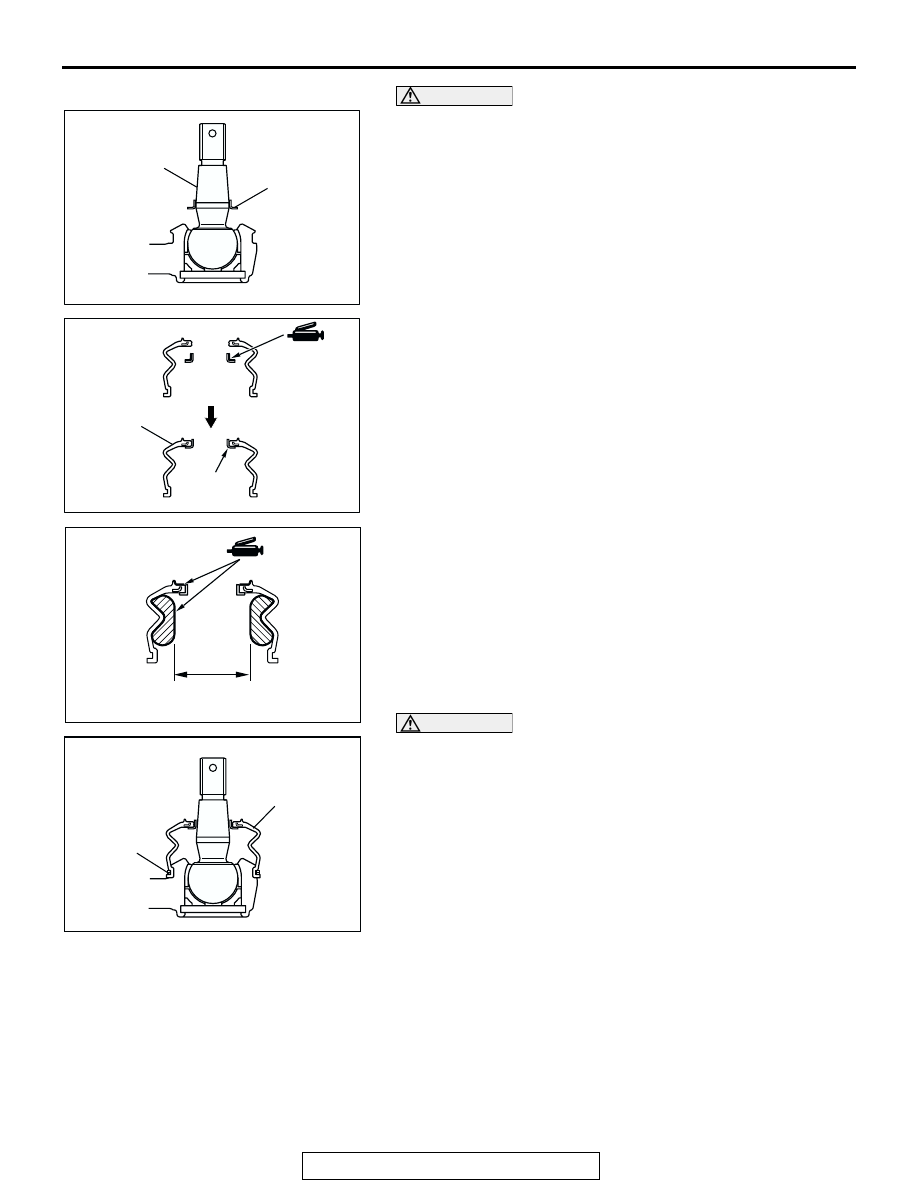

CAUTION

Be careful not to damage the ball joint stud.
2. Use a flat-tipped screwdriver to remove the retainer.

3. Apply multi-purpose grease to the new retainer, and

assemble it to the new dust cover.

4. Fill multi-purpose grease inside the dust cover as shown.

Amount to use: 4

± 1 g (0.14 ± 0.04 oz)

5. Apply multi-purpose grease to the dust cover lip.
6. Tape the stud threads to avoid damage.

CAUTION

Ensure grease does not come into contact with the ball
joint threads and tapers.Wipe off the grease if contami-
nated.
7. Install the ball joint to the dust cover.
8. Secure the dust cover with the clip ring.
9. Engage the tie rod end ball joint with the knuckle.

NOTE: The retainer is secured in a predetermined position
by tightening the ball joint nut to the specified torque.

INSPECTION

M1372011000312

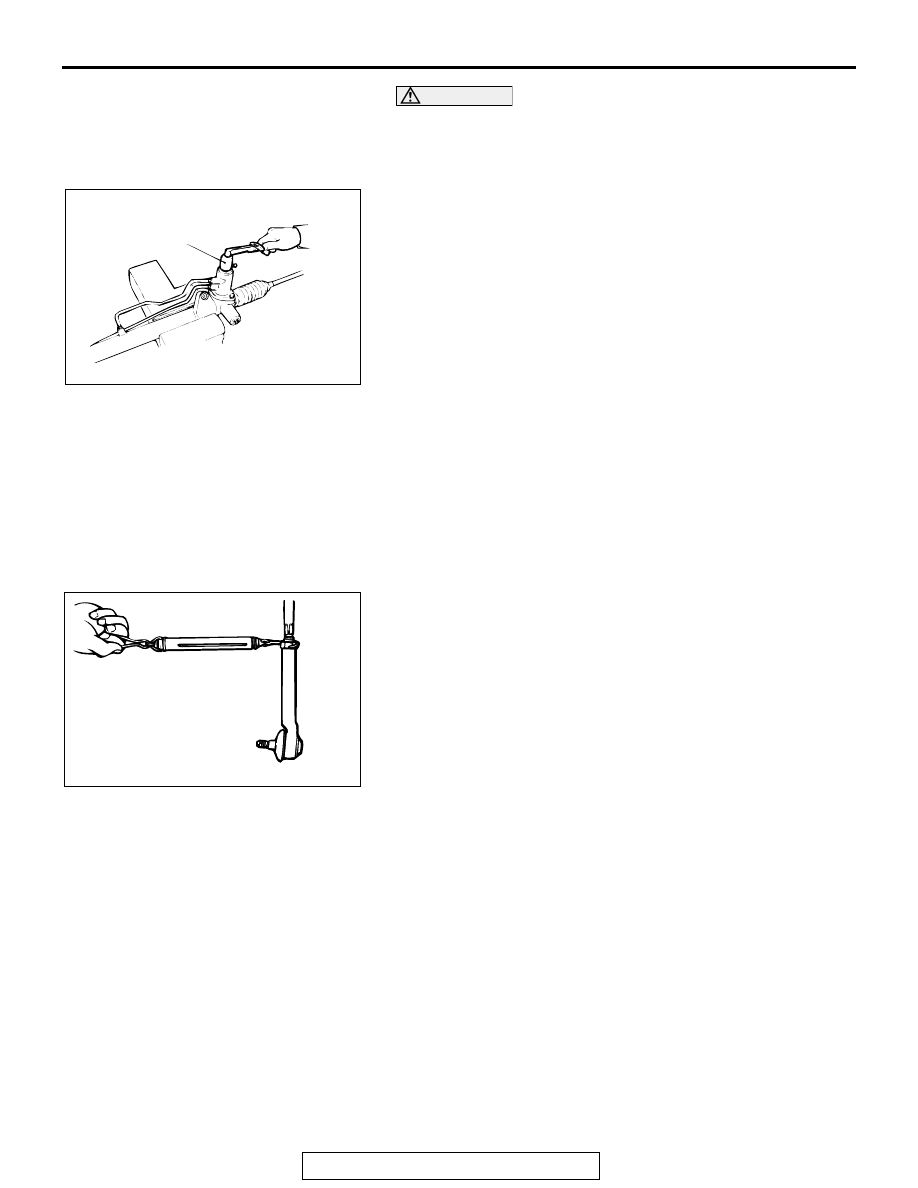

GEAR BOX TOTAL PINION TORQUE CHECK

Required Special Tool:

• MB991006: Preload Socket

AC306261AB

RETAINER

STUD

AC306262AB

RETAINER

DUST COVER

AC306263AB

26 mm (1.0 in) OR MORE

AC306264 AB

DUST COVER

CLIP RING

POWER STEERING GEAR BOX ASSEMBLY

TSB Revision

POWER STEERING

37A-31

CAUTION

When holding the steering gear box assembly in a vice,
secure its mounting positions. If it is secured in any other
place, the gear housing may become deformed or dam-
aged.
Using special tool MB991006, rotate the pinion gear at the rate
of one rotation in approximately 4 to 6 seconds to check the
total pinion torque.

Standard value: 0.6

 1.7 Nm (5.3  15.0 in-lb)

[Change in torque: 0.4 N

m (3.5 in-lb) or less]

NOTE: When measuring, remove the bellows from the rack
housing.
NOTE: Measure the pinion torque through the whole stroke of
the rack.
NOTE: If the measured value is not within the standard range,
first adjust the rack support cover, and then check the total pin-
ion torque again.
NOTE: If the total pinion torque cannot be adjusted to within the
standard range by adjusting the rack support cover, check the
rack support cover, rack support spring, rack support and
replace any parts if necessary.

TIE ROD SWING RESISTANCE CHECK

1. Using a spring balance, give 10 hard swings to the tie rod.
2. Measure the tie rod swing resistance with a spring balance.

Standard value: 11

 35 N (35.4  82.7 lb) [1.4  4.9 N

(12.4

 43.4 in-lb)]

3. If the measured value exceeds the standard value, replace

tie rod.

4. If the measured value is below the standard value, the tie

rod can be re-used if it swings smoothly without excessive
play.

TIE ROD END BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing it

with your finger.

2. If the dust cover is cracked or damaged, replace the tie rod

end. (Refer to

P.37A-27

.)

NOTE: Cracks or damage of the dust cover may damage
the ball joint.

AC000665 AB

MB991006

ACX01141 AB

POWER STEERING GEAR BOX ASSEMBLY

TSB Revision

POWER STEERING

37A-32

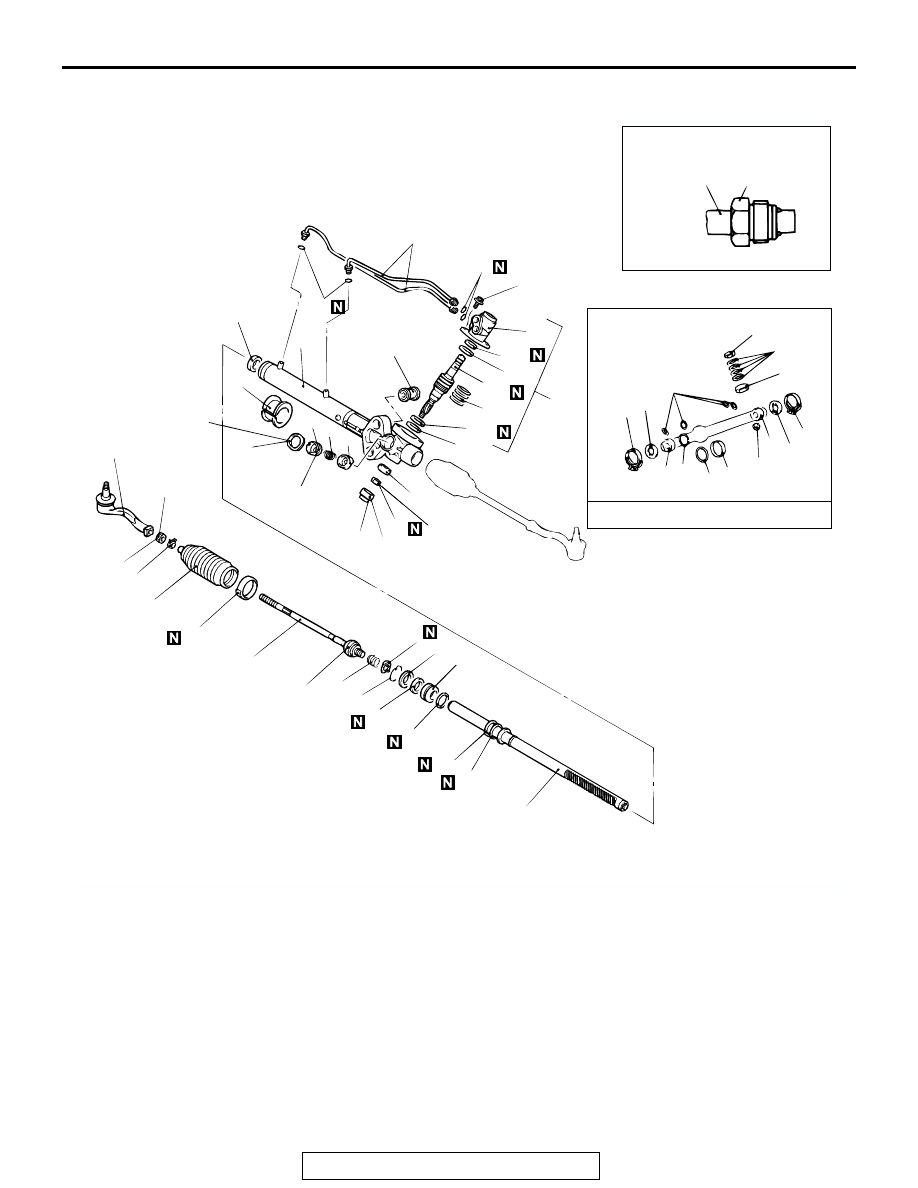

DISASSEMBLY AND ASSEMBLY

M1372004100209

AC000761

24

23

22

21

20

24

19

26

27

28

29

30

18

17

16

15

14

25

13

12

11

10

9

8

7

6

5

31

32

33

34

35

36

37

4

4

3

3

2

1

4

11

8

18

3611

8

20

22

32

33

30

29

STEERING GEAR SEAL KIT

59

± 10 N·m

44

± 7 ft-lb

88

± 10 N·m

65

± 7 ft-lb

71

± 7 N·m

53

± 5 ft-lb

15

± 3 N·m

11

± 2 ft-lb

25

± 4 N·m

18

± 3 ft-lb

AC

FLARE NUT

22

± 4 N·m

16

± 3 ft-lb

12

±

 2 N

·

m

*

107

±

 17 in-lb

*

59

± 10 N·m

44

± 7 ft-lb

NOTE
*: Return the rack support cover - 10˚

DISASSEMBLY STEPS

>>O<<

1.

GEAR MOUNTING RUBBER

2.

GEAR HOUSING MOUNTING
BUSHING

3.

FEED PIPE

4.

O-RING

>>N<<

5.

JAM NUT

>>N<<

6.

TIE ROD END

7.

CLIP

>>M<<

8.

BAND

9.

BELLOWS

>>L<<

10.

TIE ROD

>>L<<

11.

TAB WASHER

12.

COIL SPRING

>>K<<

TOTAL PINION TORQUE
ADJUSTMENT

>>J<<

13.

LOCK NUT

<<A>> >>J<<

14.

RACK SUPPORT COVER

15.

SUPPORT SPRING

16.

RACK SUPPORT

>>I<<

17.

END PLUG

18.

LOCK NUT

19.

VALVE HOUSING ASSEMBLY

<<B>> >>H<<

20.

LOWER OIL SEAL

<<B>>

21.

PINION AND VALVE ASSEMBLY

<<C>> >>G<<

22.

SEAL RING

<<D>> >>F<<

23.

UPPER BEARING

DISASSEMBLY STEPS (Continued)
