SPECIAL TOOL

TSB Revision

POWER PLANT MOUNT

32-3

SPECIAL TOOL

M1321000600248

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991454
Engine hanger
balancer

MZ203827-01

Holding the engine and
transmission assembly

MB991895
Engine hanger

B991454

MB991895

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-4

ENGINE MOUNTING

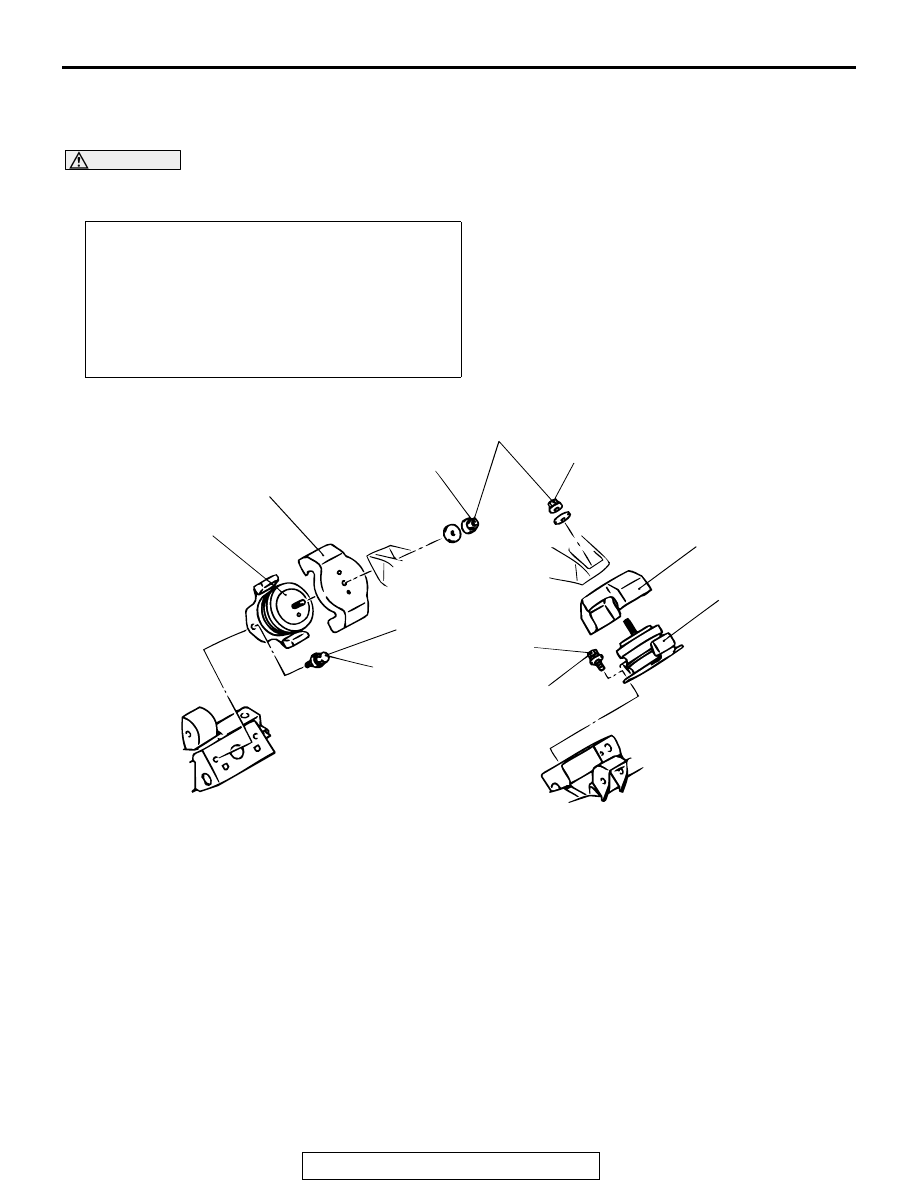

REMOVAL AND INSTALLATION

M1321001100321

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
• Skid Plate and Under Cover Removal and Installation

• Battery Removal and Installation

• Air Cleaner Assembly Removal and Installation (Refer to

GROUP 15, Air Cleaner

P.15-6

.)

• Engine Cover Removal and Installation (Refer to GROUP

11A, Timing Belt

P.11A-36

.)

• Radiator Removal and Installation (Refer to GROUP 14,

Radiator

P.14-8

.)

ACX00405 AB

3

4

2

2

4

3

1

1

44 ± 10 N·m*
33  ± 7 ft-lb*

44 ± 10 N·m*
33  ± 7 ft-lb*

26 ± 4 N·m*
19  ± 3 ft-lb*

REMOVAL STEPS

BRAKE HOSE CLIP (REFER TO
GROUP 33A, UPPER ARM
ASSEMBLY

P.33A-8

.)

CONNECTING BOLT BETWEEN
STEERING GEAR AND JOINT
(REFER TO GROUP 37A,
POWER STEERING AND
LINKAGE

P.37A-27

.)

POWER STEERING HOSE
MOUNTING BOLT (REFER TO
GROUP 37A, POWER
STEERING GEAR AND LINKAGE

P.37A-27

.)

A/T OIL COOLER TUBE
MOUNTING BOLT (REFER TO
GROUP 23, TRANSMISSION OIL
COOLER

P.23A-568

.)

VACUUM HOSE (REFER TO
GROUP 26, FREE-WHEEL
ASSEMBLY, DIFFERENTIAL
CARRIER

P.26-37

.)

<<A>>

1.

ENGINE MOUNT MOUNTING
BOLTS

<<A>>

2.

ENGINE MOUNT MOUNTING
NUTS

<<B>>

3.

ENGINE MOUNTS

4.

ENGINE MOUNT STOPPERS

REMOVAL STEPS (Continued)

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-5

Required Special Tools:

• MB991454: Engine Hanger Balancer

• MB991895: Engine Hanger

REMOVAL SERVICE POINTS

.

<<A>>ENGINE MOUNT MOUNTING BOLTS AND NUTS
REMOVAL
1. Install the bolt to the "C" part on the headlamp support

panel.

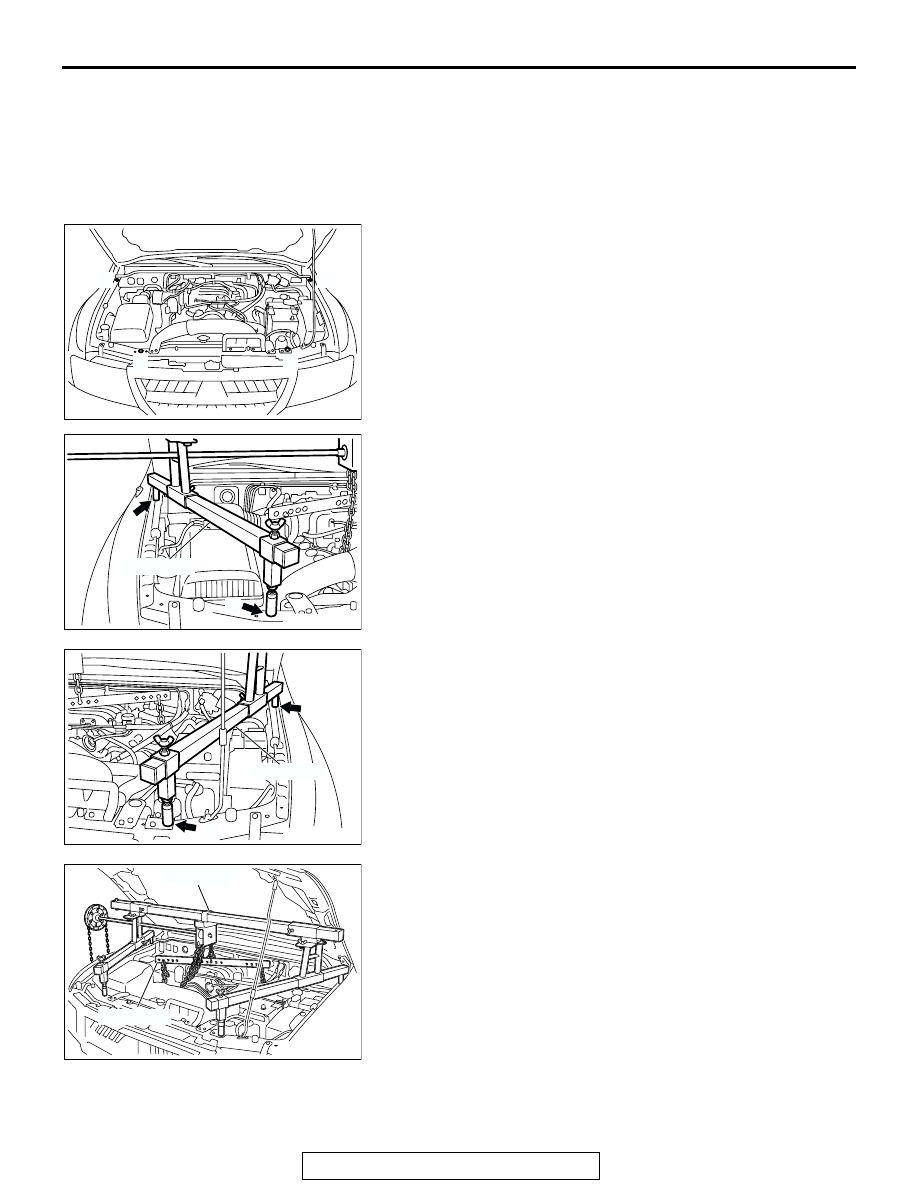

2. Set special tools MB991895 and MB991454 to the front

fender mounting bolts (A and B) and the oil reservoir bracket
mounting bolts (C and D). Then remove the engine mount
mounting bolts and nuts while supporting the engine and
transmission assembly.

.

AC204028

A

B

C

D

AB

AC204029

A

C

AB

MB991895

AC204030

B

D

AB

MB991895

AC204031

MB991895

MB991454

AB

TRANSMISSION MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

<<B>>ENGINE MOUNT REMOVAL
1. Support the No.1 crossmember using the transmission jack.
2. Unscrew the No.1 crossmember mounting nut and then put

down the No.1 crossmember to remove the engine mount.

TRANSMISSION MOUNTING

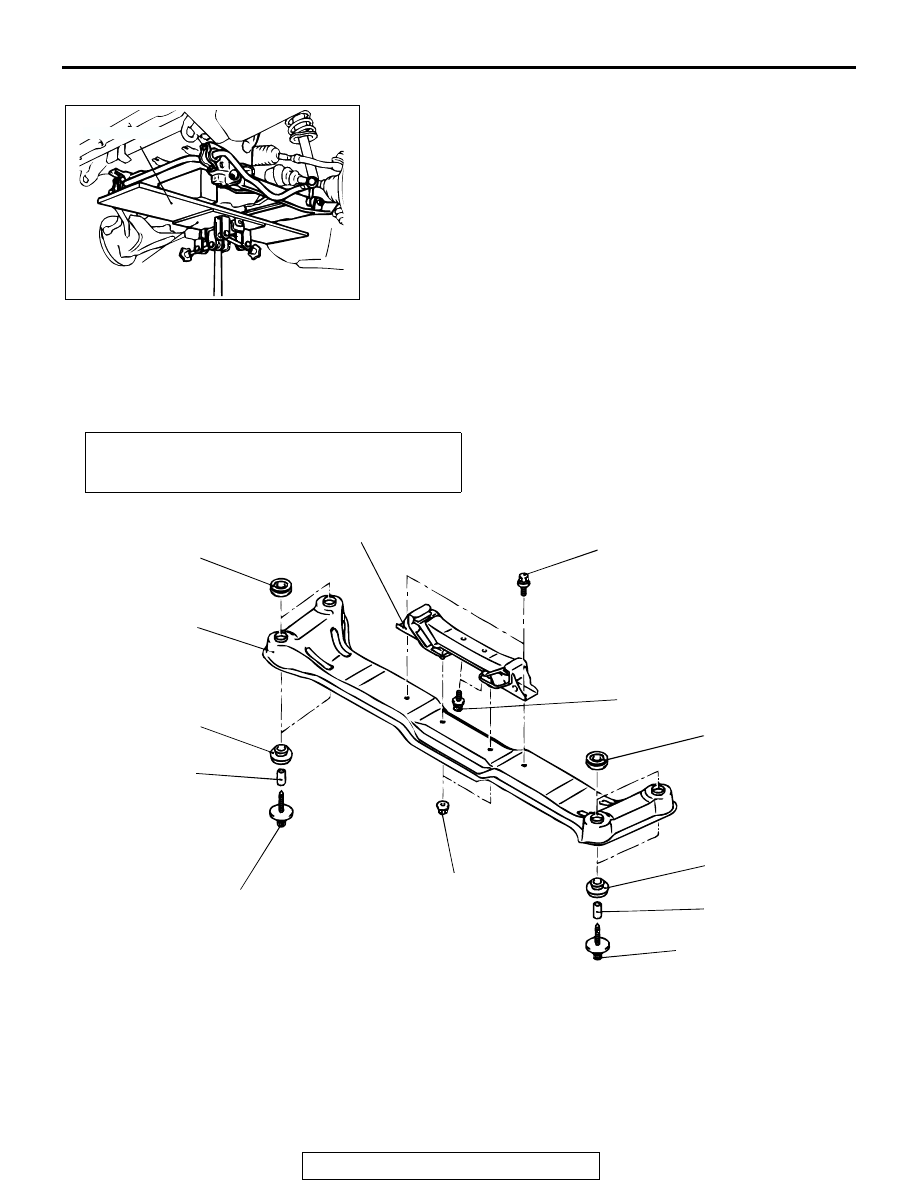

REMOVAL AND INSTALLATION

M1321001400322

ACX00407AB

TRANSMISSION
JACK

WORK PLATE

Pre-removal and Post-installation Operation
• Jack up the engine and transmission assembly until there

is no weight on the engine mount bracket insulator.

ACX00408

2

1

2

3

4

2

2

3

AB

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

26 ± 4 N·m
19 ± 3 ft-lb

REMOVAL STEPS

1.

TRANSMISSION MOUNT
CENTER MEMBER ASSEMBLY

2.

TRANSMISSION MOUNT
BUSHINGS

3.

COLLARS

4.

TRANSMISSION MOUNT
INSULATOR ASSEMBLY

REMOVAL STEPS  (Continued)
