SPECIFICATIONS

TSB Revision

ENGINE COOLING

14-19

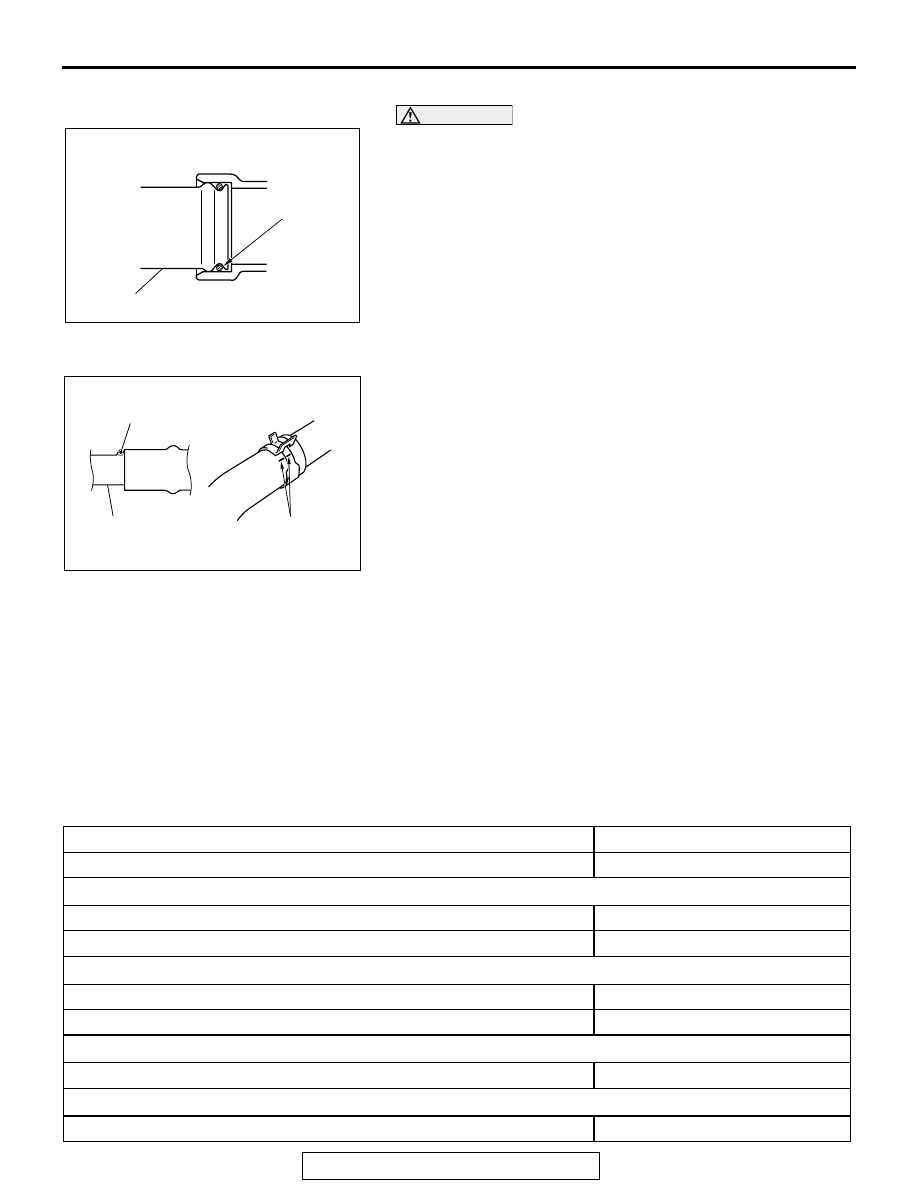

>>C<< O-RING INSTALLATION

CAUTION

Do not allow engine oil or other grease to adhere to the
O-ring
Insert the O-ring to the water pipe, and coat the outer portion of
the O-ring with water or engine coolant.

.

>>D<< RADIATOR UPPER HOSE CONNECTION
1. Insert each hose as far as the projection of the water outlet

fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

INSPECTION

M1141003400230

.

Water Pipe and Hose Check
Check the water pipe and hose for cracks, damage and clogs.
Replace them if necessary.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATION

M1141005000238

AC200644 AB

O-RING

WATER PIPE

AC200642

MATING
MARKS

PROJECTION

WATER OUTLET
FITTING

AB

ITEMS

SPECIFICATIONS

Cylinder block drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Cooling fan
Cooling fan bolt

11

± 1 N⋅m (93 ± 13 in-lb)

Fan clutch nut

11

± 1 N⋅m (93 ± 13 in-lb)

Radiator
Radiator support bolt

12

± 2 N⋅m (101 ± 23 in-lb)

Shroud bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Thermostat
Water inlet fitting bolt

12

± 1 N⋅m (102 ± 13 in-lb)

Water pump
Fitting and Water pump bolt

12

± 1 N⋅m (102 ± 13 in-lb)

SPECIFICATIONS

TSB Revision

ENGINE COOLING

14-20

SERVICE SPECIFICATION

M1141000300308

CAPACITIES

M1141005100116

SEALANT

M1141000500410

Intake manifold plenum and Bracket bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Spark plug cable support bolt

13

± 2 N⋅m (111 ± 22 in-lb)

Thermostat case and Fitting bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

Water pump bolt

24

± 3 N⋅m (18 ± 2 ft-lb)

Water outlet fitting and Thermostat case bolt

12

± 1 N⋅m (102 ± 13 in-lb)

Water outlet fitting and Bracket bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Water hose and water pipe
Fitting bolt

12

± 1 N⋅m (102 ± 13 in-lb)

Water pipe assembly bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Water outlet pipe assembly bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Water passage assembly bolt

19

± 1 N⋅m (14 ± 1 ft-lb)

Water outlet fitting and Thermostat case and Fitting bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

ITEMS

SPECIFICATIONS

ITEM

STANDARD VALUE LIMIT

High-pressure valve opening pressure of radiator cap kPa (psi)

93

− 123 (14 − 18)

Minimum 83 (12)

Thermostat

Valve opening temperature of thermostat

°C (°F)

82

± 2 (180 ± 36)

-

Full-opening temperature of thermostat

°C (°F)

95 (203)

-

Valve lift mm (in)

10 (0.39) or more

-

ITEM

QUANTITY dm3 (qt)

Long life antifreeze coolant or an equivalent

9.0 (9.5)

ITEM

SPECIFIED SEALANT

Cylinder block plug

3M

 Nut Locking Part number 4171 or equivalent

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

32-2

SPECIAL TOOL . . . . . . . . . . . . . . . . .

32-3

ENGINE MOUNTING . . . . . . . . . . . . .

32-4

REMOVAL AND INSTALLATION . . . . . . . .

32-4

TRANSMISSION MOUNTING . . . . . .

32-6

REMOVAL AND INSTALLATION . . . . . . . .

32-6

NO.1CROSSMEMBER . . . . . . . . . . . .

32-7

REMOVAL AND INSTALLATION . . . . . . . .

32-7

SPECIFICATIONS  . . . . . . . . . . . . . . .

32-10

FASTENER TIGHTENING
SPECIFICATION . . . . . . . . . . . . . . . . . . . . .

32-10

GENERAL DESCRIPTION

TSB Revision

POWER PLANT MOUNT

32-2

GENERAL DESCRIPTION

M1321000100403

The engine mounting system supports the engine at
two locations and the transmission at one location.
This system has the following features:

• The engine mount is a liquid-filled mount, which

contributes to the reduction of idling vibra-
tion/noise and the improvement of the driving
comfort.

• The transmission mount reduces body vibration

by supporting the transmission and transmission
mount center member elastically (double
anti-vibration method).

• The transmission mount insulator is a shear type

insulator.

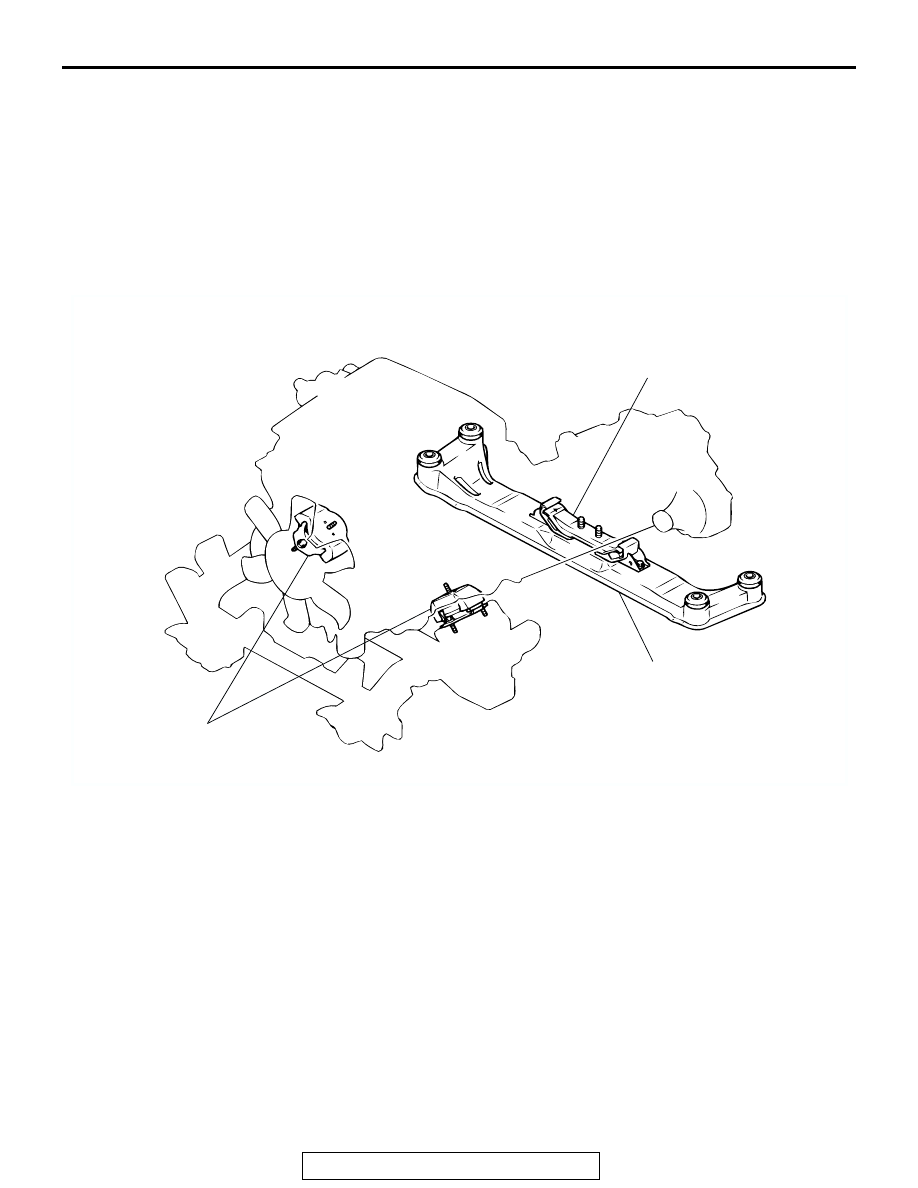

CONSTRUCTION DIAGRAM

AC204105 AB

TRANSMISSION MOUNT INSULATOR

ENGINE MOUNTS

TRANSMISSION MOUNT CENTER MEMBER
