Mitsubishi Montero (2004+). Manual - part 1144





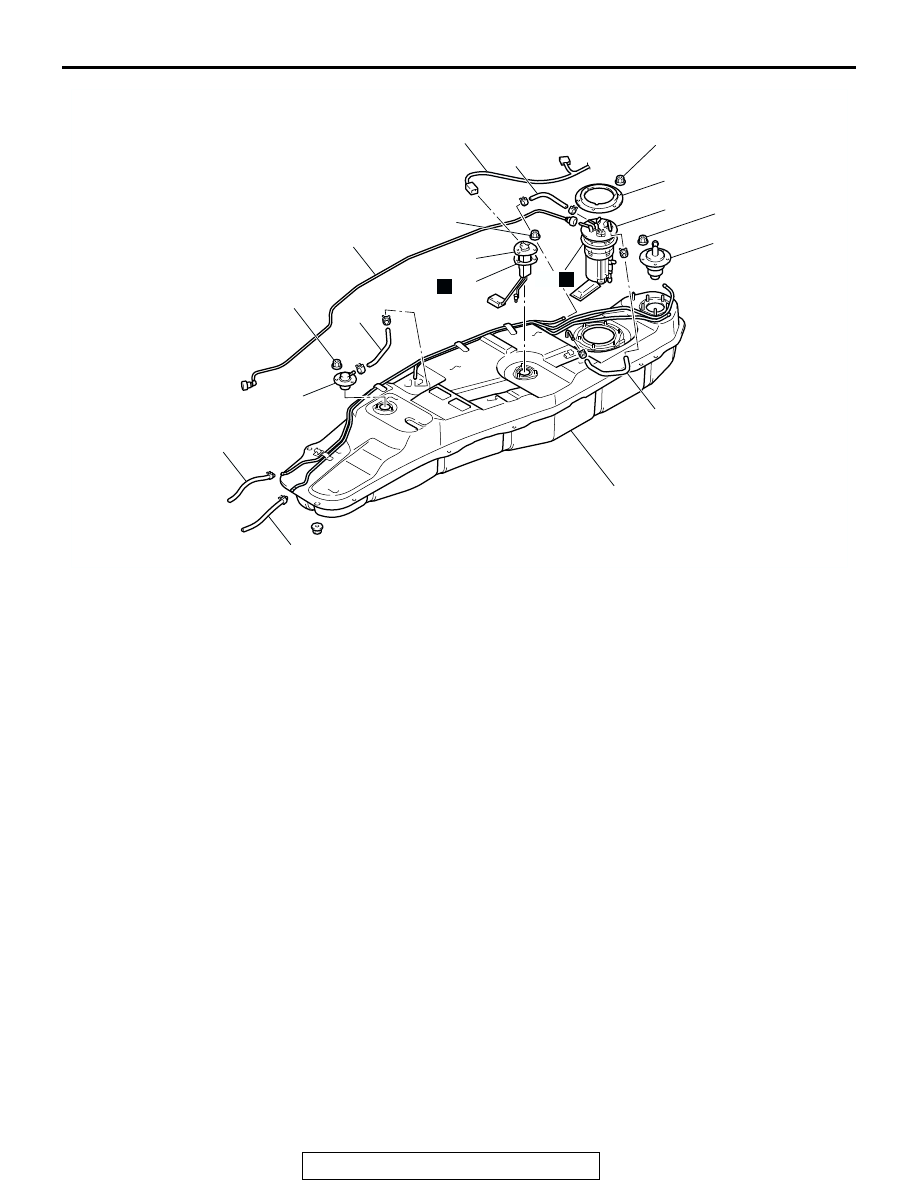

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-9

AC101597

2.5 ± 0.4 N·m
22 ± 4 in-lb

18

26

27

2.5 ± 0.4 N·m
22 ± 4 in-lb

21

22

25

N

N

2.5 ± 0.4 N·m
22 ± 4 in-lb

2.5 ± 0.4 N·m
22 ± 4 in-lb

23

24

28

29

20

15

16

AB

17

19

REMOVAL STEPS

15. FUEL RETURN HOSE
16. FUEL VAPOR HOSE
17. FUEL HIGH-PRESSURE HOSE
18. FUEL TANK VAPOR HOSE
19. FUEL TANK ROLLOVER VALVE
20. FUEL TANK SUCTION HOSE
21. FUEL TANK RETURN HOSE
22. FUEL TANK HARNESS

23. TAPPING PLATE
24. FUEL PUMP MODULE ASSEMBLY
25. PACKING
26. FUEL LEVEL SENSOR
27. PACKING
28. FUEL TANK LEVELING VALVE

ASSEMBLY

29. FUEL TANK

REMOVAL STEPS (Continued)

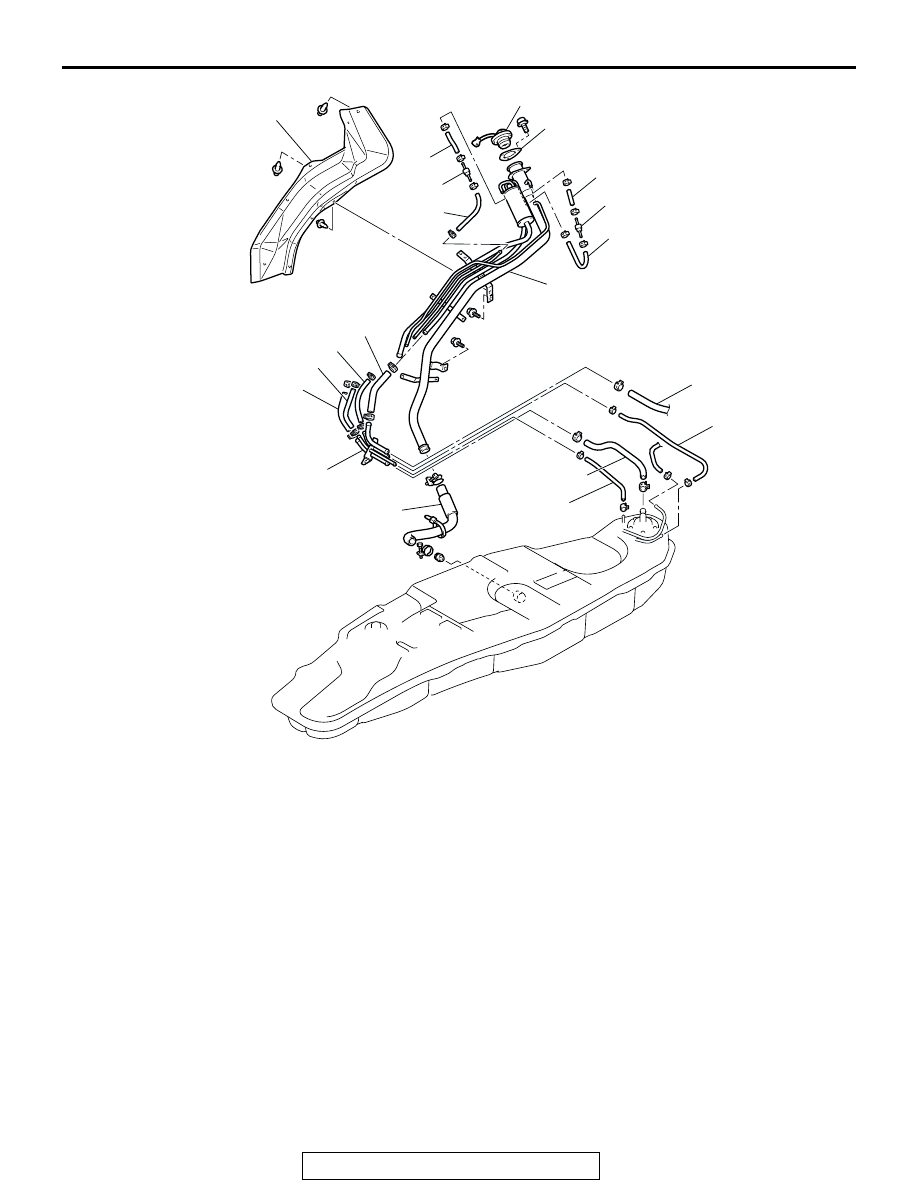

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-10

AC101598AB

31

30

39

46

45

44

38

49

48

47

35

36

34

33

32

37

40

43

42

41

REMOVAL STEPS

30. FUEL CAP
31. FUEL TANK FILLER TUBE

PROTECTOR

32. FUEL FILLER HOSE
33. FUEL TANK FILLER TUBE

BREATHER HOSE

34. FUEL TANK FILLER TUBE VAPOR

HOSE

35. FUEL TANK FILLER TUBE VAPOR

HOSE

36. FUEL TANK FILLER TUBE VAPOR

HOSE

37. FUEL TANK LEVELING PIPE

ASSEMBLY

38. FUEL TANK FILLER TUBE
39. FUEL TANK FILLER TUBE GASKET
40. FUEL TANK FILLER TUBE VAPOR

HOSE

41. FUEL TANK FILLER TUBE VAPOR

HOSE

42. FUEL TANK FILLER TUBE VAPOR

HOSE

43. FUEL TANK FILLER TUBE VAPOR

HOSE

44. FUEL TANK FILLER TUBE VAPOR

HOSE

45. FUEL CHECK VALVE ASSEMBLY
46. FUEL TANK FILLER TUBE VAPOR

HOSE

47. FUEL TANK FILLER TUBE VAPOR

HOSE

48. FUEL CHECK VALVE ASSEMBLY
49. FUEL TANK FILLER TUBE VAPOR

HOSE

REMOVAL STEPS (Continued)

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-11

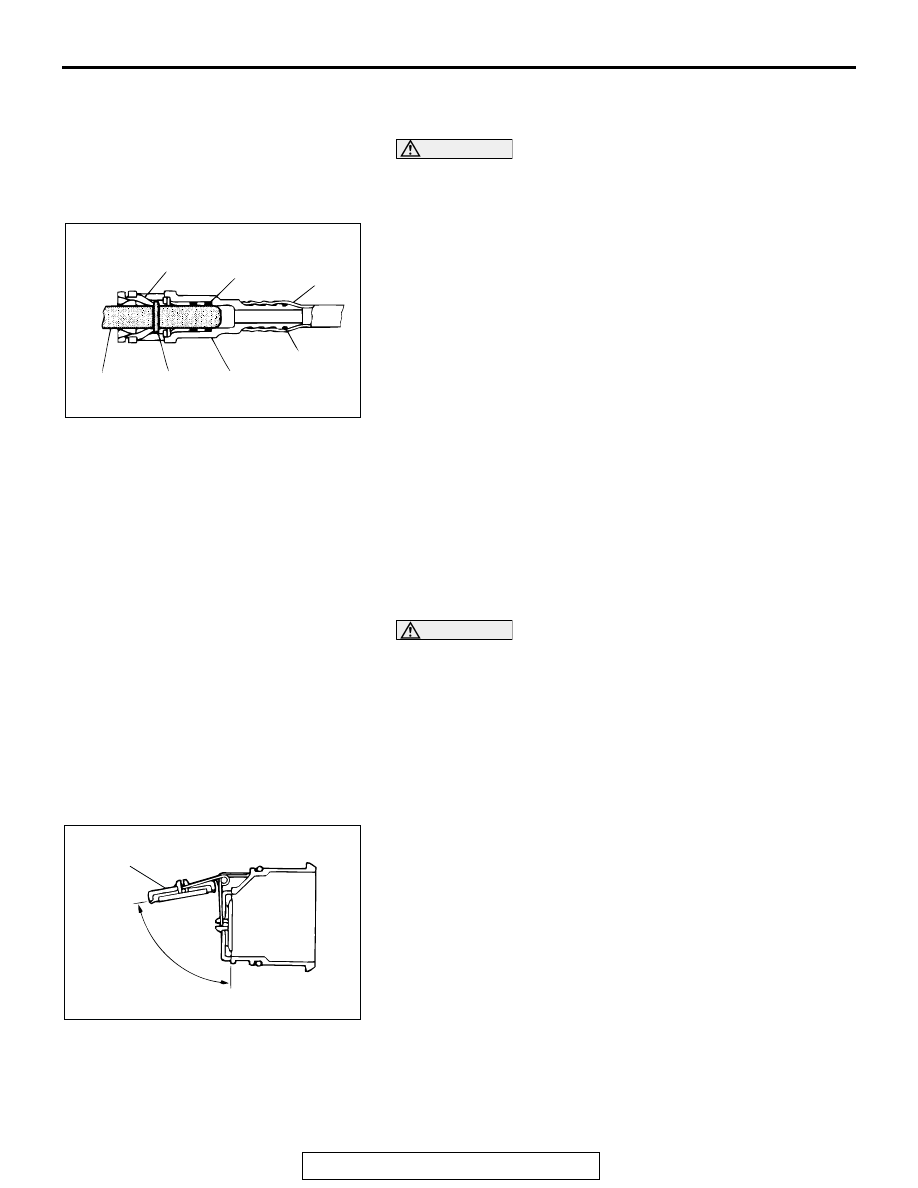

REMOVAL SERVICE POINTS

.

<<A>> FUEL HIGH-PRESSURE HOSE REMOVAL

CAUTION

As there will be some pressure remaining in the fuel pipe
line, cover it with a shop towel to prevent fuel from spray-
ing out.
Press the fuel high-pressure hose retainer to disengage the
connector, and then remove the fuel high-pressure hose.

.

<<B>> DISCONNECTION OF FUEL TANK BREATHER
HOSE/DISCONNECTION OF FUEL TANK HARNESS
CONNECTOR
Lower the fuel tank halfway to disconnect the fuel tank breather
hose and the fuel tank harness connector.

INSTALLATION SERVICE POINT

.

>>A<< FUEL HIGH-PRESSURE HOSE INSTALLATION

CAUTION

After connecting the quick action joint of the fuel
high-pressure hose, pull the joint to disconnecting direc-
tion lightly to check that it is mounted securely. In addi-
tion, at this time confirm that there is a play of approx. 3
mm (0.12 inch) at the joint.

INSPECTION

M1135002000199

FUEL SHUT-OFF VALVE CHECK

Check that the flapper and valve open and close as shown in
the illustration.

ACX00763

RETAINER

O-RING

NYLON TUBE

FUEL PIPE

SPOOL

CONNECTOR

O-RING

AB

AC005004AB

CLOSED

OPEN

FLAPPER

80˚

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-12

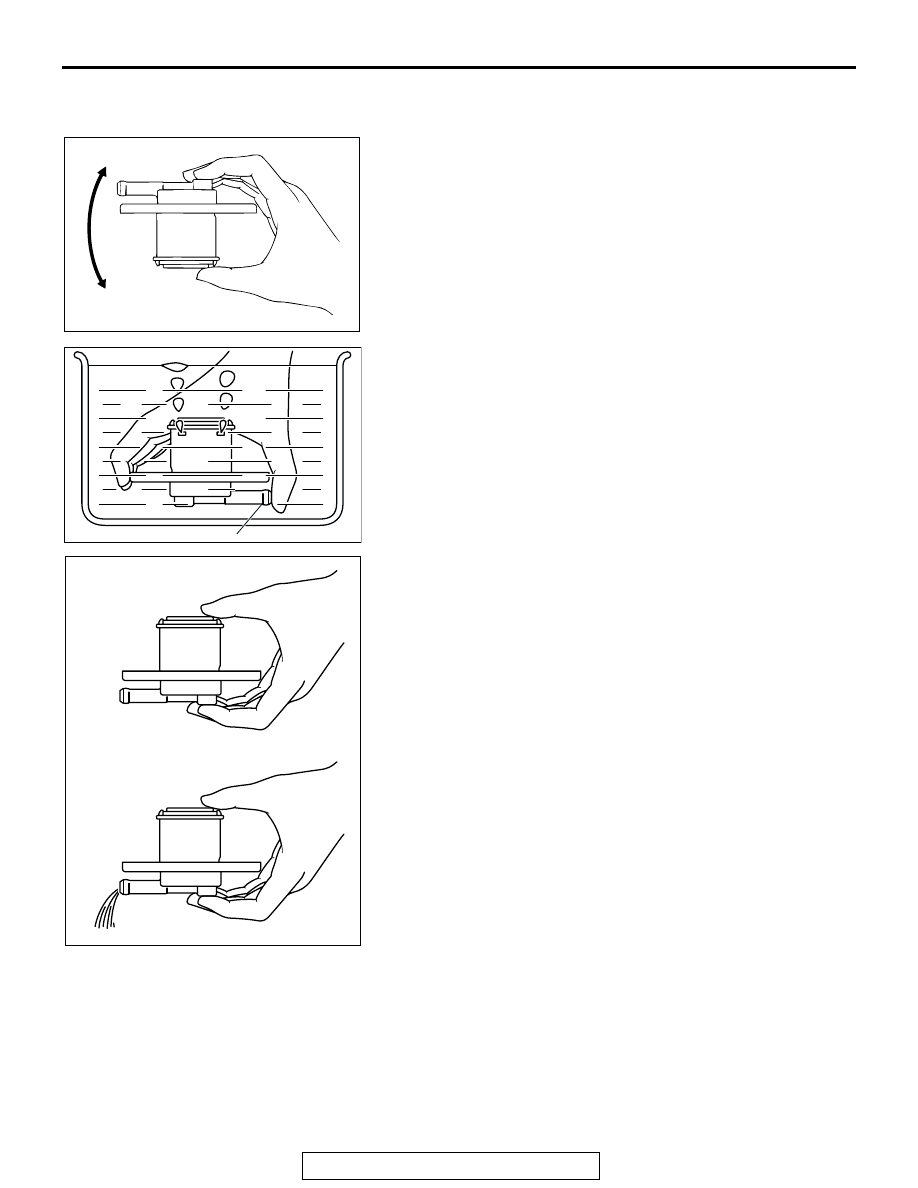

FUEL TANK ROLLOVER VALVE ASSEMBLY
CHECK

1.  Shake the fuel tank rollover valve assembly up and down to

check if the float inside the fuel tank rollover valve assembly
is not seized. If seized, replace the fuel tank rollover valve
assembly.

2.  Obtain a container, which is full of water.
3.  Invert the fuel tank rollover valve assembly, and submerge it

slowly in the water while placing your fingers over the
nozzle.

4.  Check that no more air bubbles appears from the fuel tank

rollover valve assembly, and withdraw it slowly.

5.  Open the fuel tank rollover valve assembly nozzle. If no

water flows out from the nozzle aperture, the valve is
normal. If water flows out, the float or spring inside the fuel
tank rollover valve is defective. Replace the fuel tank rollover
valve assembly.

ACX00760AB

AC102262

NOZZLE

AB

AC102263

<NORMAL>

<DEFECTIVE>

AB
