SPECIAL TOOLS

TSB Revision

FRONT SUSPENSION

33A-5

SPECIAL TOOLS

M1331000600089

ON-VEHICLE SERVICE

FRONT WHEEL ALIGNMENT CHECK AND
ADJUSTMENT

M1331000900295

Required Special Tool:

• MB991004: Wheel Alignment Gauge Attachment.

Measure wheel alignment with alignment equipment on a level
surface. The front suspension, steering system, and wheels
should be serviced to normal condition before measuring wheel
alignment.

.

TOE-IN

Standard value: 2.5

± 2.5 mm (0.1 ± 0.1 inch)

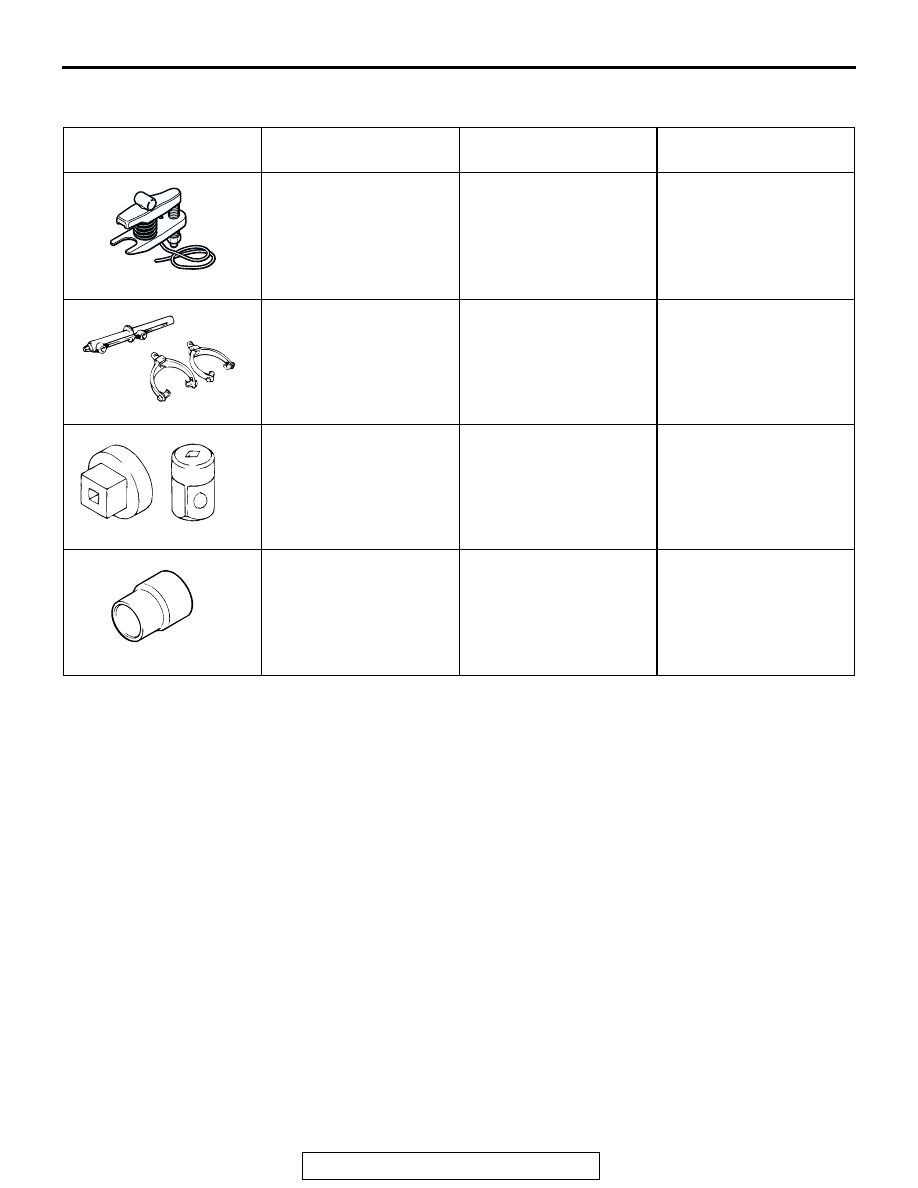

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991897
Ball joint remover

MB991113-01,
MB990635-01 or General
service tool

Ball joint disconnection
NOTE: Steering linkage
puller (MB990635 or
MB991113) is also
available to disconnect
ball joint.

A:MB991237 spring
compressor body
B:MB991238 arm set

MIT221369

Coil spring removal and
installation

MB990326
Preload socket

General service tool

Ball joint rotating torque
check

MB990799
Ball joint remover and
installer

MB990799-01

Dust cover installation

AC106827

MB991237

A

B

MB990326

MB990799

ON-VEHICLE SERVICE

TSB Revision

FRONT SUSPENSION

33A-6

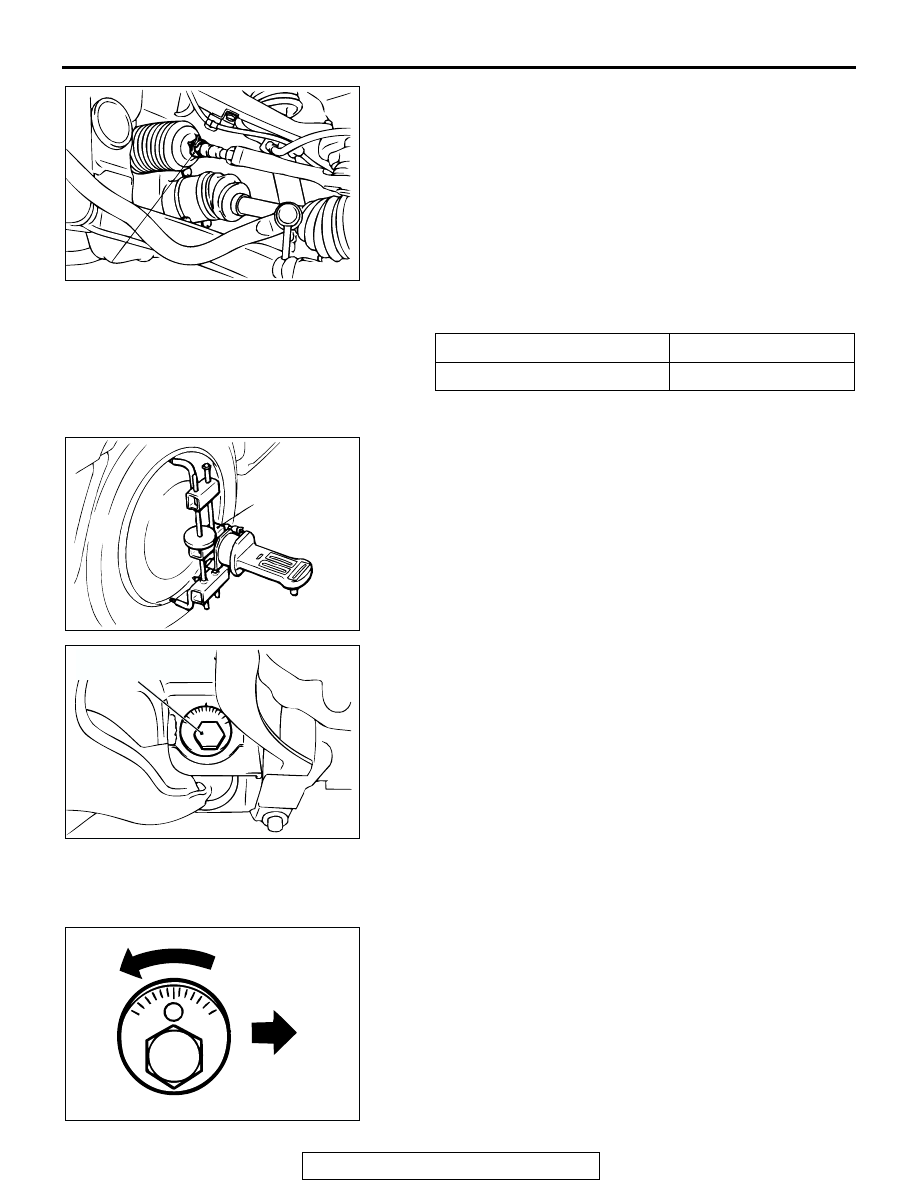

1. Adjust the toe-in by undoing the bellows clip and turning the

left and right tie rod turnbuckles by the same amount (in
opposite directions).
NOTE: The toe will move out as the left turnbuckle is turned
toward the front of the vehicle and the right turnbuckle is
turned toward the rear of the vehicle.

2. Use a turning radius gauge to check that the steering angle

is at the standard value. (Refer to GROUP 37A, On-vehicle
Service

P.37A-15

.)

.

STEERING ANGLE

Standard value:

.

CAMBER AND CASTER

Standard value:

 Camber: 0

°00'± 30' (difference between right and left

wheels: within 30')

 Caster: 3

°50'± 1° (difference between right and left

wheels: within 30')

If the standard value is not obtained, make adjustment by the
following procedure.

1. Adjust the camber and caster until they meets the standard

value by turning the lower arm camber adjusting bolt
according to the camber and caster reference table. (Refer
to .)

2. After adjusting the camber, the toe should be adjusted.

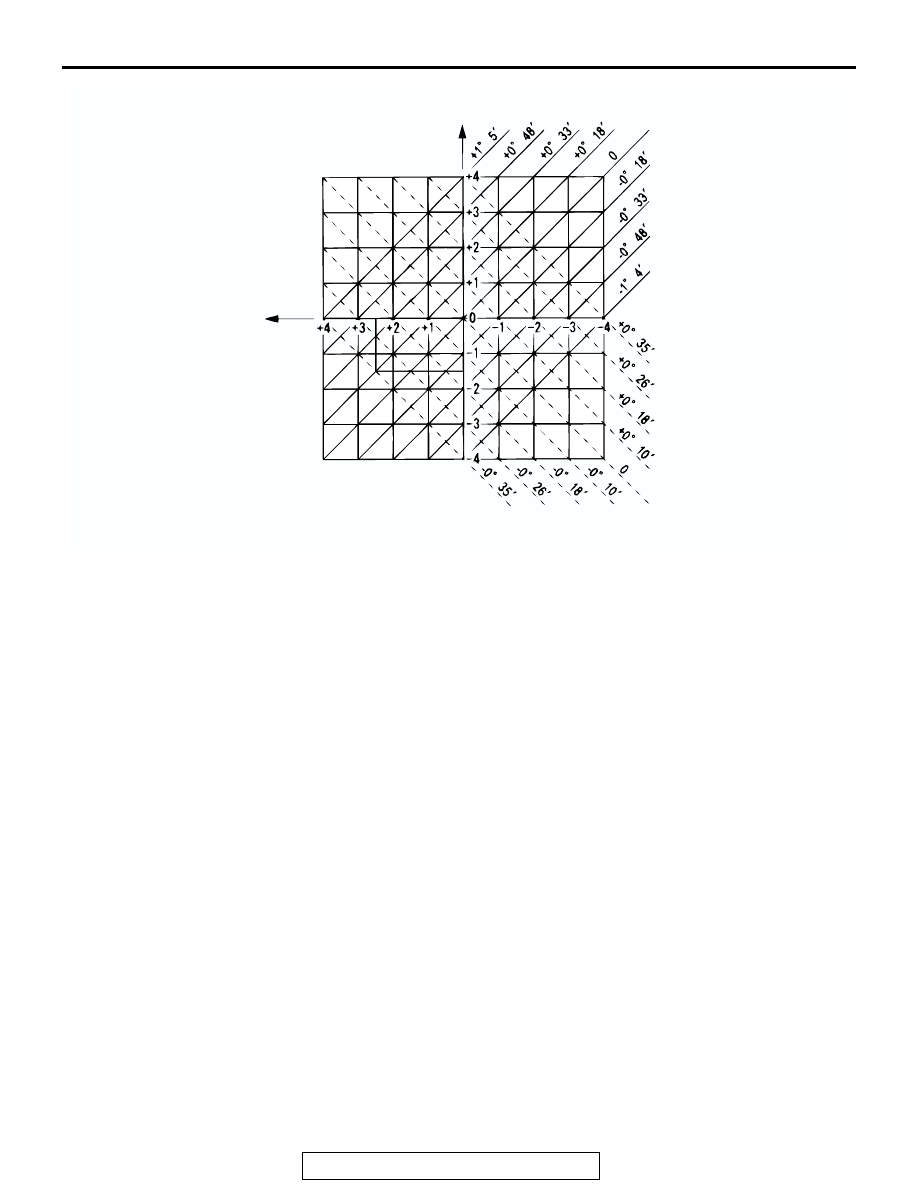

Camber and caster reference table

.

How to read this table (example)
If the camber difference

−0°35' and the caster difference is

0

°18' by comparing the measurement value with the standard

value, rotate the front adjusting cam by 1.5 graduations and the
rear adjusting cam by 2.5 graduations to the opposite direction
against the "A" direction.

Inner wheel

36

°30' ± 1°30'

Outer wheel (reference)

31

°40'

ACX00711AB

BELLOWS CLIP

ACX00712AB

COMPENSATOR

ACX00725

AC

LOWER ARM CAMBER
ADJUSTING BOLT

ACX00713 AB

A

CENTER OF
VEHICLE

ON-VEHICLE SERVICE

TSB Revision

FRONT SUSPENSION

33A-7

NOTE: Solid lines show caster, broken lines show camber.

UPPER ARM BALL JOINT END PLAY CHECK

M1332011400026

1. Raise the vehicle.
2. Move the upper arm up and down with your hands to check

for an excessive play in the axial direction of the ball joint. If
there is an excessive play, replace the upper arm ball joint
assembly.

BALL JOINT DUST COVER CHECK

M1332008600224

1. Press the dust cover with your finger to check that there are

no cracks or damage in the dust cover.

2. If the dust cover is cracked or damaged, replace the upper

arm ball joint assembly, lower arm ball joint assembly or
stabilizer link.
NOTE: If the dust cover is cracked or damaged, it is possible
that there may also be damage to the ball joint.

ACX02270 AB

(STANDARD VALUE)

(STANDARD VALUE)

"A"DIRECTION

"A"DIRECTION

GRADUATION AT THE
REAR ADJUSTING CAM

GRADUATION AT THE
FRONT ADJUSTING CAM

UPPER ARM ASSEMBLY

TSB Revision

FRONT SUSPENSION

33A-8

UPPER ARM ASSEMBLY

REMOVAL AND INSTALLATION

M1332004300061

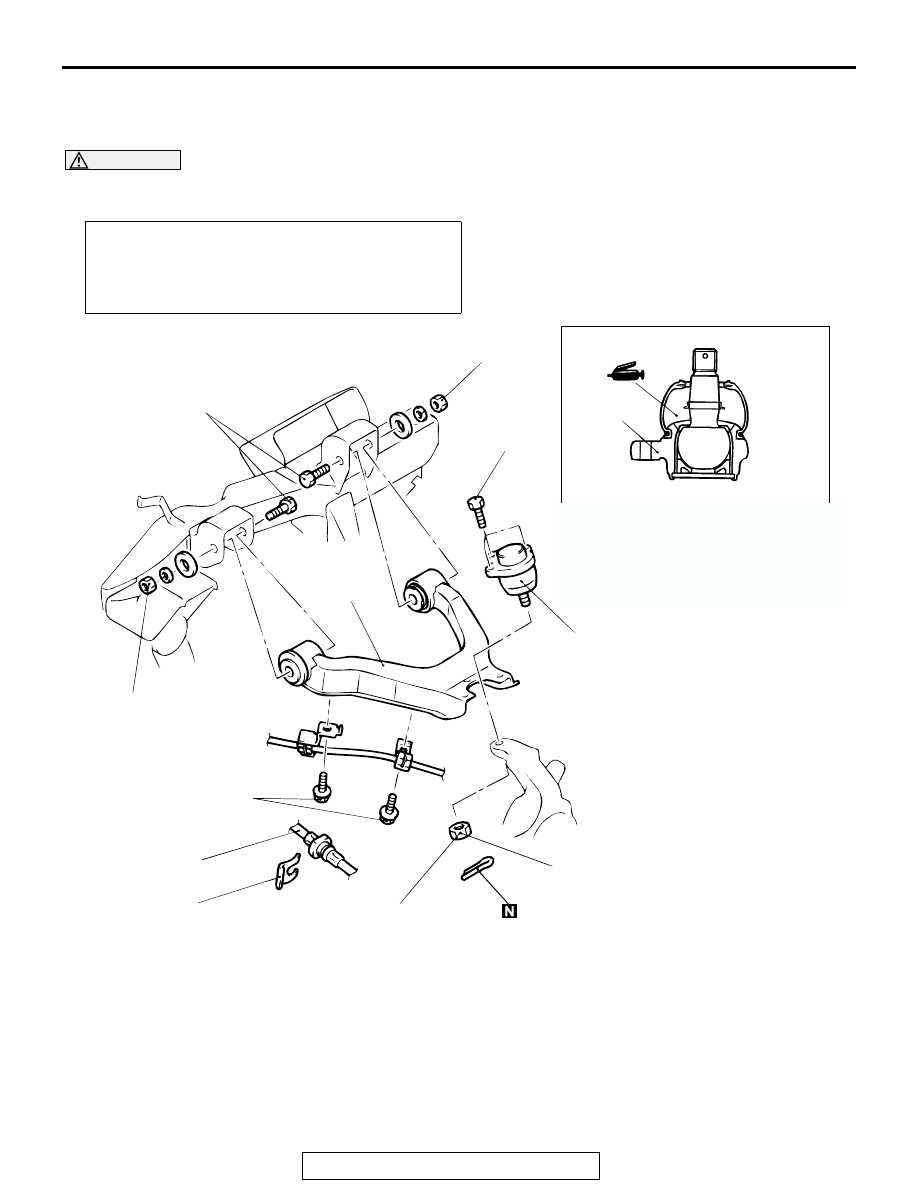

CAUTION

*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on
the ground in an unladen condition.

Required Special Tool:

• MB991897: Ball Joint Remover

Post-installation Operation
• Check the dust cover for cracks or damage by pushing it

with your finger.

• Wheel Alignment Check and Adjustment (Refer to

P.33A-5

).

ACX00714 AB

7

5

6

7

1

3

2

4

147

± 10 N

·

m *

109

± 7 ft-lb *

30

± 4 N

·

m

22

± 3 ft-lb

74

± 14 N

·

m

55

± 10 ft-lb

147

± 10 N

·

m *

109

± 7 ft-lb *

REMOVAL STEPS

1. FRONT WHEEL SPEED SENSOR

BRACKET MOUNTING BOLT

2. CLIP
3. BRAKE HOSE

<<A>> >>A<<

4. UPPER ARM BALL JOINT AND

KNUCKLE CONNECTION

5. UPPER ARM ASSEMBLY AND

FRONT FRAME CONNECTION

6. UPPER ARM ASSEMBLY
7. UPPER ARM BALL JOINT

ASSEMBLY

REMOVAL STEPS (Continued)
