PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-9

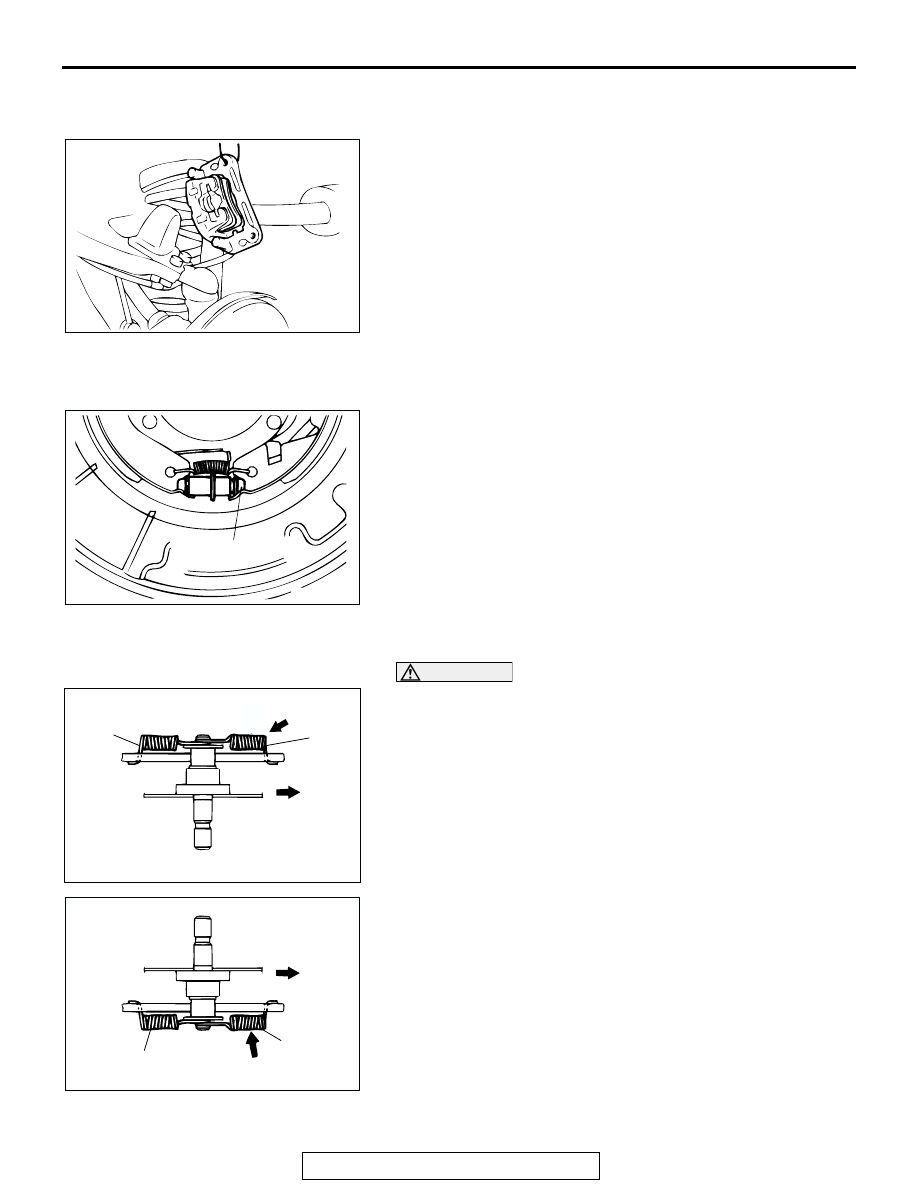

REMOVAL SERVICE POINT

.

<<A>> REAR BRAKE CALIPER ASSEMBLY REMOVAL
Remove the rear brake caliper assembly and support it with
wire or something similar.

INSTALLATION SERVICE POINTS

.

>>A<< ADJUSTER ASSEMBLY INSTALLATION
Install the adjuster so that the shoe adjusting bolt for the left
hand wheel is attached towards the rear of the vehicle, and the
shoe adjusting bolt for the right hand wheel is towards the front
of the vehicle.

.

>>B<< SHOE-TO-ANCHOR SPRING INSTALLATION

CAUTION

The front and rear shoe-to-anchor springs are not inter-
changeable, so the spring with the paint mark must be
installed at the rear side.
Install the shoe-to-anchor springs in the order shown in the
illustration.

ACX00705

ACX00706AB

SHOE ADJUSTING
BOLT

ACX01980AB

PAINT

REAR

1

2

RIGHT SIDE WHEEL

ACX00707AB

PAINT

REAR

1

2

LEFT SIDE WHEEL

SPECIFICATIONS

TSB Revision

PARKING BRAKES

36-10

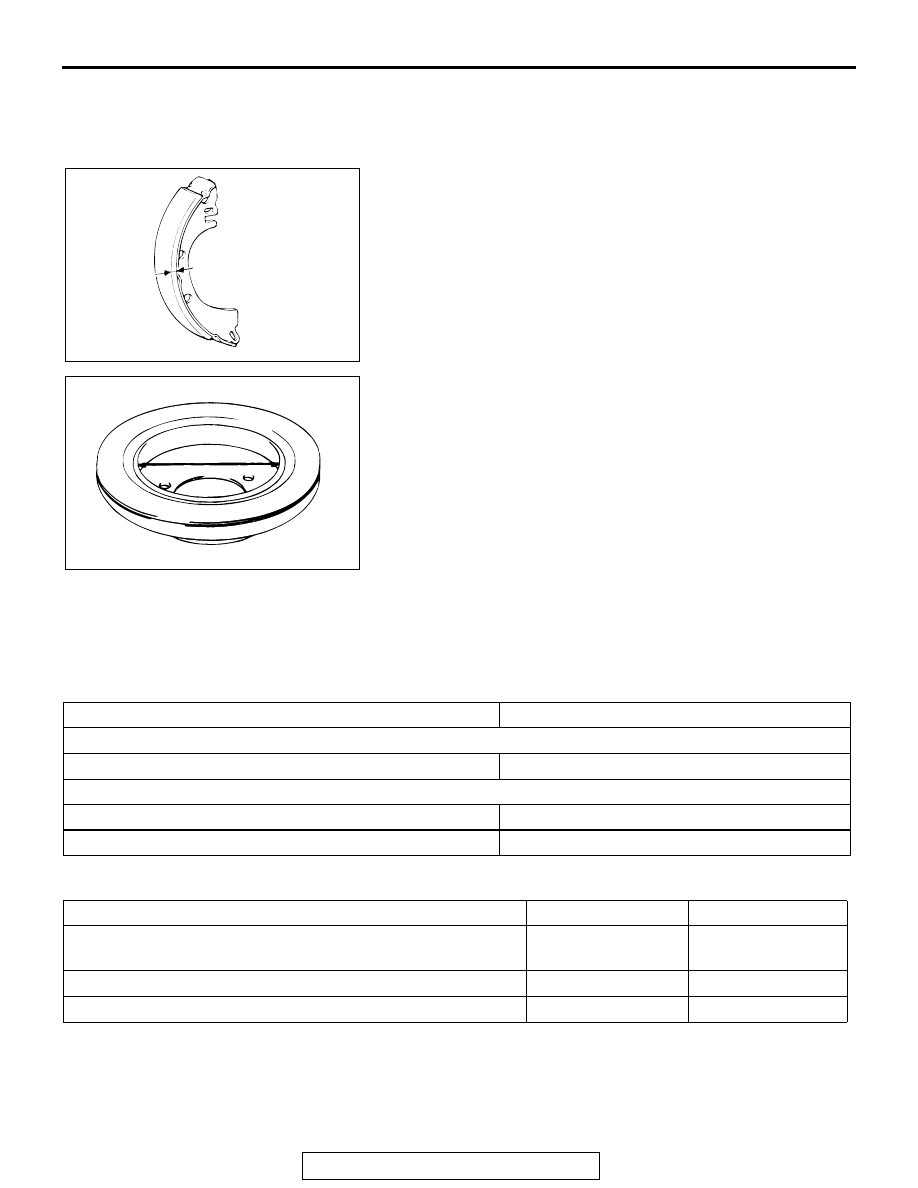

INSPECTION

M1361002600185

PARKING BRAKE LINING AND BRAKE DRUM
CHECK

1. Measure the thickness of the brake lining at several places.

Standard value: 3.0 mm (0.12 inch)
Minimum Limit: 1.0 mm (0.04 inch)

2. If the thickness of the brake lining is below the limit, replace

the shoe and lining assemblies on both sides of the vehicle.
Never replace only one side.

3. Measure the inside diameter of the brake disc in two places

or more.

Standard value: 199.0 mm (7.8 inch)
Limit: 200.0 mm (7.9 inch)

4. If the inside diameter exceeds the limit, or if it is excessively

worn on one side, replace the brake disc.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1361003500211

SERVICE SPECIFICATIONS

M1361000300263

ACX00708AB

ACX00709AB

ITEM

SPECIFICATION

Parking brake lever
G-sensor bracket mounting bolt

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Parking brake lining and drum
Anchor to shoe spring attaching nut

142

± 14 N⋅m (105 ± 10 ft-lb)

Rear brake caliper assembly mounting bolt

100

± 10 N⋅m (74 ± 7 ft-lb)

ITEM

STANDARD VALUE LIMIT

Parking brake lever stroke
[Parking brake lever pull force: Approximately 200N (45lb)]

− 7 notches

Rear brake lining thickness mm (in)

3.0 (0.12)

Minimum 1.0 (0.04)

Brake drum inside diameter mm (in)

199.0 (7.8)

200.0 (7.9)

SPECIFICATIONS

TSB Revision

PARKING BRAKES

36-11

LUBRICANT

M1361000400237

SEALANT

M1361000500085

ITEM

SPECIFIED LUBRICANT

Adjuster

Brake grease SAE J310, NLGI No.1

Backing plate
Shoe and lining assembly

ITEM

SPECIFIED SEALANT

REMARK

Shoe hold-down pin

3M

 ATD Part No. 8633 or

equivalent

Drying sealant

NOTES
