ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-5

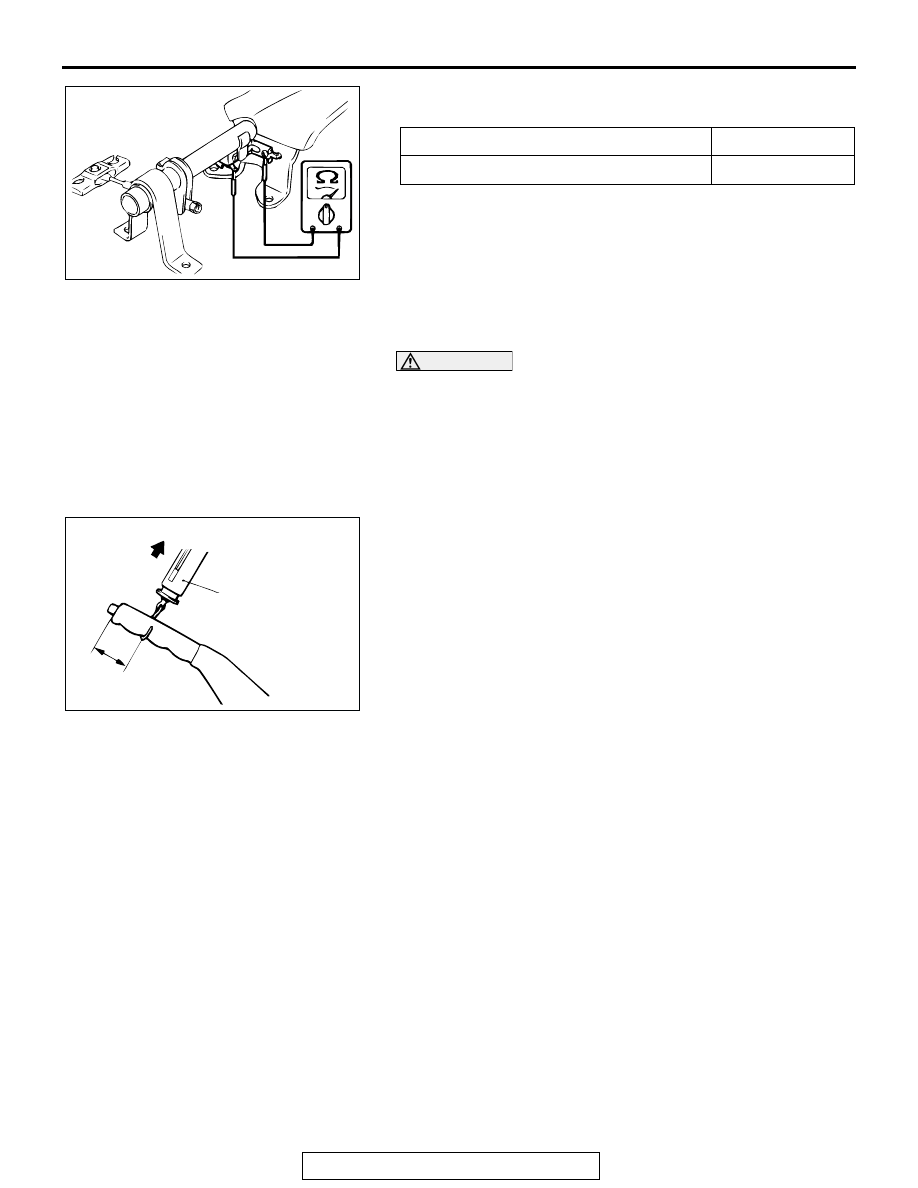

2. Check for continuity between the parking brake switch

terminal and the switch mounting bolt.

PARKING BRAKE LINING SEATING PROCEDURE

M1361001100198

CAUTION

Perform lining seating in a place with good visibility, and
pay careful attention to safety.
Perform lining seating by the following procedure when replac-
ing the parking brake linings or the rear brake disc rotors, or
when brake performance is insufficient.
1. Adjust the parking brake stroke to the specified value (Refer

to

P.36-4

).

2. Hook a spring scale onto the center of the parking brake

lever grip and pull it with a force of 100

− 150 N (23 − 34

pounds) in a direction perpendicular to the handle.

3. Drive the vehicle at a constant speed of 35

− 50 km/h (22 −

31 mph) for 100 meters (328 feet).

4. Release the parking brake and let the brakes cool for five to

ten minutes.

5. Repeat the procedure in steps 2. to 4. four to five times.

When parking brake lever is pulled

2 ohm or less

When parking brake lever is released

Open circuit

ACX00700AB

ACX00701AB

APPROXIMATELY
40 mm (1.6 in)

SPRING BALANCE

PULL

PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-6

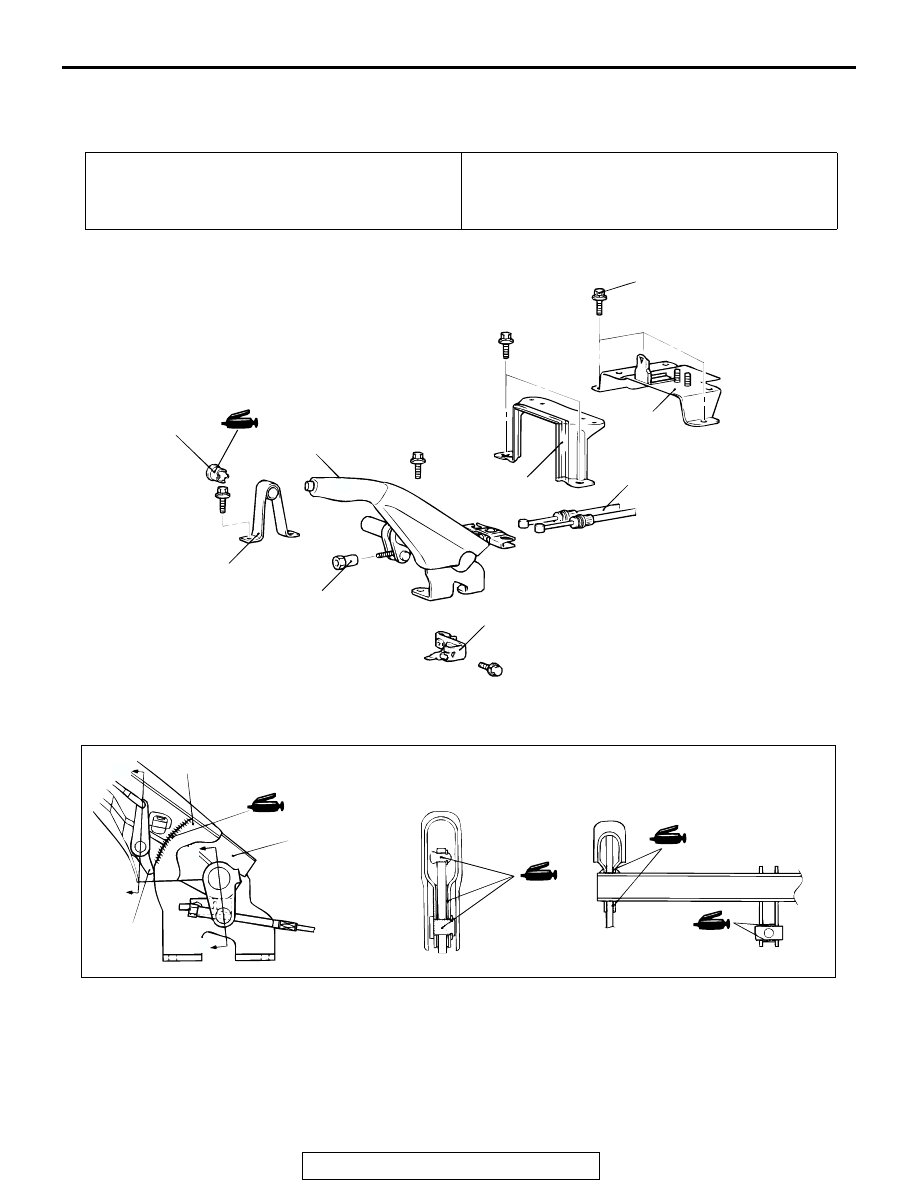

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

M1361001300211

Pre-removal Operation
• Floor Console Removal (Refer to GROUP 52A, Floor

Console

P.52A-7

.)

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-4

.)

• Floor Console Installation (Refer to GROUP 52A, Floor

Console

P.52A-7

.)

ACX00702 AB

SECTION B – B

SECTION A – A

RATCHET PLATE

7

A

RATCHET
PAWL

4.9

 ±

 1.0 N

·

m

44

 ±

 8 in-lb

1

4

2

7

3

8

B

B

A

6

5





REMOVAL

STEPS





1. G-SENSOR

BRACKET





2.

FLOOR CONSOLE BRACKET





3.

ADJUSTING NUT





4.

PARKING BRAKE CABLE
ASSEMBLY

5.

PARKING BRAKE STAY

6.

BUSHING

7.

PARKING BRAKE LEVER
ASSEMBLY

8.

PARKING BRAKE SWITCH





REMOVAL

STEPS

(Continued)

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-7

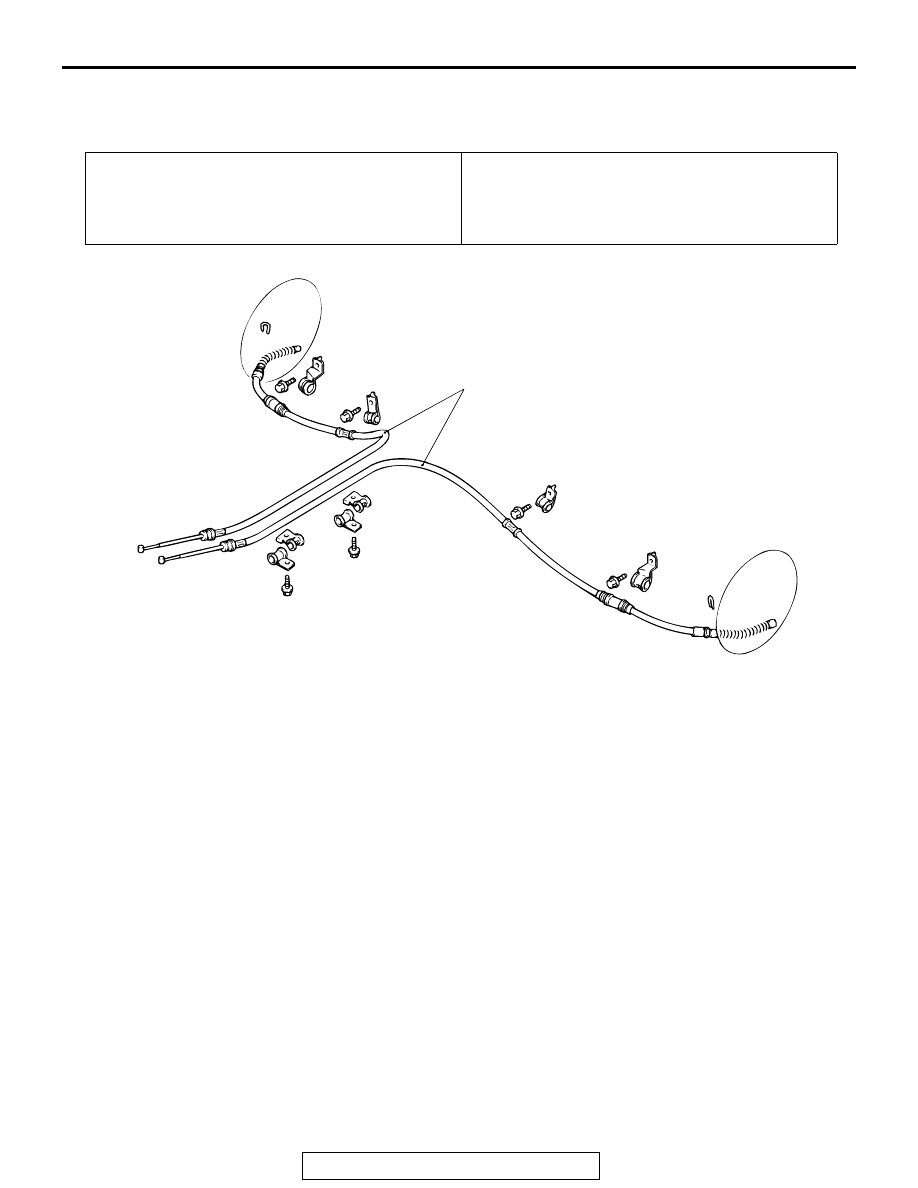

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001900365

Pre-removal Operation
• Floor Console Removal (Refer to GROUP 52A, Floor

Console

P.52A-7

.)

Post-installation Operation
• Parking Brake Lever Stroke Check and Adjustment (Refer

to

P.36-4

.)

• Floor Console Installation (Refer to GROUP 52A, Floor

Console

P.52A-7

.)

ACX00703

1

AB





REMOVAL

STEPS





•

SHOE AND LINING ASSEMBLY (REFER
TO

P.36-8

.)





•

PARKING BRAKE CABLE ASSEMBLY
CONNECTION (REFER TO

P.36-6

.)





1.

PARKING BRAKE CABLE

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-8

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500371

Post-installation Operation
• Parking Brake Lever Stroke Check and Adjustment (Refer to

P.36-4

).

• Parking Brake Lining Seating (Refer to

P.36-5

).

• Floor Console Installation (Refer to GROUP 52A, Floor Console

P.52A-7

).

AC204052AC

BRAKE GREASE: BRAKE GREASE SAE J310, NLGI NO.1

SEALANT:
  3M    ADD PART NO.8633 OR
  EQUIVALENT

TM

:

1

100 ± 10 N·m
74 ± 7 ft-lb

142 ± 14 N·m
105 ± 10 ft-lb

2

13

9

12

10

8

4

5

11

10

3

6

13

10

10

12

5

7





REMOVAL

STEPS

<<A>>

1. REAR

BRAKE

CALIPER

ASSEMBLY





2. REAR

BRAKE

DISC



>>B<<

3.

SHOE-TO-ANCHOR SPRING





4.  ADJUSTING WHEEL SPRING



>>A<<

5. ADJUSTER

ASSEMBLY





6. STRUT





7. SHOE-TO-

SHOE

SPRING





8.  SHOE HOLD-DOWN CUP AND

SHOE HOLD-DOWN SPRING





9. CLIP





10.  SHOE AND LINING ASSEMBLY





11.  REAR HUB ASSEMBLY (REFER

TO GROUP 27, REAR HUB
ASSEMBLY

P.27-13

).





12. BACKING PLATE
13. SHOE HOLD-DOWN PIN







REMOVAL STEPS (Continued)
