M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-107

YES : Go to Step 8.
NO :  Repair the wiring harness wires between joint

connector (9) and the resistor connector.

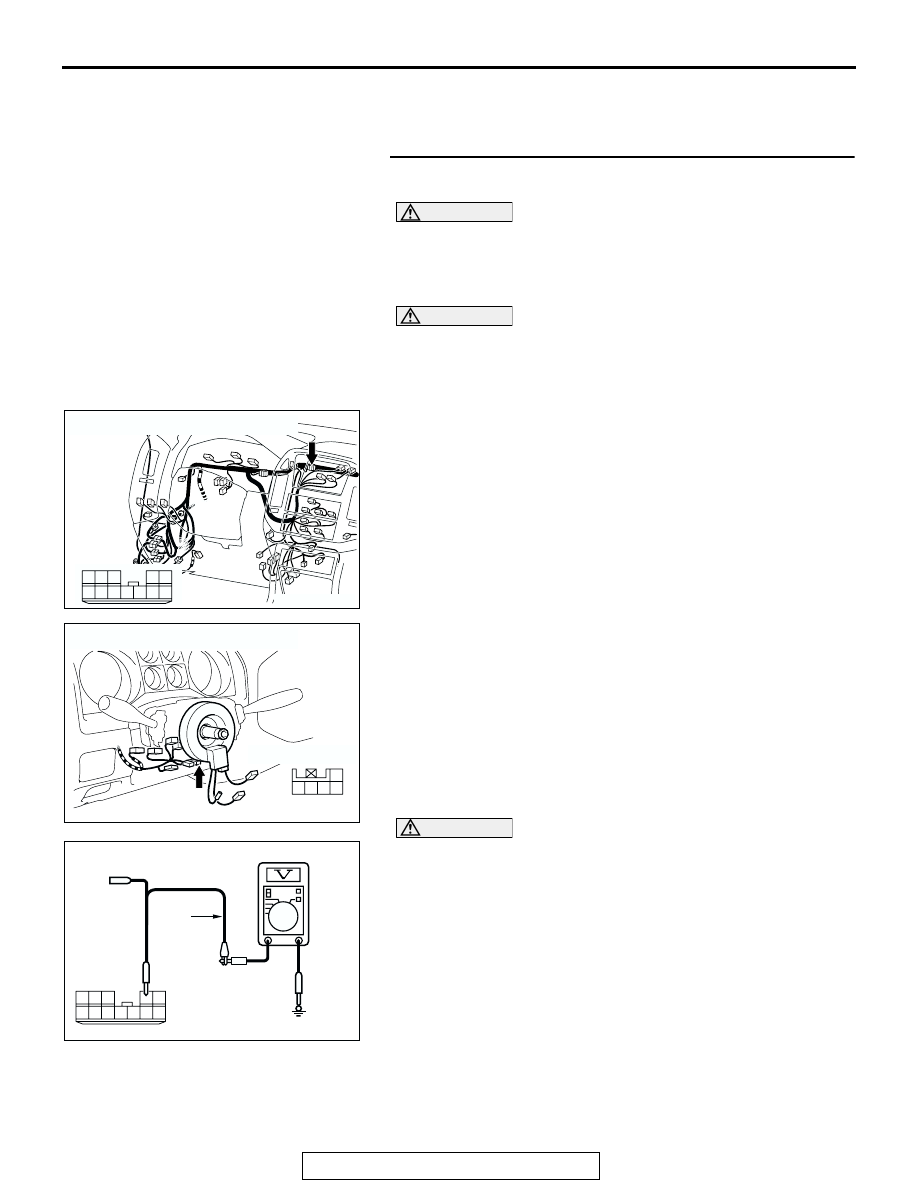

STEP 8. Measure the voltage in the CAN_H line. Measure
the voltage at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital
multimeter, the equipments, which are connected through
the CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and steering wheel

sensor connector D-225, and measure the voltage at joint
connector (9).

(2) Turn the ignition switch to the "ON" position.

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(3) Measure the voltage between joint connector (9) D-131

terminal 2 and body ground.

• The voltage should measure one volt or less.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204580

HARNESS SIDE: D-131

AH

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-108

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Do the voltage measure one volt or less?

YES : Go to Step 9.
NO :  Repair the wiring harness wires between joint

connector (9) and the steering wheel sensor
connector.

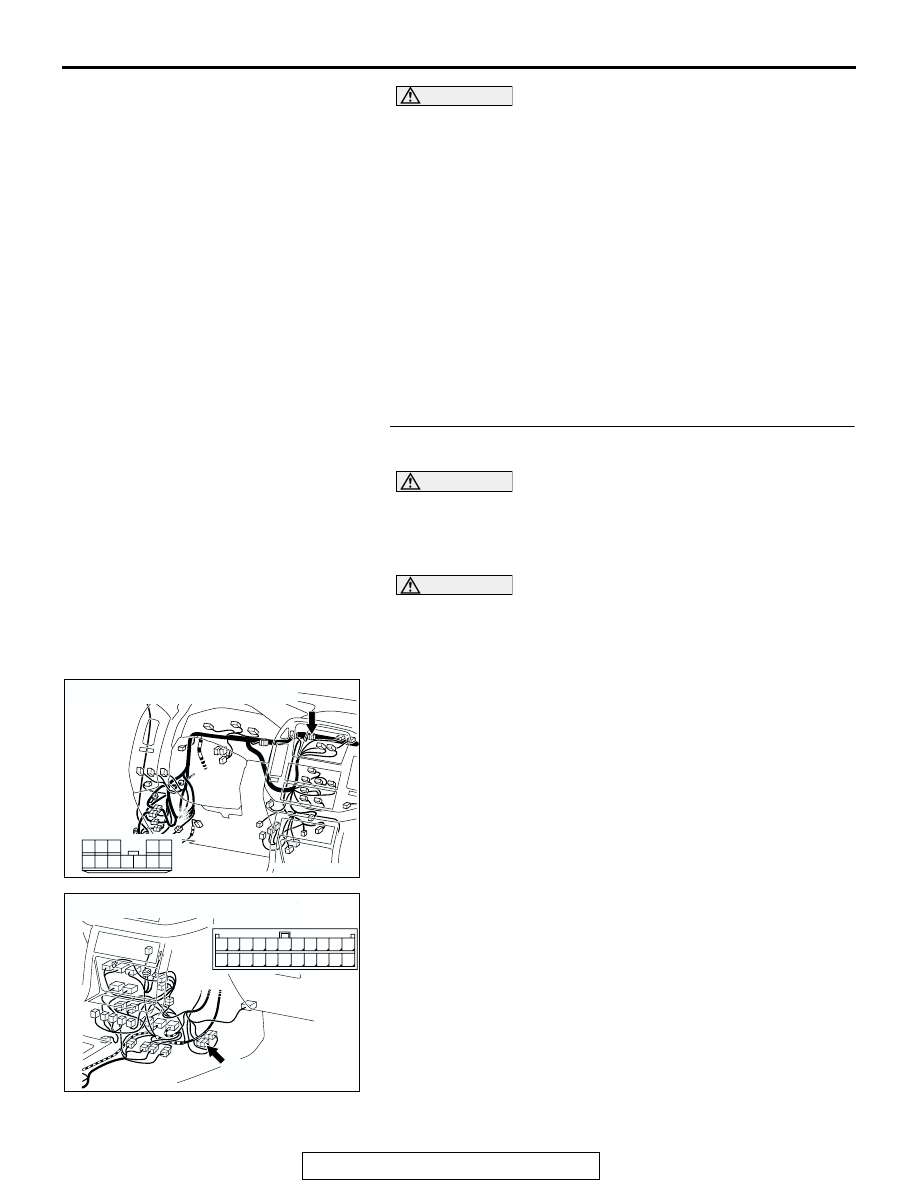

STEP 9. Measure the voltage in the CAN_H line. Measure
the voltage at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital
multimeter, the equipments, which are connected through
the CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and intermediate

connector E-122, and measure the voltage at joint
connector (9).

(2) Turn the ignition switch to the "ON" position.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204176

CONNECTOR: E-122

E-122(L)

E-122(L)

AD

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-109

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.

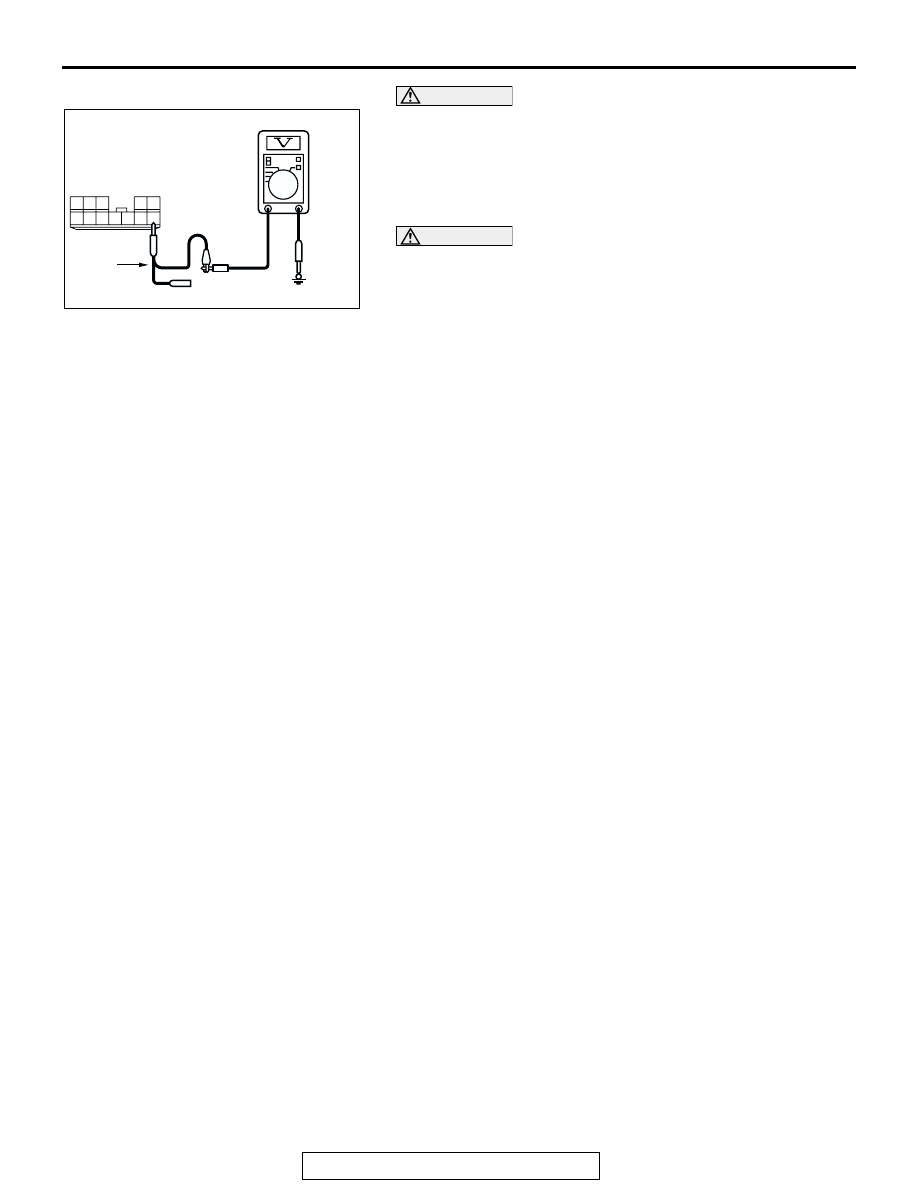

(3) Measure the voltage between joint connector (9) D-131

terminal 6 and body ground.

• The voltage should measure one volt or less.

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Do the voltage measure one volt or less?

YES : Retest the system.
NO :  Repair the wiring harness wires between joint

connector (9) and the intermediate connector.

AC204580

HARNESS SIDE: D-131

AK

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-110

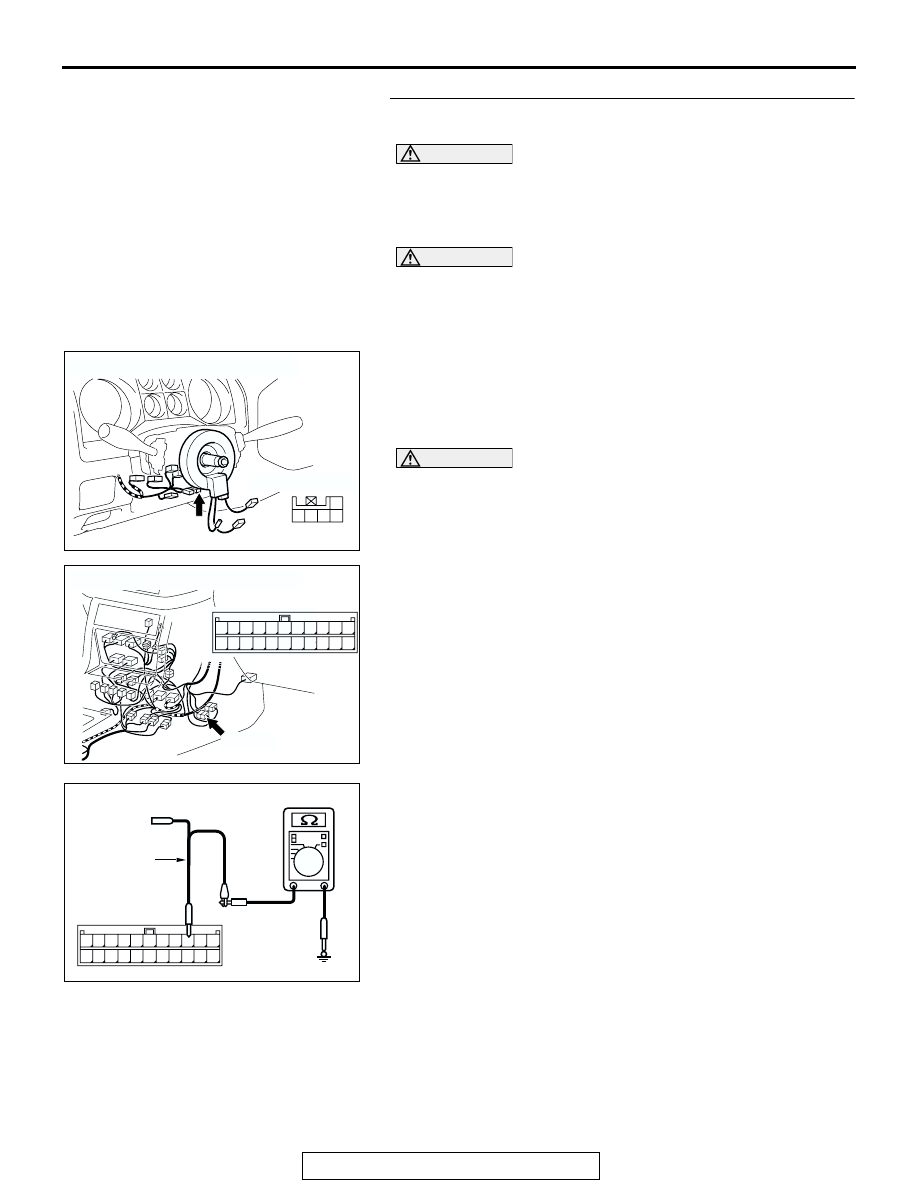

STEP 10. Check the resistance in the CAN_H line. Check at
intermediate connector E-122.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect intermediate connector E-122 and steering

wheel sensor connector D-225, and measure the resistance
at the male intermediate connector (instrument panel wiring
harness side).

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

E-122 terminal 9 and body ground.

• The resistance should be infinite.

Q: Is the resistance infinite?

YES : Replace the steering wheel sensor.
NO :  Go to Step 11.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204176

CONNECTOR: E-122

E-122(L)

MALE SIDE

E-122(L)

AF

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC204581

MALE CONNECTOR: E-122

AJ

TEST
HARNESS

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22
