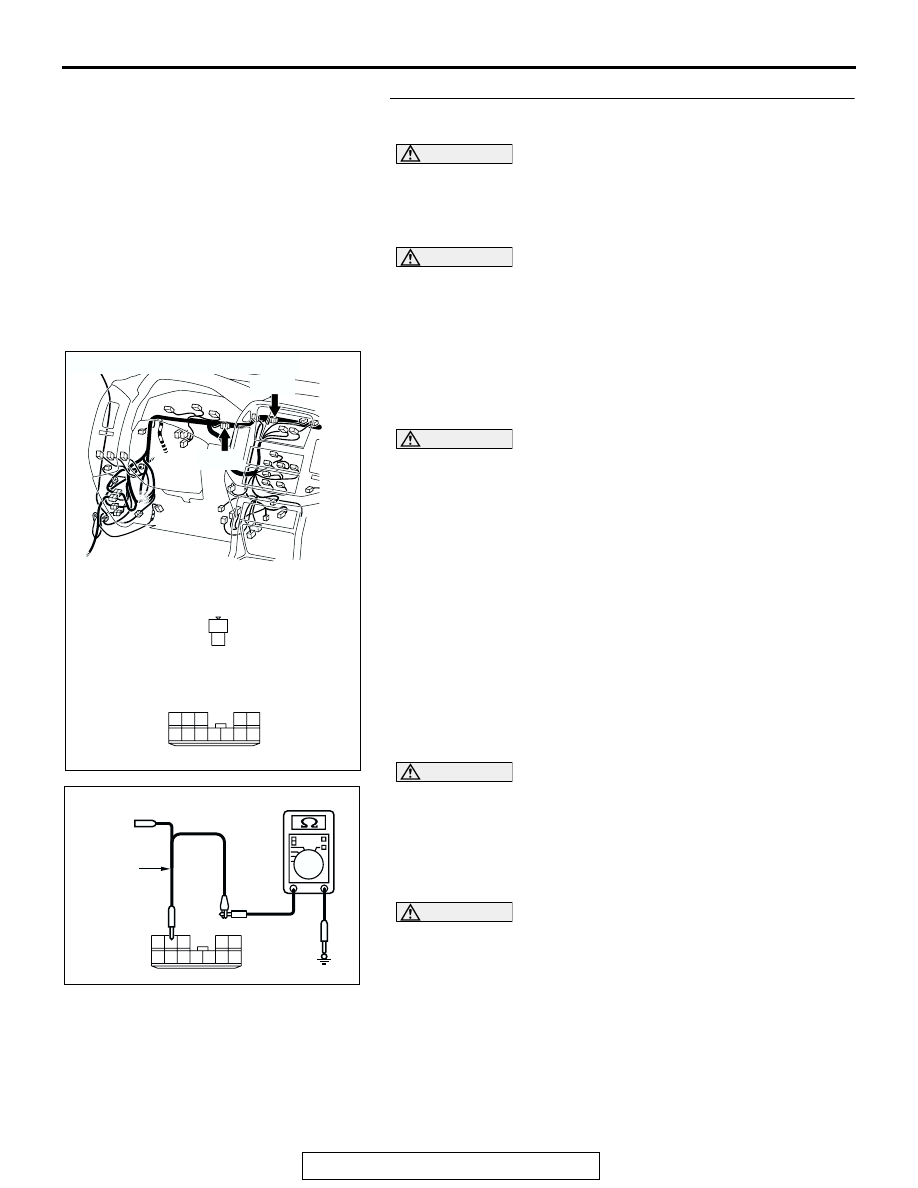

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-83

STEP 12. Check the resistance in the CAN_L line. Measure
at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and resistor connector

D-130, and measure the resistance between joint connector
(9) and body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

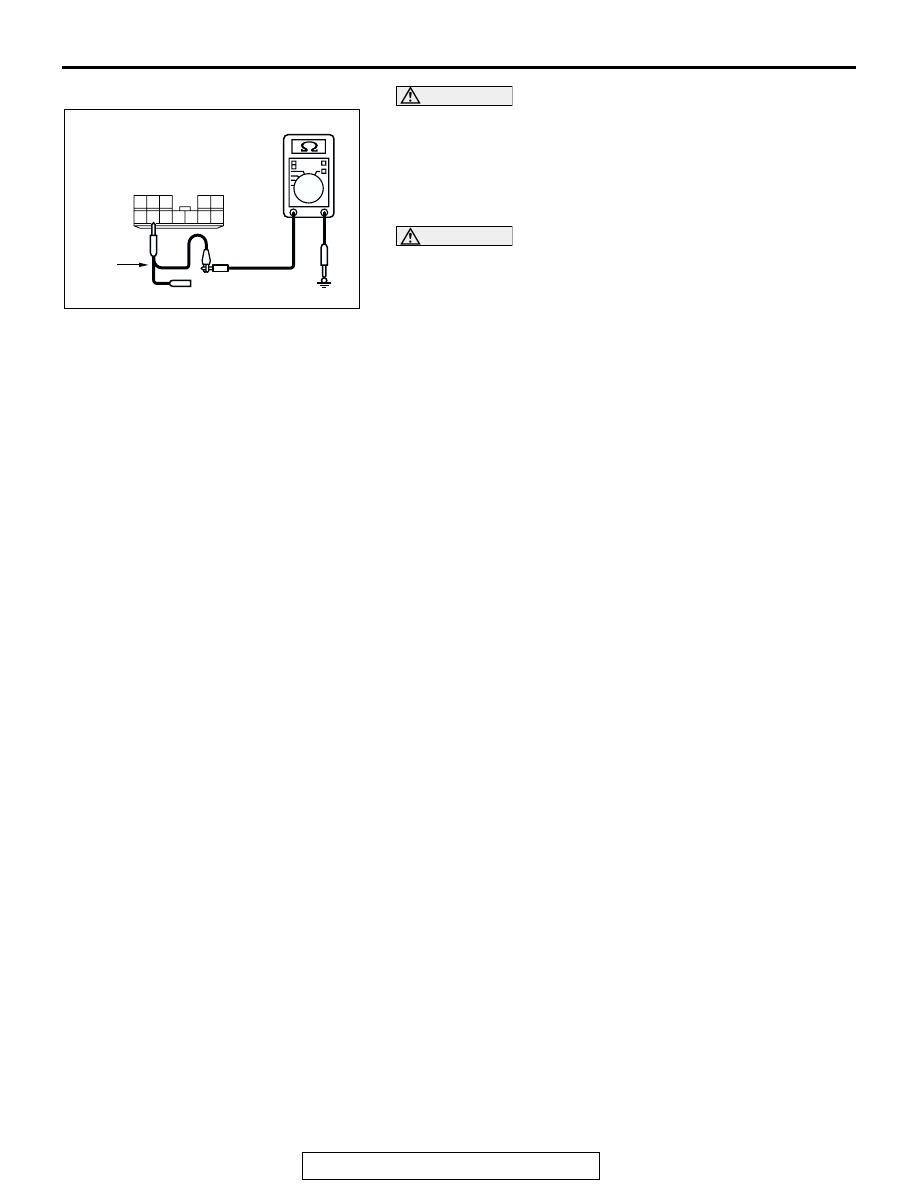

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 4 and body ground.

• The resistance should be infinite.

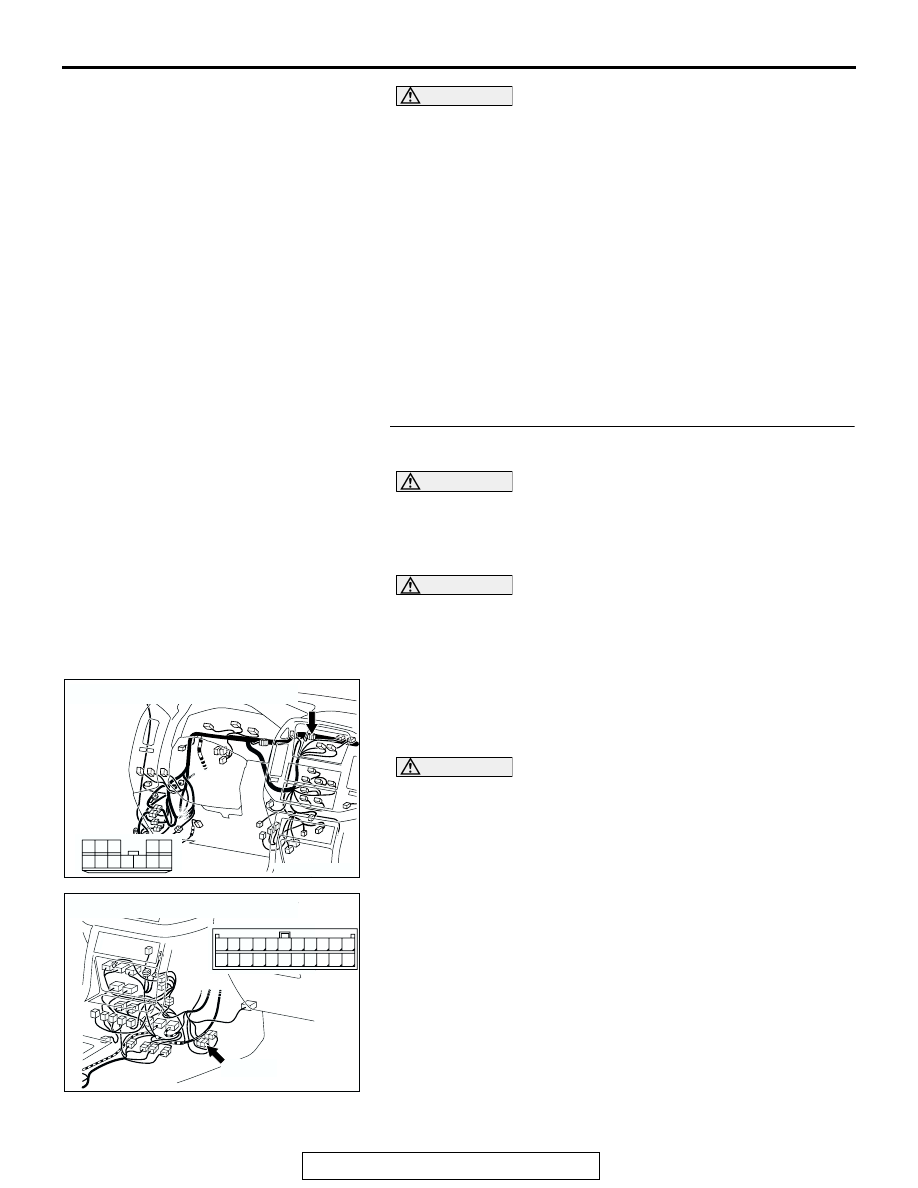

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Is the resistance infinite?

AC204188

CONNECTORS: D-130, D-131

D-131

AQ

HARNESS SIDE

HARNESS SIDE

D-131

D-130

D-130

6

1

9 8

2

7

10

12 11

4

5

3

1
2

AC204581

HARNESS SIDE: D-131

AN

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-84

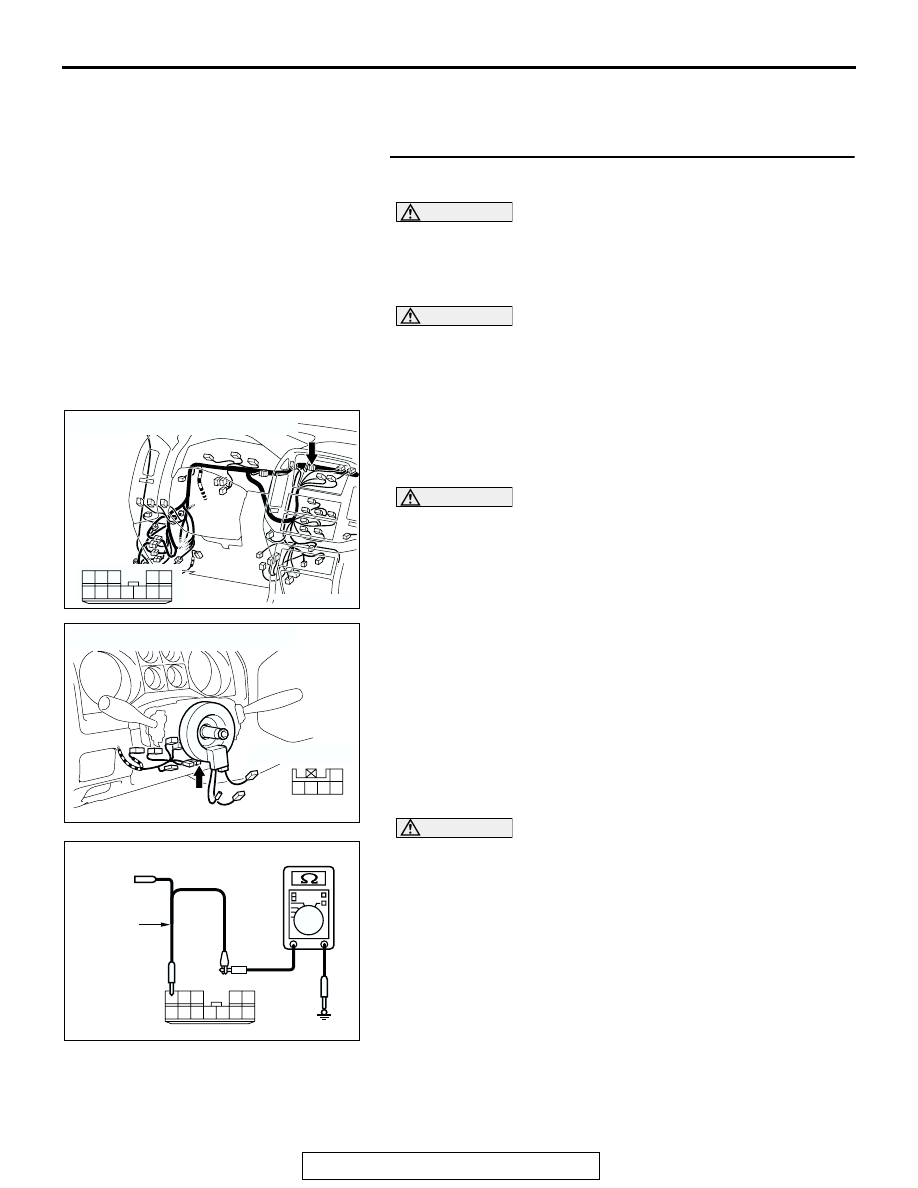

YES : Go to Step 13.
NO :  Repair the wiring harness wires between joint

connector (9) and the resistor connector.

STEP 13. Check the resistance in the CAN_L line. Measure
at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital
multimeter, the equipments, which are connected through
the CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and steering wheel

sensor connector D-225, and measure the resistance
between joint connector (9) and body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 5 and body ground.

• The resistance should be infinite.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204581

HARNESS SIDE: D-131

AO

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-85

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Is the resistance infinite?

YES : Go to Step 14.
NO :  Repair the wiring harness wires between joint

connector (9) and the steering wheel sensor
connector.

STEP 14. Check the resistance in the CAN_L line. Measure
at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital
multimeter, the equipments, which are connected through
the CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and intermediate

connector E-122, and measure the resistance between joint
connector (9) and body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204176

CONNECTOR: E-122

E-122(L)

E-122(L)

AD

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-86

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 11 and body ground.

• The resistance should be infinite.

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Is the resistance infinite?

YES : Retest the system.
NO :  Repair the wiring harness wires between joint

connector (9) and the intermediate connector.

AC204581

HARNESS SIDE: D-131

AR

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3
