CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL

11A-25

INSTALLATION SERVICE POINTS

.

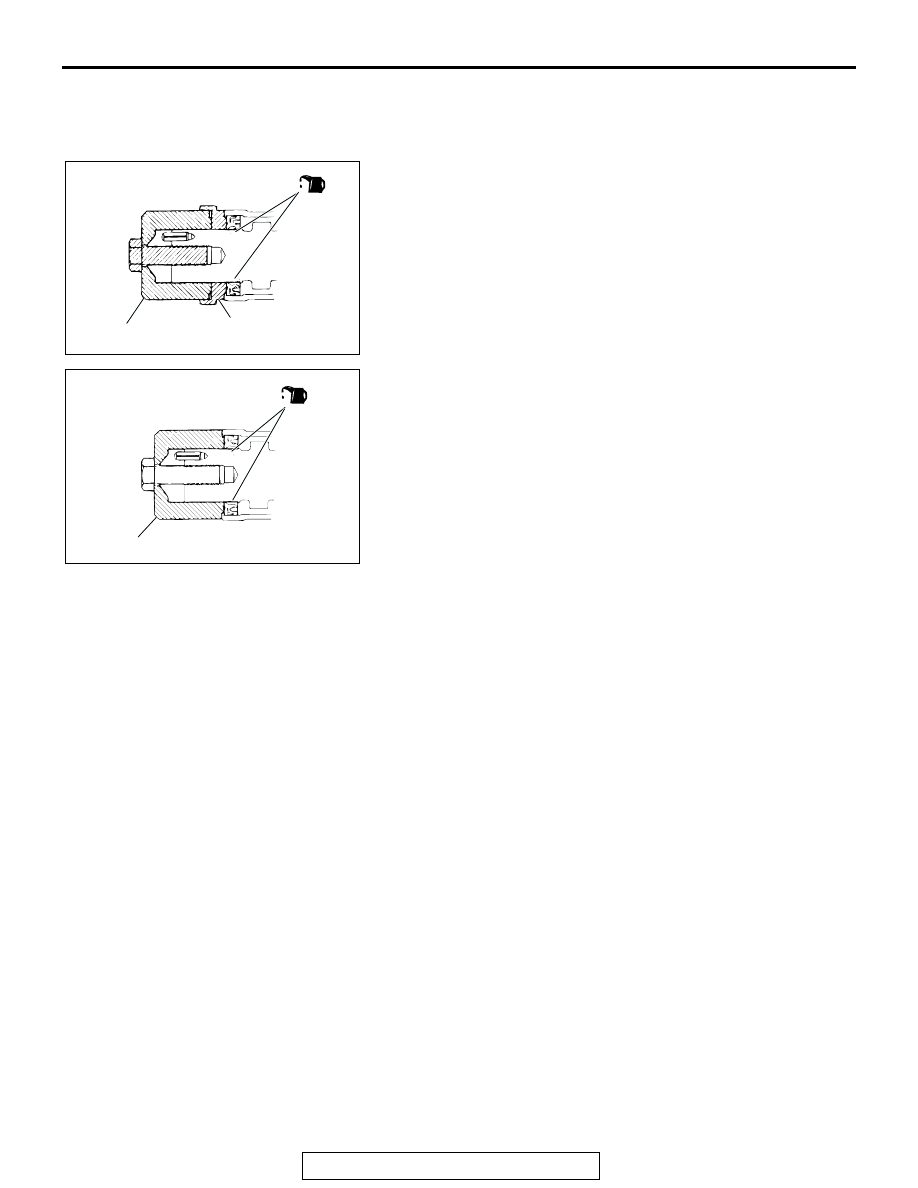

>>A<< CAMSHAFT OIL SEAL INSTALLATION
1. Apply engine oil to the camshaft oil seal lip.
2. Use special tools MD998713 and MB991559 to press-fit the

camshaft oil seal.

.

>>B<< CAMSHAFT SPROCKET INSTALLATION
Use special tools MD998715 and MB990767 in the same way
as during removal to install the camshaft sprocket.

ACX00371AB

MB991559

MD998713

<LEFT BANK>

ACX00372 AB

MD998713

<RIGHT BANK>

OIL PAN AND OIL SCREEN

TSB Revision

ENGINE MECHANICAL

11A-26

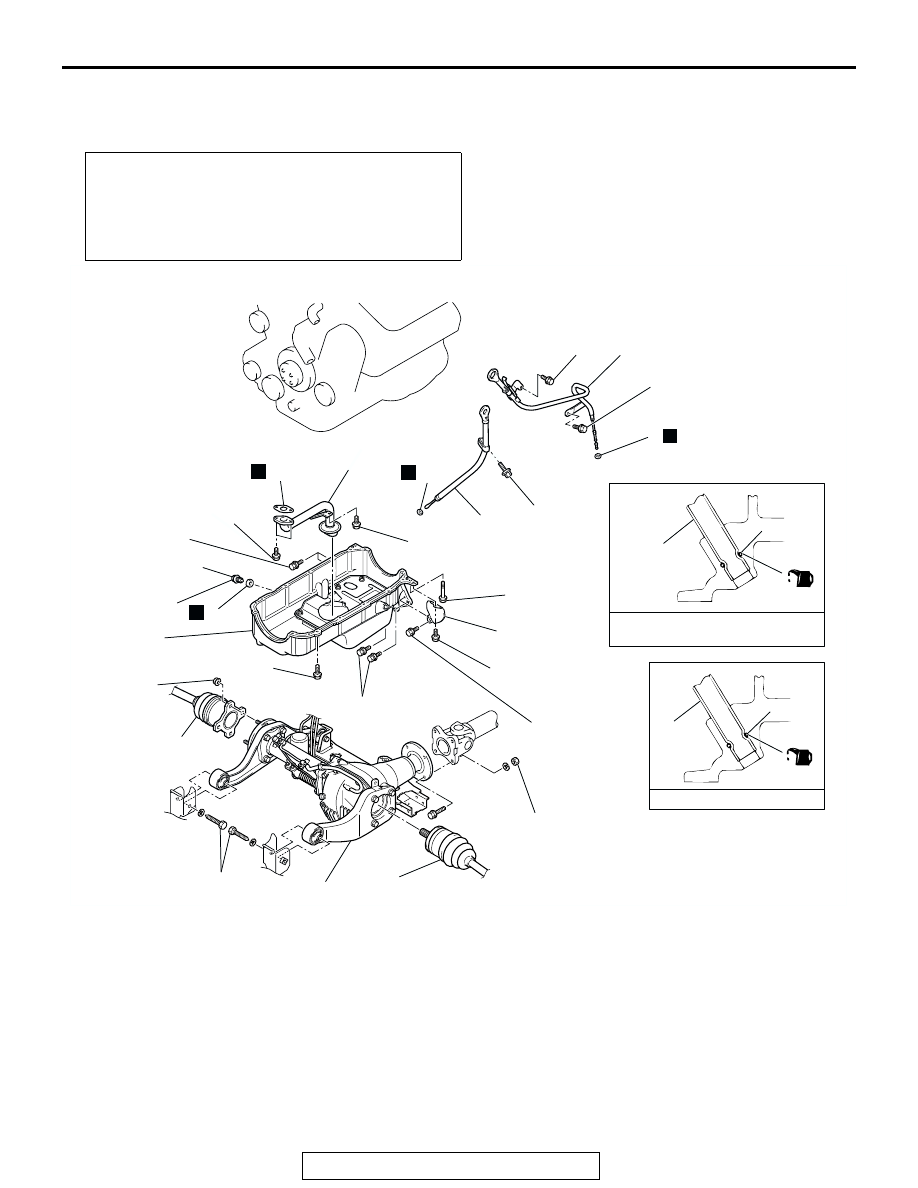

OIL PAN AND OIL SCREEN

REMOVAL AND INSTALLATION

M1112002500160

Pre-removal and Post-installation Operation
• Skid Plate and Under Cover Removal and Installation

• Engine Oil Draining and Refilling (Refer to GROUP 12,

On-vehicle Service

P.12-3

.)

• Starter Motor Removal and Installation (Refer to GROUP

16, Starter motor assembly

P.16-22

.)

AC204078

7

FLUID :
  DIAMOND ATF SP II M OR SP III

9

ENGINE OIL

N

N

N

7

44 ± 8 N·m
33 ± 5 ft-lb

24 ± 4 N·m
18 ± 3 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

9

19 ± 3 N·m
14 ± 2 ft-lb

13

12

9.0 ± 1.0 N·m
80 ± 9 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

6

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

11 ± 0.5 N·m
93 ± 4 in-lb

37 ± 7 N·m
27 ± 5 ft-lb

11

5

60 ± 10 N·m
45 ± 7 ft-lb

4

37 ± 7 N·m
27 ± 5 ft-lb

39 ± 5 N·m
29 ± 3 ft-lb

60 ± 10 N·m
45 ± 7 ft-lb

69 ± 9 N·m
51 ± 7 ft-lb

1

2

3

N

AB

8

10

8

10

REMOVAL STEPS

1.

DRIVE SHAFT (RH)
CONNECTION

2.

DRIVE SHAFT (LH)
CONNECTION

3.

FRONT DIFFERENTIAL NUMBER
2 CROSSMEMBER ASSEMBLY

4.

DRAIN PLUG

5.

DRAIN PLUG GASKET

6.

COVER

7.

TRANSMISSION FLUID DIPSTICK
ASSEMBLY

8.

O-RING

9.

ENGINE OIL DIPSTICK
ASSEMBLY

10. O-RING

<<A>>

>>A<<

11. OIL PAN
12. OIL SCREEN
13. GASKET

REMOVAL STEPS (Continued)

OIL PAN AND OIL SCREEN

TSB Revision

ENGINE MECHANICAL

11A-27

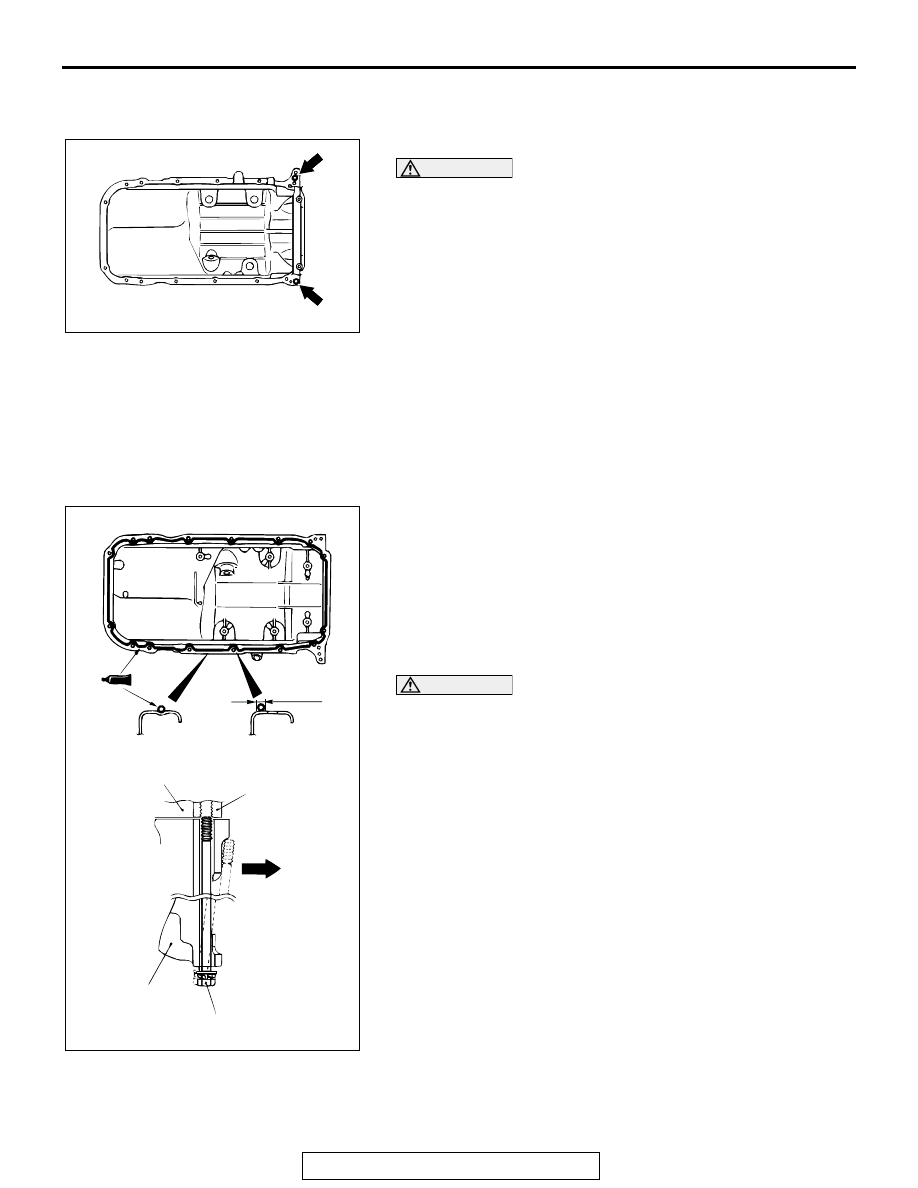

REMOVAL SERVICE POINT

.

<<A>> OIL PAN REMOVAL
1. Remove the oil pan mounting bolts.

CAUTION

Do not use the oil pan remover (MD998727). It will damage
the oil pan (aluminum made).
2. Screw the bolts (M10) securing the oil pan to the

transmission assembly in the illustrated bolt holes, then
remove the oil pan.

INSTALLATION SERVICE POINTS

.

>>A<< OIL PAN INSTALLATION
1. Remove sealant from the oil pan and cylinder block mating

surfaces.

2. Degrease the sealant-coated surface and the engine mating

surface.

3. Apply a bead of the sealant to the cylinder block mating

surface of the engine oil pan as shown.

Specified sealant: MITSUBISHI GENUINE PART
MD970389 or equivalent

NOTE: The sealant should be applied in a continuous bead
approximately 4.0 mm (0.16 inch) in diameter.

4. Assemble the oil pan to the cylinder block within 30 minutes

after applying the sealant.

CAUTION

The bolt holes for bolts 13 and 14 in the illustration are cut
away on the transmission side. Be careful not to insert
these bolts at an angle.
5. Tighten the bolts in order of the numbers shown in the

illustration.

ACX00753AB

ACX00754AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

CYLINDER BLOCK

REAR OIL SEAL CASE

OIL PAN

TRANSMISSION
SIDE

(MOUNTING BOLT)

13,14

BOLT HOLE

GROOVE

Ø 4.0 mm
(0.16 in)

CRANKSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL

11A-28

INSPECTION

M1112002600101

• Check the oil pan for cracks.

• Check the oil pan sealant-coated surface for damage and

deformation.

• Check the oil screen for cracked, clogged or damaged wire

net and pipe.

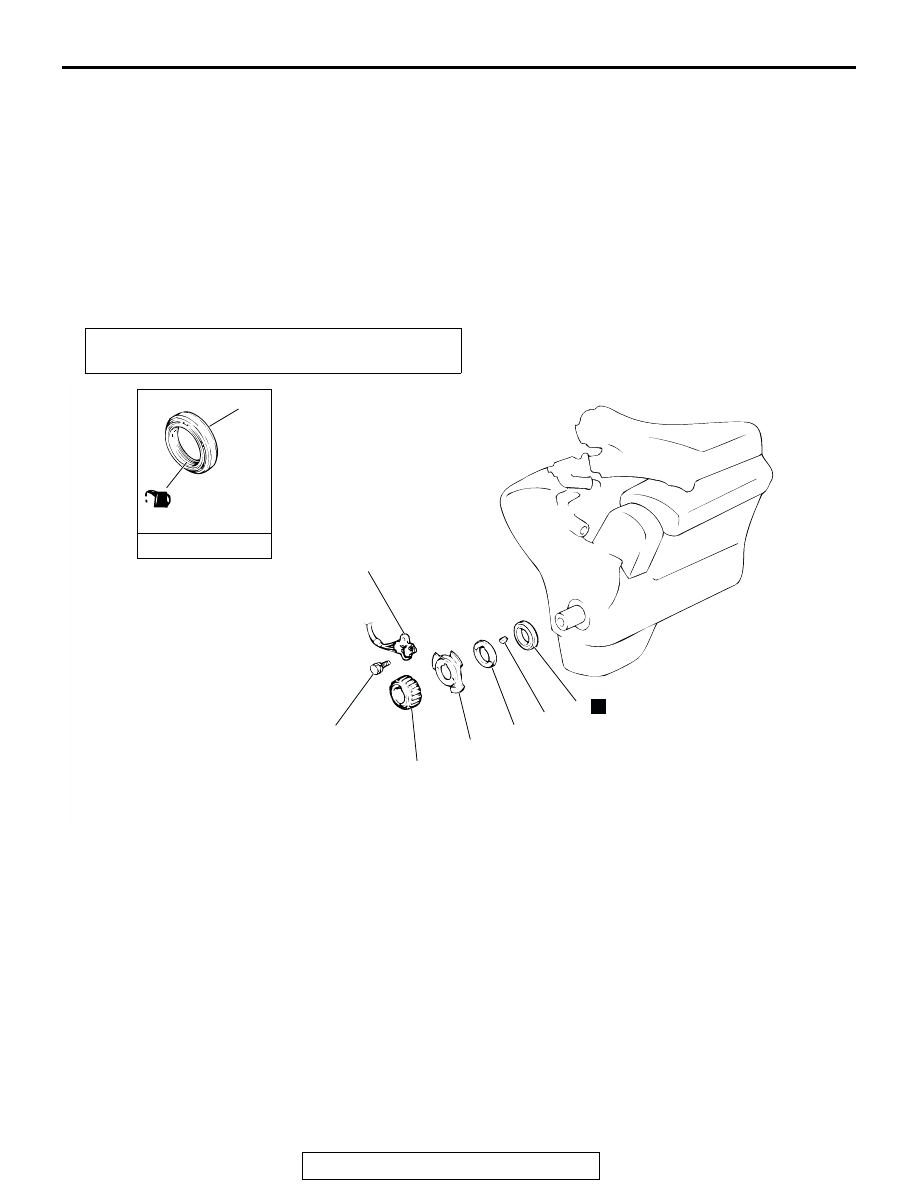

CRANKSHAFT OIL SEAL

REMOVAL AND INSTALLATION <FRONT OIL SEAL>

M1112003400393

Required Special Tool:
MD998717: Crankshaft Front Oil Seal Installer

Pre-removal and Post-installation Operation
• Timing Belt Removal and Installation (Refer to

P.11A-36

.)

ACX00362AC

N

1

2

3

4

5

6

6

8.5 ± 0.5 N·m
76 ± 4 in-lb

ENGINE OIL

REMOVAL STEPS

>>B<<

1.

CRANKSHAFT SPROCKET

2.

CRANKSHAFT POSITION
SENSOR

>>B<<

3.

CRANKSHAFT SENSING BLADE

>>B<<

4.

CRANKSHAFT SPACER

5.

KEY

>>A<<

6.

CRANKSHAFT FRONT OIL SEAL

REMOVAL STEPS (Continued)
