DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-251

STEP 18. Check harness for open circuit or short circuit to
ground between A/T control relay connector D-13 terminal
3 and PCM connector D-136 terminals 123, 124.
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair or replace the harness wire.

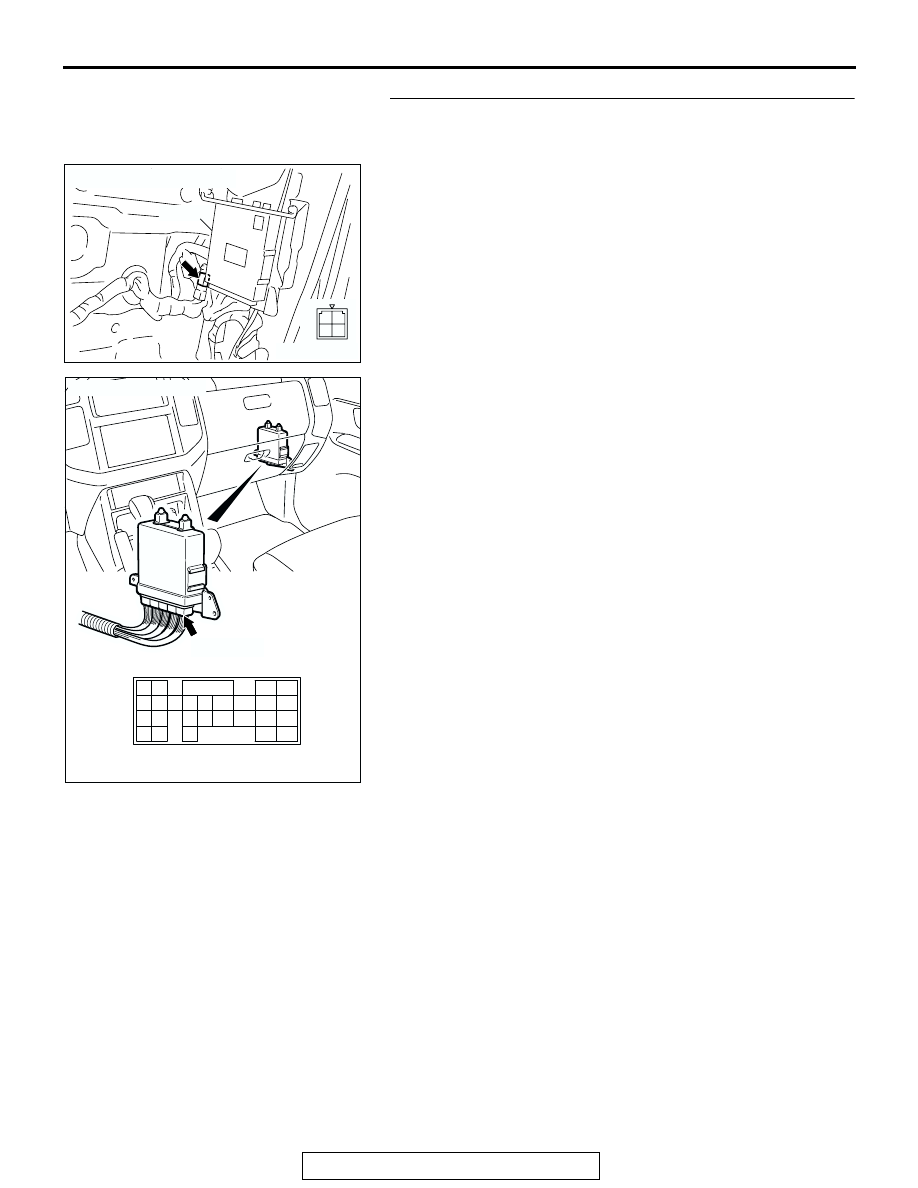

AC204750

CONNECTOR : D-13

AB

PCM

1
3 4

2

AC204681AD

CONNECTOR: D-136

D-136 (GR)

121 122

123

124

125 126 127 128 129 130

131 132

133

134 135

136 137 138

139 140

141

142 143

144

145

146

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-252

STEP 19. Using scan tool MB991502, check data list item
54: A/T control relay output Voltage.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to data reading mode for item 54,

A/T Control Relay Output Voltage.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage equal to battery positive

voltage?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

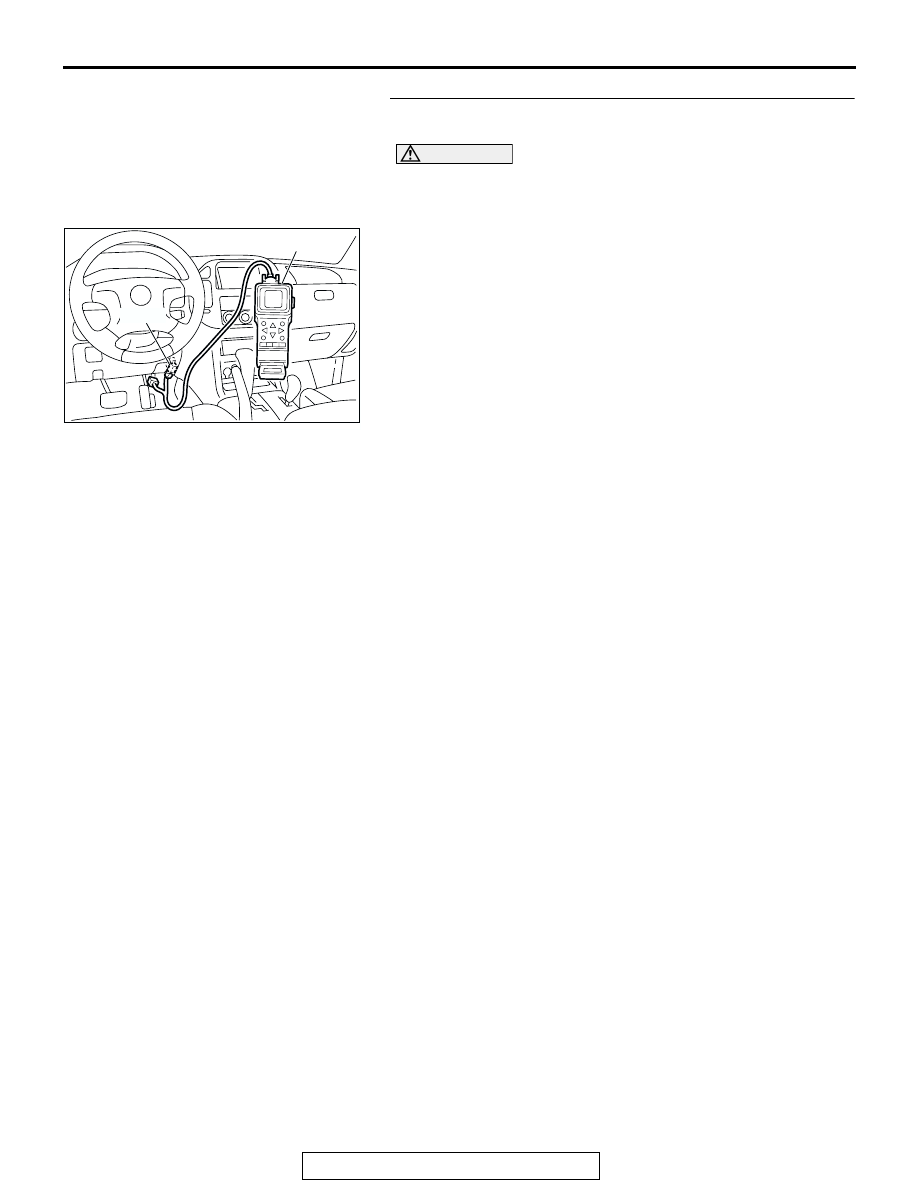

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-253

DTC 56: "N" Range Light System

AC100554

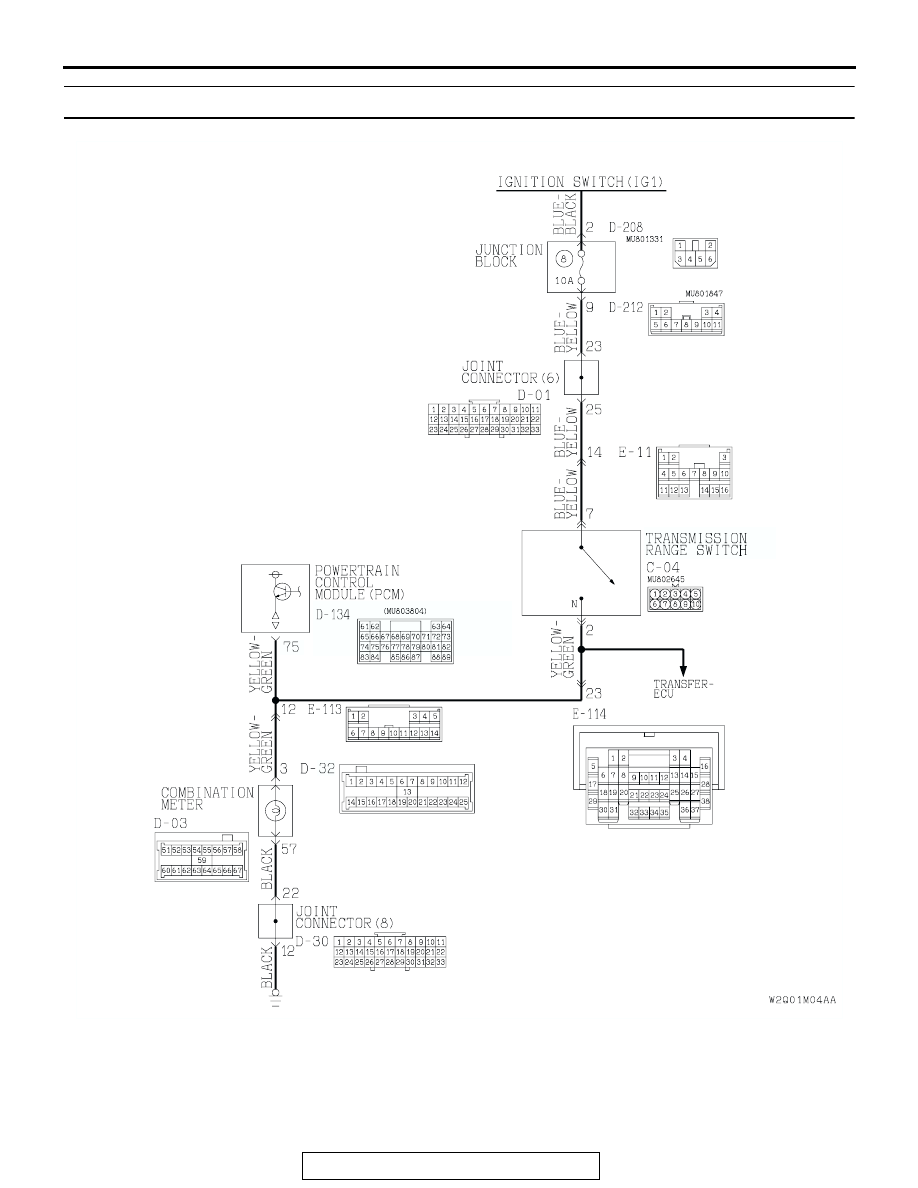

"N" Range Light System Circuit

AC

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-254

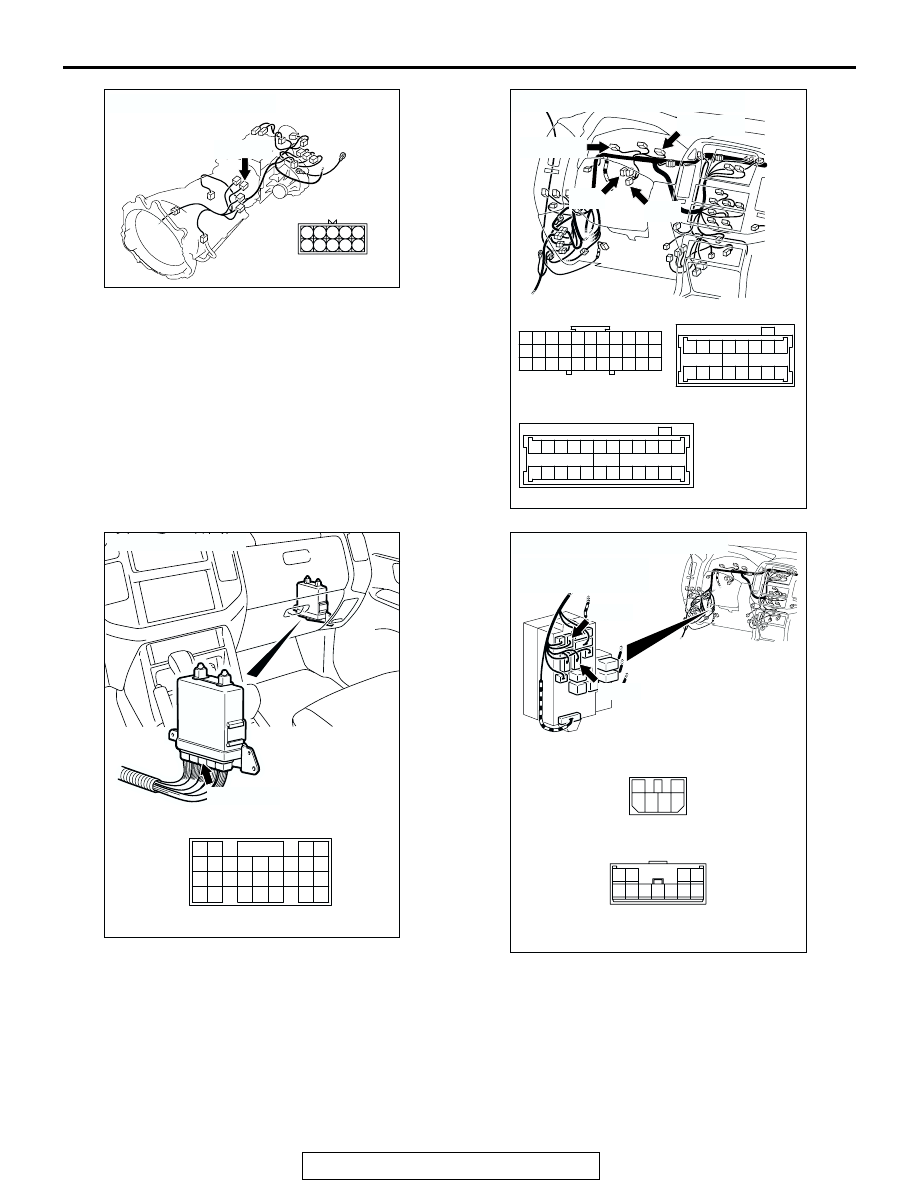

AC204395

CONNECTOR : C-04

AF

C-04 (B)

4
9

5

10

3
8

2
7

6

1

AC204188

CONNECTORS : D-01, D-03, D-30, D-32

D-01

D-03 (GR)

AW

D-32 (GR)

D-30

D-01,D-30

D-32

D-03

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

58

57

67

66

56

54 55

64

59

53

52

62

61

63

65

60

51

10

9

23

22

12

11

25

24

8

6 7

20

13

5

4

18

17

19

21

16

3

2

15

14

1

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204191

CONNECTORS : D-208, D-212

5 6

2

4

3

1

JUNCTION BLOCK
(FRONT VIEW)

3

10

9

4

11

8

7

1

5

2

6

D-208

D-208

D-212

D-212

AS
