Mitsubishi Montero (2002-2004). Manual - part 915





DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

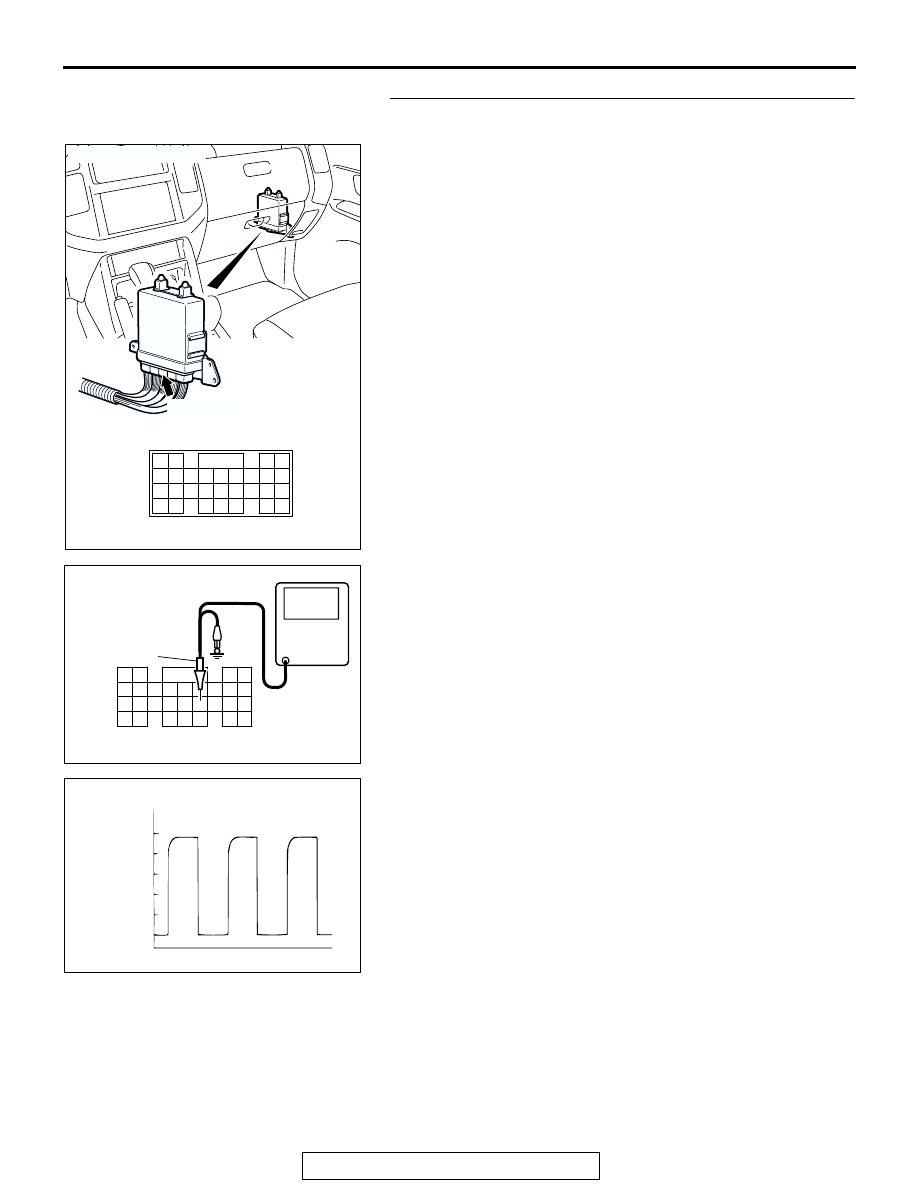

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-143

STEP 3. Using an oscilloscope, check the vehicle speed
sensor waveform at PCM connector D-134 by backprobing.
(1) Do not disconnect connector D-134.

(2) Connect an oscilloscope probe to PCM connector D-134

terminal 79 by backprobing.

(3) Start the engine.

(4) Check the vehicle speed sensor waveform.

• The vehicle speed sensor waveform should show a pat-

tern similar to the illustration when running the vehicle.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 6.
NO :  Go to Step 4.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204946 AG

OSCILLO-
SCOPE

PROBE

D-134 HARNESS CONNECTOR :
HARNESS SIDE

76

85

65

72

71

73

82

75

81

74

63 64

66

70

69

68

67

78

87

79

88 89

80

77

86

62

61

83 84

ACX02131

NORMAL WAVEFORM

(V)

AC

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

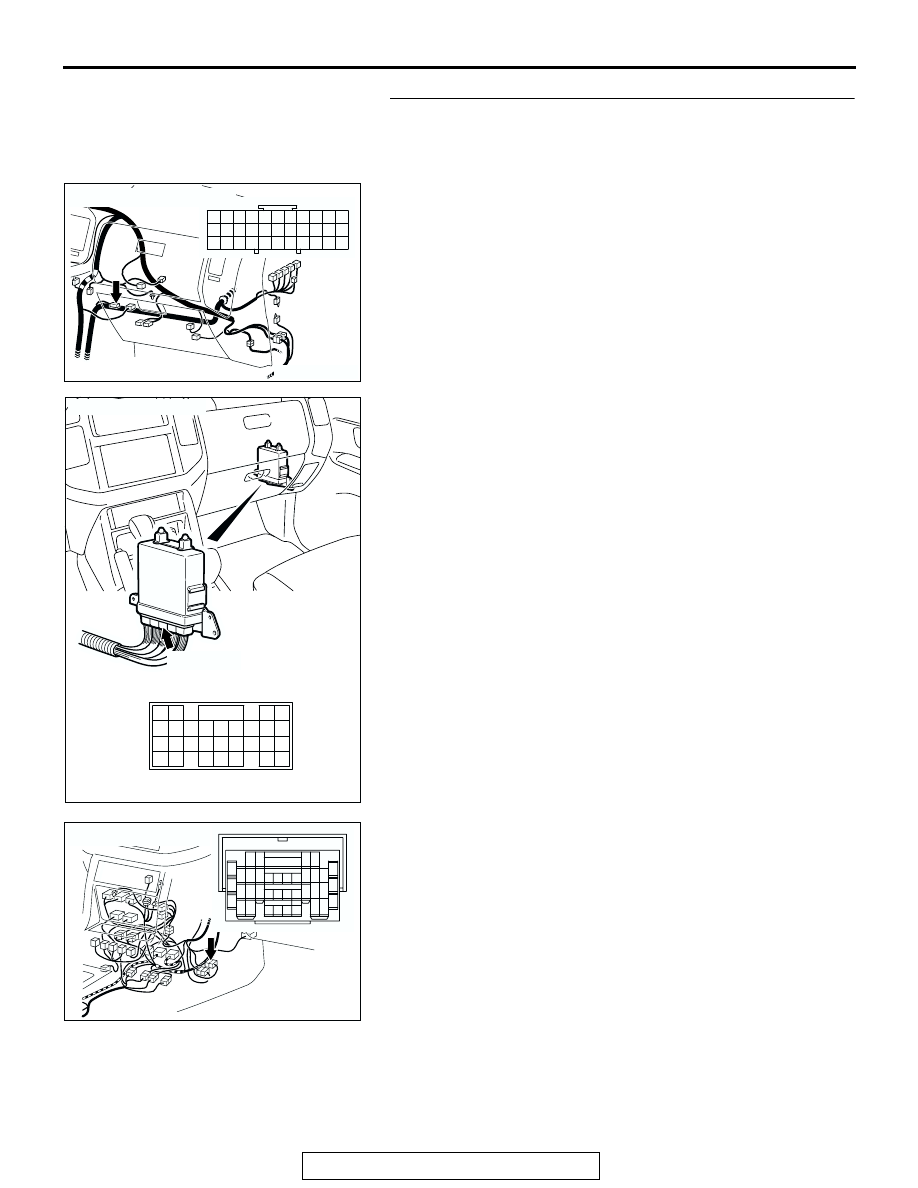

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-144

STEP 4. Check joint connector D-116, PCM connector D-
134 and intermediate connector E-111 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204171

CONNECTOR : D-116

AN

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-111

BF

15

4

14

37

36

26 27

12

11

35

34

23 24

3

13

25

9

2

8

32

20 21

6

5

17

29

30

18

1

7

19

31

10

22

33

16

28

38

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

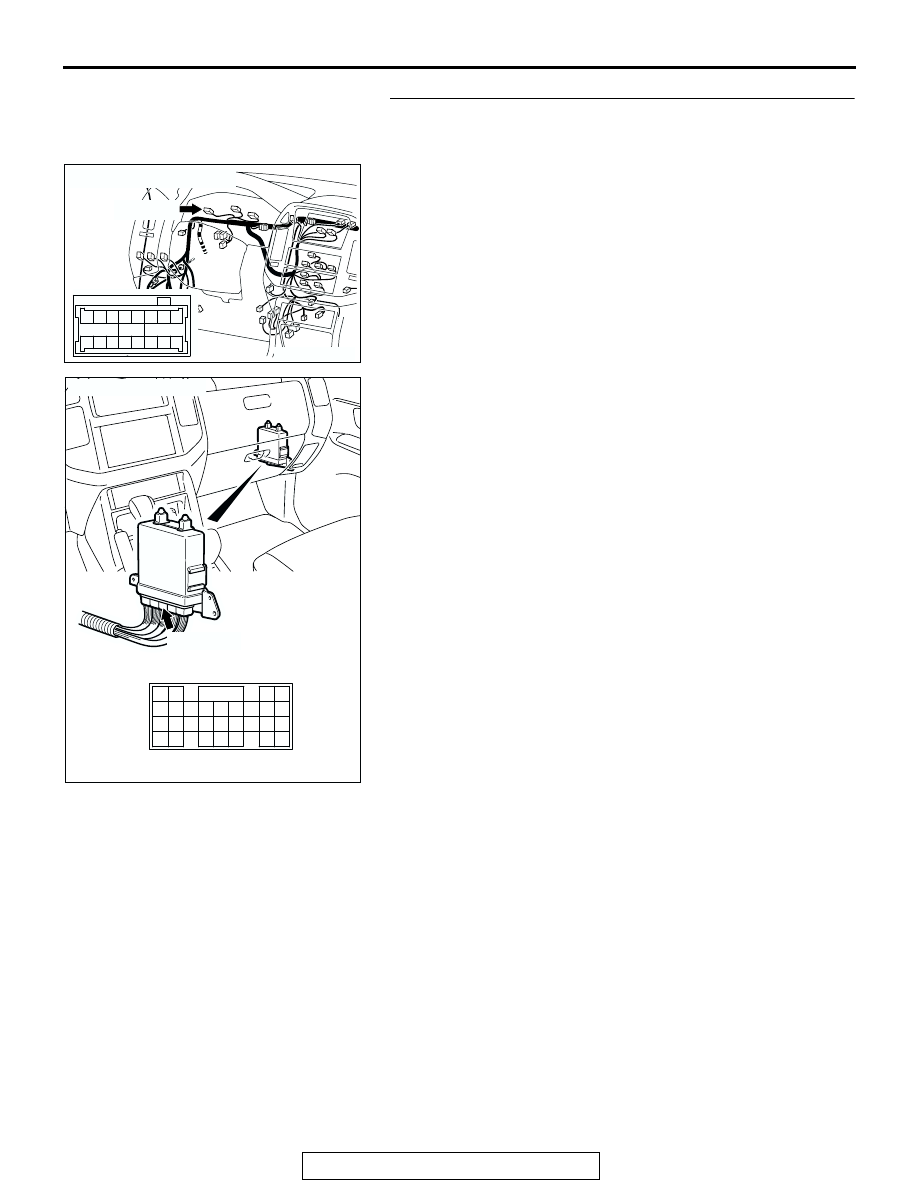

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-145

STEP 5. Check the harness for open circuit or short circuit
to ground between combination meter connector D-03
terminal 65 and PCM connector D-134 terminal 79.
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair or replace the harness wire.

AC204170

CONNECTOR : D-03

CE

D-03 (GR)

58

57

67

66

56

54 55

64

59

53

52

62

61

63

65

60

51

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

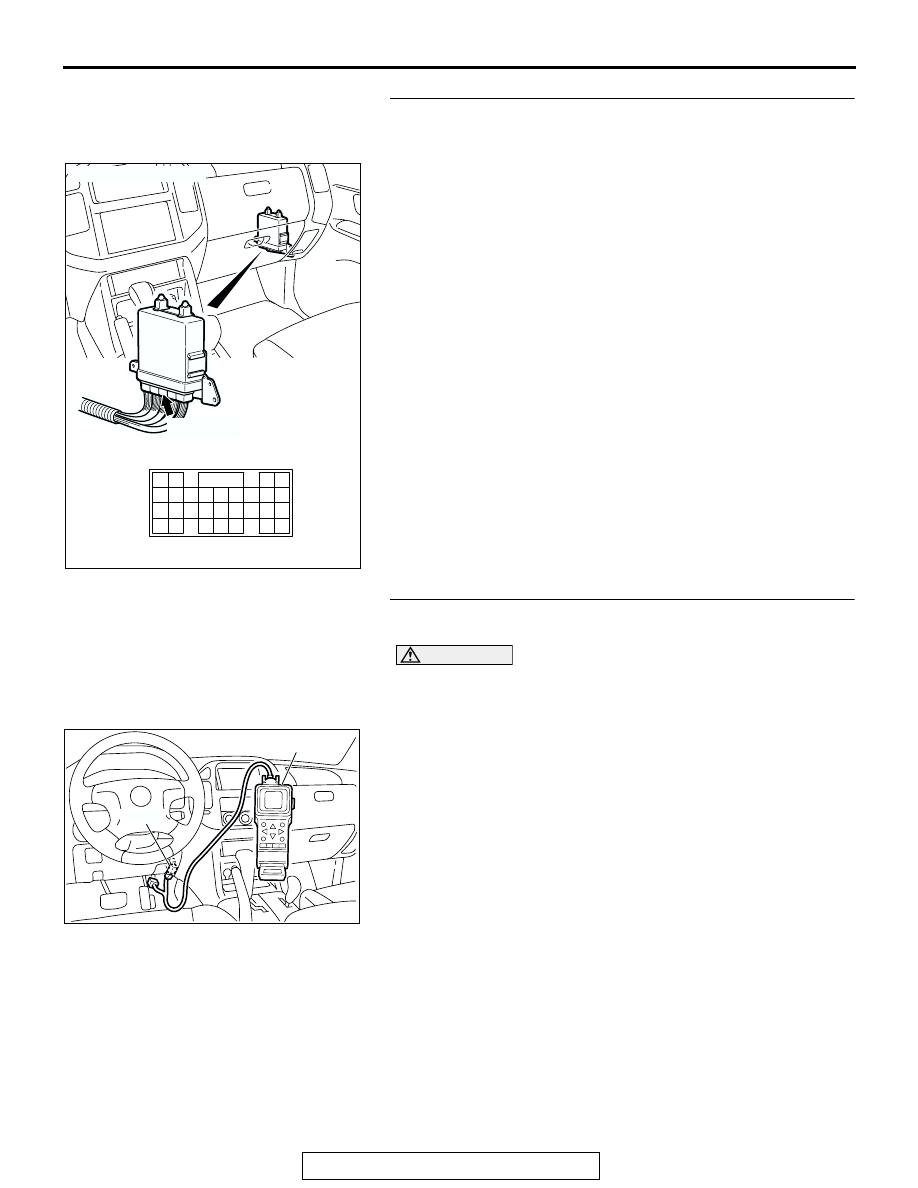

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-146

STEP 6. Check PCM connector D-134 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

STEP 7. Using scan tool MB991502, check data list item 29:
Vehicle Speed Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before connect-
ing or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991502 to data reading mode for item 29,

Vehicle Speed Sensor.

• Check that the speedometer and scan tool MB991502

display speed match when driving at a vehicle speed of
40 km/h (25 mph).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

ACX01539AD

MB991502

16-PIN
