DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-75

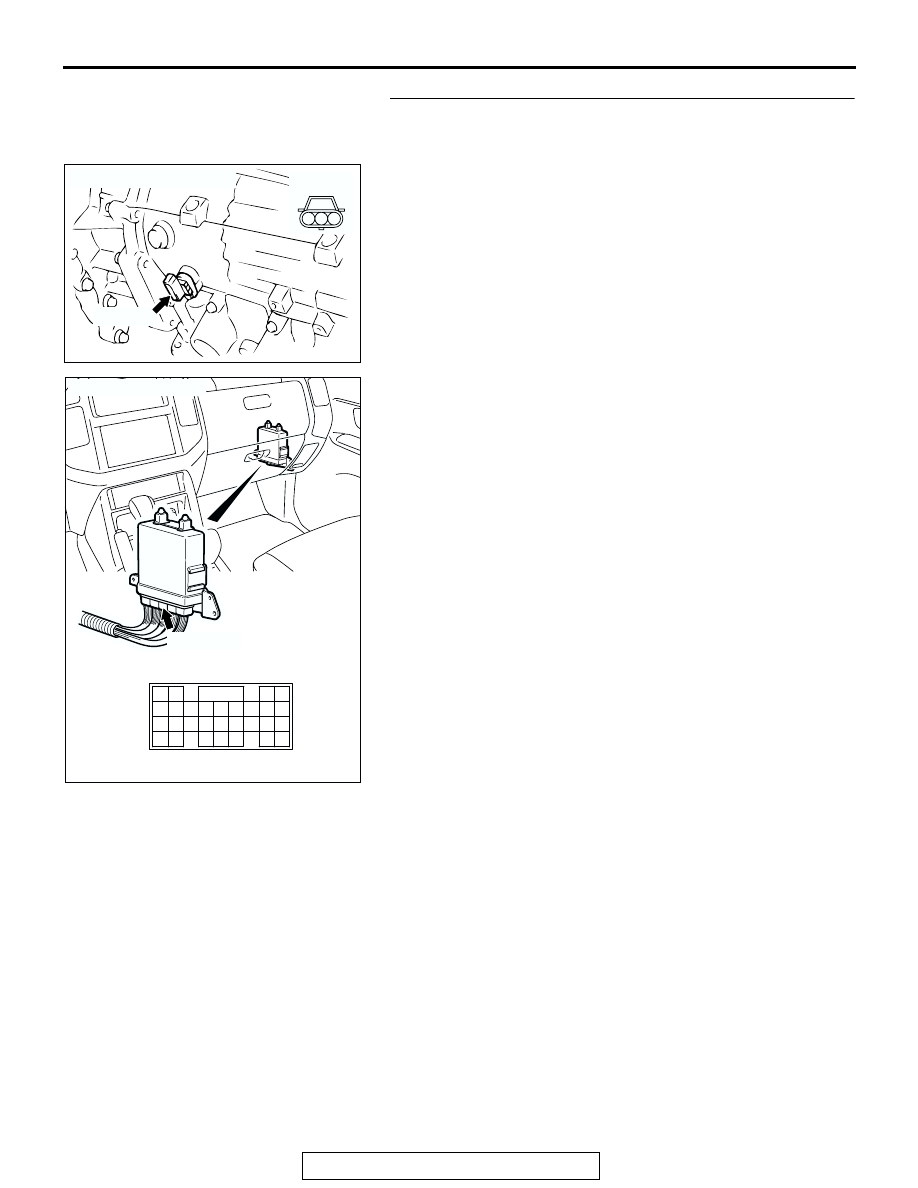

STEP 10. Check the harness for short circuit to ground
between output shaft speed sensor connector C-02
terminal 2 and PCM connector D-134 terminal 73.
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair or replace the harness wire.

AC204746

CONNECTOR : C-02

C-02 (GR)

AB

1 2 3

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-76

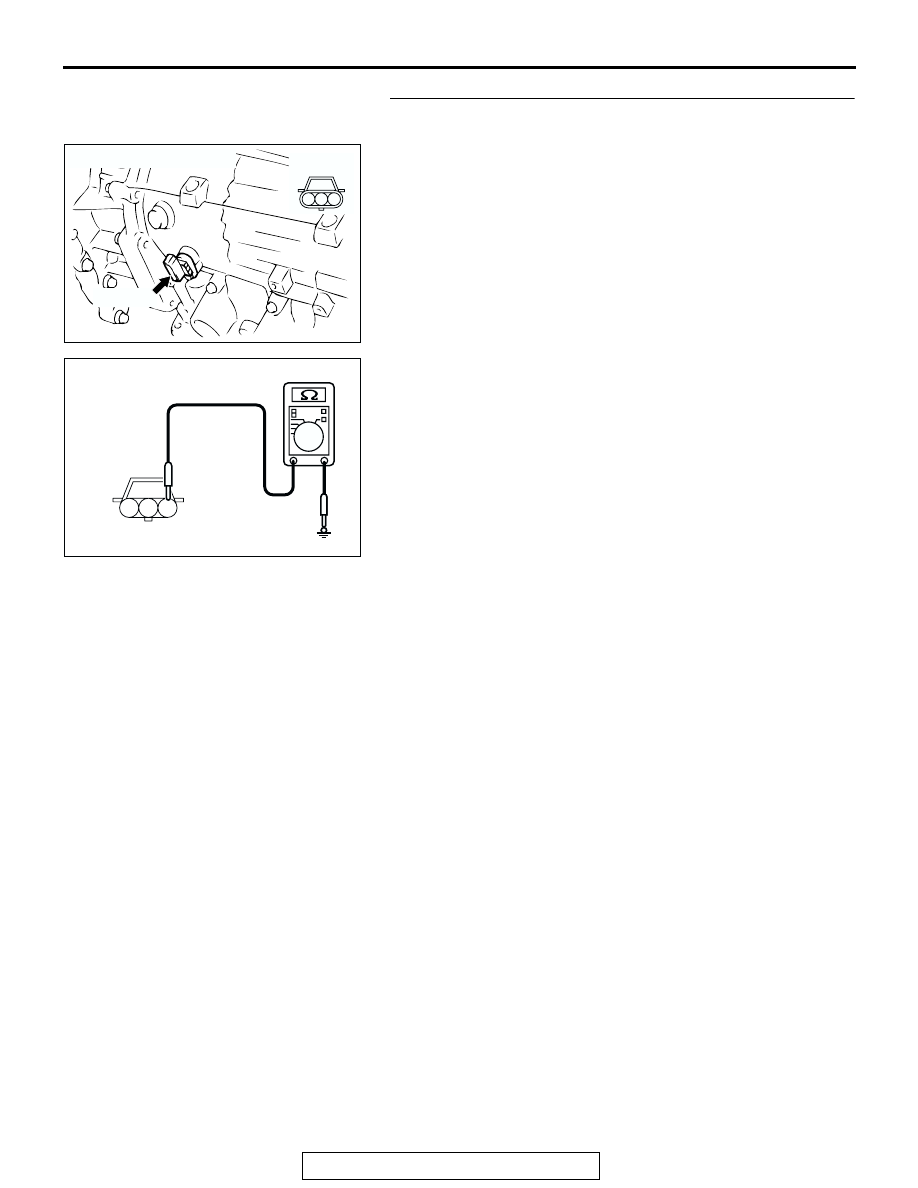

STEP 11. Measure the ground circuit for resistance at the
output shaft speed sensor connector C-02.
(1) Disconnect connector C-02 from the speed sensor and

measure at the harness side.

(2) Measure the resistance between terminal 1 and ground.

• The resistance should measure less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 16.
NO :  Go to Step 12.

AC204746

CONNECTOR : C-02

C-02 (GR)

AB

1 2 3

AC204918

C-02 HARNESS CONNECTOR :
COMPONENT SIDE

CL

1

2

3

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-77

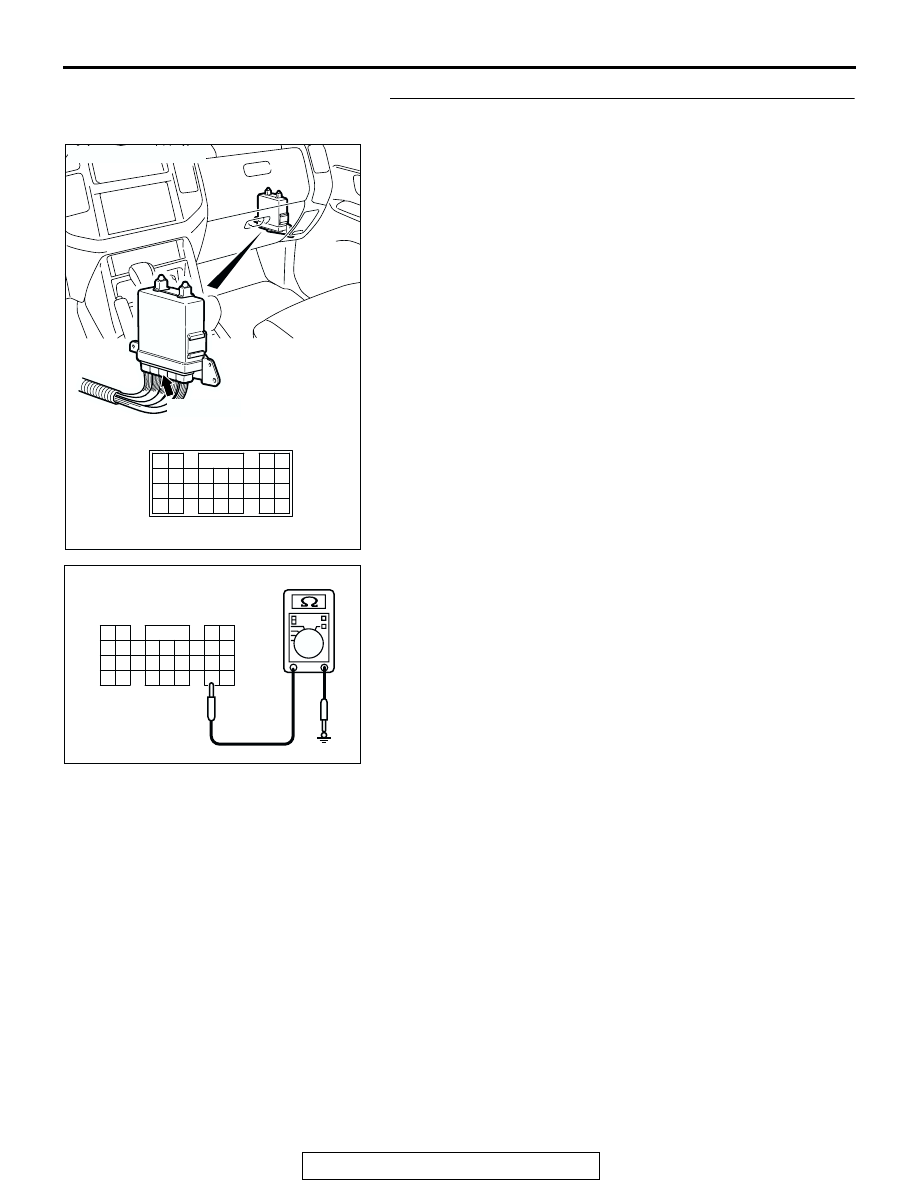

STEP 12. Measure the resistance at PCM connector D-134
by backprobing.
(1) Do not disconnect connector D-134.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the resistance between terminal 88 and ground by

backprobing.

• The resistance should measure less than 2 ohms.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 13.
NO :  Go to Step 15.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204918

D-134 HARNESS CONNECTOR :
HARNESS SIDE

DI

76

85

65

72

71

73

82

75

81

74

63 64

66

70

69

68

67

78

87

79

88 89

80

77

86

62

61

83 84

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-78

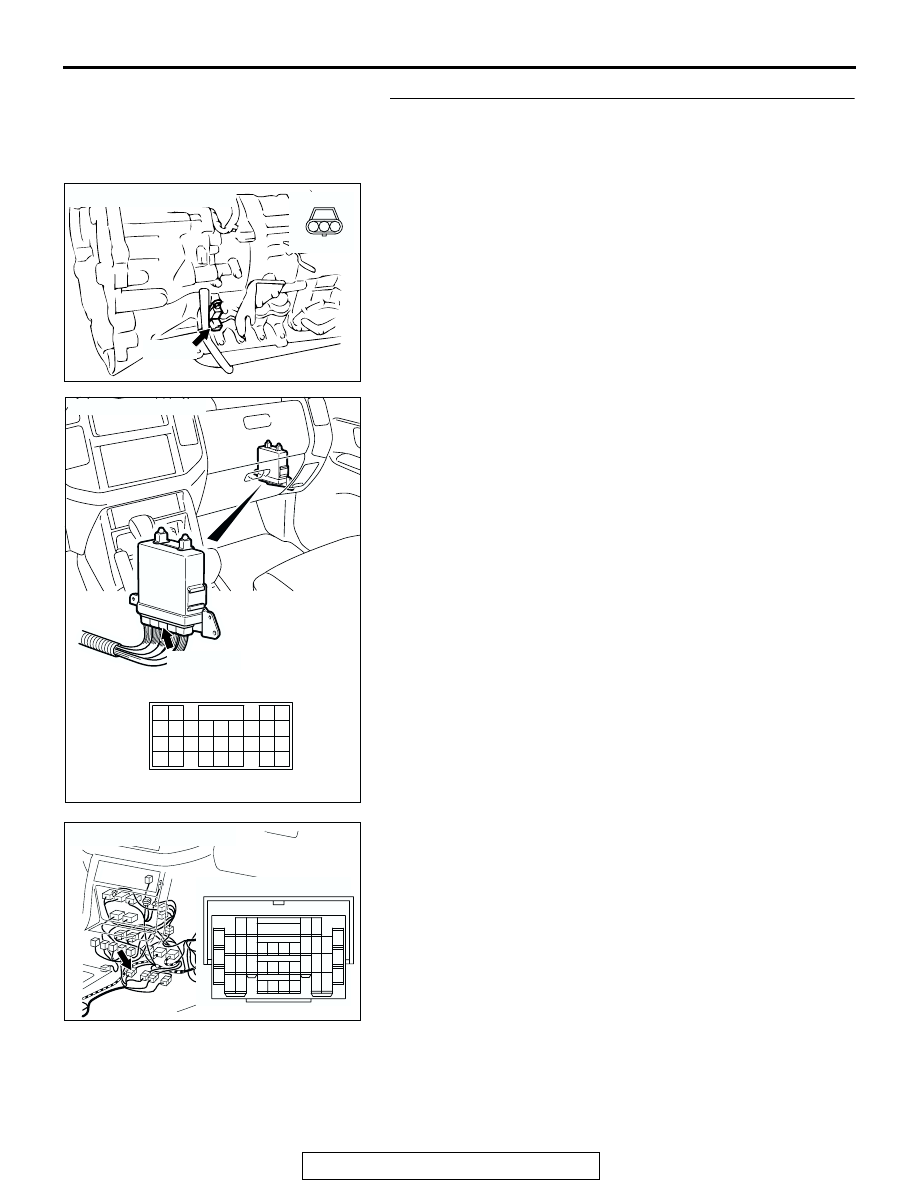

STEP 13. Check output shaft speed sensor connector C-
02, PCM connector D-134 and intermediate connector E-
114 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204747

CONNECTOR : C-16

C-16 (B)

AB

1

3

2

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15
