AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION DIAGNOSIS

23Ab-37

TF LOW
DETECT

75

4LLc detection
switch

Ignition switch: ON
Transmission
range: N

Transfer position: 4L
Lc

ON

Transfer position:
Other than above

OFF

TP SENSOR 11

Throttle position
sensor

Ignition switch: ON
Engine: Stopped
Transmission
range: P

Accelerator pedal:
Fully closed

200

− 800 mV

Accelerator pedal:
Depressed

Gradually rises
from the above
value

Accelerator pedal:
Fully open

3,800

− 4,900 mV

TFT
SENSOR

15

Transmission fluid
temperature sensor

Warmed up

Drive for 15 minutes
or more so that the
transmission fluid
temperature
becomes 70

− 80°C

(158

− 176°F)

Gradually rises to
70

− 80°C (158 −

176

°F)

U/D SOL
DUTY

32

Underdrive solenoid
valve duty %

Transmission
range: Sport mode

Driving at constant
speed of 10 km/h
(6.2 mph) in 1st gear

0 %

Transmission
range: Sport mode

Driving at constant
speed of 30 km/h (19
mph) in 2nd gear

0 %

Transmission
range: Sport mode

Driving at constant
speed of 50 km/h (31
mph) in 3rd gear

0 %

Transmission
range: Sport mode

Driving at constant
speed of 50 km/h (31
mph) in 4th gear

0 %

Transmission
range: Sport mode

Driving at constant
speed of 70 km/h (43
mph) in 5th gear

100 %

VSS

29

Vehicle speed
sensor

Transmission
range: Sport mode

Idling with 1st gear
(Vehicle stopped)

0 km/h (0 mph)

Driving at constant
speed of 50 km/h (31
mph)

50 km/h (31 mph)

MUT-II SCAN
TOOL
DISPLAY

ITEM
NO.

INSPECTION ITEM INSPECTION REQUIREMENT

NORMAL
CONDITION

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION DIAGNOSIS

23Ab-38

ACTUATOR TEST REFERENCE TABLE

M1231101000109

INVECS-II CANCEL COMMAND

M1231109300096

MUT-II SCAN
TOOL
DISPLAY

ITEM
NO.

INSPECTION ITEM

TEST CONTENT

INSPECTION
REQUIREMENT

NORMAL
CONDITION

1st SHIFT
LMP

07

1st indicator light

Illuminate each
indicator light for
three to the signal
from the MUT-II

• Ignition switch:

ON

• Transmission

range: P

• Engine:

stopped

• Throttle

opening
voltage: Less
than one volt

Shift indicator light
illuminates.

2nd SHIFT
LMP

08

2nd indicator light

2ND SOL

03

Second solenoid valve

Drive the solenoid
valve specified by
the scan tool
(MUT-II) at 50 %
duty for five
seconds. No other
solenoid valve
should be
energized.

The solenoid
should click when
activated

3rd SHIFT
LMP

09

3rd indicator light

Illuminate each
indicator light for
three to the signal
from the MUT-II.

Shift indicator light
illuminates.

4th SHIFT
LMP

10

4th indicator light

5th SHIFT
LMP

11

5th indicator light

A/T RELAY

12

A/T control relay

Actuator test in
scope mode, data
list No. 54. Control
relay is OFF for
three seconds.

Data list No. 54

• (1 )During test:

0 V

• (2) Normal:

Battery positive
voltage [12 V]

L/R SOL

01

Low-reverse solenoid
valve

Drive the solenoid
valve specified by
the scan tool
(MUT-II) at 50 %
duty for five
seconds. No other
solenoid valve
should be
energized.

The solenoid
should click when
activated

O/D SOL

04

Overdrive solenoid
valve

RED SOL

05

Reduction solenoid
valve

TCC SOL

06

Torque converter clutch
solenoid valve

U/D SOL

02

Underdrive solenoid
valve

MUT-II SCAN
TOOL
DISPLAY

ITEM
NO.

ITEM

CONTENT

REMARKS

Std. SHIFT
PATN

14

Standard
shift pattern

Stops the INVECS-II
control and shifts
gears according to
the standard shift
pattern.

Use this function when performing procedure 8 in
the road tests. (Refer to

P.23Ab-7

.)

The INVECS-II cancel command will last until the
ignition switch is turned from "ON" to "LOCK"
(OFF) or vice versa.

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION DIAGNOSIS

23Ab-39

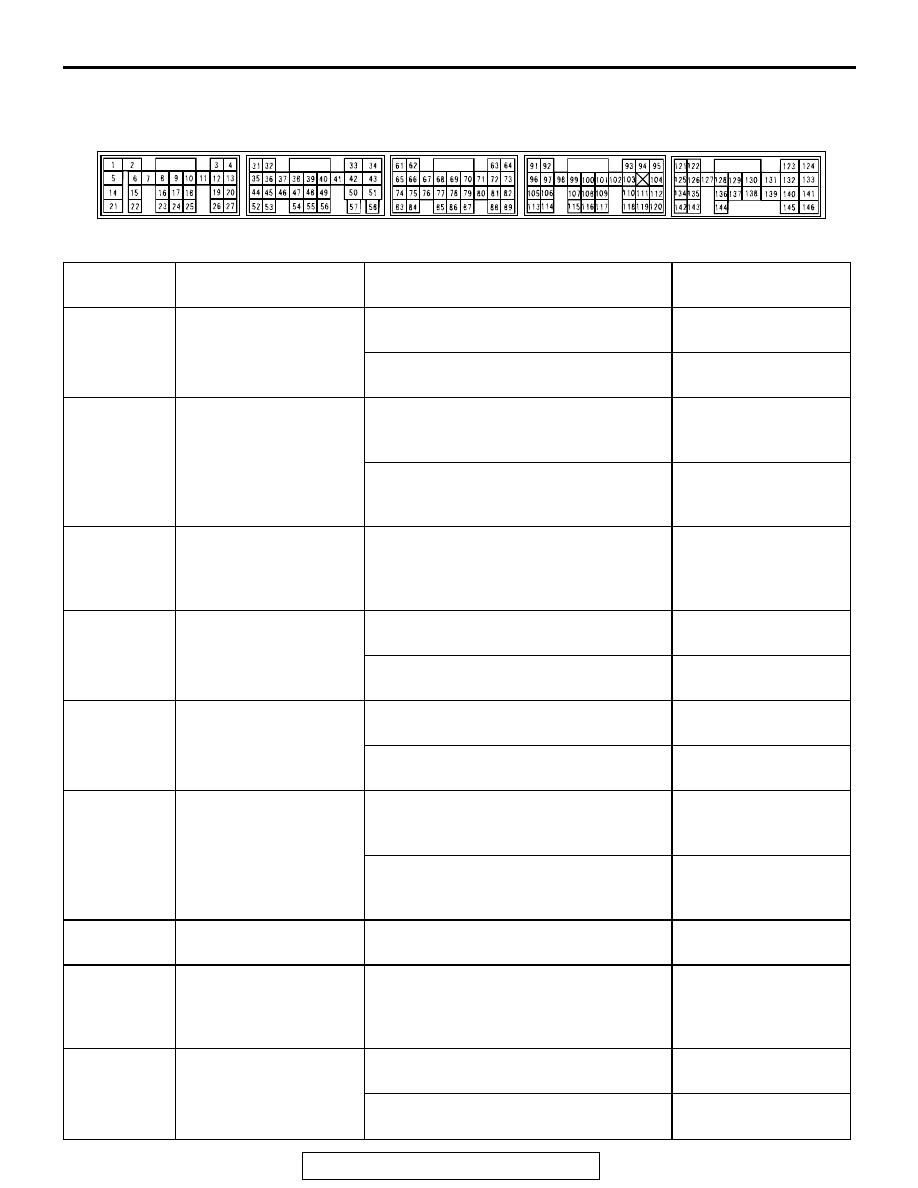

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSMISSION

M1231101400129

AC204035AB

D-132

D-133

D-134

D-135

D-136

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION

39

Stoplight switch

Ignition switch: ON
Brake pedal: Depressed

Battery positive voltage

Ignition switch: ON
Brake pedal: Released

1 V or less

55

4LLc detection switch

Ignition switch: ON
Selector lever operation: N
Transfer position: 4LLc

1 V or less

Ignition switch: ON
Selector lever operation: N
Transfer position: Other than above

Battery positive voltage

64

Input shaft speed sensor Measure between terminals 88 and 64

with an oscilloscope.
Engine: 2,000 r/min
Gear range: 4th gear

Refer to

P.23Ab-42

,

Inspection Procedure
Using an Oscilloscope.

66

Transmission range
switch: P

Ignition switch: ON
Transmission range: P

Battery positive voltage

Ignition switch: ON
Transmission range: Other than above

1 V or less

67

Transmission range
switch: R

Ignition switch: ON
Transmission range: R

Battery positive voltage

Ignition switch: ON
Transmission range: Other than above

1 V or less

68

Shift switch (Down)

Ignition switch: ON
Selector lever operation: Downshift and
hold the selector lever

Battery positive voltage

Ignition switch: ON
Selector lever operation: Other than
above

1 V or less

70

Crankshaft position
sensor

Engine: Idling

1.5

− 2.5 V

73

Output shaft speed
sensor

Measure between terminals 88 and 73
with an oscilloscope.
Engine: 2,000 r/min
Gear range: 4th gear

Refer to

P.23Ab-42

,

Inspection Procedure
Using an Oscilloscope.

75

Transmission range
switch: N

Ignition switch: ON
Transmission range: N

Battery positive voltage

Ignition switch: ON
Transmission range: Other than above

1 V or less

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION DIAGNOSIS

23Ab-40

76

Transmission range
switch: D

Ignition switch: ON
Transmission range: D

Battery positive voltage

Ignition switch: ON
Transmission range: Other than above

1 V or less

77

Shift switch (Up)

Ignition switch: ON
Selector lever operation: Upshift and
hold the selector lever

Battery positive voltage

Ignition switch: ON
Selector lever operation: Other than
above

1 V or less

79

Vehicle speed sensor

Measure between terminals 131 and 79
with an oscilloscope.
Engine: 2,000 r/min
Gear range: 4th gear

Refer to

P.23Ab-42

,

Inspection Procedure
Using an Oscilloscope.

85

Select switch

Ignition switch: ON
Selector lever operation: Sport mode

Battery positive voltage

Ignition switch: ON
Selector lever operation: Other than
above

1 V or less

119

Transmission fluid
temperature sensor

Transmission fluid temperature: 20

°C

(68

°F)

3.8

− 4.0 V

Transmission fluid temperature: 40

°C

(104

°F)

3.2

− 3.4 V

Transmission fluid temperature: 80

°C

(176

°F)

1.7

− 1.9 V

121

Shift indicator light: 1st

Engine: Idling
Gear range: 1st gear

Battery positive voltage

Engine: Idling
Gear range: Other than 1st gear

1 V or less

122

Shift indicator light: 5th

Engine: Idling
Gear range: 5th gear

Battery positive voltage

Engine: Idling
Gear range: Other than 5th gear

1 V or less

123

Solenoid valve power
supply

Ignition switch: LOCK (OFF)

1V or less

Ignition switch: ON

Battery positive voltage

124

Solenoid valve power
supply

Ignition switch: LOCK (OFF)

1V or less

Ignition switch: ON

Battery positive voltage

125

Shift indicator light: 2nd Engine: Idling

Gear range: 2nd gear

Battery positive voltage

Engine: Idling
Gear range: Other than 2nd gear

1 V or less

127

A/T control relay

Ignition switch: ON

Battery positive voltage

TERMINAL
NO.

INSPECTION ITEMS

INSPECTION REQUIREMENT

NORMAL CONDITION
