SPECIFICATIONS
TSB Revision

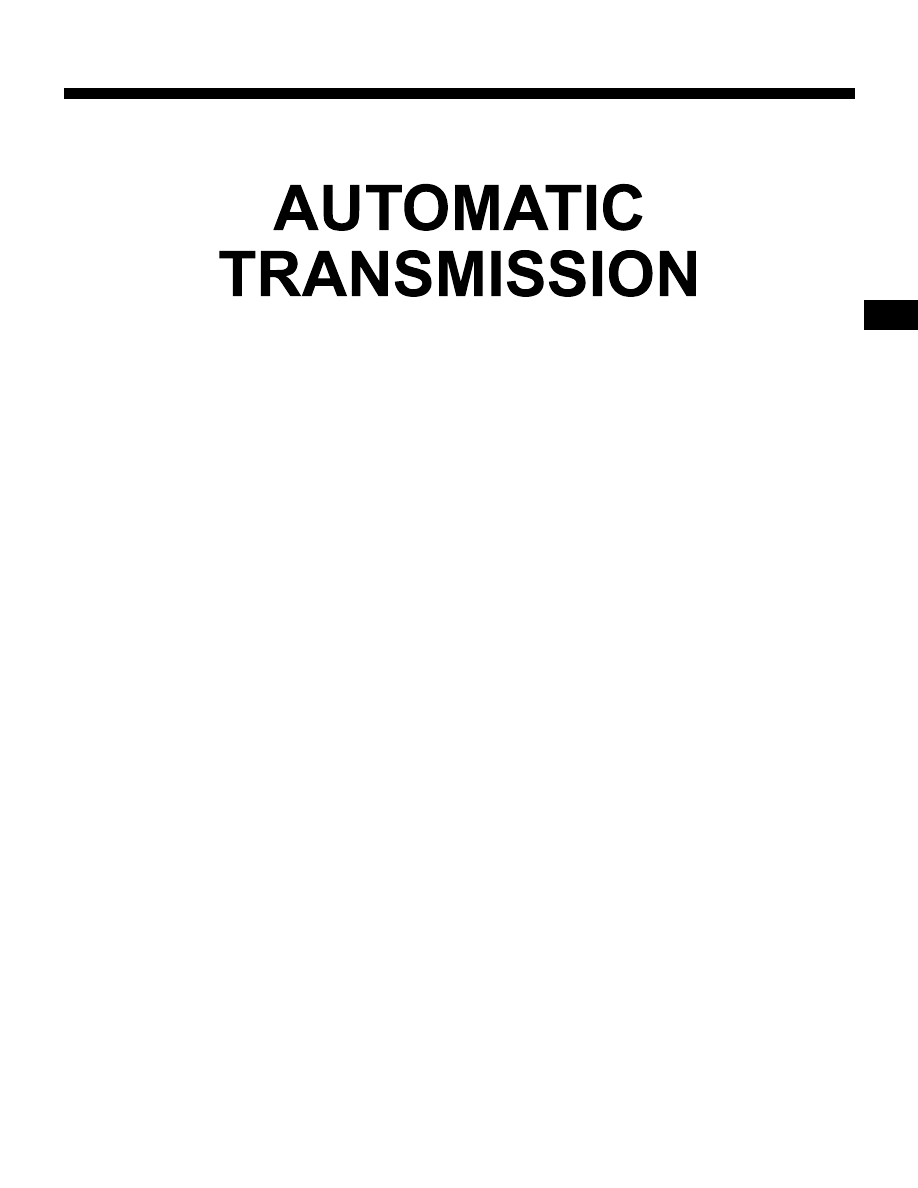

AUTOMATIC TRANSMISSION
23Aa-47
SERVICE SPECIFICATION
M1231100300107
LUBRICANTS
M1231100400126
SEALANT AND ADHESIVE
M1231100500112
Transfer shift lever to bracket
5.0
± 1.0 N⋅m (44 ± 9 in-lb)
Transmission control cable adjusting nut
23
± 4 N⋅m (17 ± 3 ft-lb)
Transmission control harness connection bolt
11
± 2 N⋅m (98 ± 17 in-lb)
Transmission range switch mounting bolt
11
± 1 N⋅m (98 ± 8 in-lb)
Universal joint
13
± 2 N⋅m (115 ± 18 in-lb)
Transmission oil cooler
Bushing
12
± 2 N⋅m (107 ± 17 in-lb)
Eye bolt
42
± 2 N⋅m (31 ± 1 ft-lb)
Transmission oil cooler bracket
12
± 2 N⋅m (107 ± 17 in-lb)
Transmission oil cooler tube assembly
5.0
± 1.0 N⋅m (44 ± 9 in-lb)
Transmission oil cooler tube bracket
5.0
± 1.0 N⋅m (44 ± 9 in-lb)
ITEM
SPECIFICATION
ITEMS
STANDARD VALUE
Line pressure MPa (psi)
1.01
− 1.05 (147 − 152)
Transmission fluid temperature sensor k
Ω
at 0
°C (32°F)
16.7
− 20.5
at 20
°C (68°F)
7.3
− 8.9
at 40
°C (104°F)
3.4
− 4.2
at 60
°C (140°F)
1.9
− 2.2
at 80
°C (176°F)
1.0
− 1.2
at 100
°C (212°F)
0.57
− 0.69
Resistance of torque converter clutch control solenoid valve coil [at 20
°C
(68
°F)] Ω
2.7
− 3.4
Resistance of low-reverse/direction solenoid valve coil [at 20
°C (68°F)] Ω
2.7
− 3.4
Resistance of second solenoid valve coil [at 20
°C (68°F)] Ω
2.7
− 3.4
Resistance of underdrive solenoid valve coil [at 20
°C (68°F)] Ω
2.7
− 3.4
Resistance of overdrive solenoid valve coil [at 20
°C (68°F)] Ω
2.7
− 3.4
Resistance of reduction solenoid valve coil [at 20
°C (68°F)] Ω
2.7
− 3.4
Stall speed r/min
2,200
− 2,700
ITEM
SPECIFIED LUBRICANT
SPECIFICATION
Automatic transmission fluid dm
3
(qt) DIAMOND ATF SP III or equivalent
9.7 (10.2)
Transfer oil dm
3
(qt)
Gear oil SAE 75W-90 or 75W-85W
conforming to API classification GL-4
2.8 (3.0)
ITEM
SPECIFIED SEALANT AND ADHESIVE
Oil pan
Oil pan
MITSUBISHI GENUINE Part No. MR166584 or equivalent
Transmission control
