Mitsubishi Montero (2002-2004). Manual - part 862

TRANSMISSION AND TRANSFER ASSEMBLY

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-39

.

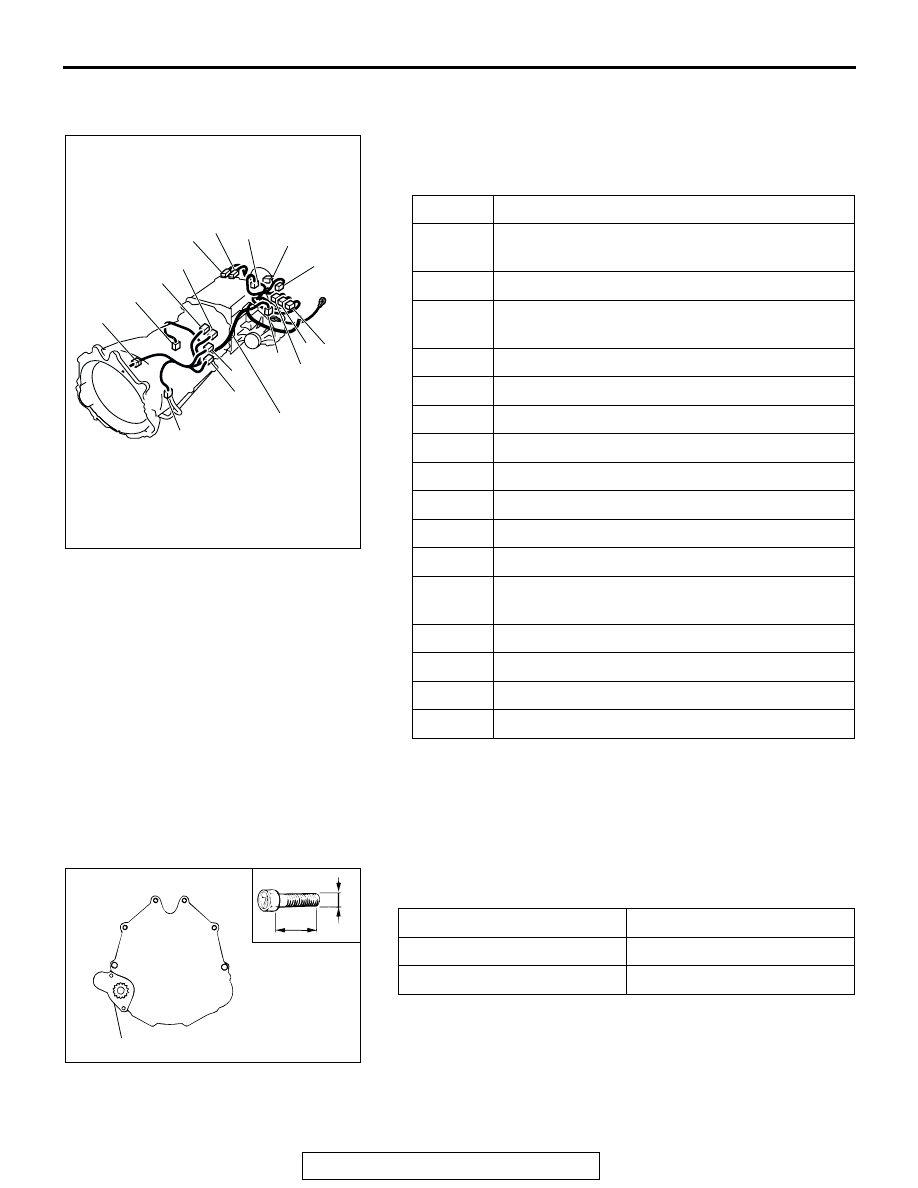

<<B>> TRANSMISSION WIRING HARNESS CONNECTOR
DISCONNECTION
1. Lower the transmission to a position where the transmission

harness connector can be disconnected, and then
disconnect the connector.

2. Position the disconnected transmission harness so that it

rests on the vehicle body.

INSTALLATION SERVICE POINT

.

>>A<< TRANSMISSION ASSEMBLY INSTALLATION
The bolt lengths differ according to where they are to be
installed, so do not install them in the wrong place.

SYMBOL CONNECTOR NAME

A

TRANSMISSION WIRING HARNESS AND
BATTERY WIRING HARNESS COMBINATION

B

OUTPUT SHAFT SPEED SENSOR

C

AUTOMATIC TRANSMISSION CONTROL
SOLENOID VALVE ASSEMBLY

D

TRANSMISSION RANGE SWITCH

E

4LLc DETECTION SWITCH

F

2WD DETECTION SWITCH

G

REAR PROPELLER SHAFT SPEED SENSOR

H

VEHICLE SPEED SENSOR

I

SHIFT ACTUATOR

J

2WD/4WD DETECTION SWITCH

K

4H DETECTION SWITCH

L

CENTER DIFFERENTIAL LOCK DETECTION
SWITCH

M

FRONT PROPELLER SHAFT SPEED SENSOR

N

RIGHT BANK OXYGEN SENSOR (REAR)

O

LEFT BANK OXYGEN SENSOR (REAR)

P

INPUT SHAFT SPEED SENSOR

AC000037

P

A

TRANSMISSION
WIRING HARNESS

N

O

B

C

D

E

F

G

H

I

J

K

L

M

AB

BOLTS

d

× l mm

A

12

× 40

B

12

× 55

ACX01333AF

STARTER MOTOR

B

d

B

A

A

A

A

l

OIL PAN

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-40

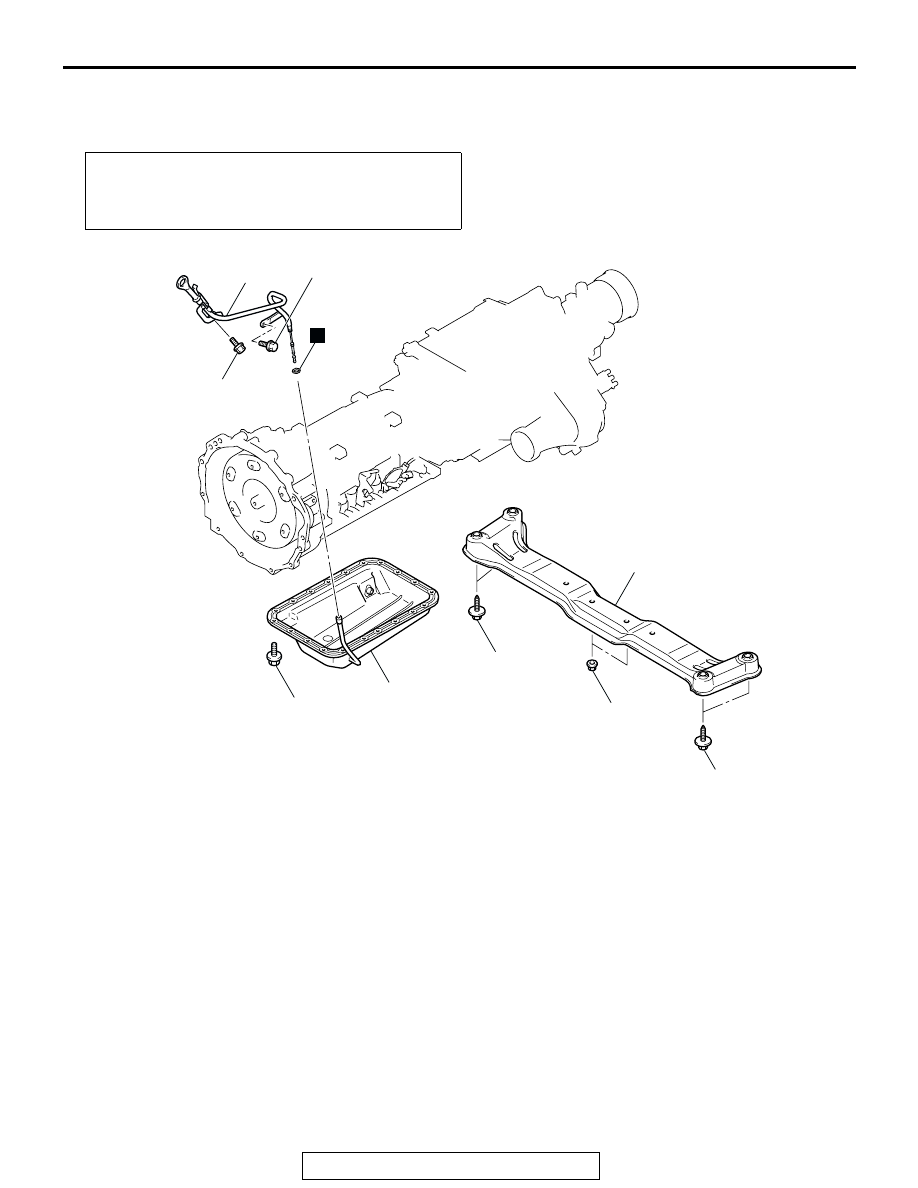

OIL PAN

REMOVAL AND INSTALLATION

M1231120700129

Required Special Tool:

• MD998727: Oil Pan Remover

Pre-removal and Post-installation Operation
• Transmission Fluid Draining (Refer to GROUP 00, Main-

tenance Service - Automatic Transmission Fluid

P.00-41

.)

• Under Cover Removal and Installation.

AC100073AB

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

26 ± 4 N·m
19 ± 3 ft-lb

11 ± 1 N·m
98 ± 8 in-lb

44 ± 8 N·m
33 ± 5 ft-lb

24 ± 4 N·m
18 ± 3 ft-lb

N

3

1

2

REMOVAL STEPS

1.

TRANSMISSION FLUID DIPSTICK
GUIDE

•

SUPPORT THE TRANSMISSION
WITH A TRANSMISSION JACK

2.

TRANSMISSION MOUNT
CENTER MEMBER ASSEMBLY

<<A>>

>>A<<

3.

OIL PAN

REMOVAL STEPS (Continued)

OIL PAN

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-41

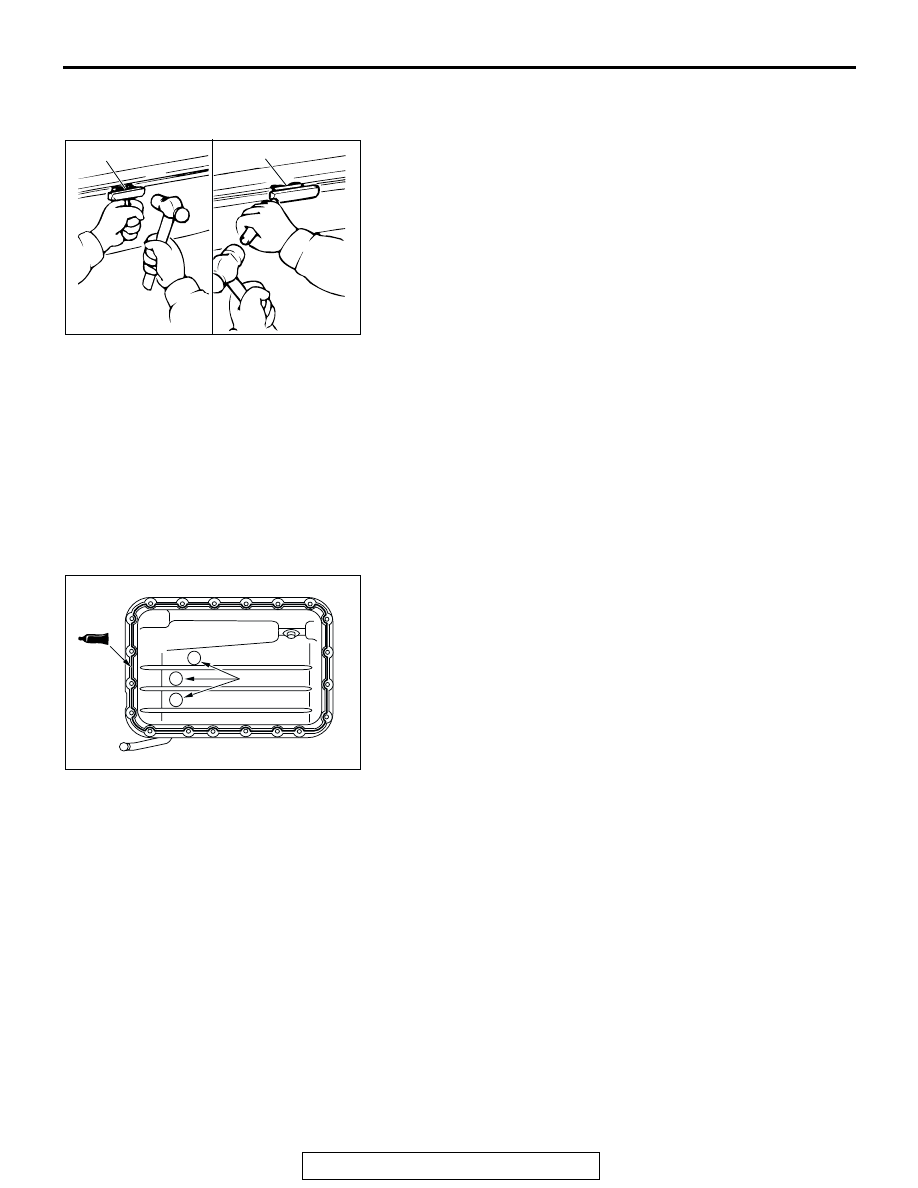

REMOVAL SERVICE POINT

.

<<A>> OIL PAN REMOVAL
After removing the oil pan mounting bolts, remove the oil pan
with special tool MD998727 and a brass bar.

INSTALLATION SERVICE POINT

.

>>A<< OIL PAN INSTALLATION
1. Remove sealant from the oil pan and transmission case

mating surfaces.

2. Degrease the sealant-coated surface and the transmission

mating surface.

3. Clean the magnet and install it in the hollow of the oil pan

base.
NOTE: If the oil pan is replaced, reuse the cleaned magnet.

4. Apply sealant around the gasket surface of the oil pan as

specified in the illustration.

Specified sealant: MITSUBISHI GENUINE PART num-
ber MD166584 or equivalent

NOTE: The sealant should be applied in a continuous bead
approximately 3 mm (0.1 inch) in diameter.

5. Tighten the mounting bolts to the specified torque.

Tightening torque: 11

± 1 N⋅m (98 ± 8 in-lb)

ACX00366

MD998727

MD998727

AB

AA000042AB

MAGNET

TRANSMISSION FLUID COOLER, HOSE, PIPE

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-42

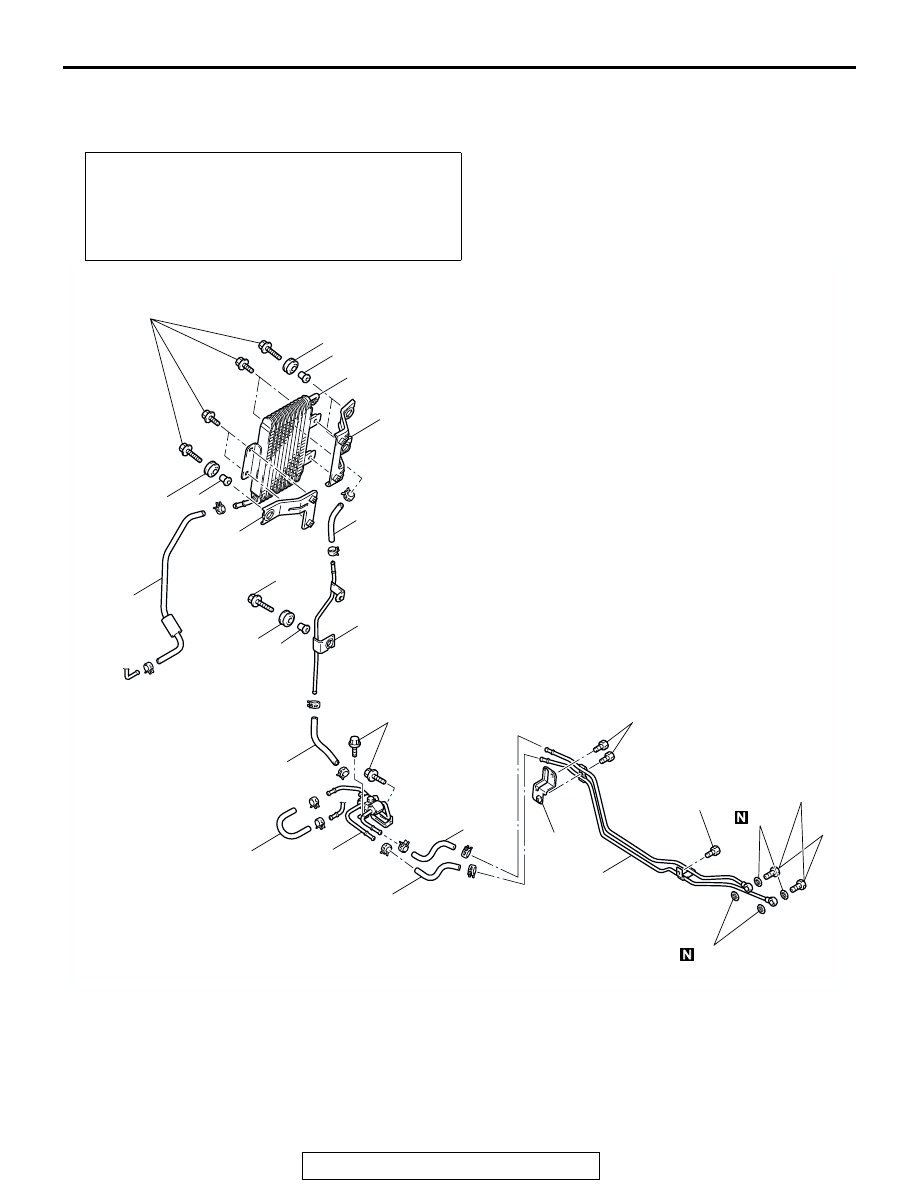

TRANSMISSION FLUID COOLER, HOSE, PIPE

REMOVAL AND INSTALLATION

M1231118400091

Pre-removal and Post-installation Operations
• Transmission Fluid Draining and Refilling (Refer to

P.23Aa-16

.)

• Skid Plate and Under Cover Removal and Installation

• Radiator Grille Removal and Installation (Refer to Group

51

− Front Bumper

P.51-3

.)

AC000031AB

13

42 ± 2 N·m
31 ± 1 ft-lb

14

14

5.0 ± 1.0 N·m
44 ± 9 in-lb

16

15

5.0 ± 1.0 N·m
44 ± 9 in-lb

17

18

21

20

19

12 ± 2 N·m
107 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

4

3

2

12 ± 2 N·m
107 ± 17 in-lb

11

1

5

10

9

6

7

12

8

TRANSMISSION FLUID
COOLER REMOVAL STEPS

1.

HOSE

2.

BUSHING

3.

DISTANCE PIECE

4.

TRANSMISSION FLUID RETURN
TUBE

5.

HOSE

•

HEADLIGHT ASSEMBLY
(REFER TO GROUP 54A

P.54A-

71

.)

6.

BUSHING

7.

DISTANCE PIECE

TRANSMISSION FLUID
COOLER REMOVAL STEPS
