ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-19

8. Turn the pump "OFF."
9. Disconnect the CLEAR suction line from the reservoir at the

cover plate. Disconnect the CLEAR return line at the cover
plate, and place it in a drain pan.

10.Turn the pump "ON" for 30 seconds to purge flushing

solution from the cooler(s) and lines. Turn the pump "OFF."

11.Place the CLEAR suction line into a one quart container of

DIAMOND ATF SP III or equivalent transmission fluid.

12.Turn the pump "ON" until all transmission fluid is removed

from the one quart container and lines. This purges any
residual cleaning solvent from the transmission cooler(s)
and lines. Turn the pump "OFF."

13.Disconnect the alligator clips from the battery. Reconnect

the flusher lines to the cover plate, and remove the flushing
adapters from the cooler lines. Reconnect the cooler lines.

OIL COOLER FLOW CHECK

M1231104900145

After the new or repaired transmission has been installed, fill to
the proper level with DIAMOND ATF SP III or equivalent trans-
mission fluid. The flow should be checked using the following
procedure:

CAUTION

With the fluid set at the proper level, transmission fluid
collection should not exceed one quart or internal damage
to the transmission may occur.
1. Disconnect the OUTLET line (from cooler) at the

transmission and place a collecting container under the
disconnected line.

2. Run the engine at curb idle speed with the shift selector in

neutral.

3. If transmission fluid flow is intermittent or it takes more than

20 seconds to collect one quart of transmission fluid, replace
the cooler.

4. If flow is within acceptable limits, reconnect the cooler line.

Then fill the transmission to the proper level, using
DIAMOND ATF SP III or equivalent transmission fluid.

ACCELERATOR PEDAL POSITION SENSOR
ADJUSTMENT

M1231102600018

Refer to GROUP 13A

− On-vehicle Service − Accelerator Pedal

Position Sensor Check

P.13Aa-12

.

ACX02073AB

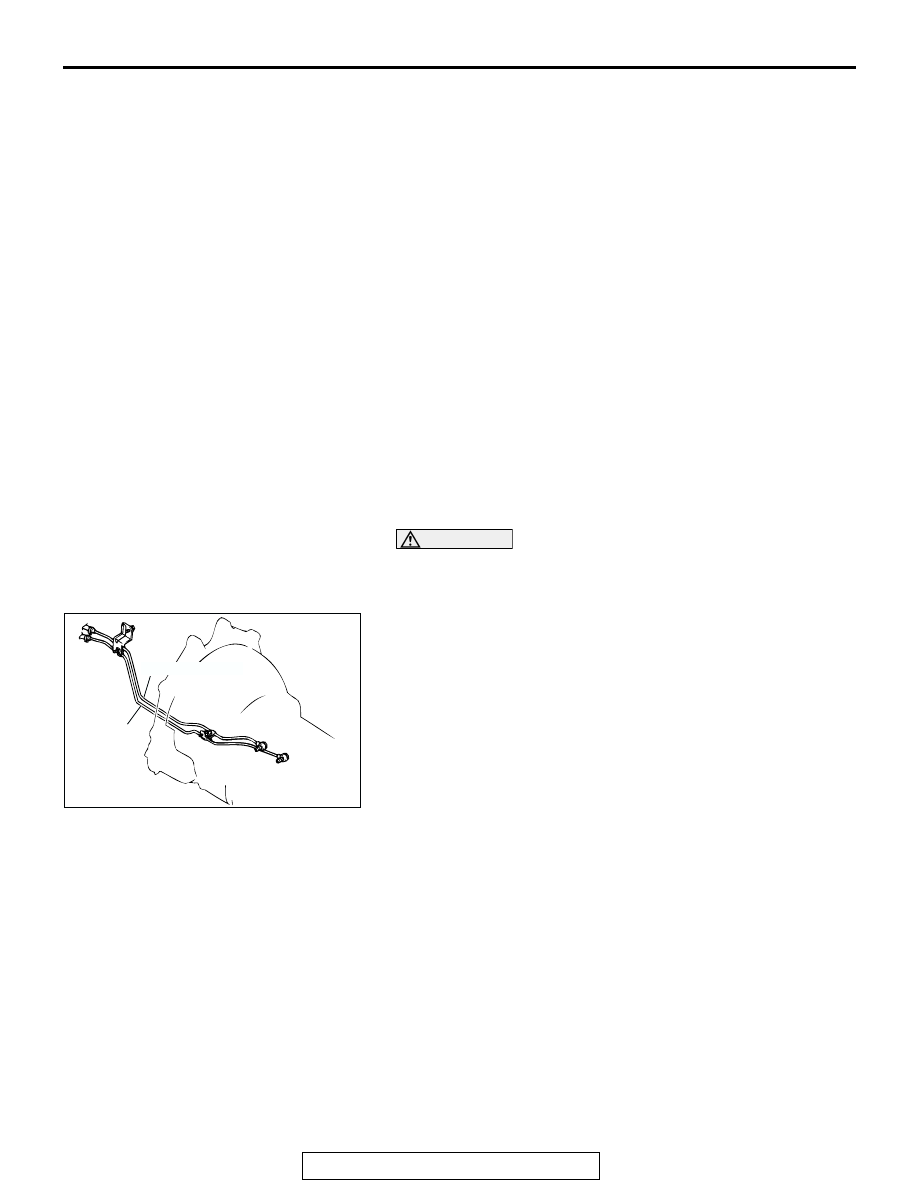

FROM COOLER

TO COOLER

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-20

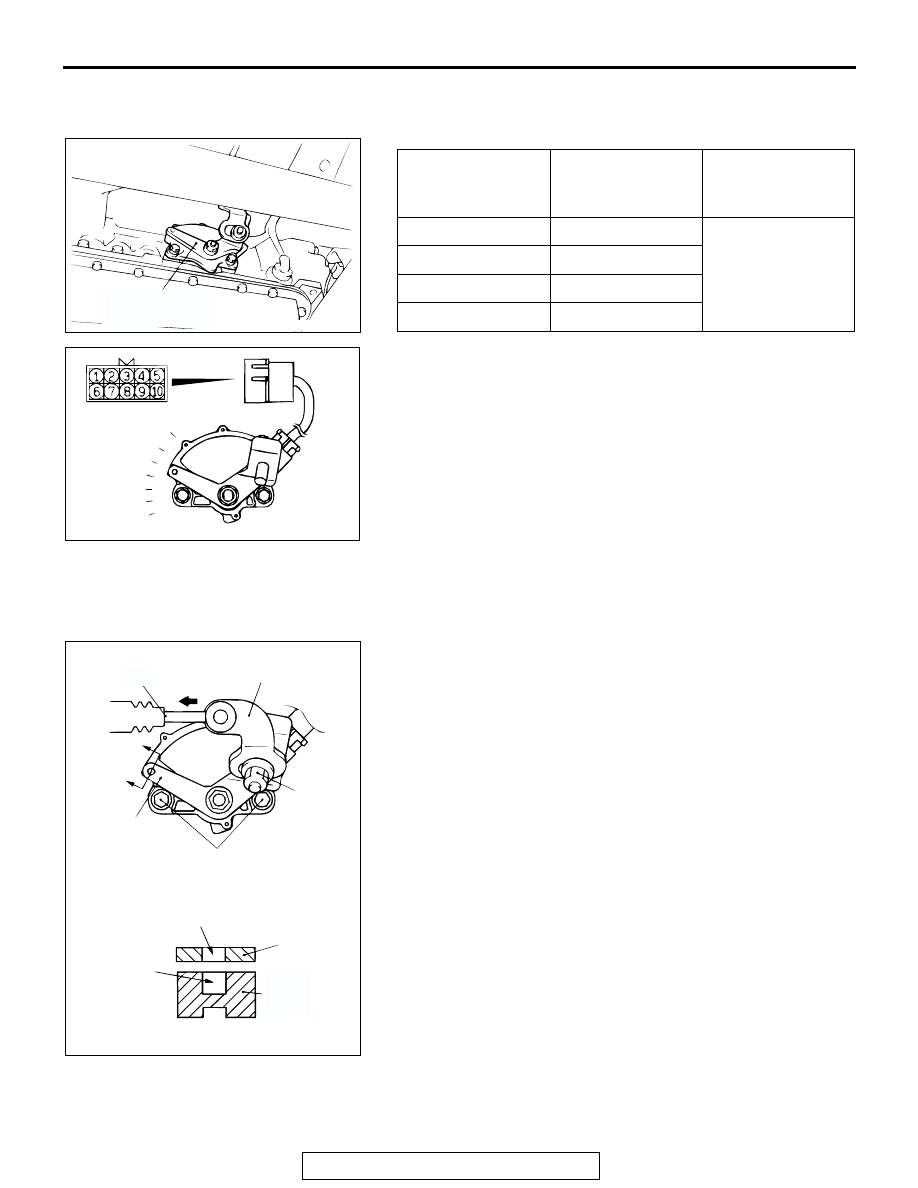

TRANSMISSION RANGE SWITCH CONTINUITY
CHECK

M1231101900157

TRANSMISSION RANGE SWITCH AND CONTROL
CABLE ADJUSTMENT

M1231109700124

1. Set the selector lever to the "N" position.
2. Loosen the control cable to manual control lever coupling

nut to free the cable and lever.

3. Set the manual control lever to the neutral position.
4. Loosen the transmission range switch body mounting bolts

and turn the transmission range switch body so the hole in
the end of the manual control lever and the hole (cross
section A

− A in the figure on the left) in the flange of the

transmission range switch body flange are aligned.
NOTE: The transmission range switch body can be aligned
by inserting a 5-mm diameter steel bar into the end hole of
the manual control lever and the flange hole of the transmis-
sion range switch body.

5. Tighten the transmission range switch mounting bolts to the

specified torque. Be careful at this time that the switch body
does not move.

Tightening torque: 11

± 1 N⋅m (98 ± 8 in-lb)

6. Gently pull the transmission control cable in the direction of

the arrow (B), until the cable is taut. Tighten the adjusting
nut.

Tightening torque: 23

± 4 N⋅m (17 ± 3 ft-lb)

7. Check that the selector lever is in the "N" position.

ITEM

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

1

− 7, 9 − 10

Less than 2 ohms

R

7

− 8

N

2

− 7, 9 − 10

D

3

− 7

ACX01186

TRANSMISSION
RANGE SWITCH

ACX01186AF

ACX01187AB

P

R

N

D

3
2

L

ACX01188

MANUAL CONTROL
LEVER UPPER

ADJUSTING
NUT

MANUAL
CONTROL
LOVER
LOWER

TRANSMISSION RANGE
SWITCH MOUNTING BOLTS

HOLE IN
FLANGE

HOLE IN END

MANUAL
CONTROL LEVER
LOWER

A

A

AB

TRANSMISSION
CONTROL CABLE

SECTION A-A

B

TRANSMISSION
RANGE SWITCH
BODY

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-21

8. Check that each position of the manual control lever

matches each position of the selector lever using scan tool
MB991502.

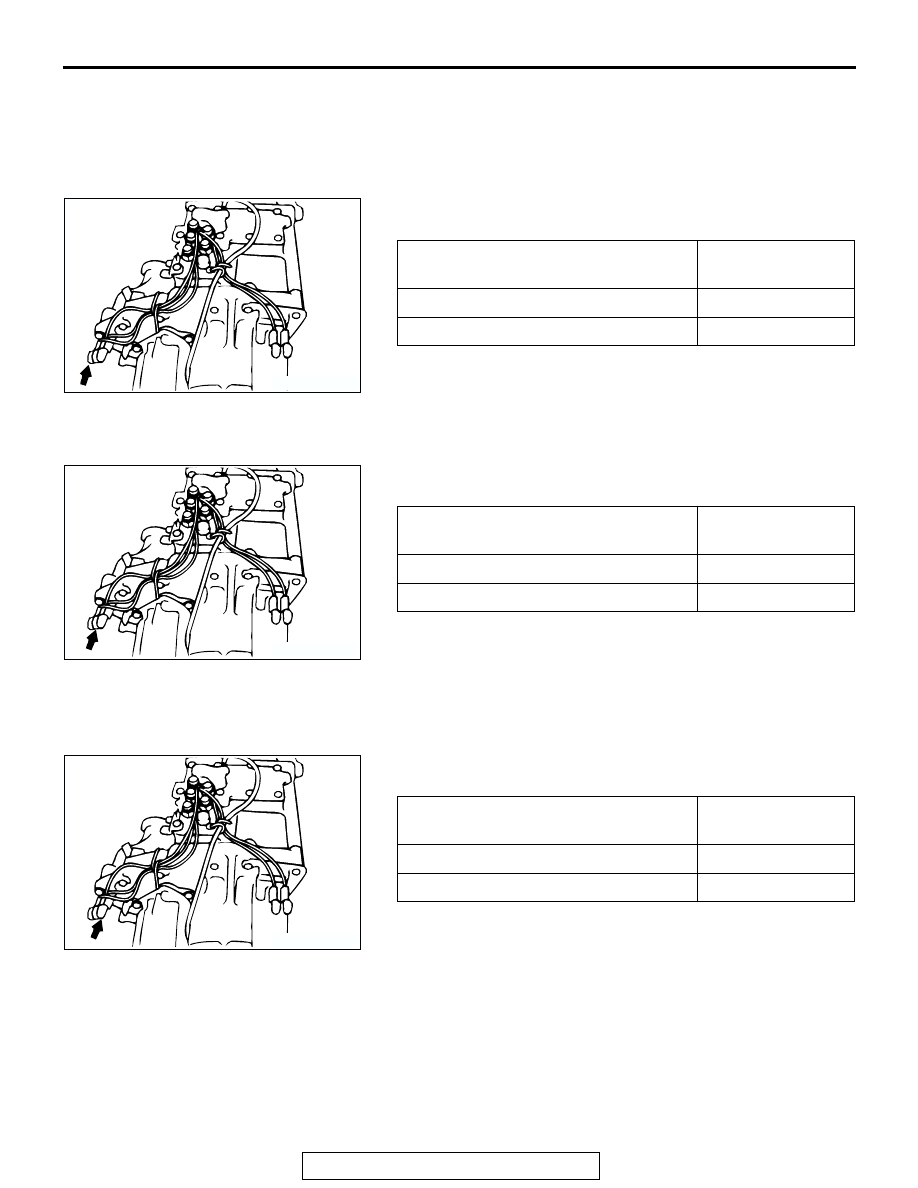

2WD/4WD DETECTION SWITCH CHECK

M1231111900039

Check for continuity between the terminal of the black connec-
tor located on the transfer case.

4H DETECTION SWITCH CHECK

M1231112000039

Check for continuity between the terminal of the white connec-
tor located on the transfer case.

CENTER DIFFERENTIAL LOCK DETECTION
SWITCH CHECK

M1231112100036

Check for continuity between the terminal of the brown connec-
tor located on the transfer case.

TRANSFER CONTROL LEVER
POSITION

CONTINUITY

2H, 4H

Less than 2 ohms

4HLc, 4LLc

Open circuit

ACX01797 AB

TRANSFER CONTROL LEVER
POSITION

CONTINUITY

4H, 4HLc

Less than 2 ohms

2H, 4LLc

Open circuit

ACX01797AC

TRANSFER CONTROL LEVER
POSITION

CONTINUITY

4HLc, 4LLc

Less than 2 ohms

2H, 4H

Open circuit

ACX01797AD

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-22

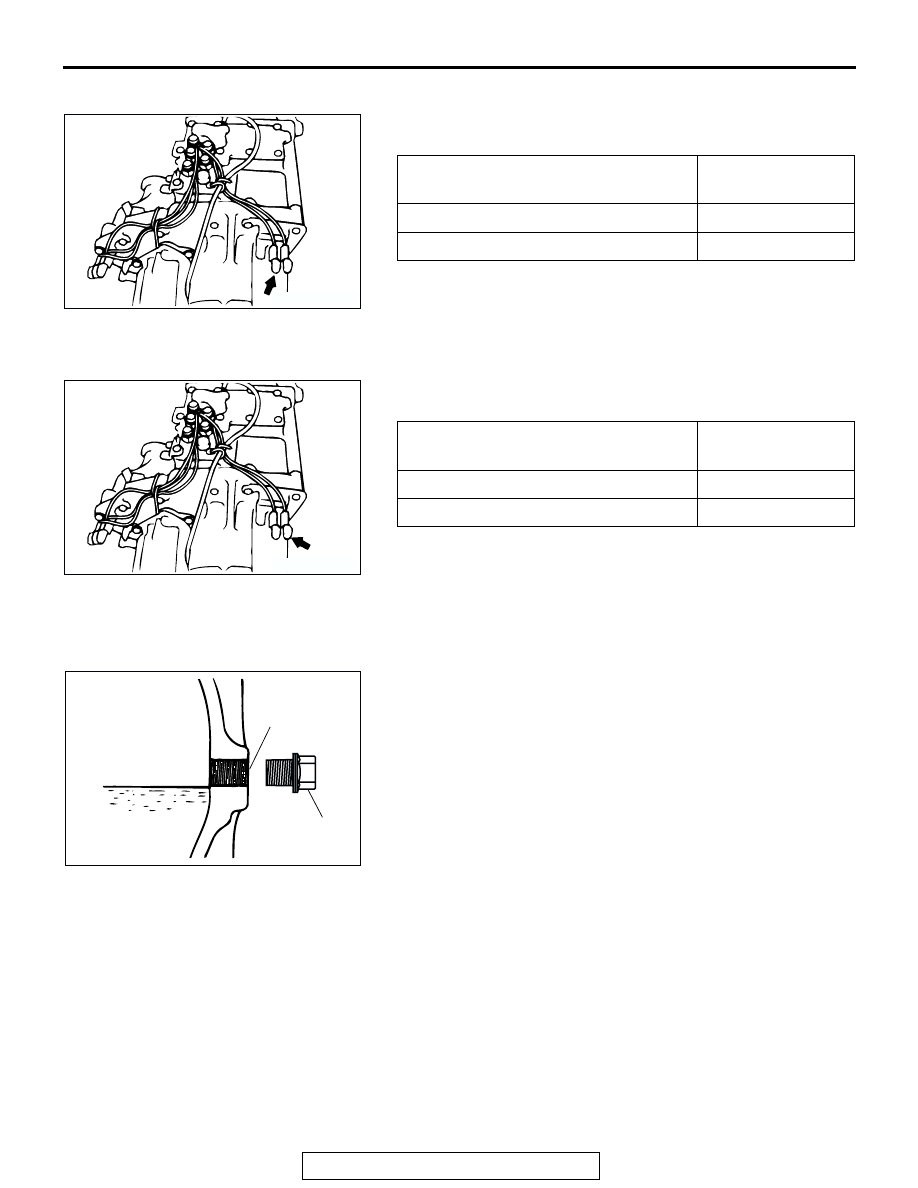

2WD DETECTION SWITCH CHECK

M1231112200033

Check for continuity between the terminal of the black connec-
tor located on the transfer case.

4LLc DETECTION SWITCH CHECK

M1231112300030

Check for continuity between the terminal of the brown connec-
tor located on the transfer case.

TRANSFER OIL CHECK

M1231112400101

1. Remove the filler plug.
2. Check that the oil level is up to the lower edge of the filler

plug hole.

3. Check that the oil is not noticeably dirty.
4. Tighten the filler plug to the specified torque.

Tightening torque: 32

± 2 N⋅m (24 ± 1 ft-lb)

TRANSFER CONTROL LEVER
POSITION

CONTINUITY

2H

Less than 2 ohms

Other than 2H

Open circuit

ACX01797AE

TRANSFER CONTROL LEVER
POSITION

CONTINUITY

4LLc

Less than 2 ohms

Other than 4LLc

Open circuit

ACX01797AF

AC102278AK

FILLER PLUG

TRANSFER
OIL

FILLER PLUG
HOLE
