Mitsubishi Montero (2002-2004). Manual - part 847





AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-51

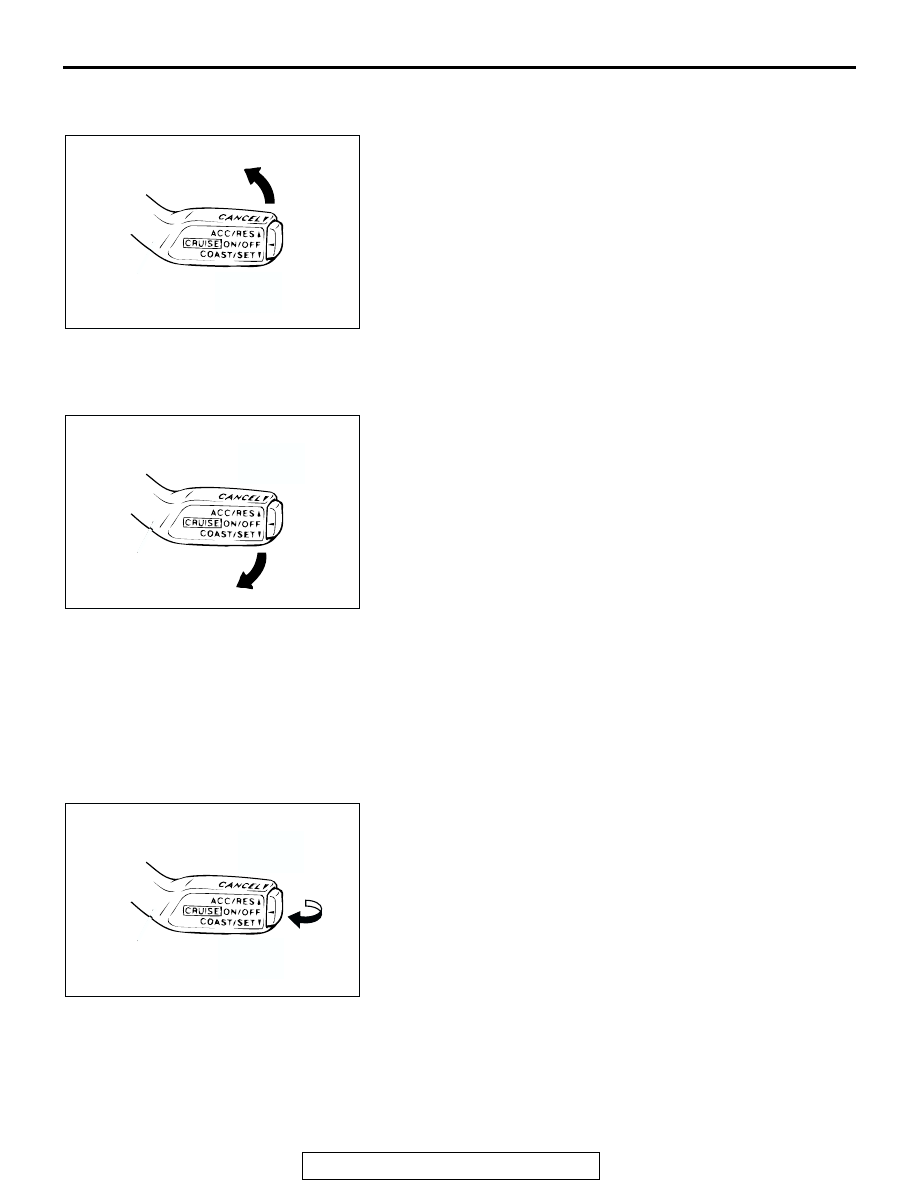

SPEED-INCREASE SETTING

1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
3. Check to be sure that acceleration continues while the

switch is held, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.
NOTE: Acceleration can be continued even if the vehicle
speed has passed the high-speed limit [approximately 200
km/h (124 mph)]. But the speed when the auto-cruise con-
trol switch is released will be recorded as the high-speed
limit.

SPEED-REDUCTION SETTING

1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
3. Check to be sure that deceleration continues while the

switch is pressed, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.
NOTE: When the vehicle speed reaches the low limit
[approximately 40 km/h (25 mph)] during deceleration, the
auto-cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND AUTO-CRUISE CONTROL
CANCELLATION

1. Set the auto-cruise speed control.
2. When any of the following operations are performed while at

constant speed during auto-cruise control, check if normal
driving is resumed and deceleration occurs.

(1) The auto-cruise control switch is pushed in the direction

of arrow.

(2) The brake pedal is depressed.
(3) The selector lever is moved to the "N" range.

3. At a vehicle speed of 40 km/h (25 mph) or higher, check if

when the "RESUME" switch is switched "ON," the vehicle
speed returns to the speed before auto-cruise control driving
was cancelled, and constant speed driving occurs.

4. When the main switch is turned to the "OFF" while driving at

constant speed, check if normal driving is resumed and
deceleration occurs.

ACX01172

AE

ACX01172

AD

ACX01172

AG

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-52

AUTO-CRUISE CONTROL SYSTEM COMPONENT
CHECK

M1172001700231

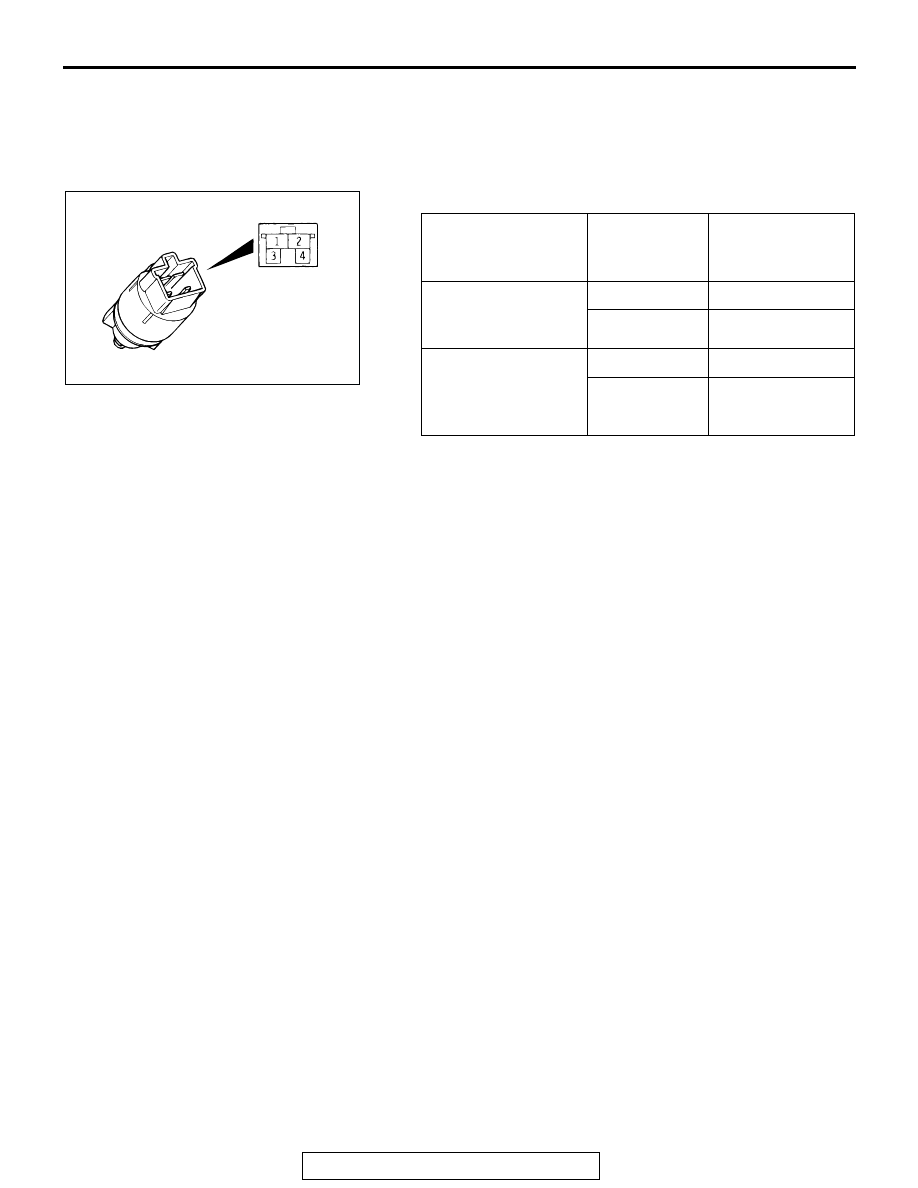

STOPLIGHT SWITCH

1. Disconnect the connector.
2. Check for continuity between the terminals of the switch.

TRANSMISSION RANGE SWITCH ("N" POSITIN)

Refer to GROUP 23A, On-vehicle Service

− Essential Service

P.23Aa-20

.

THROTTLE POSITION SENSOR

Refer to GROUP 13A, On-vehicle Service

− Throttle Position

Sensor Check

P.13Aa-18

.

ACCELERATOR PEDAL POSITION SENSOR

Refer to GROUP 13A, On-vehicle Service

− Accelerator Pedal

Position Sensor Check

P.13Aa-18

.

MEASUREMENT
CONDITION

TERMINAL
CONNECTOR
OF TESTER

SPECIFIED
CONDITION

When brake pedal is
depressed. (for
stoplight circuit)

− 2

Less than 2 ohms

− 4

Open circuit

When brake pedal is
not depressed. (for
auto-cruise control
circuit)

− 2

Open circuit

− 4

Less than 2 ohms

ACX01180 AB

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-53

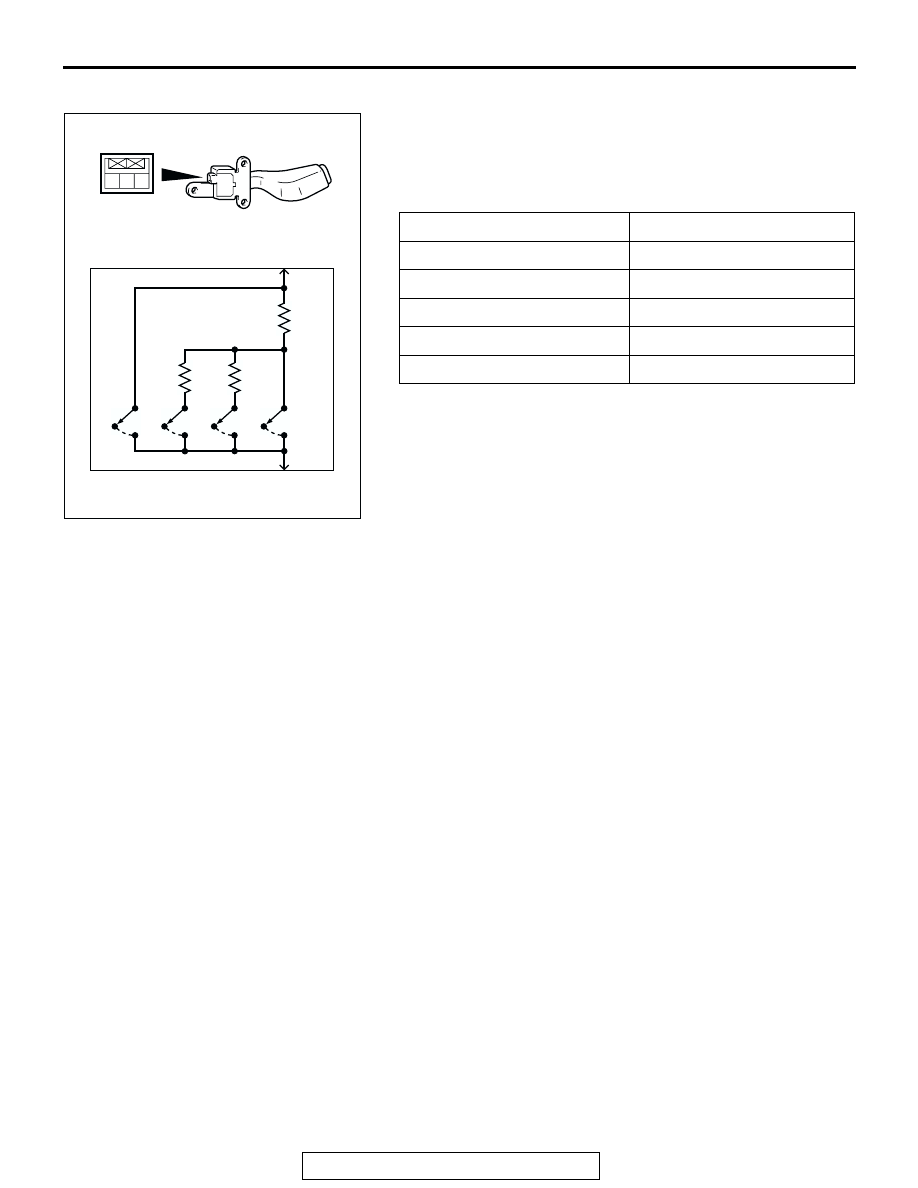

AUTO-CRUISE CONTROL SWITCH CHECK

Measure the resistance between terminal 2 and terminal 3
when each of the "SET," "RESUME," "CANCEL" and MAIN
switches is pressed. If the values measured at the time corre-
spond to those in the table below, the resistance values are
correct.

VEHICLE SPEED SENSOR CHECK

Refer to GROUP 54A, Combination Meters Assembly and
Vehicle Speed Sensor

P.54A-66

.

SWITCH POSITION

SPECIFIED CONDITION

MAIN switch "OFF"

Open circuit

MAIN switch "ON"

Less than 2 ohms

"CANCEL" switch ON

Approximately 100

"RESUME" switch ON

Approximately 887

"SET" switch ON

Approximately 300

1 2 3

AC203822AB

OFF

OFF

OFF

OFF

ON

ON

ON

ON

CAN

MAIN

RES

SET

2

3

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-54

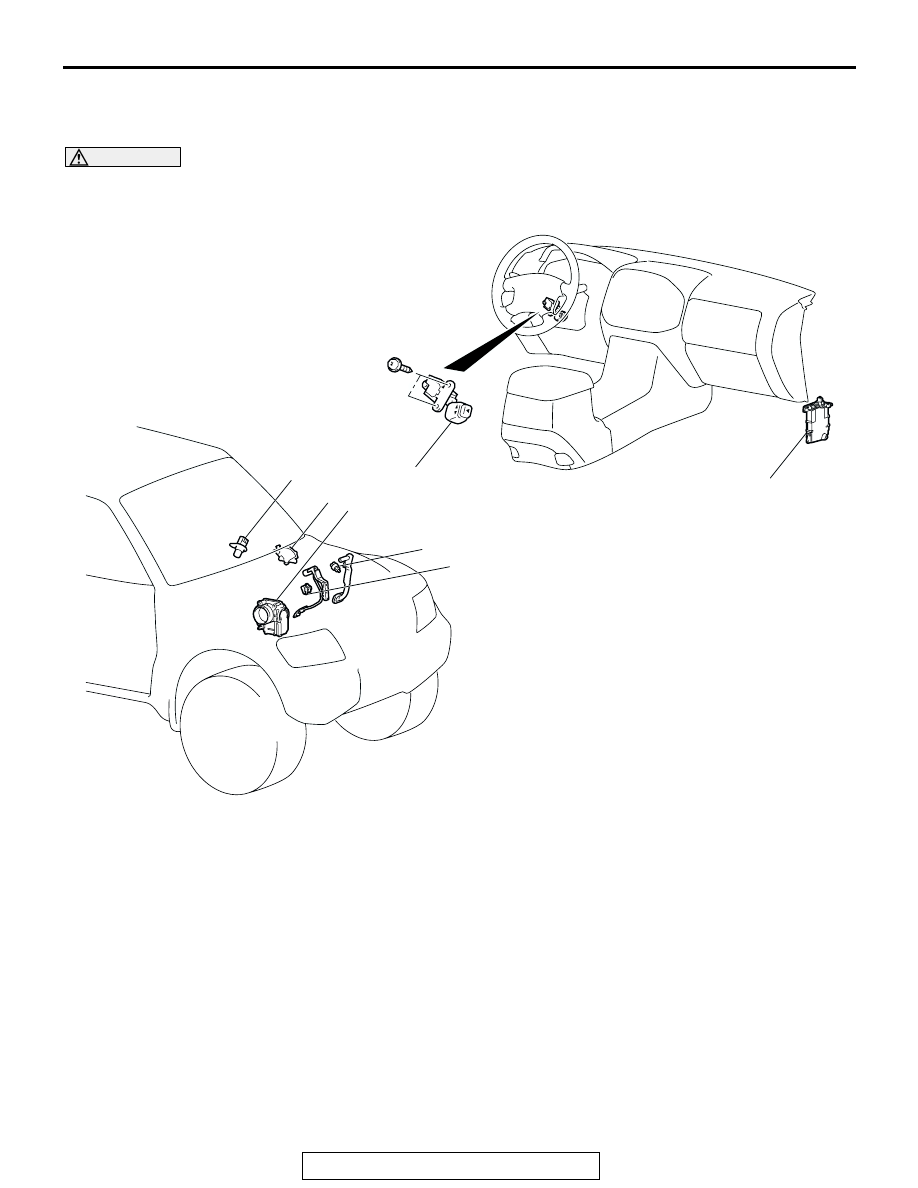

AUTO-CRUISE CONTROL

REMOVAL AND INSTALLATION

M1172001400218

WARNING

Before removal of the air bag module, refer to GROUP 52B, SRS Service Precautions

P.52Ba-

18

 and GROUP 52B, Air Bag Module and Clock Spring

P.52Ba-33

.

AC204448AB

1

7

6

5

4

3

2

CONTROL SWITCH REMOVAL
STEPS

• AIR BAG MODULE <DRIVERS

SIDE> (REFER TO GROUP 52B, AIR
BAG MODULES AND CLOCK
SPRING

P.52Ba-33

.)

1. AUTO-CRUISE CONTROL SWITCH

CONTROL UNIT REMOVAL

2. POWERTRAIN CONTROL MODULE

(PCM) [REFER TO GROUP 23A,
POWERTRAIN CONTROL MODULE
(PCM)

P.23Aa-44

.]

SENSOR REMOVAL STEPS

3. VEHICLE SPEED SENSOR (REFER

TO GROUP 52A, COMBINATION
METERS ASSEMBLY AND VEHICLE
SPEED SENSOR

P.54A-65

.)

4. TRANSMISSION RANGE SWITCH

(REFER TO GROUP 23B,
TRANSMISSION

P.23B-18

.)

5. THROTTLE POSITION SENSOR

(REFER TO GROUP 13A,
THROTTLE BODY

P.13Aa-27

.)

6. STOPLIGHT SWITCH (REFER TO

GROUP 35A, BRAKE PEDAL

P.35A-

132

.)

7. ACCELERATOR PEDAL POSITION

SENSOR (REFER TO

P.17-6

.)
