SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL

11A-41

Cylinder head bolt <cold engine>

108

± 5 N⋅m (80 ± 3 ft-lb)→back

off

→108 ± 5 N⋅m (80 ± 3 ft-lb)

Drive belt auto tensioner attaching bolt

24

± 4 N⋅m (18 ± 3 ft-lb)

Drive plate attaching bolt

74

± 4 N⋅m (55 ± 3 ft-lb)

Drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Drive shaft (RH) attaching nut

60

± 10 Nm (45 ± 7 ft-lb)

Engine oil dipstick assembly attaching bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Engine front mount insulator attaching bolt

44

± 9 N⋅m (33 ± 6 ft-lb)

Engine mount insulator attaching nut

26

± 4 N⋅m (19 ± 3 ft-lb)

Front differential number 2 crossmember assembly attaching bolt

69

± 9 N⋅m (51 ± 7 ft-lb)

Front propeller shaft connection nut

60

± 10 N⋅m (45 ± 7 ft-lb)

Fuel high-pressure hose bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Ground cable mounting bolt

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Idler pulley attaching bolt

44

± 5 N⋅m (33 ± 3 ft-lb)

Ignition coil bolt

13

± 2 N⋅m (111 ± 22 in-lb)

Intake manifold plenum stay bolt

39

± 3 N⋅m (29 ± 2 ft-lb)

Oil cooler eye bolt

48

± 7 N⋅m (36 ± 5 ft-lb)

Oil cooler hose bracket bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Oil pan attaching bolt

8.5

± 3.5 N⋅m (75 ± 31 in-lb)

Oil pan attaching bolt

37

± 7 N⋅m (27 ± 5 ft-lb)

Oil pan attaching bolt

11

± 0.5 N⋅m (93 ± 4 ft-lb)

Oil screen attaching bolt

19

± 3 N⋅m (14 ± 2 ft-lb)

Oil screen attaching bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

Power steering oil pump assembly mounting bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Rocker arm and shaft assembly mounting bolt

31

± 3 N⋅m (23 ± 2 ft-lb)

Rocker cover attaching bolt

3.5

± 0.5 N⋅m (31 ± 4 in-lb)

Sensing camshaft position cylinder

22

± 4 N⋅m (16 ± 3 ft-lb)

Timing belt lower cover assembly attaching bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Timing belt upper cover assembly attaching bolt

11

± 1 N⋅m (96 ± 8 in-lb)

Timing belt upper cover assembly attaching bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Timing belt indicator bracket attaching bolt

11

± 1 N⋅m (96 ± 8 in-lb)

Tension arm assembly attaching bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Tension pulley attaching bolt

48

± 6 N⋅m (36 ± 4 ft-lb)

Water outlet pipe attaching bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Water passage assembly attaching bolt

19

± 1 N⋅m (14 ± 1 ft-lb)

Water pipe assembly attaching bolt

14

± 1 N⋅m (120 ± 13 in-lb)

ITEMS

SPECIFICATIONS

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL

11A-42

SERVICE SPECIFICATIONS

M1111000300446

LUBRICANT

M1112000400026

SEALANTS

M1111000500053

ITEMS

STANDARD VALUE

LIMIT

Drive belt tension

Vibration frequency Hz
(Reference)

87

− 119

−

Tension N (Reference)

226

− 422

−

Basic ignition timing at idle

5

°BTDC ± 3°

−

Actual ignition timing at curb idle

Approximately 10

°

BTDC

−

CO contents %

0.5 or less

−

HC contents   ppm

100 or less

−

Curb idle speed   r/min

700

± 100

−

Compression pressure (250 - 400 r/min)   kPa (psi)

1200 (171)

Minimum 890 (127)

Compression pressure difference of all cylinder   kPa (psi)

−

100 (14)

Intake manifold vacuum at curb idle   kPa (in Hg)

−

Minimum 60 (18)

Auto-tensioner pushrod movement   mm (in)

Within 1.0 (0.04)

−

Timing belt tension torque   N

⋅m (in-lb)

4.4 (39)

−

Auto tensioner rod protrusion amount   mm (in)

4.8

− 5.5 (0.19 − 0.22)

−

ITEM

SPECIFICATION

A/T fluid

DIAMOND ATF SP-II M or DIAMOND ATF SP III

ITEM

SPECIFIED SEALANT

Camshaft position sensor support

MITSUBISHI GENUINE Part No. MD970389 or equivalent

Oil pan

MITSUBISHI GENUINE Part No. MD970389 or equivalent

17-1

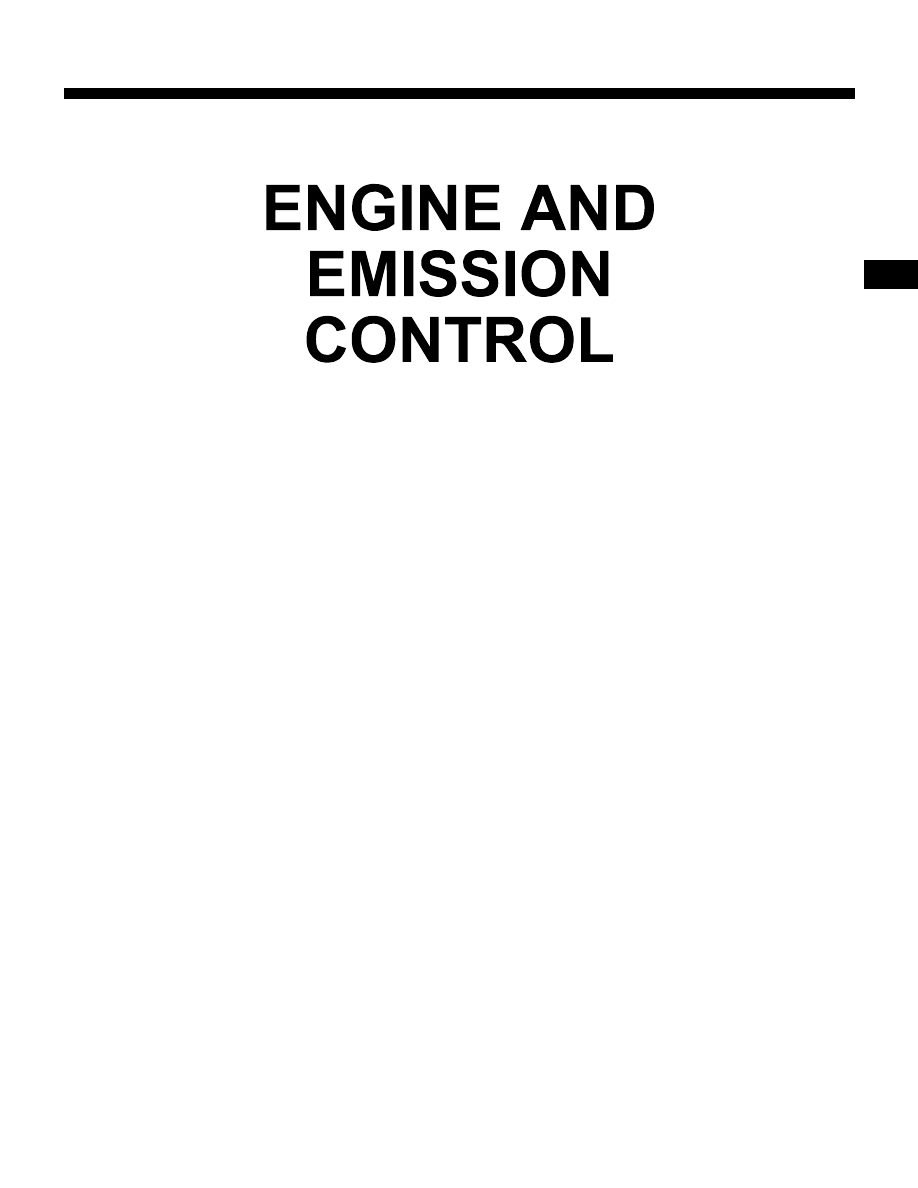

GROUP 17

CONTENTS

ENGINE CONTROL . . . . . . . . . .

17-3

GENERAL DESCRIPTION  . . . . . .

17-3

SPECIAL TOOL. . . . . . . . . . . . . . .

17-3

ENGINE CONTROL SYSTEM
DIAGNOSIS . . . . . . . . . . . . . . . . . .

17-3

INTRODUCTION TO ENGINE CONTROL
SYSTEM DIAGNOSIS . . . . . . . . . . . . . .

17-3

ENGINE CONTROL SYSTEM DIAGNOSTIC
TROUBLESHOOTING STRATEGY  . . .

17-3

SYMPTOM CHART . . . . . . . . . . . . . . . .

17-3

SYMPTOM PROCEDURES  . . . . . . . . .

17-3

ON-VEHICLE SERVICE. . . . . . . . .

17-5

ACCELERATOR PEDAL POSITION SENSOR
ADJUSTMENT. . . . . . . . . . . . . . . . . . . .

17-5

ACCELERATOR PEDAL POSITION SENSOR
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-5

ACCELERATOR PEDAL POSITION SWITCH
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-5

ACCELERATOR CABLE AND PEDAL

17-6

REMOVAL AND INSTALLATION  . . . . .

17-6

AUTO-CRUISE CONTROL . . . .

17-7

GENERAL DESCRIPTION  . . . . . .

17-7

SPECIAL TOOLS . . . . . . . . . . . . . .

17-8

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSIS  . . . . . . . . . . . . . . . . . .

17-8

INTRODUCTION TO AUTO-CRUISE CONTROL
SYSTEM DIAGNOSIS . . . . . . . . . . . . . .

17-8

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSTIC TROUBLESHOOTING
STRATEGY  . . . . . . . . . . . . . . . . . . . . . .

17-8

AUTO-CRUISE CONTROL SYSTEM
DIAGNOSTIC TROUBLE CODE
DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . .

17-9

DIAGNOSTIC TROUBLE CODE
CHART . . . . . . . . . . . . . . . . . . . . . . . . . .

17-12

DIAGNOSTIC TROUBLE CODE
PROCEDURES  . . . . . . . . . . . . . . . . . . .

17-12

SYMPTOM CHART  . . . . . . . . . . . . . . . .

17-35

SYMPTOM PROCEDURES . . . . . . . . . .

17-36

DATA LIST REFERENCE TABLE . . . . .

17-46

PCM TERMINAL VOLTAGE REFERENCE
CHART FOR AUTO-CRUISE CONTROL
SYSTEM OPERATION. . . . . . . . . . . . . .

17-48

ON-VEHICLE SERVICE . . . . . . . . .

17-50

AUTO-CRUISE CONTROL SWITCH
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-50

AUTO-CRUISE CONTROL SYSTEM
COMPONENT CHECK. . . . . . . . . . . . . .

17-52

Continued on next page

17-2

AUTO-CRUISE CONTROL*  . . . . .

17-54

REMOVAL AND INSTALLATION  . . . . .

17-54

EMISSION CONTROL . . . . . . . .

17-55

GENERAL DESCRIPTION  . . . . . .

17-55

DIAGNOSIS . . . . . . . . . . . . . . . . . .

17-55

SPECIAL TOOLS. . . . . . . . . . . . . .

17-55

VACUUM HOSES  . . . . . . . . . . . . .

17-56

VACUUM HOSE ROUTING. . . . . . . . . .

17-56

VACUUM CIRCUIT DIAGRAM  . . . . . . .

17-57

VACUUM HOSE INSTALLATION . . . . .

17-57

VACUUM HOSE CHECK. . . . . . . . . . . .

17-58

POSITIVE CRANKCASE VENTILATION
SYSTEM. . . . . . . . . . . . . . . . . . . . .

17-58

GENERAL DESCRIPTION (POSITIVE
CRANKCASE VENTILATION SYSTEM)

17-58

COMPONENT LOCATION  . . . . . . . . . .

17-58

CRANKCASE VENTILATION SYSTEM
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-59

POSITIVE CRANKCASE VENTILATION (PCV)
VALVE CHECK . . . . . . . . . . . . . . . . . . .

17-59

EVAPORATIVE EMISSION CONTROL
SYSTEM. . . . . . . . . . . . . . . . . . . . .

17-59

GENERAL DESCRIPTION (EVAPORATIVE
EMISSION CONTROL SYSTEM) . . . . .

17-59

COMPONENT LOCATION  . . . . . . . . . .

17-60

PURGE CONTROL SYSTEM CHECK (PURGE
FLOW CHECK) . . . . . . . . . . . . . . . . . . .

17-61

EVAPORATIVE EMISSION PURGE SOLENOID
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-62

VOLUME AIRFLOW SENSOR CHECK.

17-62

BAROMETRIC PRESSURE SENSOR
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

17-62

ENGINE COOLANT TEMPERATURE SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-63

INTAKE AIR TEMPERATURE SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-63

FUEL TANK DIFFERENTIAL PRESSURE
SENSOR CHECK. . . . . . . . . . . . . . . . . .

17-63

EVAPORATIVE EMISSION VENTILATION
SOLENOID CHECK . . . . . . . . . . . . . . . .

17-63

EXHAUST GAS RECIRCULATION (EGR)
SYSTEM . . . . . . . . . . . . . . . . . . . . .

17-63

GENERAL DESCRIPTION
(EGR SYSTEM) . . . . . . . . . . . . . . . . . . .

17-63

COMPONENT LOCATION. . . . . . . . . . .

17-64

EGR VALVE (STEPPER MOTOR) CHECK

17-64

EGR VALVE (STEPPER MOTOR)
CLEANING . . . . . . . . . . . . . . . . . . . . . . .

17-65

VOLUME AIRFLOW SENSOR CHECK .

17-65

ENGINE COOLANT TEMPERATURE SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-66

CRANKSHAFT POSITION SENSOR
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

17-66

EVAPORATIVE EMISSION CANISTER AND
FUEL TANK PRESSURE RELIEF
VALVE  . . . . . . . . . . . . . . . . . . . . . .

17-66

 REMOVAL AND INSTALLATION . . . . .

17-66

INSPECTION . . . . . . . . . . . . . . . . . . . . .

17-69

CATALYTIC CONVERTER  . . . . . .

17-70

GENERAL INFORMATION (CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . .

17-70

REMOVAL AND INSTALLATION. . . . . .

17-70

SPECIFICATIONS . . . . . . . . . .

17-72

FASTENER TIGHTENING
SPECIFICATIONS  . . . . . . . . . . . . .

17-72

SERVICE SPECIFICATIONS . . . . .

17-72

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING

•

Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to

personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and

passenger (from rendering the SRS inoperative).

•

Service or maintenance of any SRS component or SRS-related component must be performed only at an

authorized MITSUBISHI dealer.

•

MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B - Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-

related component.

NOTE

The SRS includes the following components: SRS air bag control unit, SRS warning light, front impact sensors, air bag module,

clock spring, and interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection

with SRS service or maintenance) are indicated in the table of contents by an asterisk (*).
