Mitsubishi Montero (2002-2004). Manual - part 797





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-57

STEP 7. Check the harness for short circuit to ground
between junction block connector D-210 (terminal No.1)
and combination meter connector D-03 (terminal No.62).
Q: Are harness wires between junction block connector D-

210 (terminal No.1) and combination meter connector D-
03 (terminal No.62) in good condition?
YES :
Go to Step 10.
NO :  Repair the harness wires between junction block

connector D-210 and combination meter connector D-
03. Then go to Step 10.

ACX01632

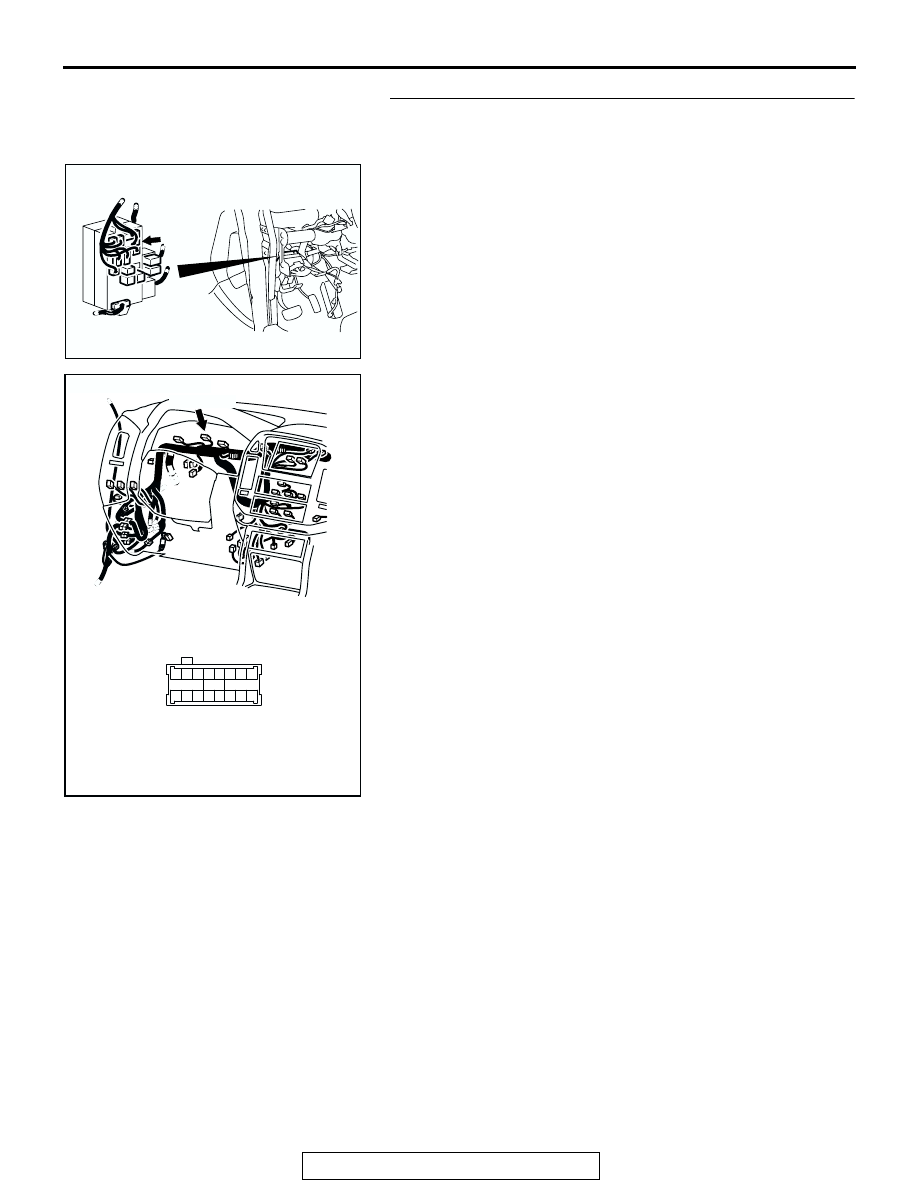

CONNECTOR: D-210

JUNCTION BLOCK
(FRONT VIEW)

AH

D-210

AC204231 AC

D-03 (GR)

CONNECTOR : D-03

D-03 HARNESS CONNECOR:
COMPONENNT SIDE

60

51

65

59

63 62 61

64

54

52

53

55

56

67 66

57

58

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-58

STEP 8. Check the harness for short circuit to ground
between the SRS-ECU and the junction block.

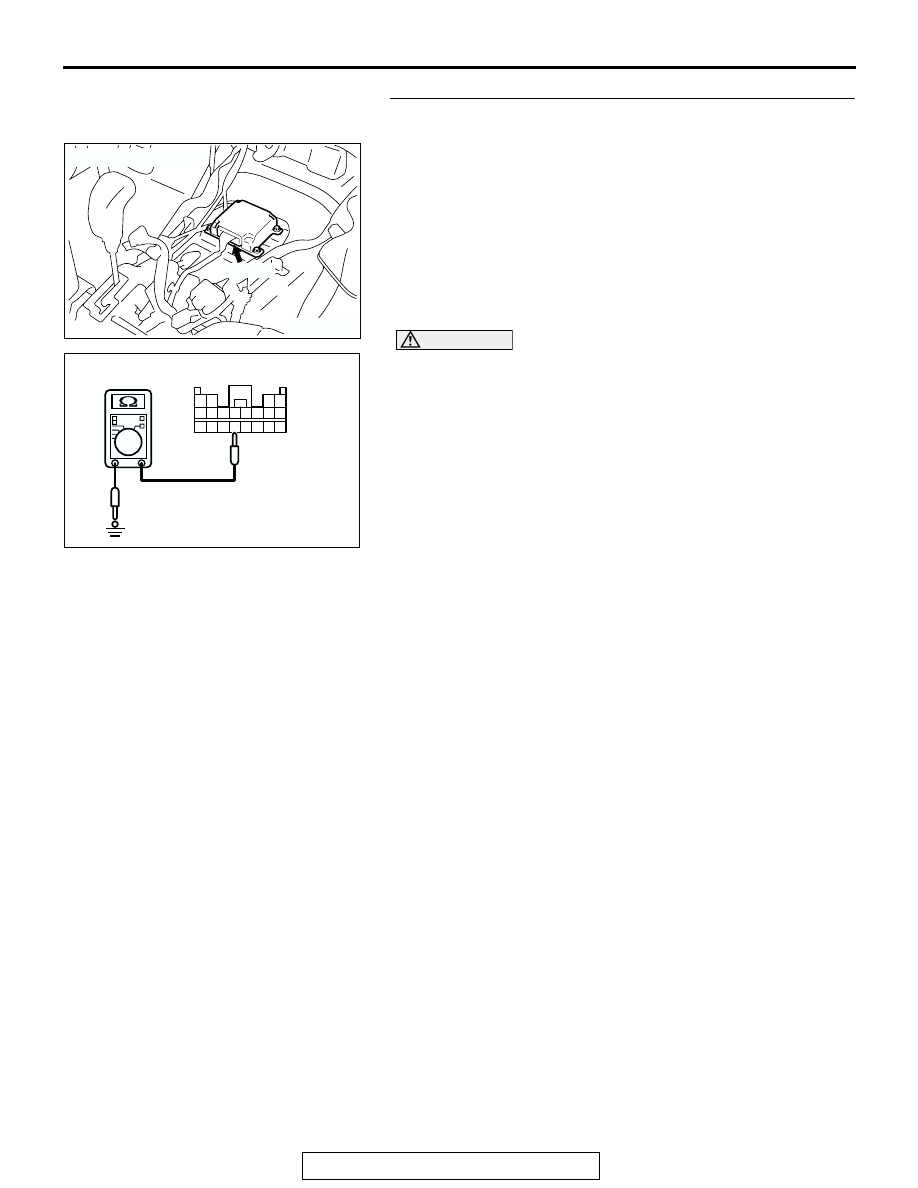

(1) Disconnect SRS-ECU connector E-08, and measure at the

wiring harness.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(2) Check for continuity between E-08 harness connector

terminal 16 and body ground.
It should be open circuit.

Q: Is the circuit normal?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 41 sets, replace
the SRS-ECU. (Refer to

P.52Ba-31

.) Then go to Step

10.

NO :  Go to Step 9.

ACX01478 AG

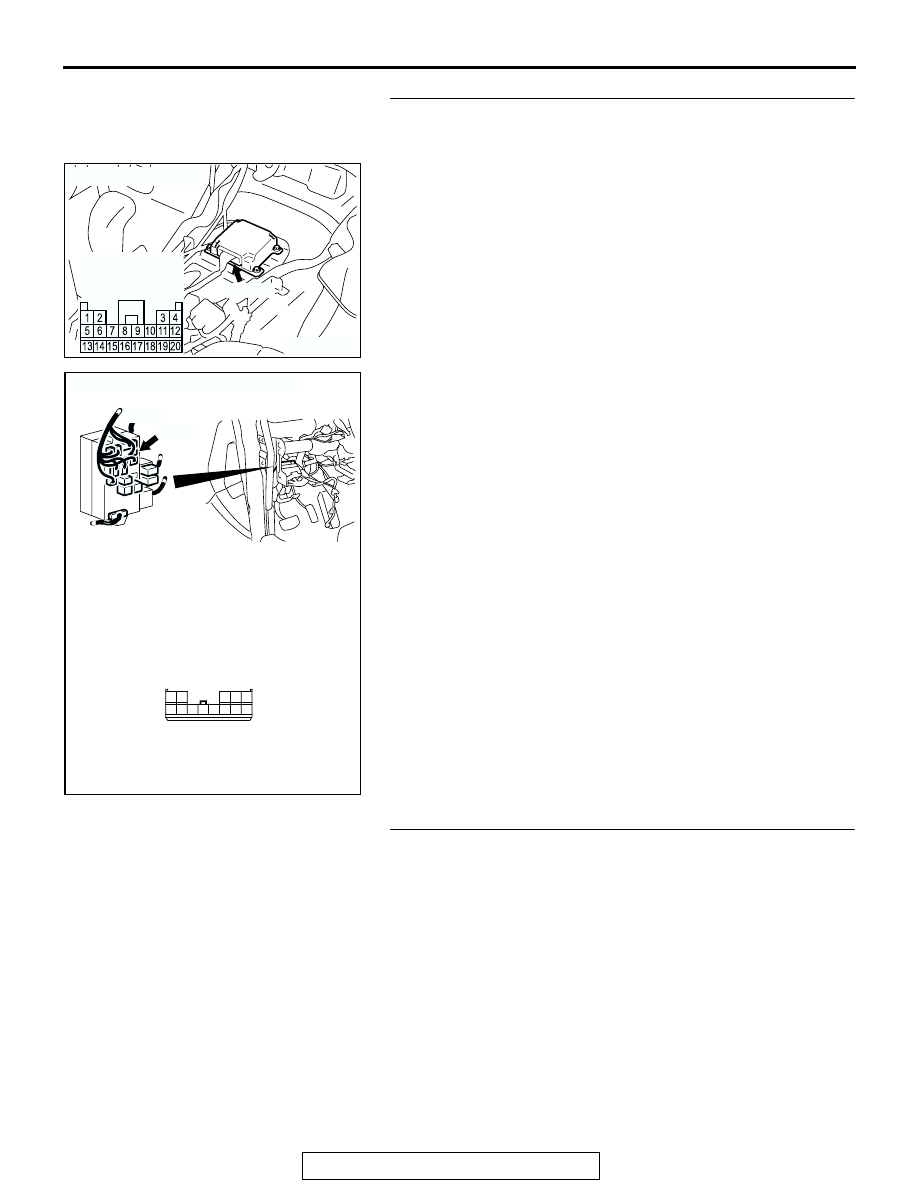

CONNECTOR: E-08

E-08 (Y)

AC204769

13 14 15 16 17 18 19 20

5 6 7 8 9 10 11 12

1 2

3 4

AB

E-08 HARNESS CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-59

STEP 9. Check the harness for short circuit ground
between SRS-ECU connector E-08 (terminal No.16) and
junction block connector D-210 (terminal No.2).
Q: Are harness wires between SRS-ECU connector E-08

(terminal No.16) and junction block connector D-210
(terminal No.2) in good condition?
YES :
Go to Step 10.
NO :  Repair the harness wire between SRS-ECU

connector E-08 and junction block connector D-210.
Then go to Step 10.

STEP 10. Recheck for diagnostic trouble code.
Q: Is DTC 41 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AH

CONNECTOR: E-08

E-08 (Y)

HARNESS
CONNECTOR:
HARNESS SIDE

AC204257

CONNECTOR : D-210

AD

D-210

D-210 HARNESS CONNECTOR:
COMPONENT SIDE

JUNCTION BLOCK
(FRONT VIEW)

5 4

3 2

12

13

10

11

7

8

1

6

9

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-60

DTC 42: IG1 Power Circuit System (Fuse No.8 Circuit)

.

CIRCUIT OPERATION

• The SRS-ECU is powered from the ignition

switch (IG1).

• The SRS-ECU power is supplied from two cir-

cuits. Even if one circuit is shut off, the air bag
can inflate.

.

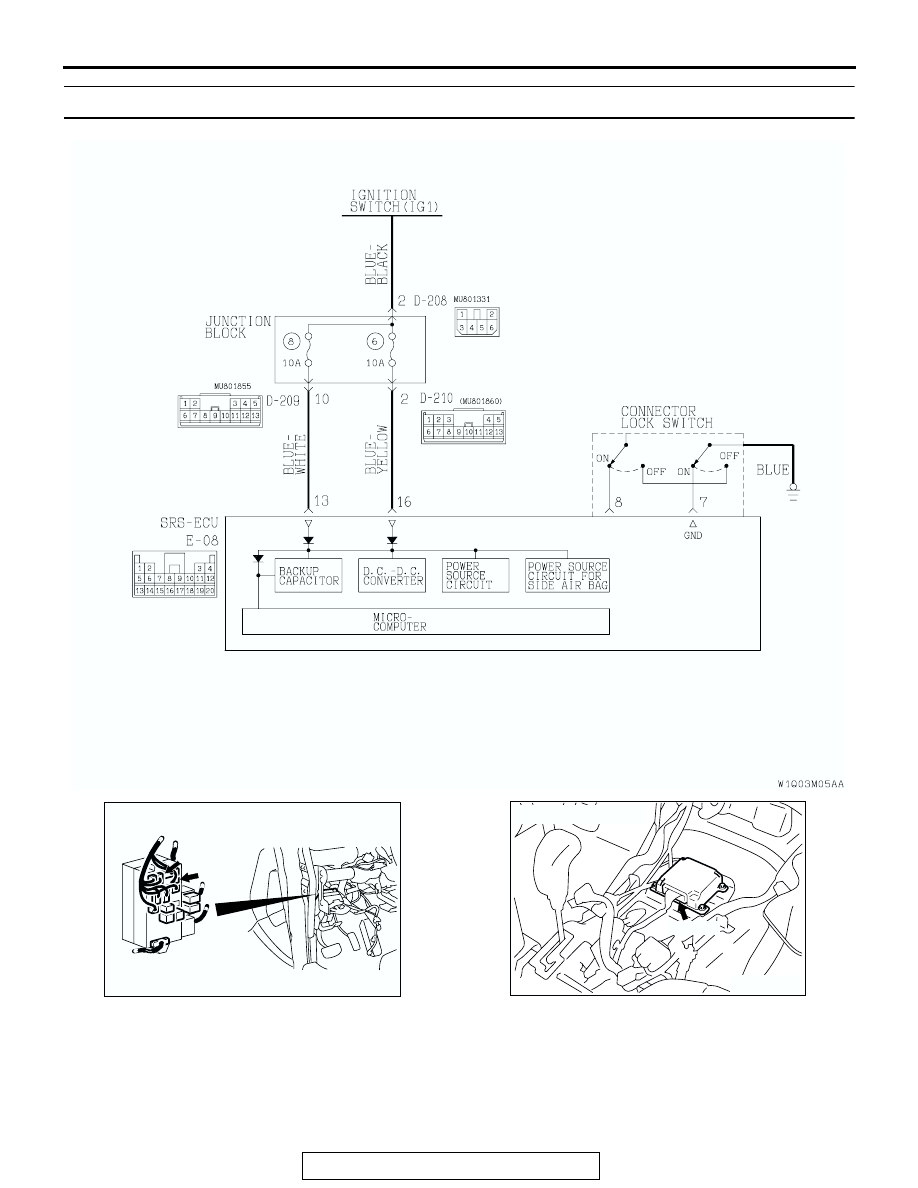

ACX01631

IG1 Power Circuit System (Fuse No.8 Circuit)

AC

ACX01632

CONNECTORS: D-208, D-210

D-208

D-210

JUNCTION BLOCK
(FRONT VIEW)

AG

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)
