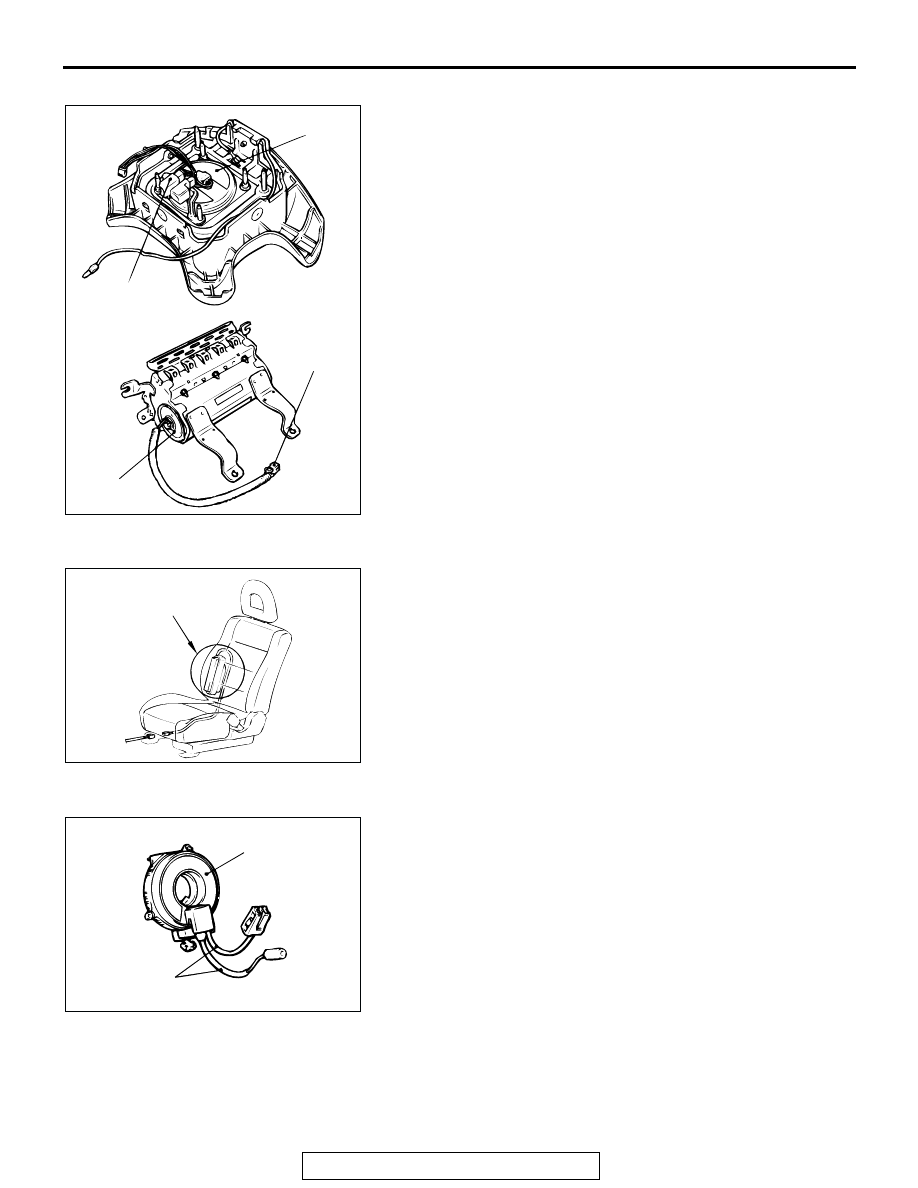

POST-COLLISION DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-25

Air bag modules
1. Check the pad cover for dents, cracks or deformation.
2. Check the connector for damage, terminals deformities, and

the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformities.

4. Install the air bag module (driver's side) to the steering

wheel to check fit or alignment with the steering wheel.

5. Install the air bag module (front passenger's side) to the

instrument panel and front deck crossmember to check fit or
alignment.

Front seatback assembly (Side-airbag module)
1. Check that there is no abnormality in the side-airbag module

deployment section.

2. Check that there is no connector damage, bent terminals or

clamping of the harness.

Clock spring
1. Check the clock spring connectors and protective tube for

damage, and the terminals for deformation.

2. Visually check the case for damage.

ACX00589

INFLATOR
CASE

CONNECTOR

DRIVER'S
SIDE

PASSENGER'S
SIDE

ACX00590 AB

SIDE-AIRBAG MODULE

DEPLOYMENT MODULE

ACX01302

CASE

PROTECTIVE
TUBES

INDIVIDUAL COMPONENT SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-26

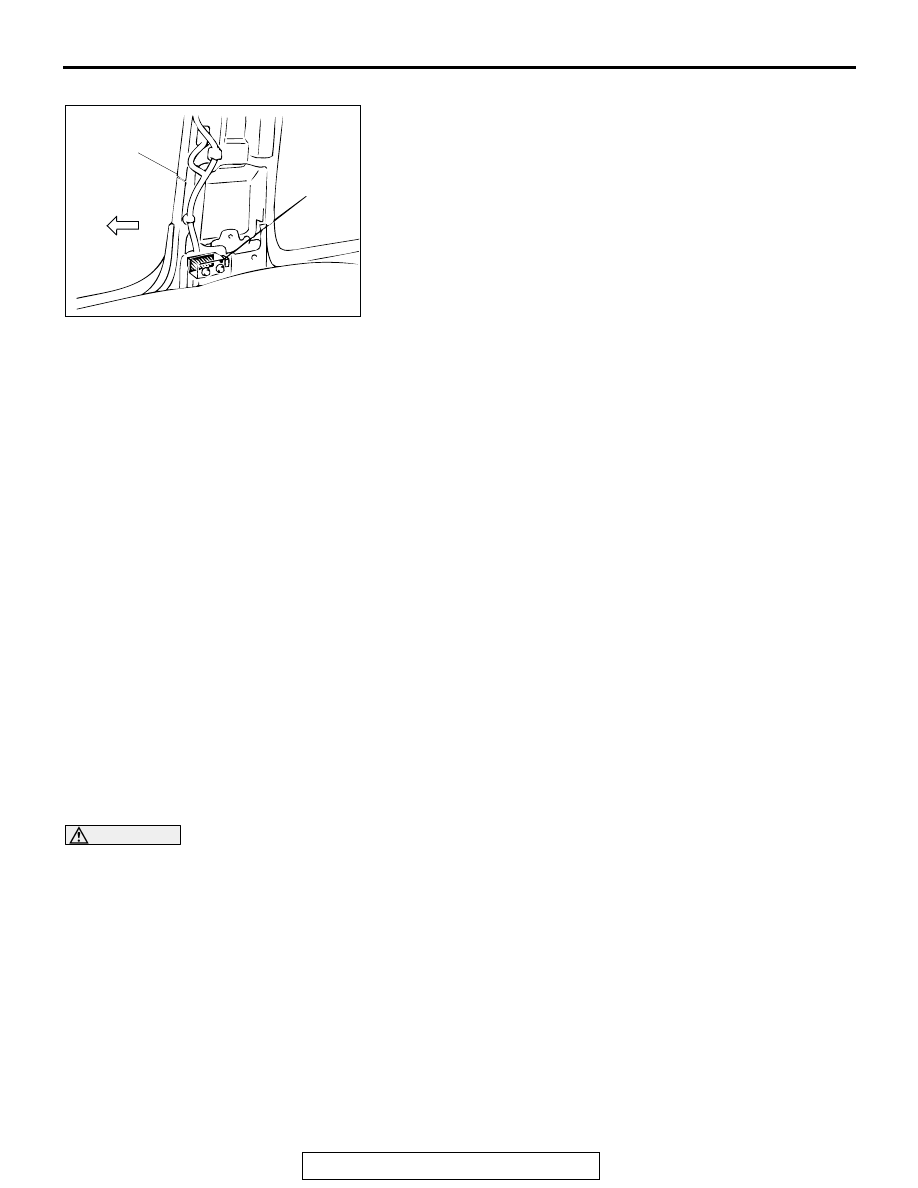

Side impact sensor
1. Check that there is no bending or corrosion in the center

pillar.

2. Check that there is no denting, breakage or bending of the

side impact sensor.

3. Check that there is no clamping of the harness, connector

damage or bent terminals.
NOTE: The illustration at left shows the side impact sensor
(RH). The position of the side impact sensor (LH) is symmet-
rical to this.

Steering wheel, steering column and shaft assembly
1. Check the wiring harness (built into the steering wheel) and

the connectors for damage, and the terminals for
deformation.

2. Install the air bag module to check fit or alignment with the

steering wheel.

3. Check the steering wheel for noise, binding or difficult

operation and excessive free play.

Seat belt with pre-tensioner
1. Check the seat belt for damage or deformation.
2. Check the seat belt with pre-tensioner for cracks or

deformation.

3. Check that the unit is installed correctly to the vehicle body.

Harness connector (Front wiring harness, instrument
panel wiring harness and floor wiring harness)
Check the harnesses for binding, the connectors for damage,
poor connection, and the terminals for deformation. (Refer to

P.52Ba-18

INDIVIDUAL COMPONENT SERVICE

M1524002900260

WARNING

•

If heat damage may occur during paint work, remove the SRS-ECU, the air bag modules,
the clock spring, the front seats and the seat belt with pre-tensioner. Recheck the SRS
system operability after reinstalling them. (Refer to GROUP 00, Maintenance Service-SRS
Maintenance

P.00-48

•

SRS-ECU, air bag module, clock spring, front impact sensor, side impact sensor: 93

° C

(200

° F) or more

•

Seat belt with pre-tensioner: 90

°C (194° F) or more

•

If the SRS components are removed for the purpose of check, sheet metal repair, painting,
etc, they should be stored in a clean, dry place until they are reinstalled.

If the SRS components are to be removed or replaced as a result of maintenance, diagnosis, etc., follow the
appropriate procedure in this section. (Front impact sensor: refer to

P.52Ba-27

, SRS-ECU: refer to

P.52Ba-

, Air Bag Modules and Clock Spring: refer to

P.52Ba-33

, Side impact sensor: refer to

P.52Ba-42

, Seat Belt

with Pre-tensioner: refer to

P.52Ba-44

ACX00591

CENTER
PILLAR

FORWARD

SIDE IMPACT
SENSOR

FRONT IMPACT SENSORS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-27

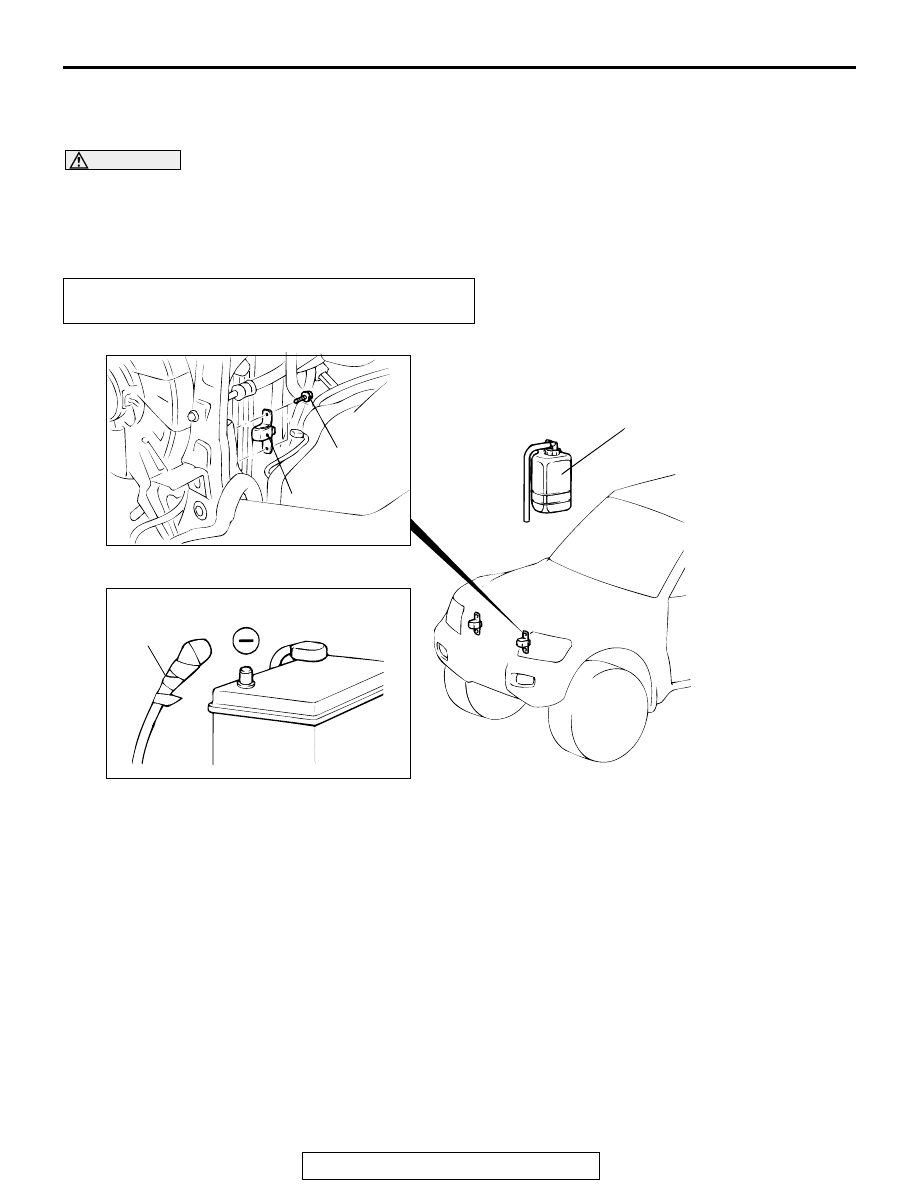

FRONT IMPACT SENSORS

REMOVAL AND INSTALLATION

M1524001500173

WARNING

•

Never repair or disassemble the front impact sensor. If faulty, replace it.

•

Handle the front impact sensors very carefully, taking care not to drop them or otherwise
a new one is required.

•

Replace the sensors with new ones after the air bag has deployed.

Pre-removal Operation
Turn the ignition key to the "LOCK" (OFF) position.

ACX00596

ACX00583

4.9 ± 1.0 N·m
43 ± 8 in-lb

REMOVAL STEPS

<<A>>

NEGATIVE (-) BATTERY CABLE
CONNECTION

RESERVE TANK

FRONT IMPACT SENSOR

INSTALLATION STEPS

>>A<<

•

PRE-INSTALLATION
INSPECTION

>>B<<

FRONT IMPACT SENSOR

RESERVE TANK

NEGATIVE (-) BATTERY CABLE
CONNECTION

>>C<<

•

POST-INSTALLATION
INSPECTION

FRONT IMPACT SENSORS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-28

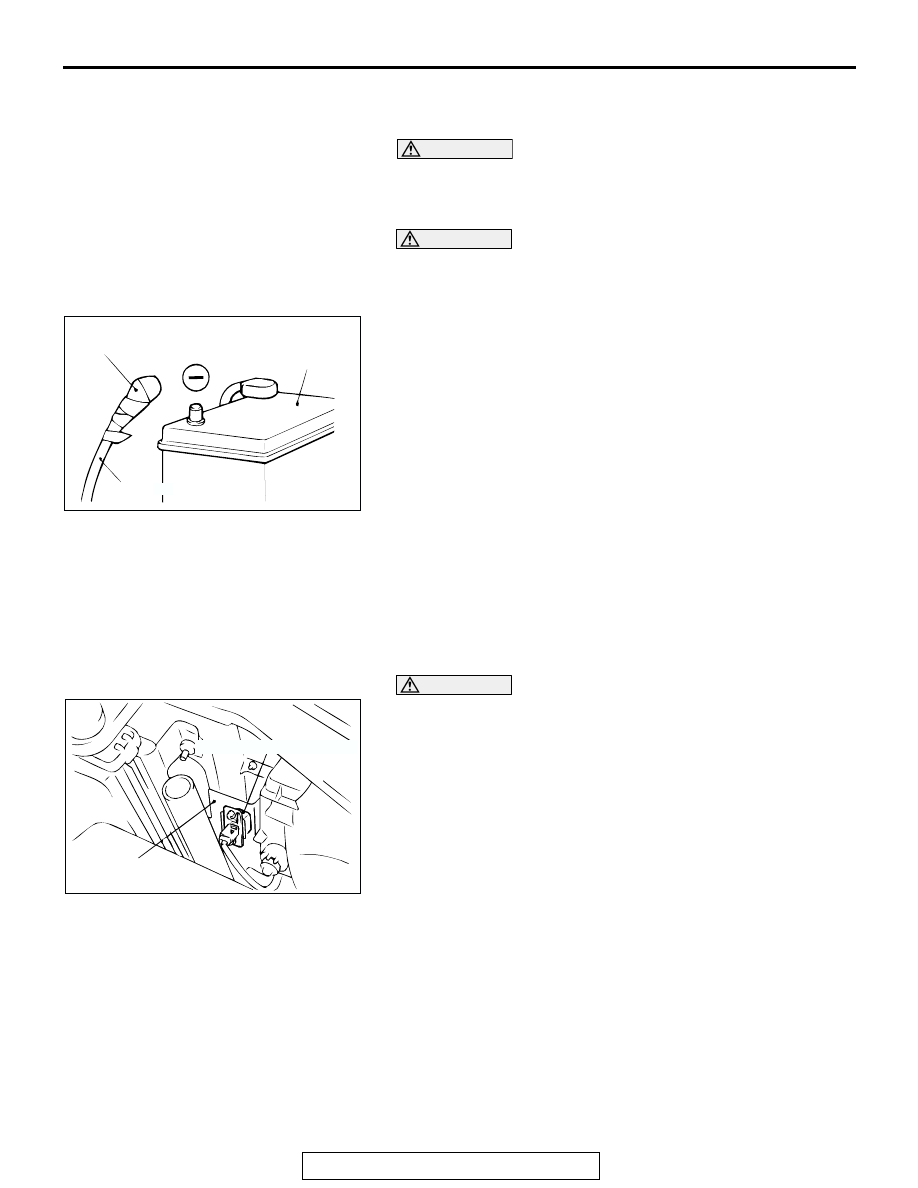

REMOVAL SERVICE POINT

<<A>> NEGATIVE (-) BATTERY CABLE DISCONNECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52Ba-18

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (-) battery cable from the battery and
tape the terminal to prevent accidental connection and air
bag(s) deployment.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION
When a new front impact sensor is installed, refer to the previ-
ous item "INSPECTION."

>>B<< FRONT IMPACT SENSOR INSTALLATION

WARNING

The SRS may mot activate properly if a front impact
sensor is not installed properly, which could result in
serious injury or death to the vehicle's driver.

1. Securely connect the connector.
2. Position the front impact sensor facing toward the front of

the vehicle as shown by the arrow on the label, and install it
securely.

>>C<< POST-INSTALLATION INSPECTION
1. Reconnect the negative (-) battery cable.
2. Turn the ignition key to "ON" position.

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

ACX00588

FENDER SHIELD
PANEL

FRONT IMPACT SENSOR
