GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-5

LABEL CONTENTS
A

CAUTION: SRS
BEFORE REPLACING STEERING WHEEL, READ SERVICE MANUAL. THIS AIR BAG MODULE
CANNOT BE REPAIRED. DO NOT DISASSEMBLE OR TAMPER.

B

DANGER
CONTENTS ARE EXTREMELY FLAMMABLE. DO NOT PROBE WITH ELECTRICAL DEVICES
OR OTHER WISE TEMPER WITH IN ANY WAY.

C

CAUTION: SRS CLOCK SPRING
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE REPLACE ENTIRE UNIT ACCORDING TO
THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTER: ROTATE CLOCKWISE UNTIL TIGHT.
THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3 3/4TURNS AND ALIGN ARROWS ><.

D, J

WARNING: FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

• DO NOT REPAIR, DISASSEMBLE OR TAMPER.

• AVOID CONTACT WITH FRAME OR ELECTRICITY.

• DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.

• STORE BELOW 200°F (93°C).

• BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR

IMPORTANT FURTHER DATA.

E, N

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT, REFER TO SERVICE MANUAL.

F

AIR BAG
WARNING
FLIP VISOR OVER

G

WARNING DEATH or SERIOUS INJURY can occur

• Children 12 and under can be killed by the air bag.

• The BACK SEAT is the SAFEST place for children.

• NEVER put a rear-facing child seat in the front.

• Sit as far back as possible from the air bag.

• ALWAYS use SEAT BELTS and CHILD RESTRAINS.

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-6

H

WARNING
Avoid Abrupt Maneuvers and Excessive Speed.
Always Buckle Up.
See Owner’s Manual For Further Information.

I

CAUTION: SRS
FIX STRG. WHEEL AT TIRES STRAIGHT AHEAD BEFORE GEARBOX REMOVAL. OTHER WISE,
MAY DAMAGE SRS CLOCK SPRING MAKING SRS SYSTEM IN OPERATIVE, RISKING
SERIOUS DRIVER INJURY.

K

WARNING
THIS VEHICLE HAS AN AIR BAG SYSTEM.
REFER TO SERVICE MANUAL BEFORE SERVICING OR DISASSEMBLING UNDERHOOD
COMPONENTS. READ THE "SRS" SECTION OF MANUAL FOR IMPORTANT INSTRUCTIONS.
IMPROPER SERVICE PROCEDURES CAN RESULT IN THE AIR BAG FIRING OR BECOMING
INOPERATIVE, POSSIBLY LEADING TO INJURY.

L

WARNING
Children Can Be KILLED or INJURED by Passenger Air Bag. The back seat is the safest place for
children 12 and under. Make sure all children use seat belts or child seat. Not to be removed except
by owner.

LABEL CONTENTS

AC107269

AC107270

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-7

M

AIR BAG SYSTEM INFORMATION
THIS VEHICLE HAS AN AIR BAG SYSTEM WHICH WILL SUPPLEMENT THE SEATBELT IN
CERTAIN FRONTAL COLLISIONS. THE AIR BAG IS NOT A SUBSTITUTE FOR THE SEATBELT
IN ANY TYPE OF COLLISION. THE DRIVER AND ALL OTHER OCCUPANTS SHOULD WEAR
SEATBELTS AT ALL TIMES.
WARNING!
IF THE "SRS " WARNING LIGHT DOES NOT ILLUMINATE FOR SEVERAL SECONDS WHEN
THE IGNITION KEY IS TURNED TO "NO" OR THE ENGINE IS STARTED, OR IF THE WARNING
LIGHT STAYS ON WHILE DRIVING, TAKE THE VEHICLE TO YOUR NEAREST AUTHORIZED
DEALER IMMEDIATELY. ALSO, IF THE VEHICLE’S FRONT END IS DAMAGED OR IF THE AIR
BAG HAS DEPLOYED, TAKE THE VEHICLE FOR SERVICE IMMEDIATELY.
THE AIR BAG SYSTEM MUST BE INSPECTED BY AN AUTHORIZED DEALER TEN YEARS
AFTER THE VEHICLE MANUFACTURE DATE SHOWN ON THE CERTIFICATION LABEL
LOCATED ON THE LEFT FRONT DOOR-LATCH POST OR DOOR FRAME.
READ THE "SRS" SECTION OF YOUR OWNER'S MANUAL BEFORE DRIVING FOR IMPORTANT
INFORMATION ABOUT OPERATION AND SERVICE OF THE AIR BAG SYSTEM.
WHEN YOU ARE GOING TO DISCARD YOUR GAS GENERATOR OR VEHICLE, PLEASE SEE
YOUR DEALER.

O

CAUTION:
DO NOT DISASSEMBLE OR DROP.

P

DANGER: BELT PRETENSIONER

• DO NOT DISASSEMBLE OR IMPACT.

• REFER TO SERVICE MANUAL FOR INSTRUCTIONS, HANDLING, STORAGE AND DISPOSAL

PROCEDURES.

LABEL CONTENTS

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-8

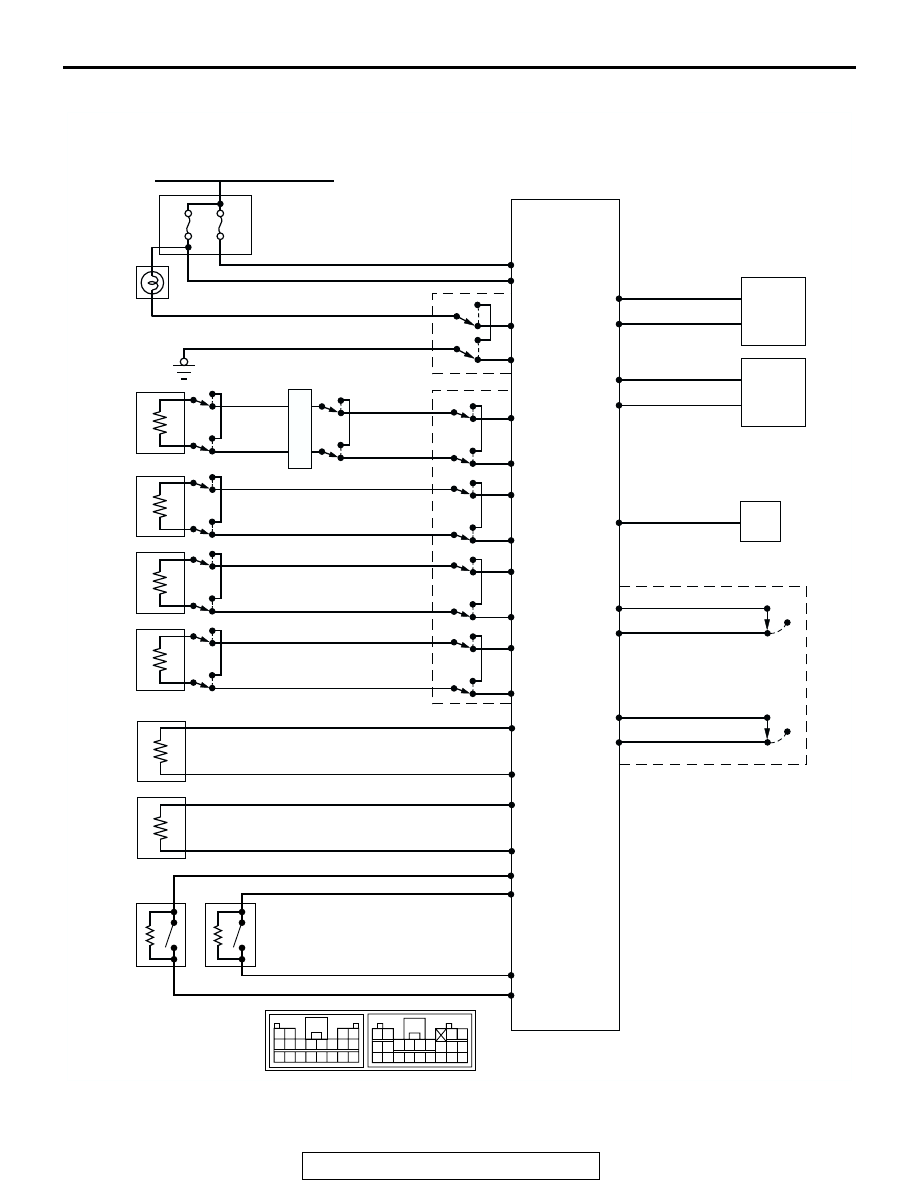

SCHEMATIC

1 2

3 4

5 6 7 8 9 101112

1314151617181920

2122

2324

252627282930313233
343536373839404142

AC204516

IGNITION SWITCH

NO.6

10A

NO.8

10A

MULTI-
PURPOSE
FUSES

SRS-ECU

COMBINATION
METER
(SRS WARNING
LIGHT)

OFF

ON

OFF

ON

*

AIR BAG
MODULE
(DRIVER'S
SIDE)

CLOCK
SPRING

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

AIR BAG
MODULE
(FRONT
PASSENGER'S
SIDE)

SEAT BELT
PRE-
TENSIONER
(LH)

SEAT BELT
PRE-
TENSIONER
(RH)

SIDE
AIR BAG
MODULE
(LH)

SIDE
AIR BAG
MODULE
(RH)

OFF

OFF

ON

ON

DATA LINK
CONNECTOR
(FOR SCAN TOOL)

SIDE
IMPACT
SENSOR
(RH)

SIDE
IMPACT
SENSOR
(LH)

AB

13

16

8

7

11

12

9

10

29

30

27

28

21

22

23

24

34

36

40

42

20

D-229

D-206

D-11

F-27

F-29

F-21

F-15

D-118

F-13

F-19

NOTE
*: CONNECTOR LOCK SWITCH
   CONNECTOR CONNECTED: ON
   CONNECTOR
   DISCONNCTED: OFF

SRS-ECU CONNECTOR

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

ON

ON

ON

ON

ON

ON

ON

*

*

*

*

*

*

*

A-23

A-30

FRONT
IMPACT
SENSOR
(LH)

FRONT
IMPACT
SENSOR
(RH)

3
1

2

4
