TSB Revision

SYMPTOM PROCEDURES

13Ad-113

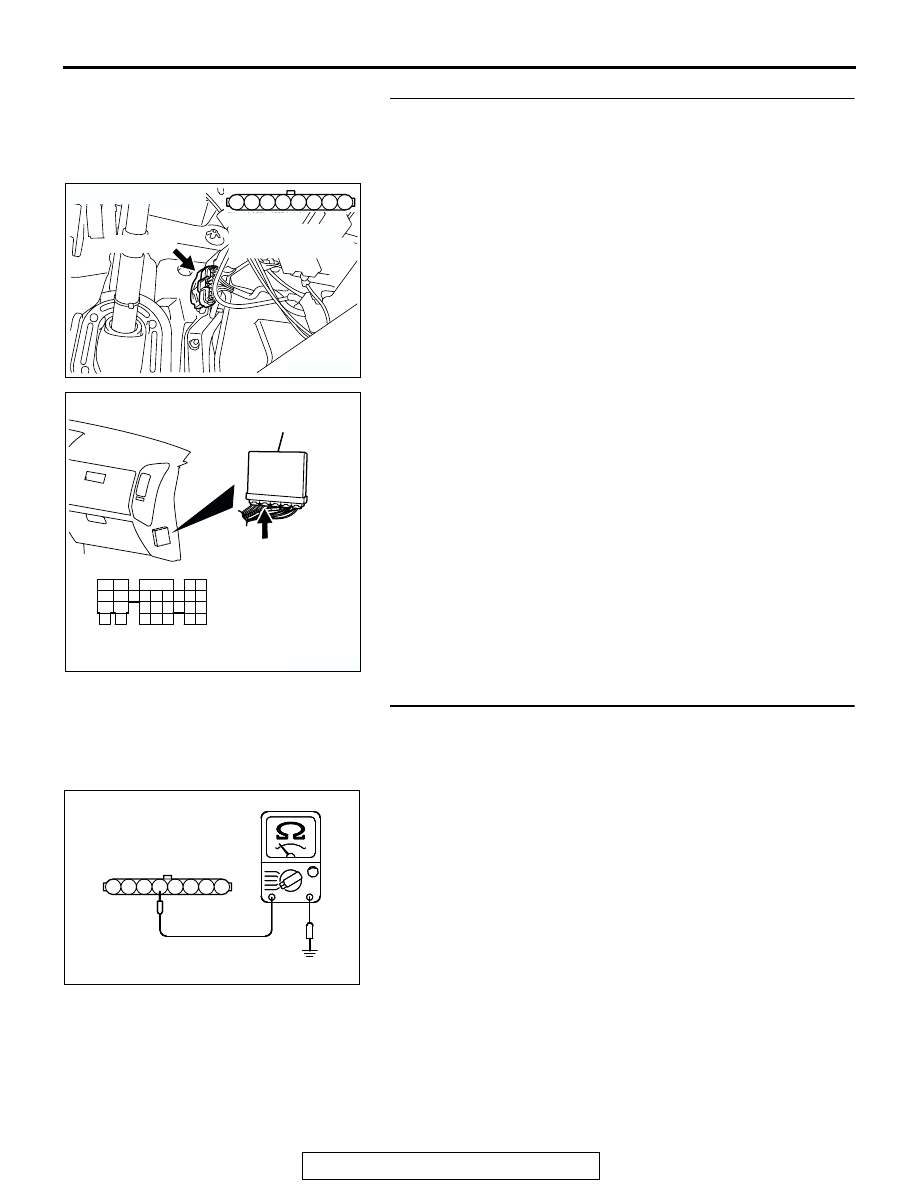

STEP 5. Check for open circuit and short circuit to ground
between accelerator pedal position switch connector D-
138 (terminal No.4) and PCM connector D-133 (terminal
No.38).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Confirm that the malfunction

system is eliminated.

NO :  Repair it. Confirm that the malfunction system is

eliminated.

STEP 6. Check the continuity at accelerator pedal position
switch harness side connector D-138.
(1) Disconnect the connector D-138 and measure at the

harness side.

(2) Check for the continuity between terminal No. 5 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 9.
NO :  Go to Step 7.

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

3

4

5

1

2

8

6

7

AK201390

D-138 HARNESS
CONNECTOR:
COMPONENT SIDE

AK201390AB

TSB Revision

SYMPTOM PROCEDURES

13Ad-114

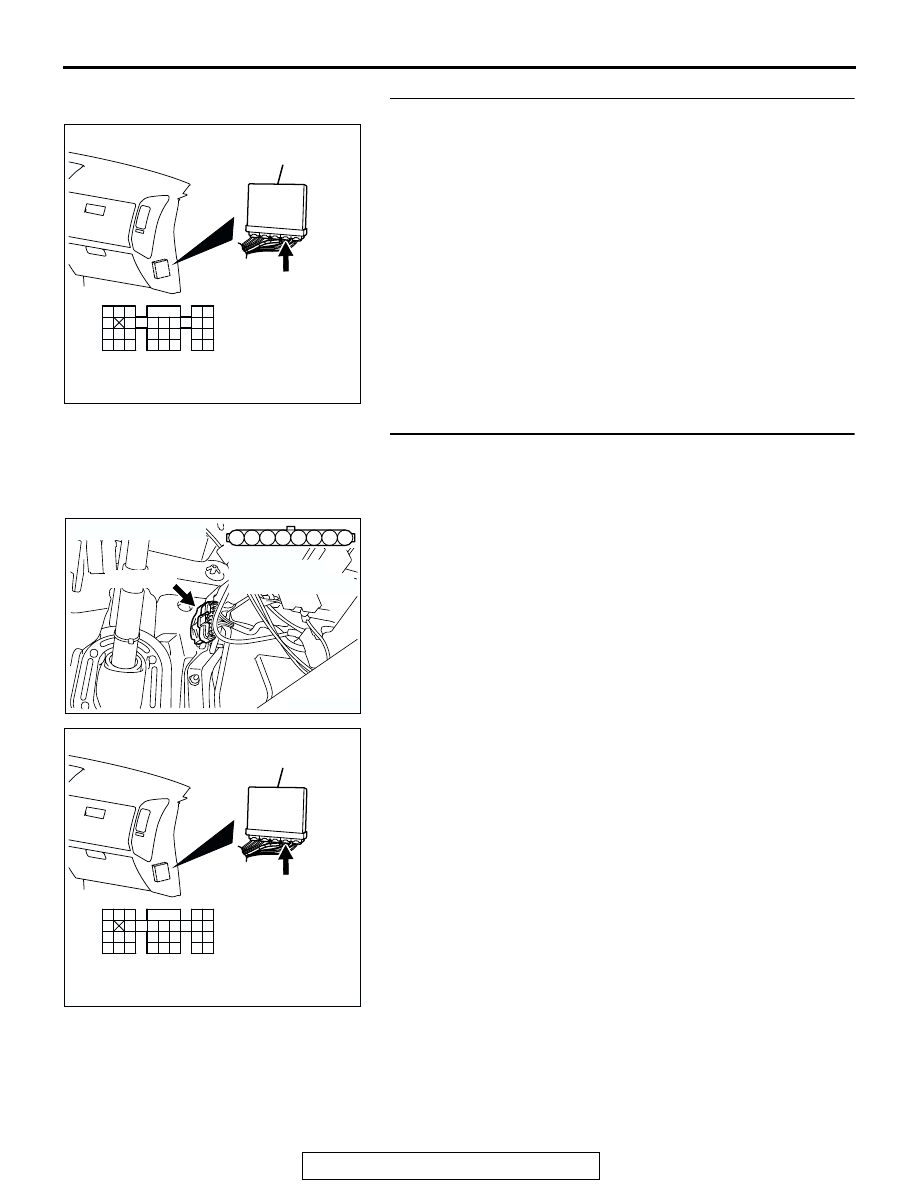

STEP 7. Check connector D-135 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Confirm that the

malfunction system is eliminated.

STEP 8. Check for open circuit and harness damage
between accelerator pedal position switch connector D-
138 (terminal No. 5) and PCM connector D-135 (terminal
No. 96).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Confirm that the malfunction

system is eliminated.

NO :  Repair it. Confirm that the malfunction system is

eliminated.

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

TSB Revision

SYMPTOM PROCEDURES

13Ad-115

STEP 9. Check connector D-133, D-135 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Confirm that the

malfunction system is eliminated.

STEP 10. Check for harness damage between accelerator
pedal position switch connector D-138 (terminal No. 5) and
PCM connector D-135 (terminal No. 96).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then confirm that the malfunction

system is eliminated.

NO :  Repair it. Then confirm that the malfunction system is

eliminated.

AK200946

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTORS: D-133, D-135

D-133 HARNESS CONNECTOR:
COMPONENT SIDE

D-135 HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-135(GR)

D-133(GR)

AK200945

3

4

5

1

2

8

6

7

AB

CONNECTOR: D-138

HARNESS
CONNECTOR:
COMPONENT SIDE

D-138(GR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)
