DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-381

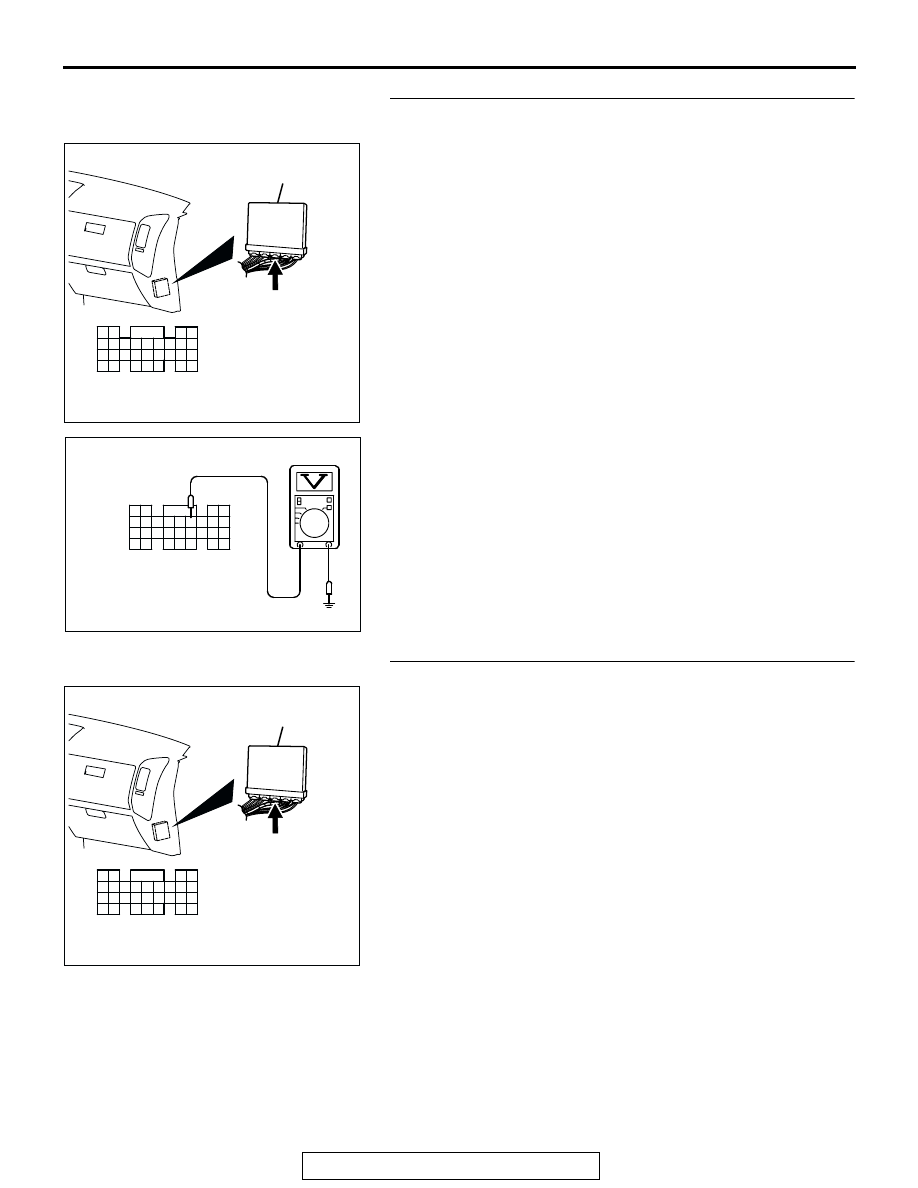

STEP 6. Measure the sensor supply voltage at PCM
connector D-134 by backprobing.
(1) Do not disconnect the PCM connector D-134.
(2) Disconnect the camshaft position sensor connector B-10.
(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal No. 70 and ground

by backprobing.

• Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 7.
NO :  Go to Step 8.

STEP 7. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between camshaft position

sensor connector B-10 (terminal No. 2) and PCM
connector D-134 (terminal No. 70) because of open
circuit. Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK201417

61
656667686970 717273
74757677787980 8182
8384

858687

8889

62

6364

D-134 HARNESS
CONNECTOR:
HARNESS SIDE

AB

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-382

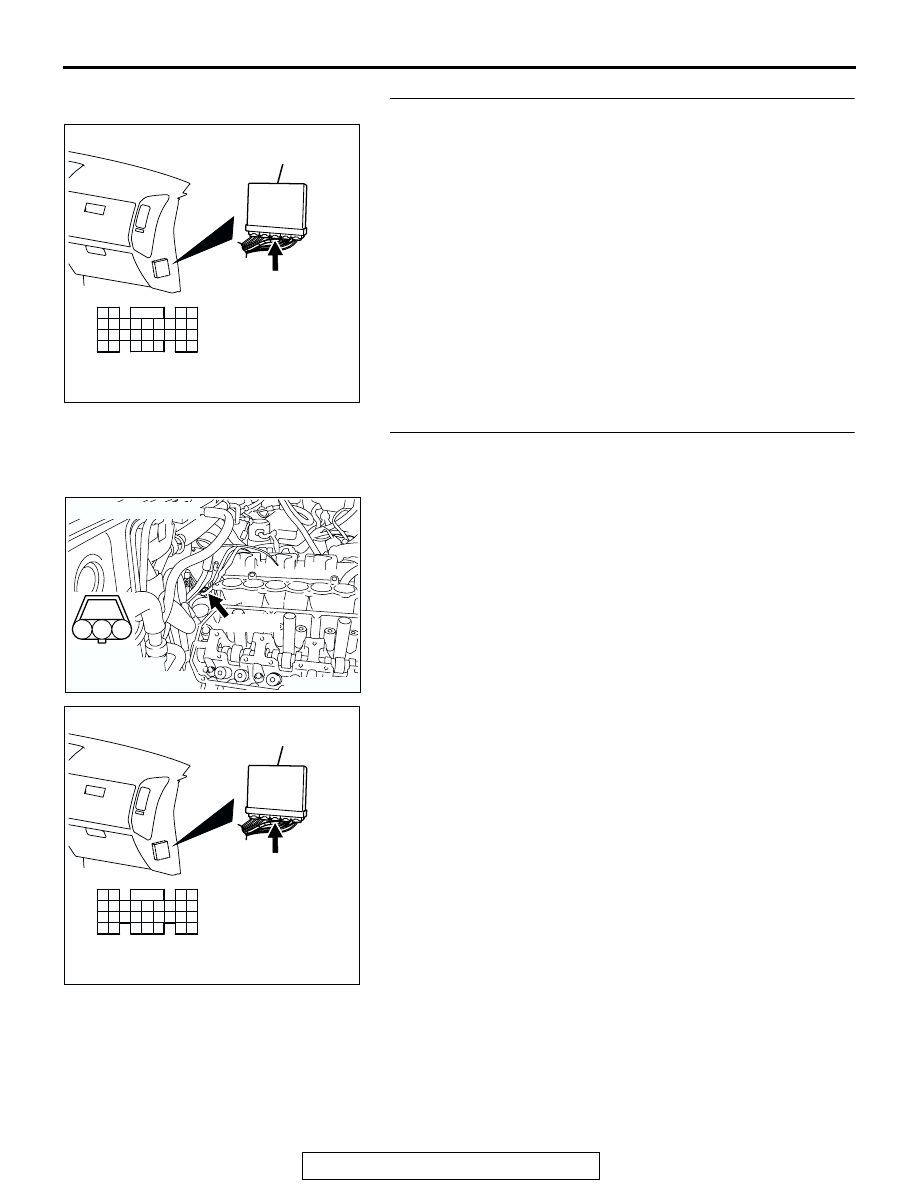

STEP 8. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

STEP 9. Check for short circuit to ground between
camshaft position sensor connector B-10 (terminal No. 2)
and  PCM connector D-134 (terminal No. 70).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-383

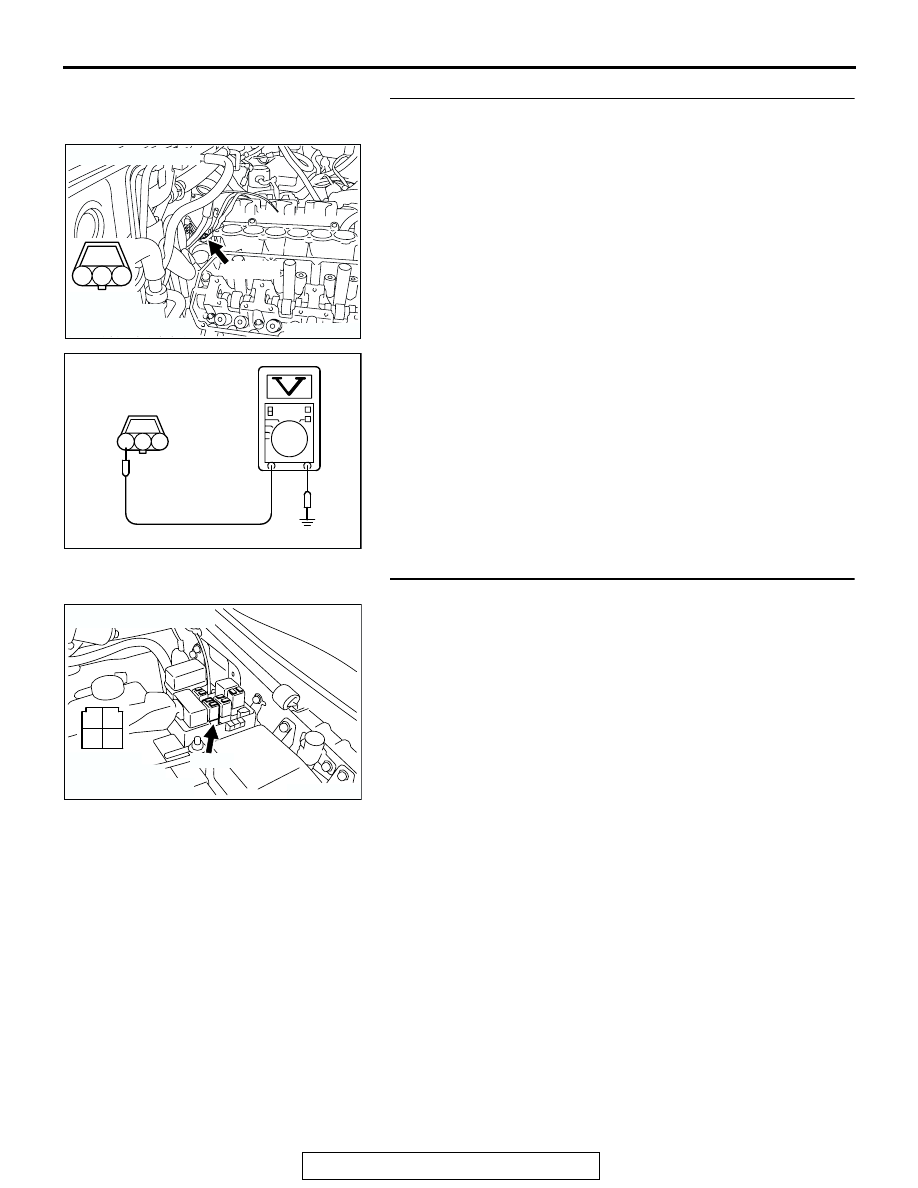

STEP 10. Measure the power supply voltage at camshaft
position sensor connector B-10.
(1) Disconnect the connector B-10 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check connector B-22X at MFI relay for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector B-

22X (terminal No. 1) and camshaft position sensor
connector B-10 (terminal No. 3) because of open
circuit or short circuit to ground. Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK200965

1

2

3

AB

B-10(B)

CONNECTOR: B-10

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01422

B-10 HERNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

AN

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-384

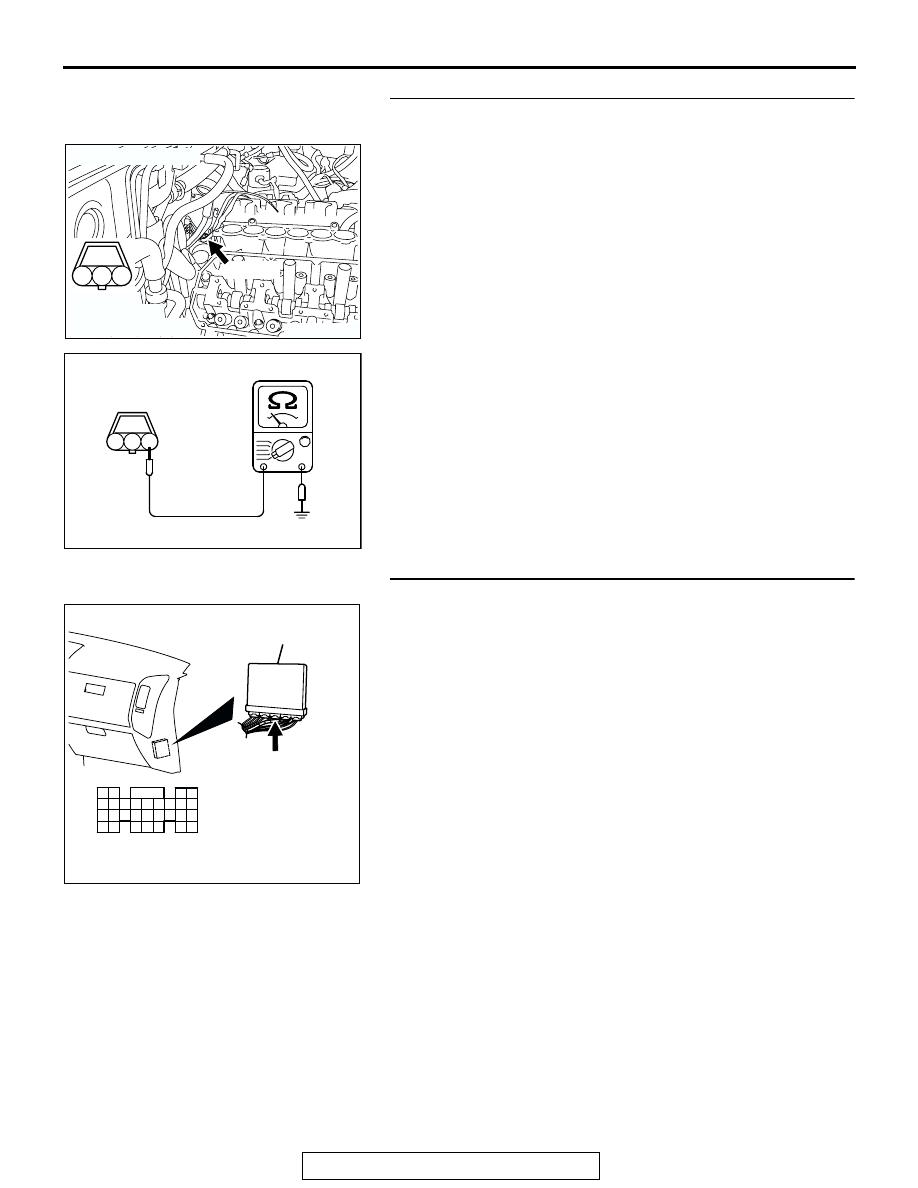

STEP 12. Check the continuity at camshaft position sensor
