Mitsubishi Montero (2002-2004). Manual - part 656





TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-321

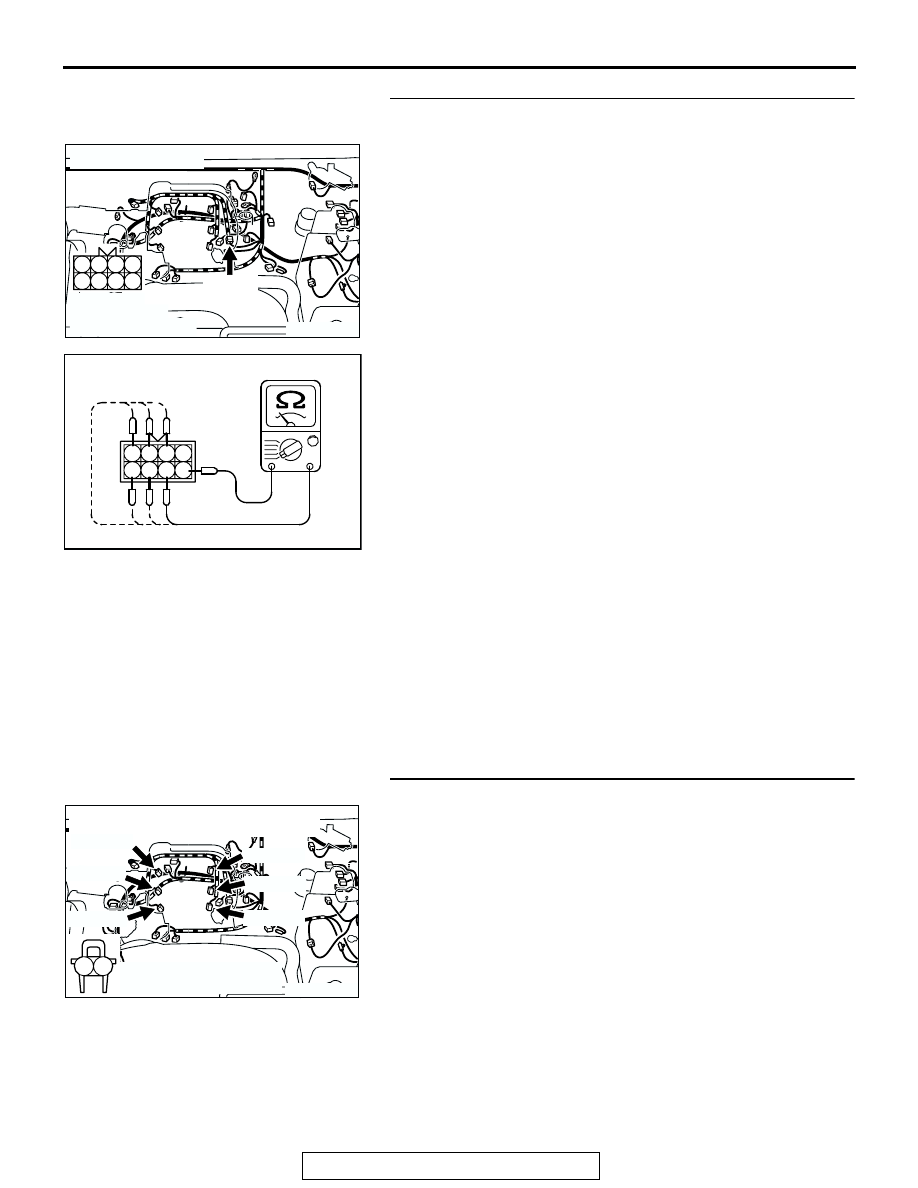

STEP 3. Check the injector resistance at injector
intermediate connector B-44.
(1) Disconnect the injector intermediate connector B-44 and

measure at the injector side.

(2) Measure the resistance between each male connector side

terminal.

a. Measure the resistance between terminal No. 8 and No.

3 when measuring No. 1 cylinder injector.

b. Measure the resistance between terminal No. 8 and No.

2 when measuring No. 2 cylinder injector.

c. Measure the resistance between terminal No. 8 and No.

1 when measuring No. 3 cylinder injector.

d. Measure the resistance between terminal No. 8 and No.

7 when measuring No. 4 cylinder injector.

e. Measure the resistance between terminal No. 8 and No.

6 when measuring No. 5 cylinder injector.

f. Measure the resistance between terminal No. 8 and No.

5 when measuring No. 6 cylinder injector.

• Resistance should be between 13 and 16 ohms [at 20°C

(68

°F)].

Q: Is the measured resistance between 13 and 16 ohms [at

20

°C (68°F)]?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check the injector connector for damage.

a. Check the harness connector B-01 when checking No. 1

cylinder injector.

b. Check the harness connector B-33 when checking No. 2

cylinder injector.

c. Check the harness connector B-02 when checking No. 3

cylinder injector.

d. Check the harness connector B-35when checking No. 4 cyl-

inder injector.

e. Check the harness connector B-03 when checking No. 5

cylinder injector.

f. Check the harness connector B-11 when checking No. 6

cylinder injector.

Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 17.

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01494

INJECTOR INTERMEDIATE
MALE SIDE CONNECTOR

1 2 3 4

5 6 7 8

AB

AK200960

1

2

B-03(GR)

B-11(GR)

B-35(GR)

B-33(GR)

B-02(GR)

B-01(GR)

CONNECTORS: B-01, B-02, B-03, B-11,

B-33, B-35

AB

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-322

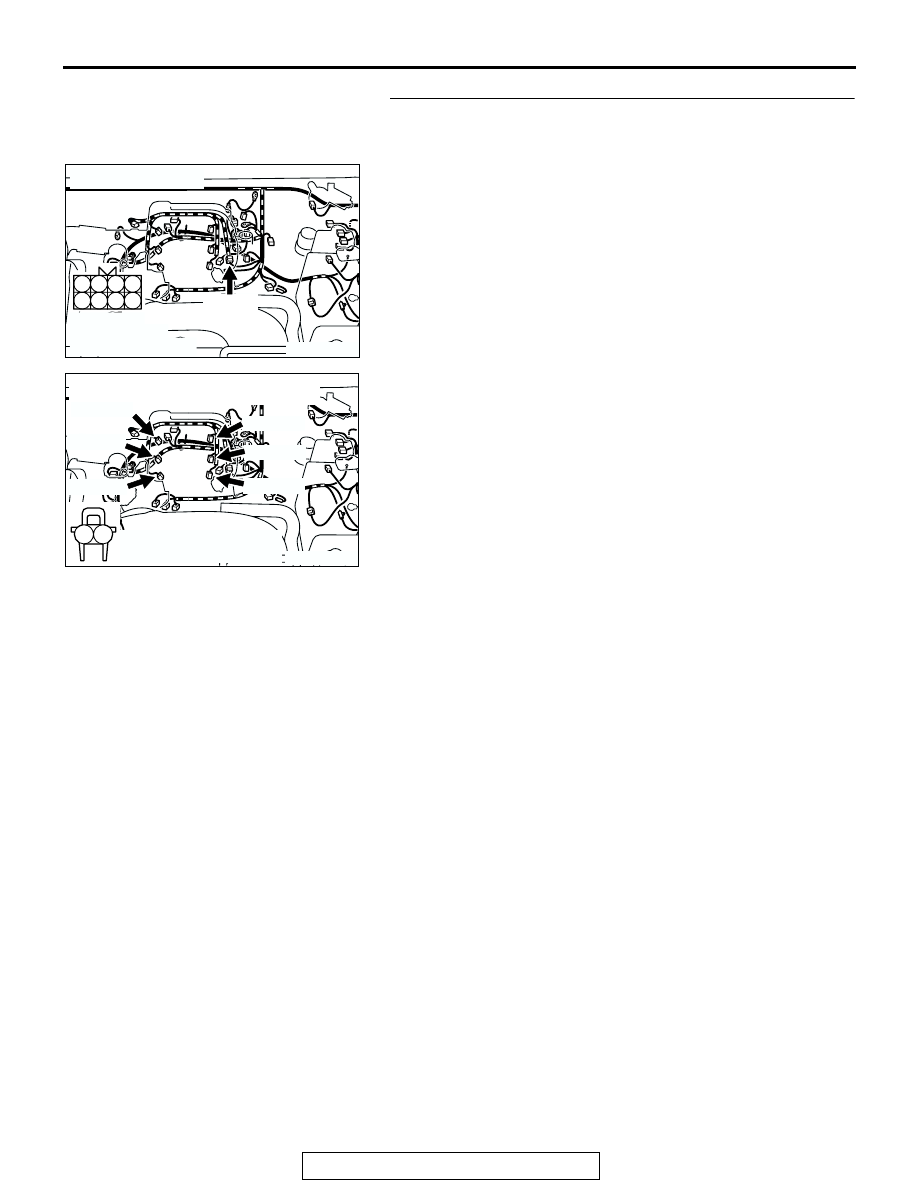

STEP 5. Check for open circuit and harness damage
between injector intermediate connector and injector
connector.

a. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-01
(terminal No. 1) and injector connector B-01 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 3)
when checking No. 1 cylinder injector.

b. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-33
(terminal No. 1) and injector connector B-33 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 2)
when checking No. 2 cylinder injector.

c. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-02
(terminal No. 1) and injector connector B-02 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 1)
when checking No. 3 cylinder injector.

d. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-35
(terminal No. 1) and injector connector B-35 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 7)
when checking No. 4 cylinder injector.

e. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-03
(terminal No. 1) and injector connector B-03 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 6)
when checking No. 5 cylinder injector.

f. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-11
(terminal No. 1) and injector connector B-11 (terminal No. 2)
and injector intermediate connector B-44 (terminal No. 5)
when checking No. 6 cylinder injector.

Q: Is the harness wire in good condition?

YES : Replace the injector. Then go to Step 17.
NO :  Repair it. Then go to Step 17.

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200960

1

2

B-03(GR)

B-11(GR)

B-35(GR)

B-33(GR)

B-02(GR)

B-01(GR)

CONNECTORS: B-01, B-02, B-03, B-11,

B-33, B-35

AB

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-323

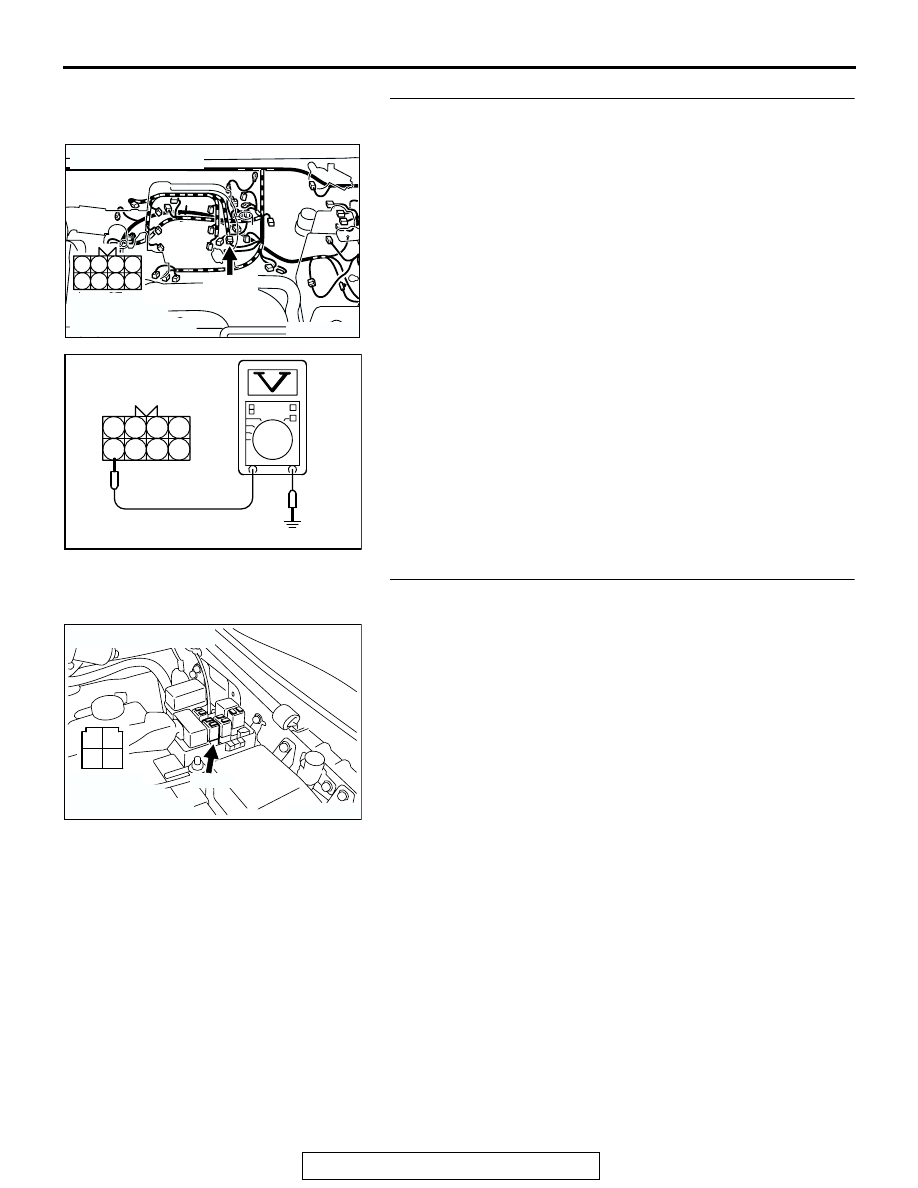

 STEP 6. Measure the power supply voltage at injector
intermediate connector B-44.
(1) Disconnect the connector B-44 and measure at the female

connector relay side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 8 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 8.
NO :  Go to Step 7.

STEP 7. Check harness connector B-22X at MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Repair harness wire between MFI relay connector B-

22X (terminal No. 1) and intermediate connector B-44
(terminal No. 8) because of open circuit or short
circuit to ground or harness damage. Then go to Step
17.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 17.

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01493

B-44 FAMALE
SIDE CONNECTOR

1

2

3

4

5

6

7

8

AB

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-324

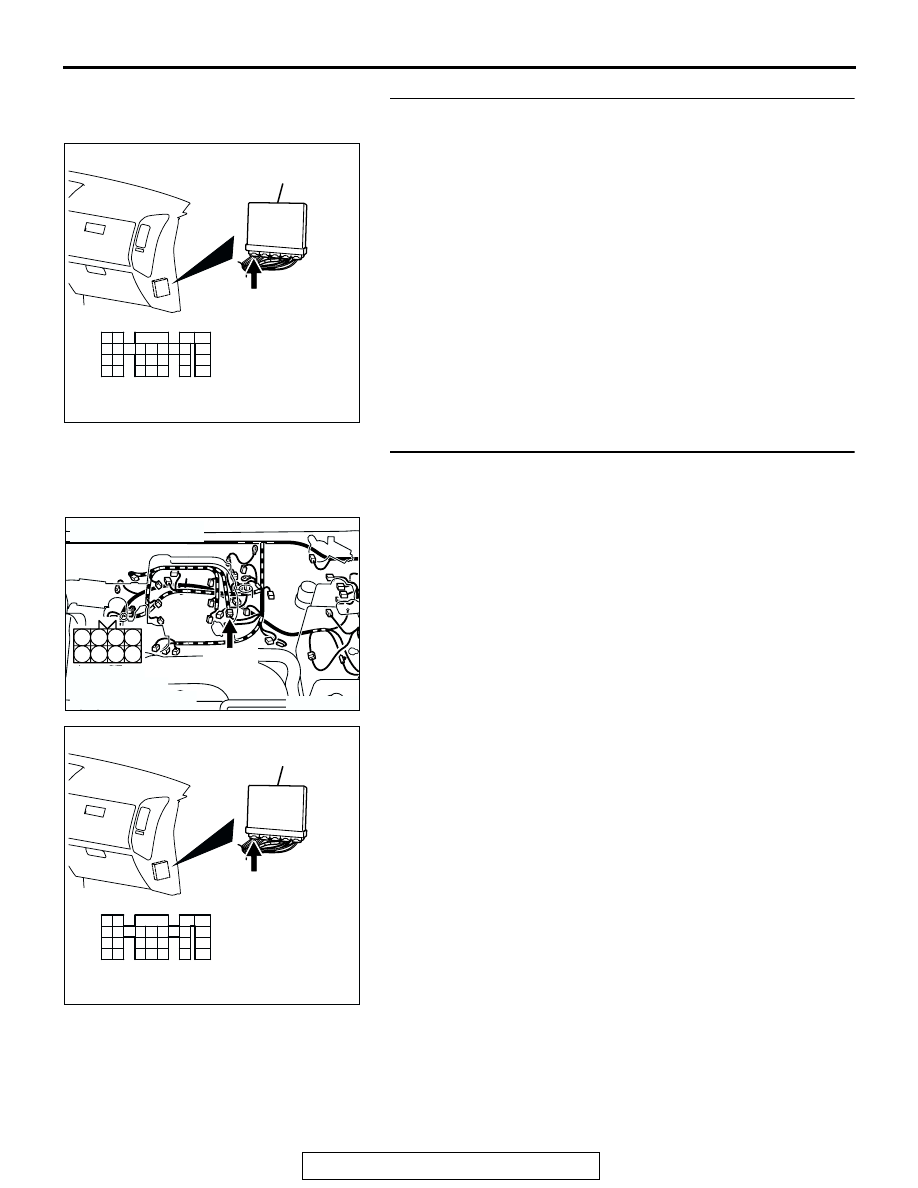

STEP 8. Check harness connector D-132 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 17.

STEP 9. Check for open circuit and short circuit to ground
and harness damage between injector intermediate
connector and PCM connector.

a. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 3) and PCM connector D-132 (ter-
minal No. 1) when checking No. 1 cylinder injector.

b. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 2) and PCM connector D-132 (ter-
minal No. 5) when checking No. 2 cylinder injector.

c. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 1) and PCM connector D-132 (ter-
minal No. 14) when checking No. 3 cylinder injector.

d. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 7) and PCM connector D-132 (ter-
minal No. 21) when checking No. 4 cylinder injector.

e. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 6) and PCM connector D-132 (ter-
minal No. 2) when checking No. 5 cylinder injector.

f. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 5) and PCM connector D-132 (ter-
minal No. 6) when checking No. 6 cylinder injector.

Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 17.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)
