Mitsubishi Montero (2002-2004). Manual - part 654

TSB Revision

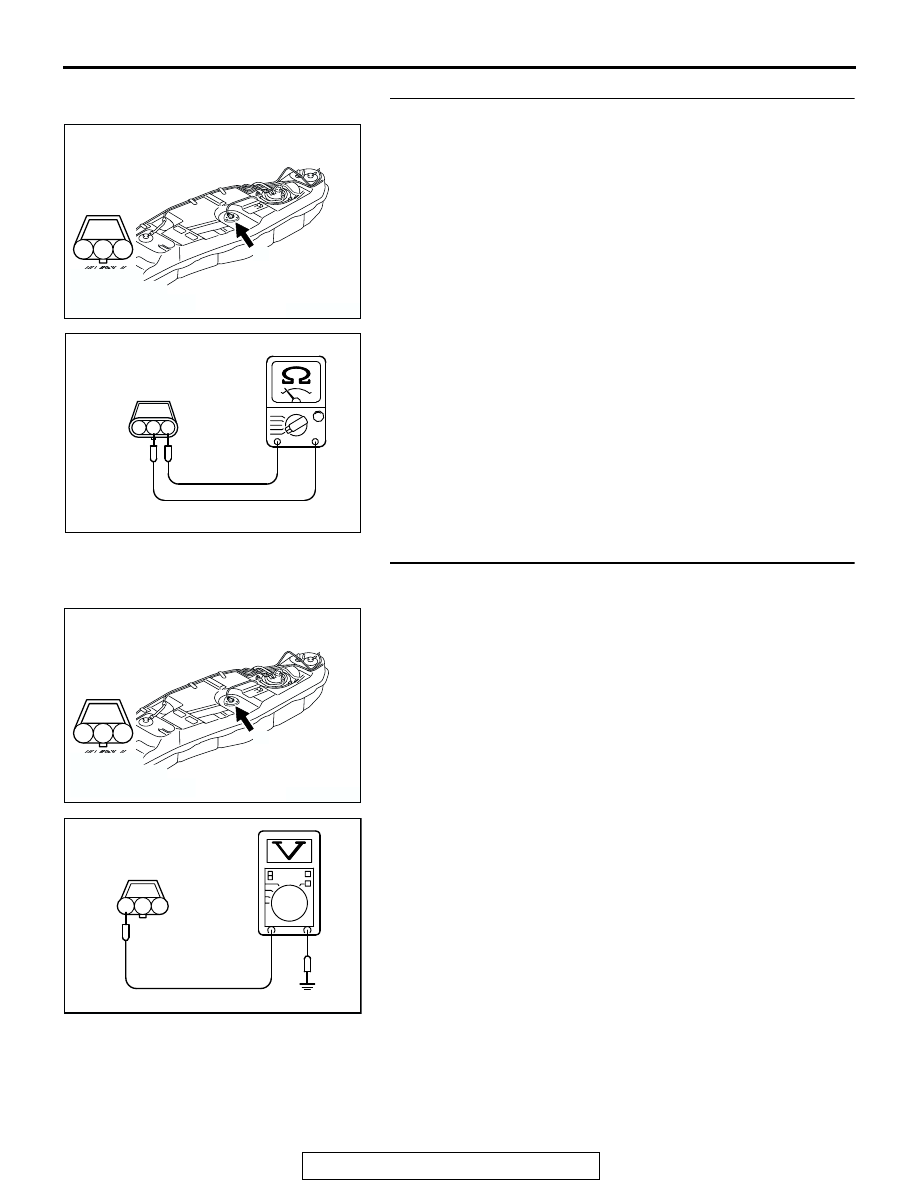

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-313

STEP 3. Check the fuel tank temperature sensor.
(1) Disconnect the fuel tank temperature sensor connector G-

03

(2) Measure the resistance between terminal No. 2 and No. 3

of the fuel tank temperature sensor.

Standard value:

0.5

− 12.0 kiloohms

Q: Is the resistance between 0.5 and 12.0 kiloohms?

YES : Go to Step 4.
NO :  Replace the fuel tank temperature sensor. Then go to

Step 11.

STEP 4. Check the sensor supply voltage at fuel tank
temperature sensor harness side connector G-03.
(1) Disconnect the connector G-03 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

• Voltage should be between 4.5 and 4.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 8.
NO :  Go to Step 5.

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE

1 2 3

AK101072

FUEL TANK TEMPERATURE
SENSOR SIDE
CONNECTOR

AC

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01422

G-03 HARNESS
CONNECTOR:
COMPONENT SIDE

3 2 1

AM

TSB Revision

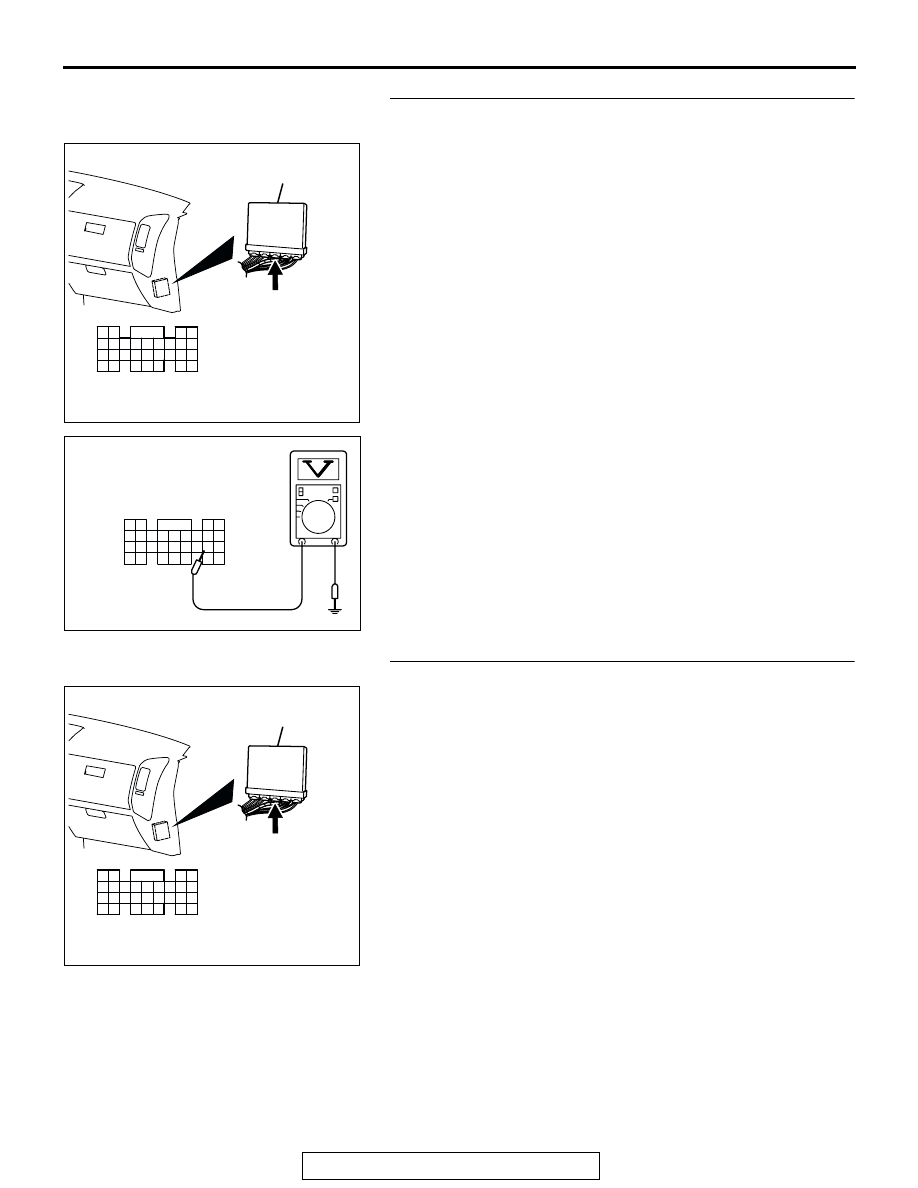

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-314

STEP 5. Check the sensor supply voltage at PCM
connector D-134 by backprobing.
(1) Do not disconnect the PCM connector D-134.
(2) Disconnect the fuel tank temperature sensor connector G-

03.

(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal No. 81 and ground

by backprobing.

• Voltage should be between 4.5 and 4.9 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.5 and 4.9 volts?

YES : Go to Step 6.
NO :  Go to Step 7.

STEP 6. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Check connector D-111, E-113 and F-07 at

intermediate connector for damage, and repair or
replace as required. Refer to GROUP 00E, Harness
Connector Inspection

P.00E-2

. If intermediate

connector are in good condition, repair harness wire
between fuel tank temperature sensor connector G-
03 and PCM connector D-134 because of open
circuit. Then go to Step 11.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK201415

61
656667686970 717273
74757677787980 8182
8384

858687

8889

62

6364

AB

D-134 HARNESS
CONNECTOR:
HARNESS SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

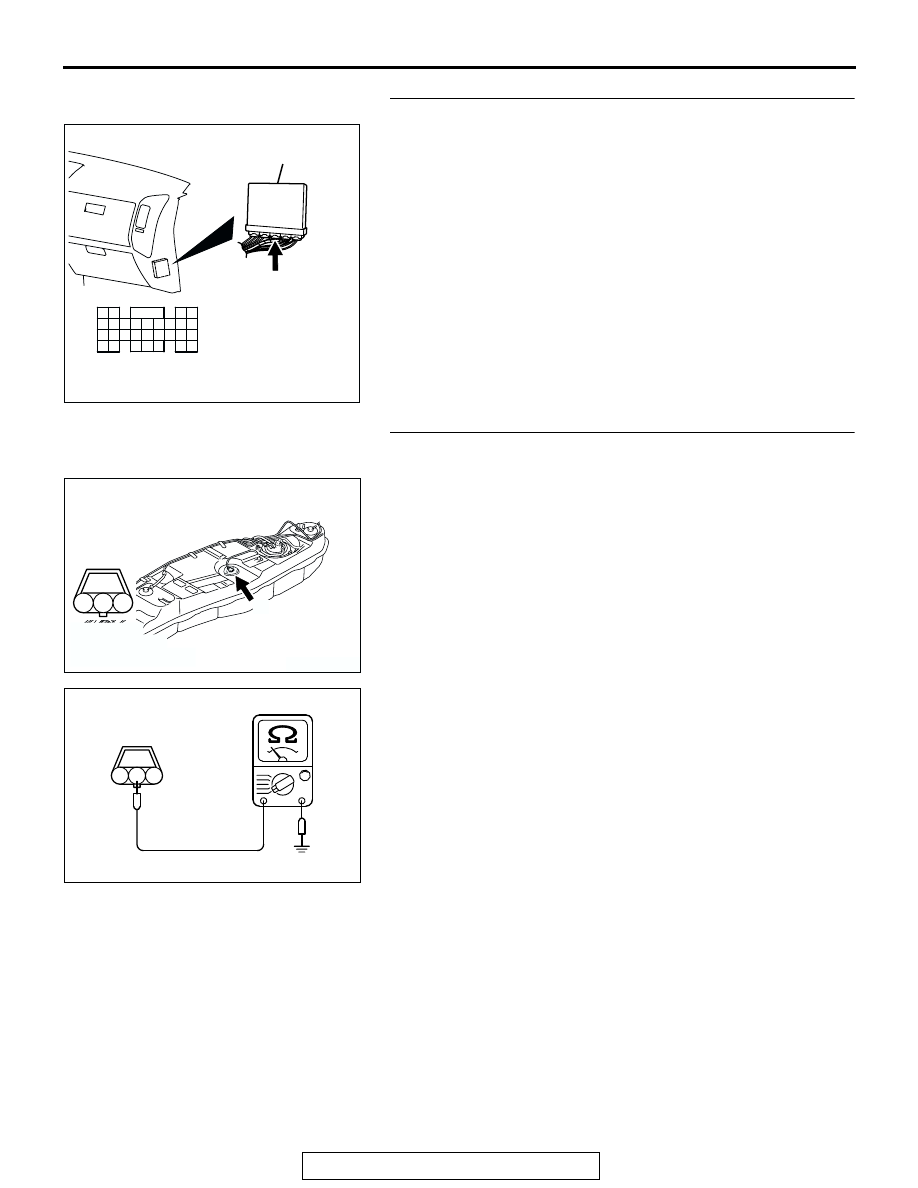

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-315

STEP 7. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 8. Check the continuity at fuel tank temperature
sensor harness side connector G-03.
(1) Disconnect the connector G-03 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 9.
NO :  Check connector F-07 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-

2

. If intermediate connector is in good condition,

repair harness wire between fuel tank temperature
sensor connector G-03 (terminal No. 2) and ground
because of open circuit or harness damage. Then go
to Step 11.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK101071

3 2 1

G-03 HARNESS
CONNECTOR:
COMPONENT SIDE

AE

TSB Revision

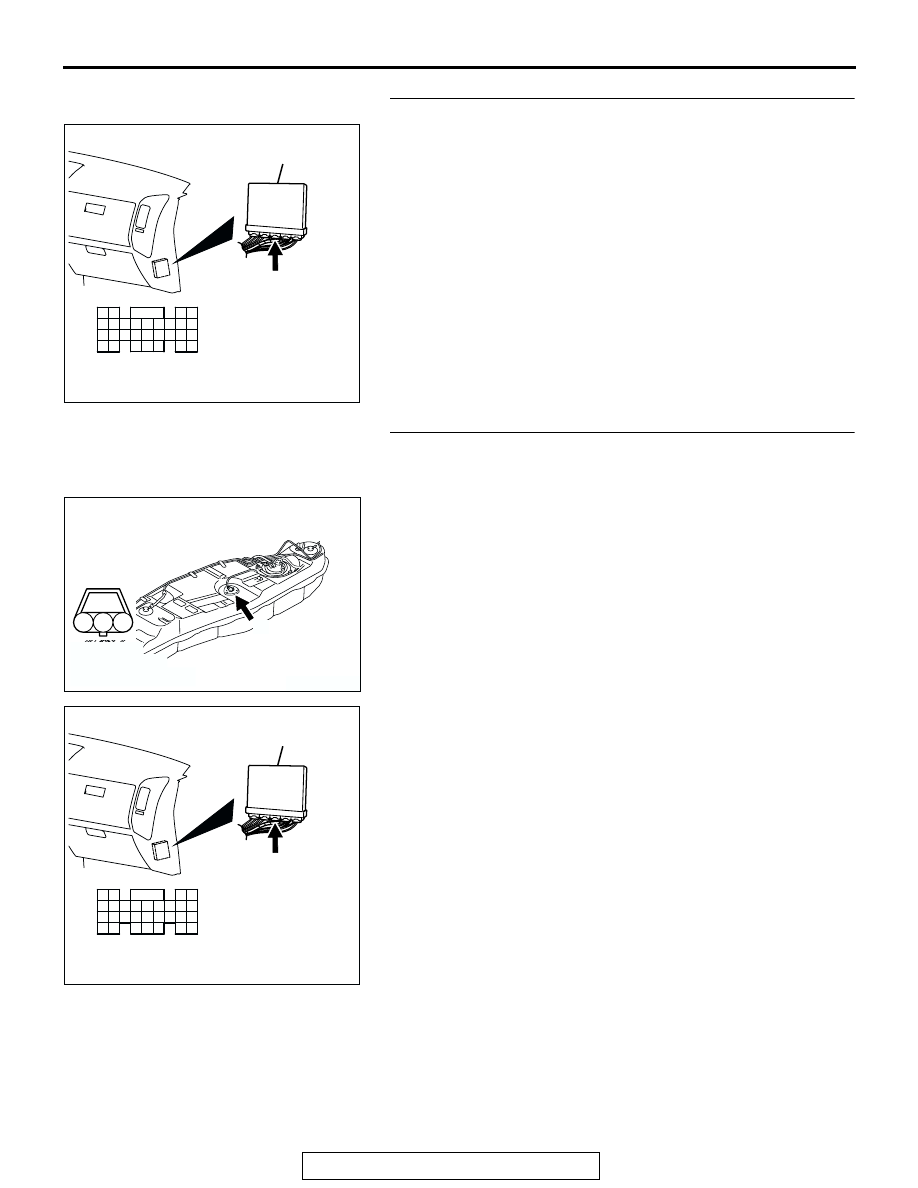

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-316

STEP 9. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 10. Check for open circuit and harness damage
between fuel tank temperature sensor connector G-03 and
PCM connector D-134.
NOTE: Check harness after checking intermediate connector
E-113, D-111 and F-07. If intermediate connector are damaged,
repair or replace it. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then go to Step 11.

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair it. Then go to Step 11.

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
