Mitsubishi Montero (2002-2004). Manual - part 579

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-13

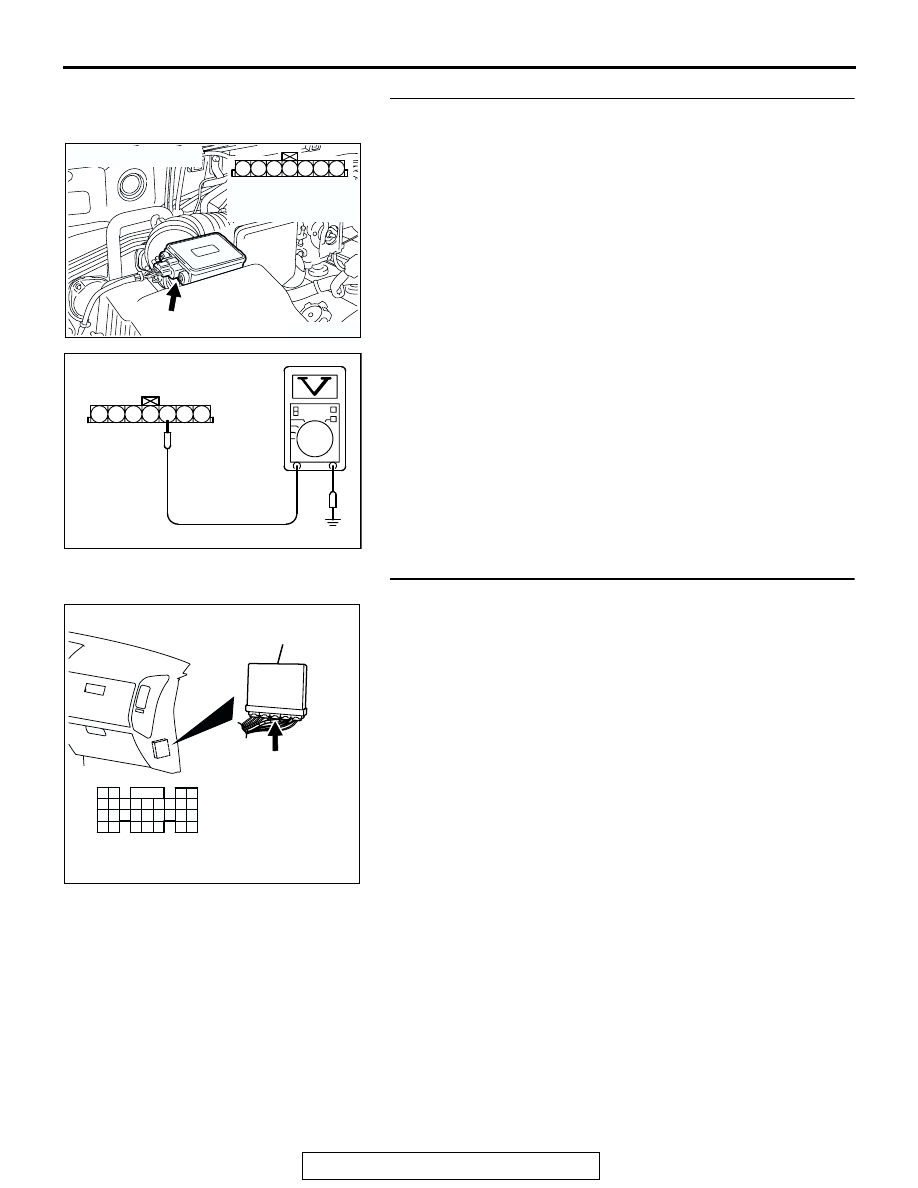

STEP 6. Measure the sensor supply voltage at volume
airflow sensor harness side connector B-48.
(1) Disconnect the connector B-48 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

•  Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 9.
NO :  Go to Step 7.

STEP 7. Check connector D-134 at PCM for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AKX01406 AJ

B-48 HARNESS CONNECTOR:
COMPONENT SIDE

1

2

3

4

5

6

7

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-14

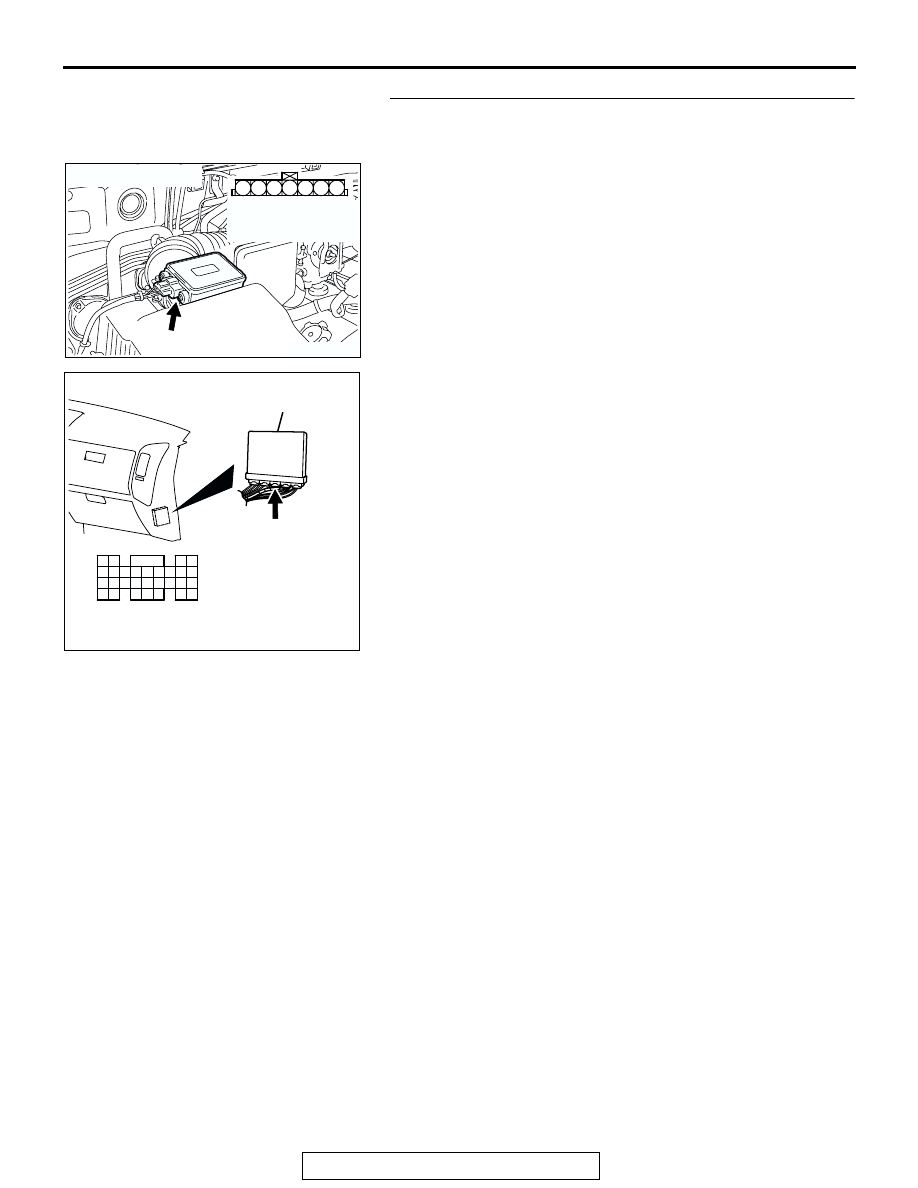

STEP 8. Check for short circuit to ground between volume
airflow sensor connector B-48 (terminal No. 3) and PCM
connector D-134 (terminal No. 63).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 13.
NO :  Repair it. Then go to Step 13.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-15

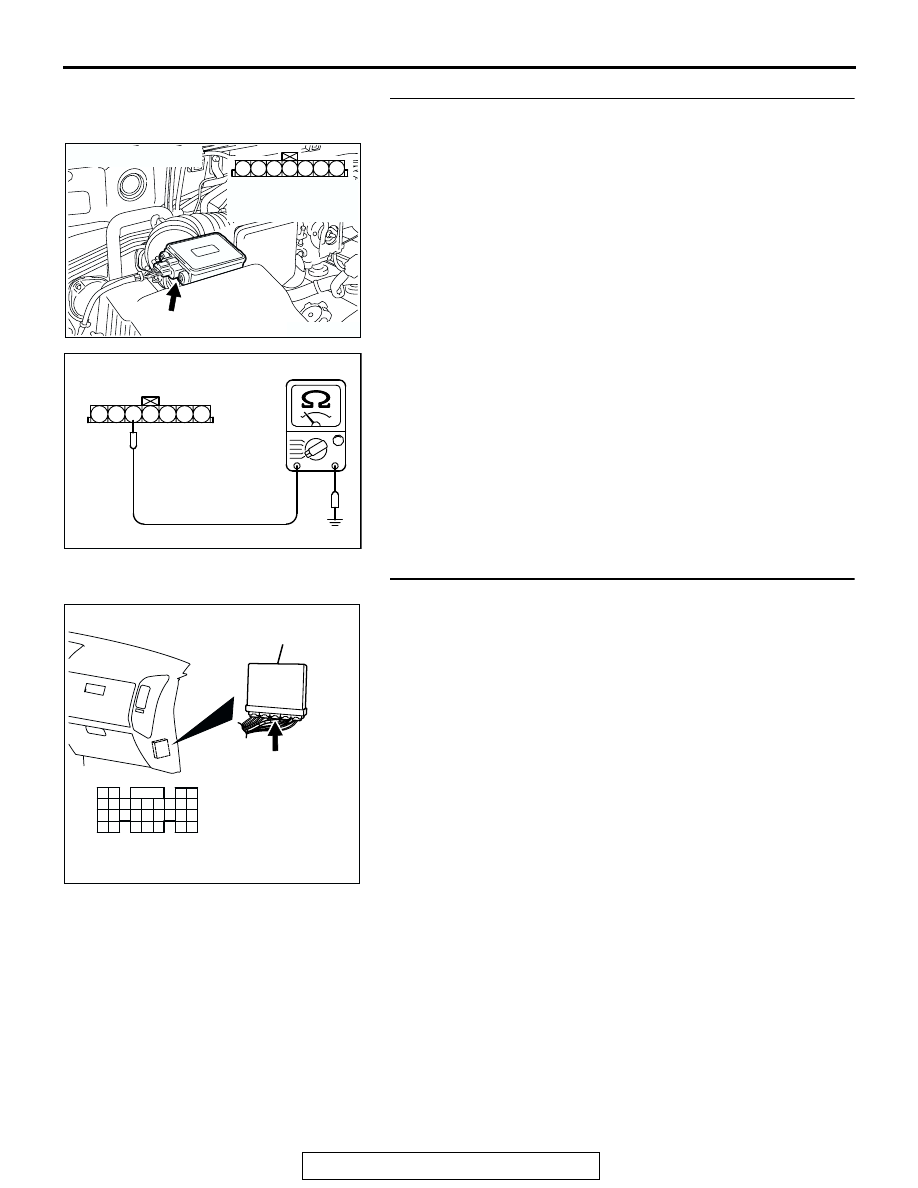

STEP 9. Check the continuity at volume airflow sensor
harness side connector B-48.
(1) Disconnect the connector B-48 and measure at the harness

side.

(2) Check for the continuity between terminal No. 5 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 12.
NO :  Go to Step 10.

STEP 10. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AKX01409

1

2

3

4

5

6

7

B-48 HARNESS CONNECTOR:
COMPONENT SIDE

AL

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-16

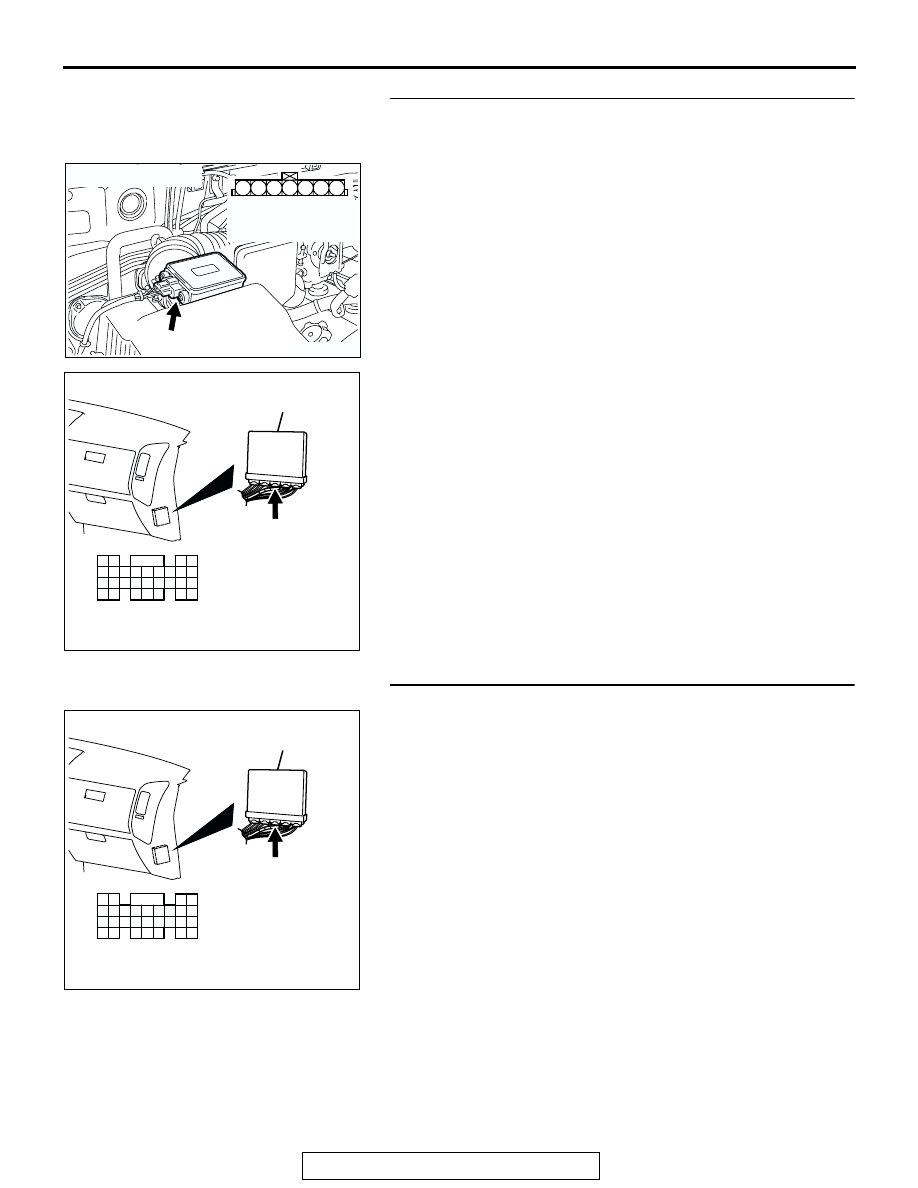

STEP 11. Check for open circuit and harness damage
between volume airflow sensor connector B-48 (terminal
No. 5) and PCM connector D-134 (terminal No. 88).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 13.
NO :  Repair it. Then go to Step 13.

STEP 12. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the volume airflow sensor. Then go to Step

13.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 13.

AK200937

3

4

5

1

2

6

7

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
