Mitsubishi Montero (2002-2004). Manual - part 561





13Ab-1

GROUP 13Ab

CONTENTS

TROUBLESHOOTING STRATEGY. .

13Ab-2

TROUBLE CODE DIAGNOSIS . . . . .

13Ab-2

FAIL-SAFE FUNCTION REFERENCE
TABLE . . . . . . . . . . . . . . . . . . . . . . . .

13Ab-20

DIAGNOSTIC TROUBLE CODE
CHART . . . . . . . . . . . . . . . . . . . . . . . .

13Ab-22

SYMPTOM CHART  . . . . . . . . . . . . . .

13Ab-26

DATA LIST REFERENCE TABLE . . .

13Ab-29

ACTUATOR TEST REFERENCE
TABLE. . . . . . . . . . . . . . . . . . . . . . . . .

13Ab-42

CHECK AT THE POWERTRAIN
CONTROL MODULE (PCM). . . . . . . .

13Ab-43

INSPECTION PROCEDURE USING AN
OSCILLOSCOPE  . . . . . . . . . . . . . . . .

13Ab-50

TROUBLESHOOTING STRATEGY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

13Ab-2

.

TROUBLESHOOTING STRATEGY

M1131150000063

NOTE: If a DTC is erased, its "freeze frame" data will
be also erased and the readiness test status will be
reset. Store the "freeze frame" data before erasing
the DTC.
Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure to have
exhausted most of the possible ways to find an MFI
fault.
1. Gather as much information as possible about the

complaint from the customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any MFI Diagnostic Trouble

Code (DTC).

4. If you cannot verify the condition and there are no

DTCs, the malfunction is intermittent. For
information on how to cope with intermittent
malfunctions, refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to cope with Intermittent Malfunction

P.00-6

.

5. If you can verify the condition but there are no

DTCs, or the system cannot communicate with
the scan tool, refer to the trouble symptom
classification table.

6. If there is a DTC, record the number of the code,

then erase the code from the memory using the
scan tool.

7. Reconfirm the malfunction symptom and carry out

a test drive with the drive cycle pattern.

8. If DTC is set again, carry out an inspection with

the  diagnostic trouble code procedures of that
code.

9. If DTC is not set again, the malfunction is

intermittent. For information on how to cope with
intermittent malfunctions, refer to GROUP 00,
How to Use Troubleshooting/Inspection Service
Points

− How to cope with Intermittent Malfunction

P.00-6

.

10.After repairs are completed, conduct a road test

duplicating the complaint set conditions to confirm
the malfunction has been connected.

NOTE:  If the powertrain control module (PCM) is
replaced, Immobilizer Encrypted Code Registration
should be carried out, Refer to GROUP 54A, Ignition
Switch

 On-vehicle Service

 Immobilizer Encrypted

Code Registration

P.54A-22

.

TROUBLE CODE DIAGNOSIS

M1131150500381

.

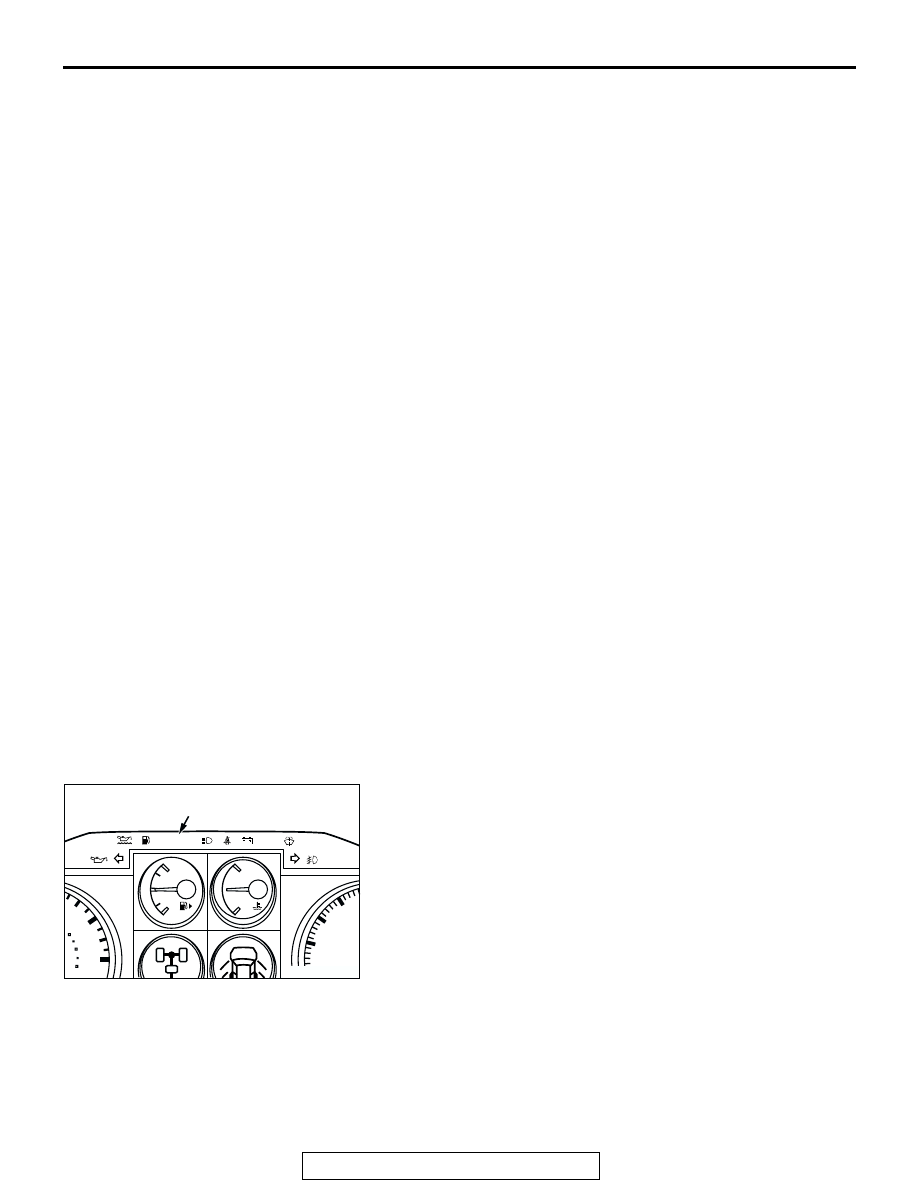

MALFUNCTION INDICATOR LAMP (SERVICE ENGINE
SOON OR CHECK ENGINE LAMP)
Among the on-board diagnostic items, a Service Engine Soon/
Malfunction Indicator Lamp illuminates to notify the driver of an
emission control malfunction.
However, when an irregular signal returns to normal and the
powertrain control module judges that it has returned to normal,
the Malfunction Indicator Lamp (SEVICE ENGINE SOON or
Check Engine Lamp) is switched off.
Moreover, when the ignition switch is turned off, the lamp is
switched off. Even if the ignition switch is turned on again, the
lamp does not illuminate until the malfunction is detected.
Immediately after the ignition switch is turned on, the Malfunc-
tion Indicator Lamp (SEVICE ENGINE SOON or Check Engine
Lamp) is lit for 20 seconds to indicate that the Malfunction Indi-
cator Lamp (SEVICE ENGINE SOON or Check Engine Lamp)
operates normally.

.

BRAKE

SERVICE

ENGINE SOON

F

H

C

E

AT

TEMP

C / D

LOCK

100

120

2

3

4

5

AKX01463AE

MALFUNCTION INDICATOR LAMP (SERVICE
ENGINE SOON OR CHECK ENGINE LAMP)

TROUBLE CODE DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

13Ab-3

Items Indicated by the Malfunction Indicator Lamp (SEVICE ENGINE SOON or Check Engine Lamp)

DTC NO.

ITEMS

-

Powertrain control module (PCM) malfunction

P0101*

Volume airflow circuit range/performance problem

P0102*

Volume airflow circuit low input

P0106*

Barometric pressure circuit range/performance problem

P0107*

Barometric pressure circuit low input

P0108*

Barometric pressure circuit high input

P0111*

Intake air temperature circuit range/performance problem

P0112*

Intake air temperature circuit low input

P0113*

Intake air temperature circuit high input

P0116*

Engine coolant temperature circuit range/performance problem

P0117*

Engine coolant temperature circuit low input

P0118*

Engine coolant temperature circuit high input

P0122*

Throttle position sensor (main) circuit low input

P0123*

Throttle position sensor (main) circuit high input

P0125*

Insufficient coolant temperature for closed loop fuel control

P0128

Coolant thermostat (Coolant temperature below thermostat regulating temperature)

P0130

Heated oxygen sensor circuit (bank 1 sensor 1)

P0131

Heated oxygen sensor circuit low voltage (bank 1 sensor 1)

P0132

Heated oxygen sensor circuit high voltage (bank 1 sensor 1)

P0133

Heated oxygen sensor circuit slow response (bank 1 sensor 1)

P0134*

Heated oxygen sensor circuit no activity detected (bank 1 sensor 1)

P0135

Heated oxygen sensor heater circuit (bank 1 sensor 1)

P0136

Heated oxygen sensor circuit (bank 1 sensor 2)

P0137

Heated oxygen sensor circuit low voltage (bank 1 sensor 2)

P0138

Heated oxygen sensor circuit high voltage (bank 1 sensor 2)

P0139

Heated oxygen sensor circuit slow response (bank 1 sensor 2)

P0141

Heated oxygen sensor heater circuit (bank 1 sensor 2)

P0150

Heated oxygen sensor circuit (bank 2 sensor 1)

P0151

Heated oxygen sensor circuit low voltage (bank 2 sensor 1)

P0152

Heated oxygen sensor circuit high voltage (bank 2 sensor 1)

P0153

Heated oxygen sensor circuit slow response (bank 2 sensor 1)

P0154

Heated oxygen sensor circuit no activity detected (bank 2 sensor 1)

P0155

Heated oxygen sensor heater circuit (bank 2 sensor 1)

P0156

Heated oxygen sensor circuit (bank 2 sensor 2)

P0157

Heated oxygen sensor circuit low voltage (bank 2 sensor 2)

P0158

Heated oxygen sensor circuit high voltage (bank 2 sensor 2)

P0159

Heated oxygen sensor circuit slow response (bank 2 sensor 2)

P0161

Heated oxygen sensor heater circuit (bank 2 sensor 2)

P0171

System too lean (bank 1)

TROUBLE CODE DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

13Ab-4

P0172

System too rich (bank 1)

P0174

System too lean (bank 2)

P0175

System too rich (bank 2)

P0181

Fuel tank temperature sensor circuit range/performance

P0182

Fuel tank temperature sensor circuit low input

P0183

Fuel tank temperature sensor circuit high input

P0201

Injector circuit

− cylinder 1

P0202

Injector circuit

− cylinder 2

P0203

Injector circuit

− cylinder 3

P0204

Injector circuit

− cylinder 4

P0205

Injector circuit

− cylinder 5

P0206

Injector circuit

− cylinder 6

P0222*

Throttle position sensor (sub) circuit low input

P0223*

Throttle position sensor (sub) circuit high input

P0300

Random/multiple cylinder misfire detected

P0301

Cylinder 1 misfire detected

P0302

Cylinder 2 misfire detected

P0303

Cylinder 3 misfire detected

P0304

Cylinder 4 misfire detected

P0305

Cylinder 5 misfire detected

P0306

Cylinder 6 misfire detected

P0335*

Crankshaft position sensor circuit

P0340*

Camshaft position sensor circuit

P0401

Exhaust gas recirculation flow insufficient detected

P0403

Exhaust gas recirculation control circuit

P0421

Warm up catalyst efficiency below threshold (bank 1)

P0431

Warm up catalyst efficiency below threshold (bank 2)

P0441

Evaporative emission system incorrect purge flow

P0442

Evaporative emission system leak detected (Small leak)

P0443

Evaporative emission system purge control valve circuit

P0446

Evaporative emission system vent control circuit

P0451

Evaporative emission system pressure sensor range/performance

P0452

Evaporative emission system pressure sensor low input

P0453

Evaporative emission system pressure sensor high input

P0455

Evaporative emission system leak detected (Gross leak)

P0456

Evaporative emission system leak detected (Very small leak)

P0461

Fuel level sensor circuit range/performance

P0500

Vehicle speed sensor malfunction

P0513

Immobilizer malfunction

P0551

Power steering pressure sensor circuit range/performance

DTC NO.

ITEMS
