TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-35

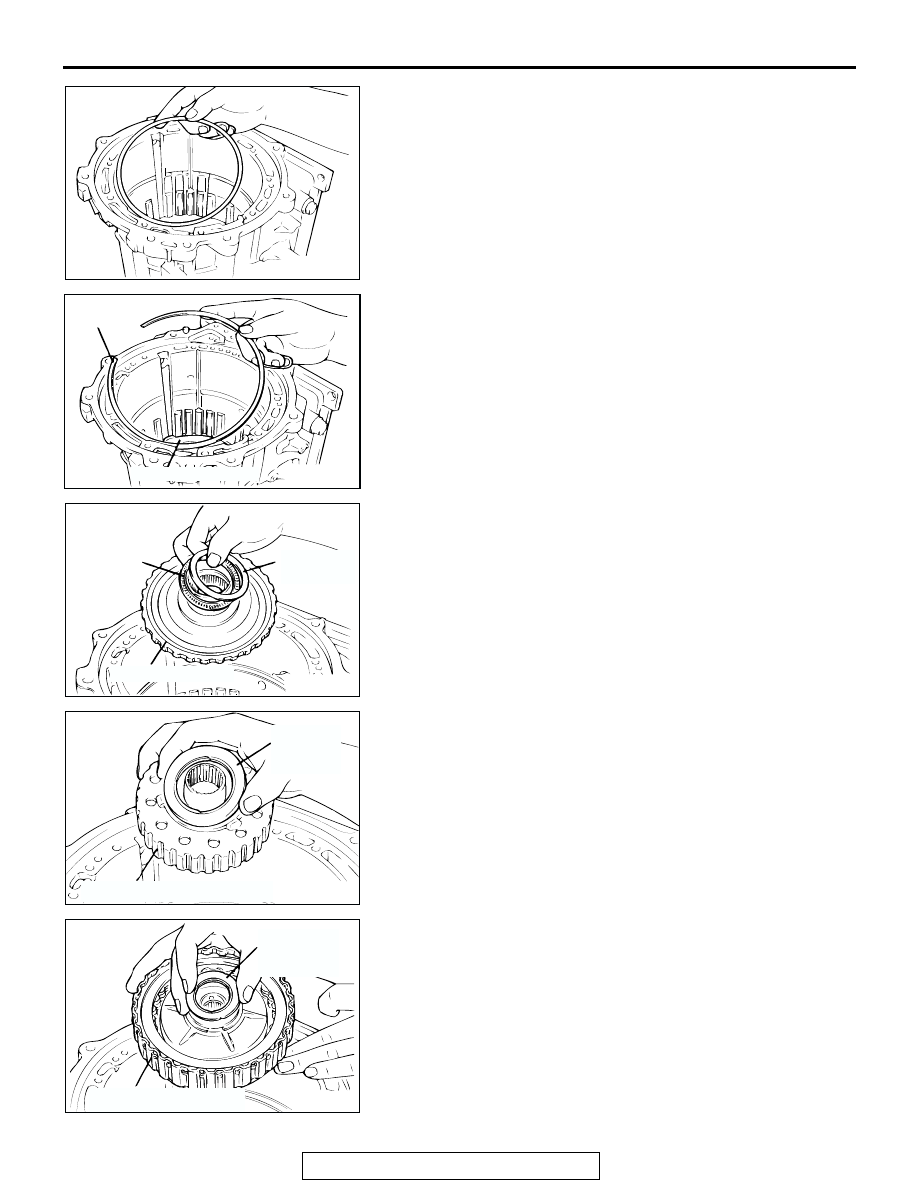

33.Remove the wave spring.

34.Remove the snap ring and center support.

35.Remove the thrust race number 8, thrust bearing number 9

and output flange. <V4A51>
NOTE: The thrust race number 8 may be attached to the
center support.

36.Remove the thrust bearing number 10 and underdrive clutch

hub. <V4A51>

37.Remove the thrust bearing number 11 and underdrive

clutch. <V4A51>
NOTE: The thrust bearing number 11 may be attached to
the underdrive clutch hub.

AKX00052

AKX00053

SNAP RING

CENTER SUPPORT

AB

AKX00054

THRUST
BEARING
NO.9

THRUST
RACE NO.8

OUTPUT FLANGE

<V4A51>

AB

AKX00055

THRUST
BEARING
NO.10

UNDERDRIVE CLUTCH HUB

<V4A51>

AB

AKX00056

THRUST
BEARING
NO.11

UNDERDRIVE CLUTCH

<V4A51>

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-36

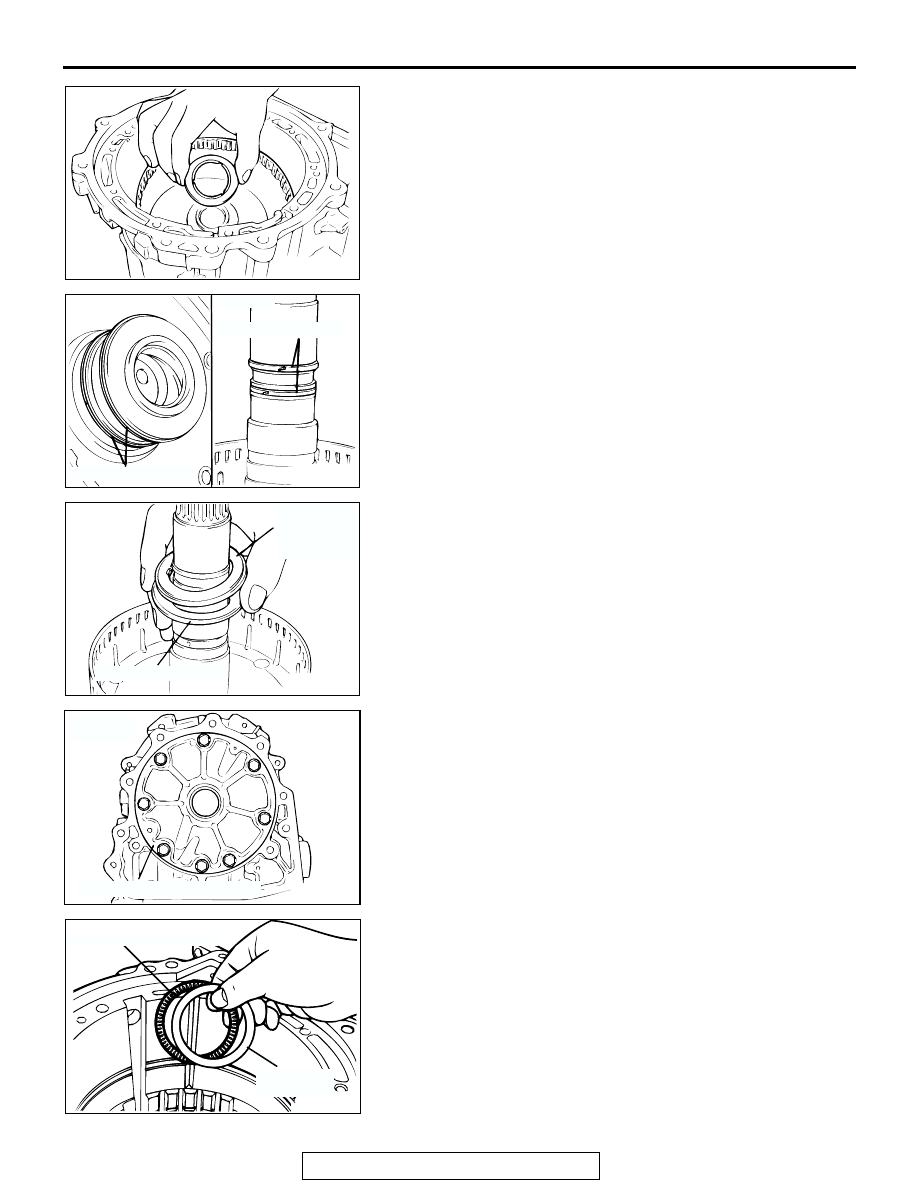

38.Remove the thrust bearing number 12 and output shaft.

<V4A51>
NOTE: The thrust bearing number 12 may be attached to
the underdrive clutch.

39.Remove the two large and two small seal rings from the

output shaft. <V4A51>

40.Remove the thrust bearing number 13 and bearing retainer.

<V4A51>
NOTE: The thrust bearing number 13 may be attached to
the output shaft support.

41.Remove the eight output shaft support mounting bolts, and

then remove the output shaft support and gasket. <V4A51>

42.Remove the thrust race number 8 and thrust bearing

number 9. <V5A51>
NOTE: The thrust race number 8 may be attached to the
center support.

AKX00057AB

<V4A51>

AKX00058

SEAL RING(SMALL)

SEAL RING(LARGE)

<V4A51>

<V4A51>

AB

AKX00059

THRUST
BEARING
NO.13

BEARING RETAINER

<V4A51>

AB

AKX00060

OUTPUT SHAFT SUPPORT

<V4A51>

AB

AKX00301

THRUST
RACE NO.8

<V5A51>
THRUST BEARING NO.9

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-37

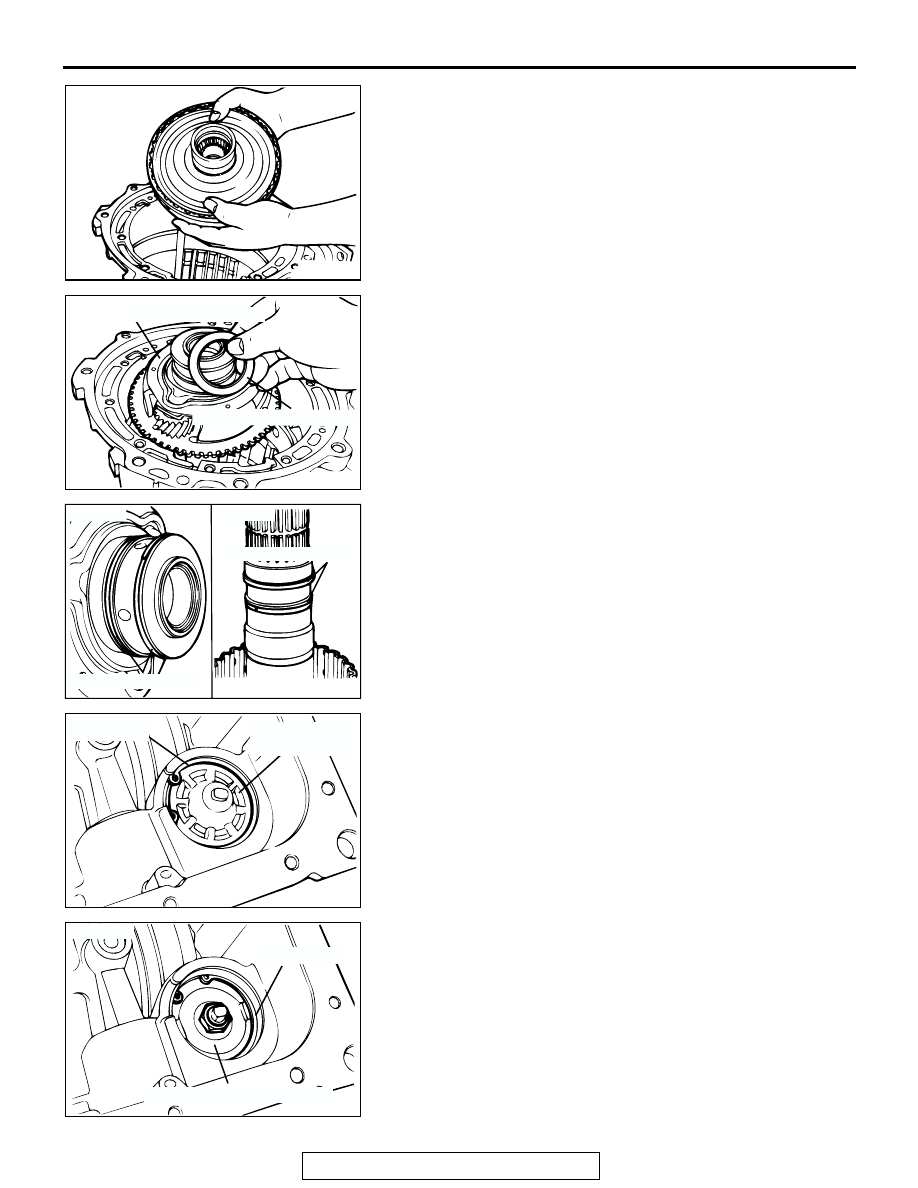

43.Remove the direct annulus gear. <V5A51>

44.Remove the thrust bearing number 12 and direct planetary

carrier. <V5A51>
NOTE: The thrust bearing number 12 may be attached to
the direct annulus gear.

45.Remove the two large and two small seal rings from the

direct planetary carrier. <V5A51>

46.Remove the snap ring and then the reduction brake piston

cover and O-ring. <V5A51>

47.Remove the snap ring and then the nut, reduction brake

piston, seal ring. Adjust rod and spring. <V5A51>

AKX00302

<V5A51>

AB

AKX00303

THRUST BEARING NO.12

<V5A51>
DIRECT PLANETARY CARRIER

AB

AKX00304

<V5A51>

<V5A51>

SEAL RING(SMALL)

SEAL RING(LARGE)

AB

AKX00305

SNAP RING

REDUCTION
BRAKE COVER

<V5A51>

AB

AKX00306

SNAP RING

REDUCTION BRAKE PISTON

<V5A51>

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-38

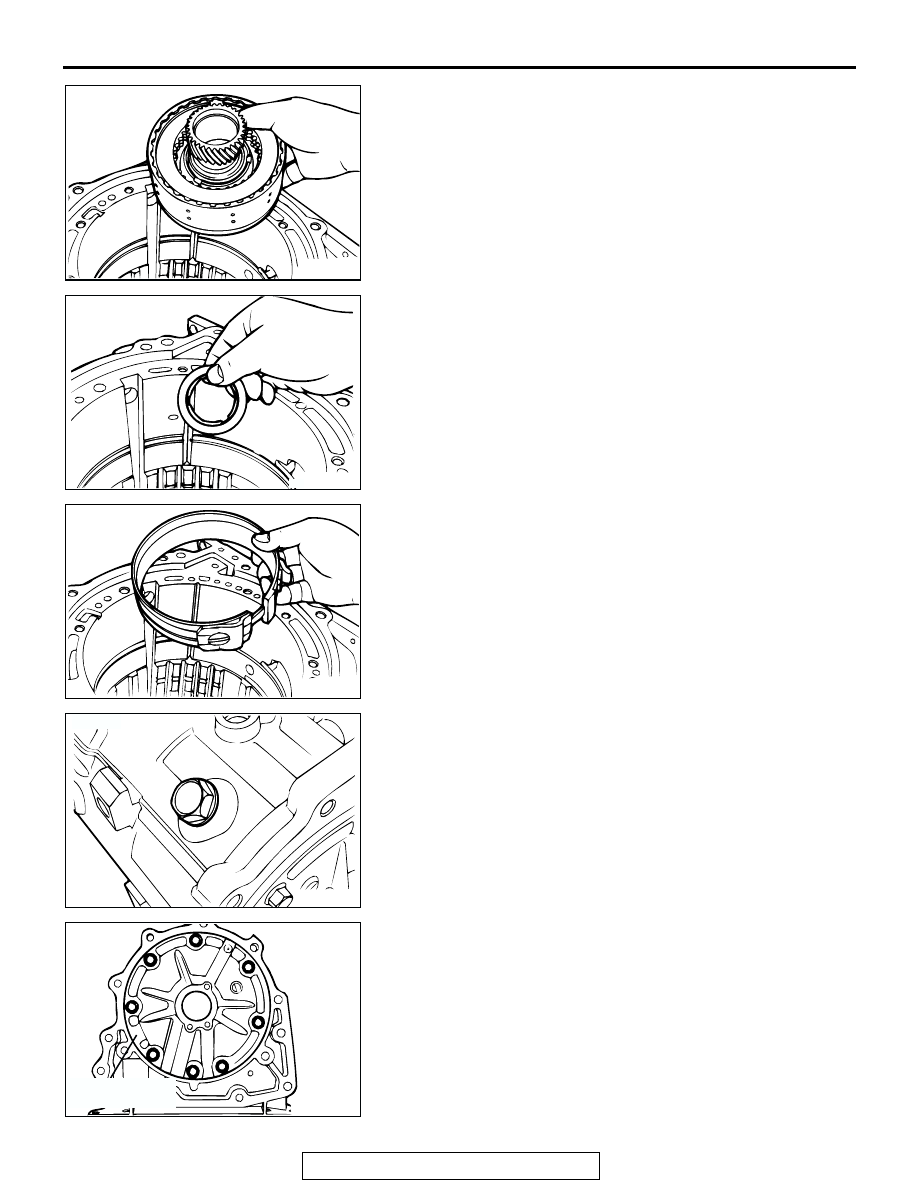

48.Remove the direct clutch. <V5A51>

49.Remove the thrust bearing number 13. <V5A51>

NOTE: The thrust bearing number 13 may be attached to
the direct clutch.

50.Remove the reduction brake band. <V5A51>

51.Remove the anchor plug and the O-ring. <V5A51>

52.Remove the eight output shaft support mounting bolts, and

then remove the output shaft support and gasket. <V5A51>

AKX00307

<V5A51>

AB

AKX00308

<V5A51>

AB

AKX00309

<V5A51>

AB

AKX00310

<V5A51>

AB

AKX00311

OUTPUT SHAFT
SUPPORT

<V5A51>

AB
