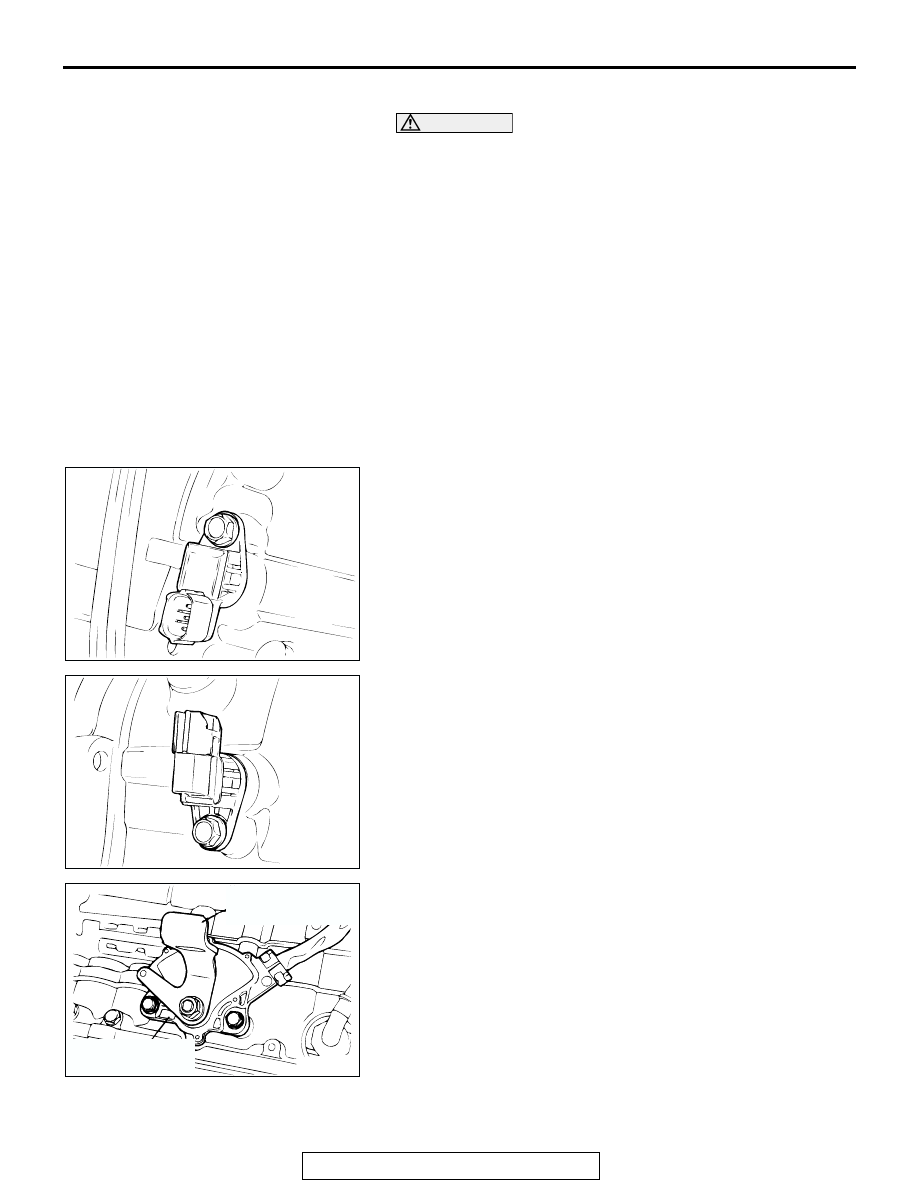

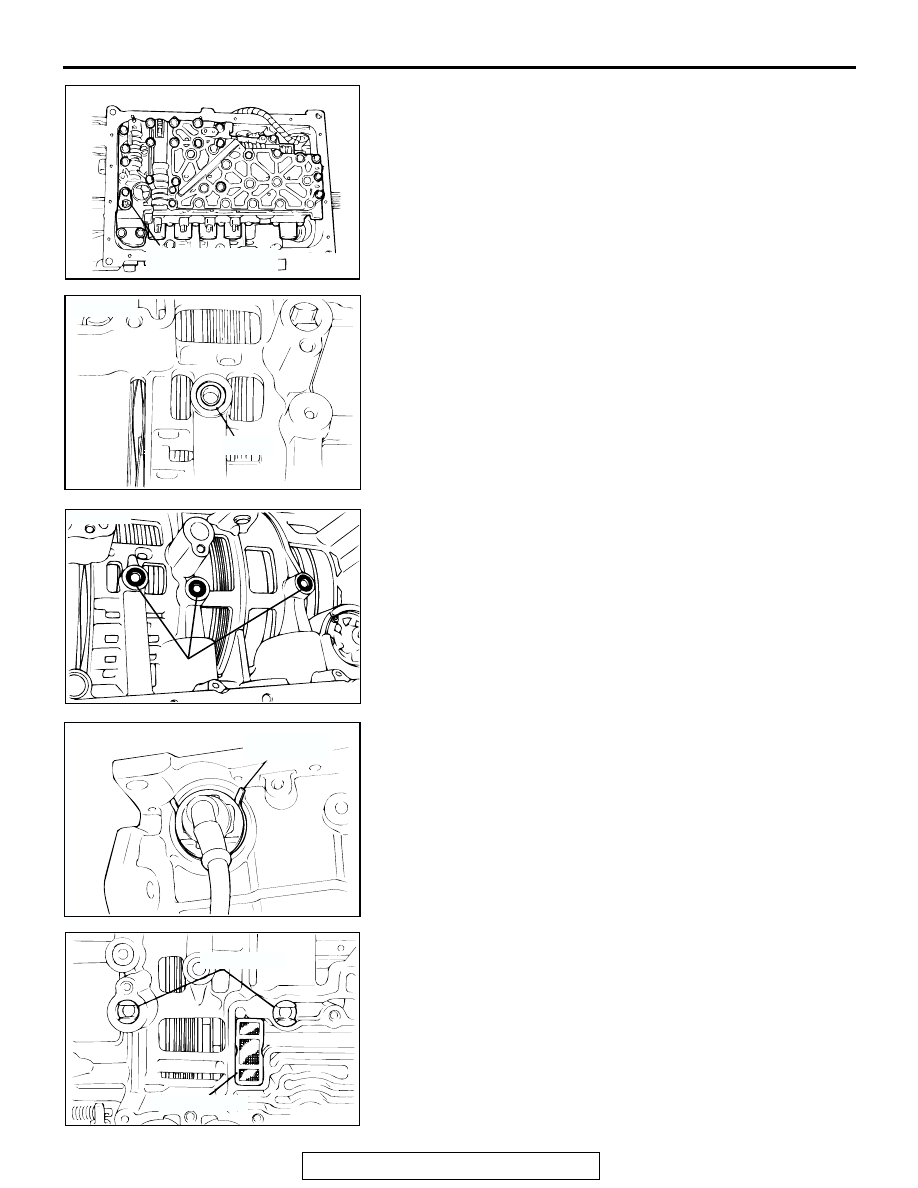

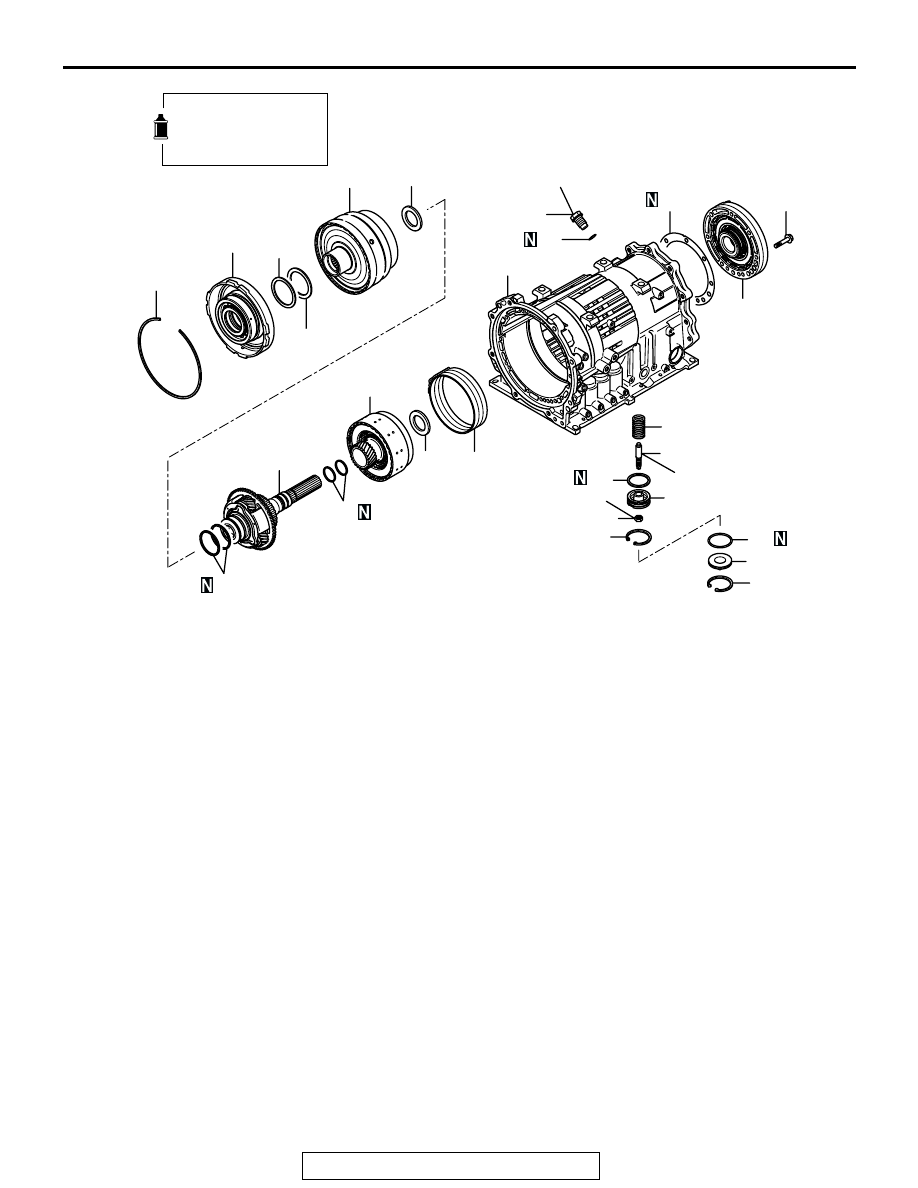

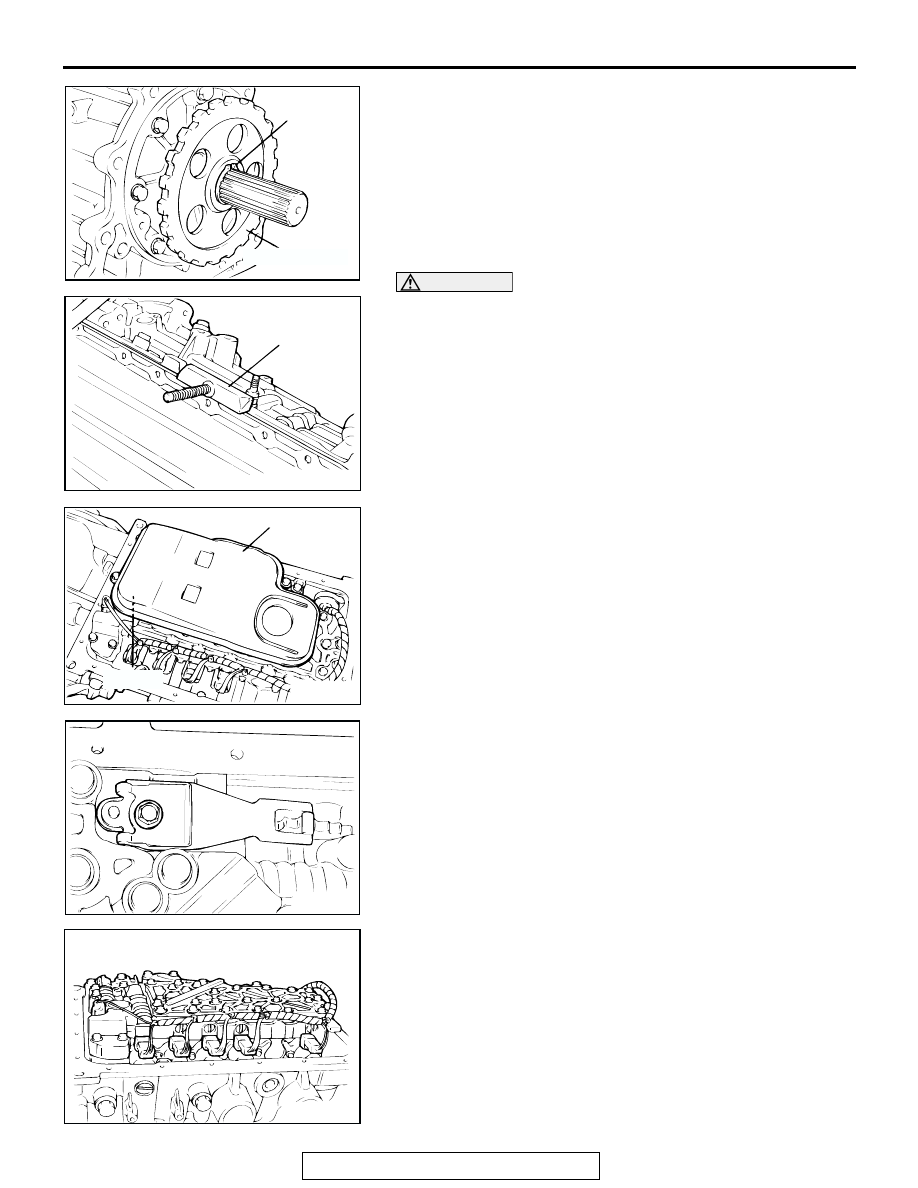

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-27

Required Special Tools:

• MB991603: Bearing Installer Stopper

• MB991632: Clearance Dummy Plate

• MB991633: Reduction Brake Wrench Set

• MB991693: Reduction Brake Stopper

• MD998304: Oil Seal Installer

• MD998316: Dial Gauge Support

• MD998333: Oil Pump Remover

• MD998412: Guide

• MD998727: Oil Pan Remover

• MD998913: Dial Gauge Extension

AKX00298

73

74

75

70

71

72

76

77

78

83

84

85

80

81

82

86

87

88

69

79

93

94

90

91

92

89

98 ± 15 N·m
71 ± 11 ft-lb

4.9 N·m
43 in-lb

18 ± 3 N·m
13 ± 2 ft-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

AC

23 ± 3 N·m
17 ± 2 ft-lb

DISASSEMBLY STEPS

69. SNAP RING
70. CENTER SUPPORT
71. THRUST RACE NO.8
72. THRUST BEARING NO.9
73. DIRECT ANNULUS GEAR
74. THRUST BEARING NO.12
75. DIRECT PLANETARY CARRIER
76. SEAL RING
77. SEAL RING
78. SNAP RING
79. REDUCTION BRAKE COVER
80. O-RING
81. SNAP RING
82. REDUCTION BRAKE PISTON

NUT

83. REDUCTION BRAKE PISTON
84. SEAL RING
85. REDUCTION BRAKE PISTON

ADJUST ROD

86. REDUCTION BRAKE SPRING
87. DIRECT CLUTCH
88. THRUST BEARING NO.13
89. REDUCTION BRAKE BAND
90. ANCHOR PLUG
91. O-RING
92. OUTPUT SHAFT SUPPORT
93. OUTPUT SHAFT SUPPORT

GASKET

94. TRANSMISSION CASE

DISASSEMBLY STEPS

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-28

DISASSEMBLY

CAUTION

• Because the automatic transmission is manufactured

from high-precision parts, sufficient care must be taken
not to scratch or damage these parts during disassem-
bly and reassembly.

• During the work, always use bare hands or vinyl

gloves. Do not use cotton gloves. Use nylon cloth or
paper towels when necessary. Do not use shop towels.

• Parts which have been disassembled should be

cleaned. Metal parts can be cleaned with normal deter-
gent, but they should be dried completely using com-
pressed air.

• Clutch discs, plastic thrust race and rubber parts

should be cleaned with ATF automatic transmission
fluid so that they do not become dirty.

• If the transmission body has been damaged, disassem-

ble and clean the cooler system also.

.

1. Remove the input shaft speed sensor.

2. Remove the output shaft speed sensor.

3. Remove the manual control lever, and then remove the

park/neutral position switch.

AKX00021

AKX00022

AKX00023

MANUAL CONTROL
LEVER

PARK/NEUTRAL
POSITION SWITCH

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-29

4. Remove the snap ring, and remove the parking gear using a

puller [corresponding load approximately 9,800 N (2,200
pounds)].
NOTE: Some parking gear may be removed without using a
puller.

CAUTION

Carefully hammer the special tool so that the oil pan
mounting surface is not damaged.
5. Remove the twenty oil pan mounting bolts and then using

the special tool MD998727 to remove the oil pan.

6. Remove the oil filter and O-ring.

7. Remove the detent spring.

8. Disconnect the valve body harness connectors.

AKX00024

SNAP RING

PARKING GEAR

AB

AKX00025

MD998727

AB

AKX00026

OIL FILTER

O-RING

AB

AKX00027

AKX00028

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-30

9. Remove the twenty valve body mounting bolts and then

remove the valve body, O-ring and oil temperature sensor.
NOTE: The twenty valve body mounting bolts are plated
bolts.
NOTE: The O-ring is mounted on the transmission case side
as shown in the illustration. However there may be cases
when it will come off with the valve body.

10.Remove the snap ring and disconnect the solenoid valve

harness.

11.Remove the oil strainer and two oil seals.

AKX00029

OIL TEMPERATURE
SENSOR

AB

AKX00030

O-RING

<V4A51>

AB

AKX00299

O-RING

<V5A51>

AB

AKX00031

SNAP RING

AB

AKX00032

OIL SEALS

OIL STRAINER

AB
