TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-23

<V5A51>

AK101445

1

2

3

5

6

7

8

9

10

11

12

13

14

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

22 ± 3 N·m
16 ± 2 ft-lb

5.9 ± 1 N·m
52 ± 9 in-lb

4

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

AB

5.9 ± 1 N·m
52 ± 9 in-lb

11 ± 1 N·m
97 ± 9 in-lb

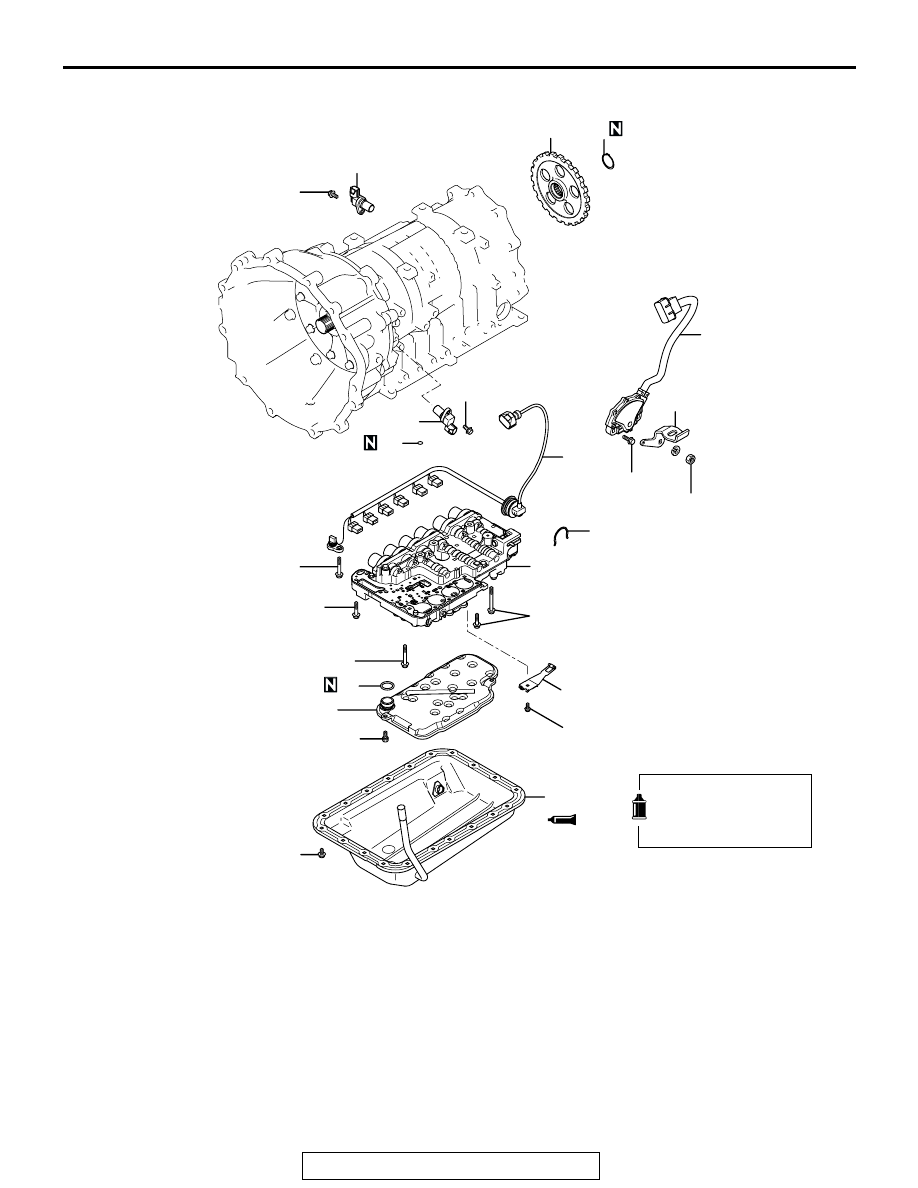

DISASSEMBLY STEPS

1.

INPUT SHAFT SPEED SENSOR

2.

OUTPUT SHAFT SPEED
SENSOR

3.

MANUAL CONTROL LEVER

4.

PARK/NEUTRAL POSITION
SWITCH

5.

SNAP RING

6.

PARKING GEAR

7.

OIL PAN

8.

OIL FILTER

9.

O-RING

10. DETENT SPRING
11. VALVE BODY
12. O-RING
13 SNAP RING
14. SOLENOID VALVE HARNESS

DISASSEMBLY STEPS

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-24

AKX00297

15

16

17

18

23

24

25

20

21

22

26

27

28

19

33

34

35

30

31

32

36

37

38

29

39

43

40

41

42

18

18

18

33

30

31

32

36

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

AC

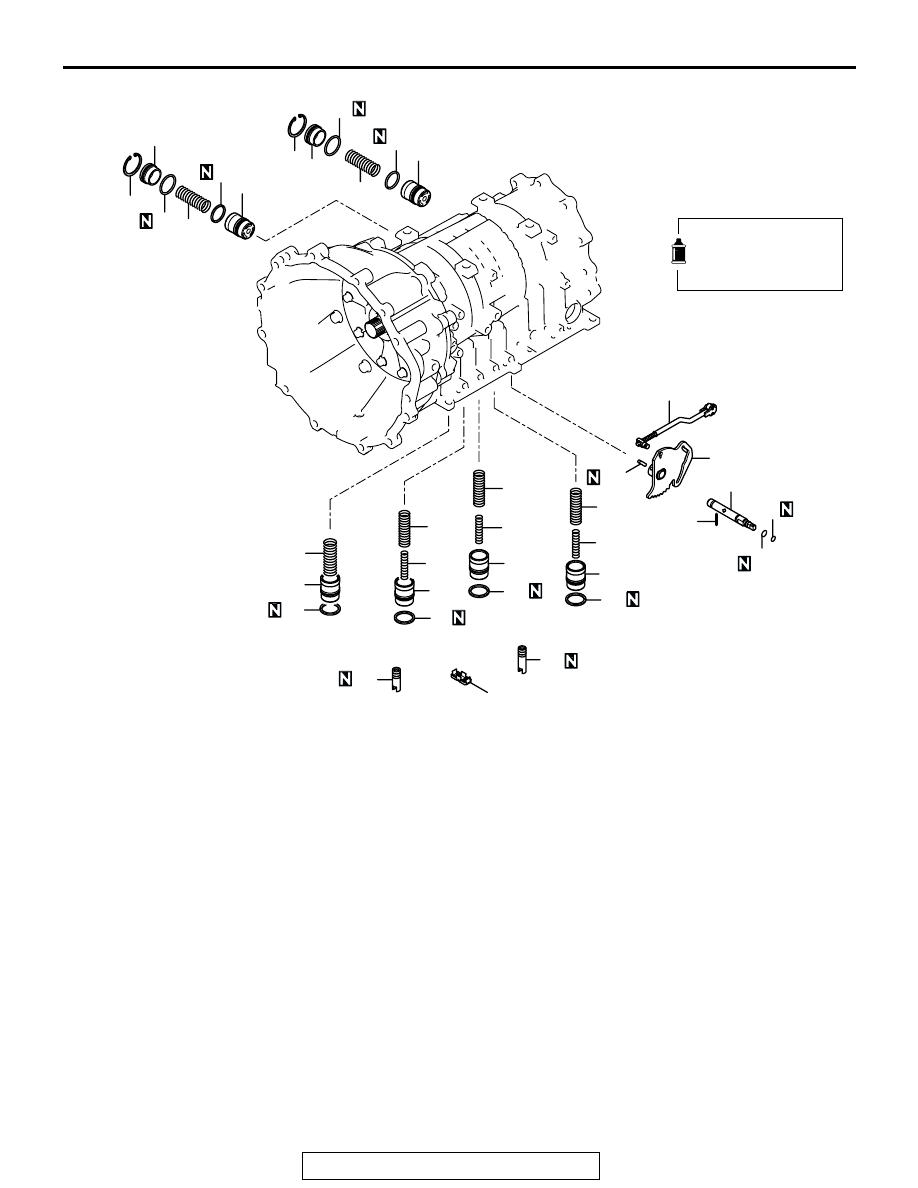

DISASSEMBLY STEPS

15. OIL SEAL
16. OIL SEAL
17. OIL STRAINER
18. SEAL RING
19. ACCUMULATOR PISTON (FOR

OVERDRIVE CLUTCH)

20. ACCUMULATOR SPRING
21. ACCUMULATOR PISTON (FOR

SECOND BRAKE)

22. INNER SPRING
23. OUTER SPRING
24. ACCUMULATOR PISTON (FOR

LOW/REVERSE BRAKE)

25. INNER SPRING
26. OUTER SPRING
27. ACCUMULATOR PISTON (FOR

UNDERDRIVE CLUTCH)

28. INNER SPRING

29. OUTER SPRING
30. SNAP RING
31. ACCUMULATOR COVER
32. O-RING
33. ACCUMULATOR SPRING
34. ACCUMULATOR PISTON (FOR

REDUCTION BRAKE)

35. ACCUMULATOR PISTON (FOR

DIRECT CLUTCH)

36. SEAL RING
37. SPRING PIN
38. PIN
39. MANUAL CONTROL SHAFT
40. O-RING
41. O-RING
42. DETENT LEVER
43. PARKING ROLLER ROD

DISASSEMBLY STEPS

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-25

AKX00018

44

45

46

48

49

50

51

53

52

54

55

56

47

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

AE

23 ± 3 N·m
17 ± 2 ft-lb

48 ± 6 N·m
35 ± 4 ft-lb

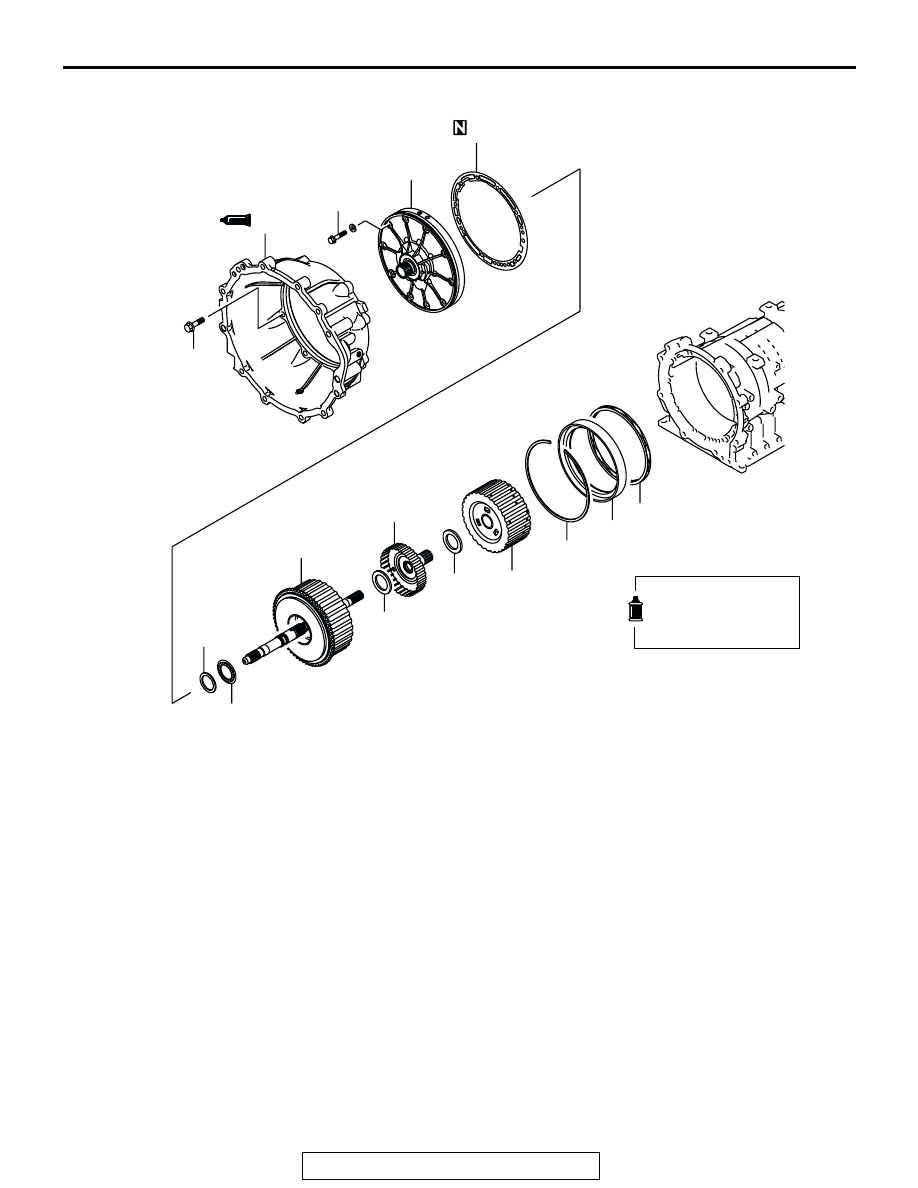

DISASSEMBLY STEPS

44. CONVERTER HOUSING
45. OIL PUMP
46. OIL PUMP GASKET
47. THRUST RACE NO.1
48. THRUST BEARING NO.2
49. REVERSE AND OVERDRIVE

CLUTCH

50. THRUST BEARING NO.3

51. OVERDRIVE CLUTCH HUB
52. THRUST BEARING NO.4
53. REVERSE SUN GEAR
54. SNAP RING
55. SECOND BRAKE
56. RETURN SPRING

DISASSEMBLY STEPS

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-26

AKX00019

57

58

59

60

61

62

63

64

65

66

67

68

APPLY AUTOMATIC

TRANSMISSION FLUID

TO ALL MOVING PARTS

BEFORE INSTALLATION.

AE

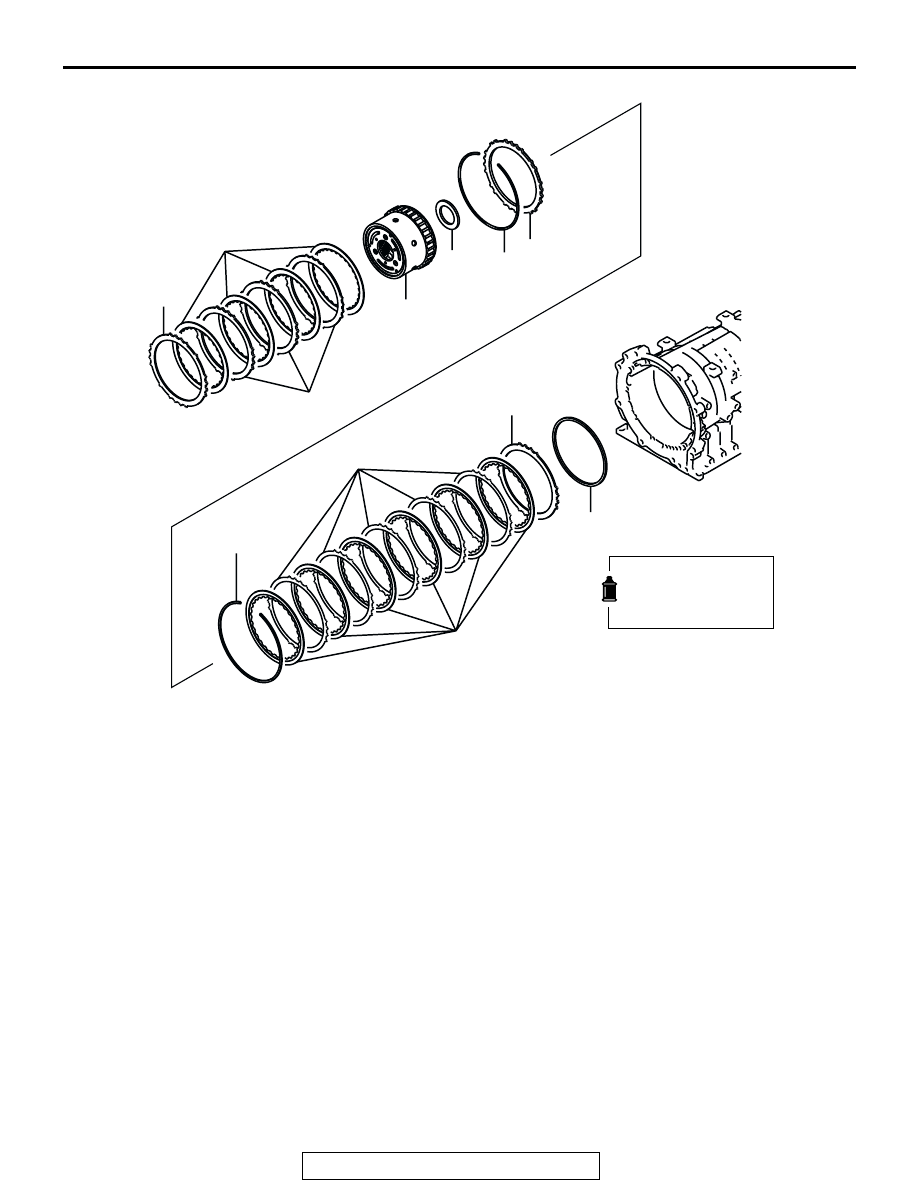

DISASSEMBLY STEPS

57. PRESSURE PLATE
58. BRAKE PLATE
59. BRAKE DISC
60. LOW/REVERSE ANNULUS GEAR
61. THRUST BEARING NO.7
62. SNAP RING

63. REACTION PLATE
64. SNAP RING
65. BRAKE PLATE
66. BRAKE DISC
67. PRESSURE PLATE
68. WAVE SPRING

DISASSEMBLY STEPS
