RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-215

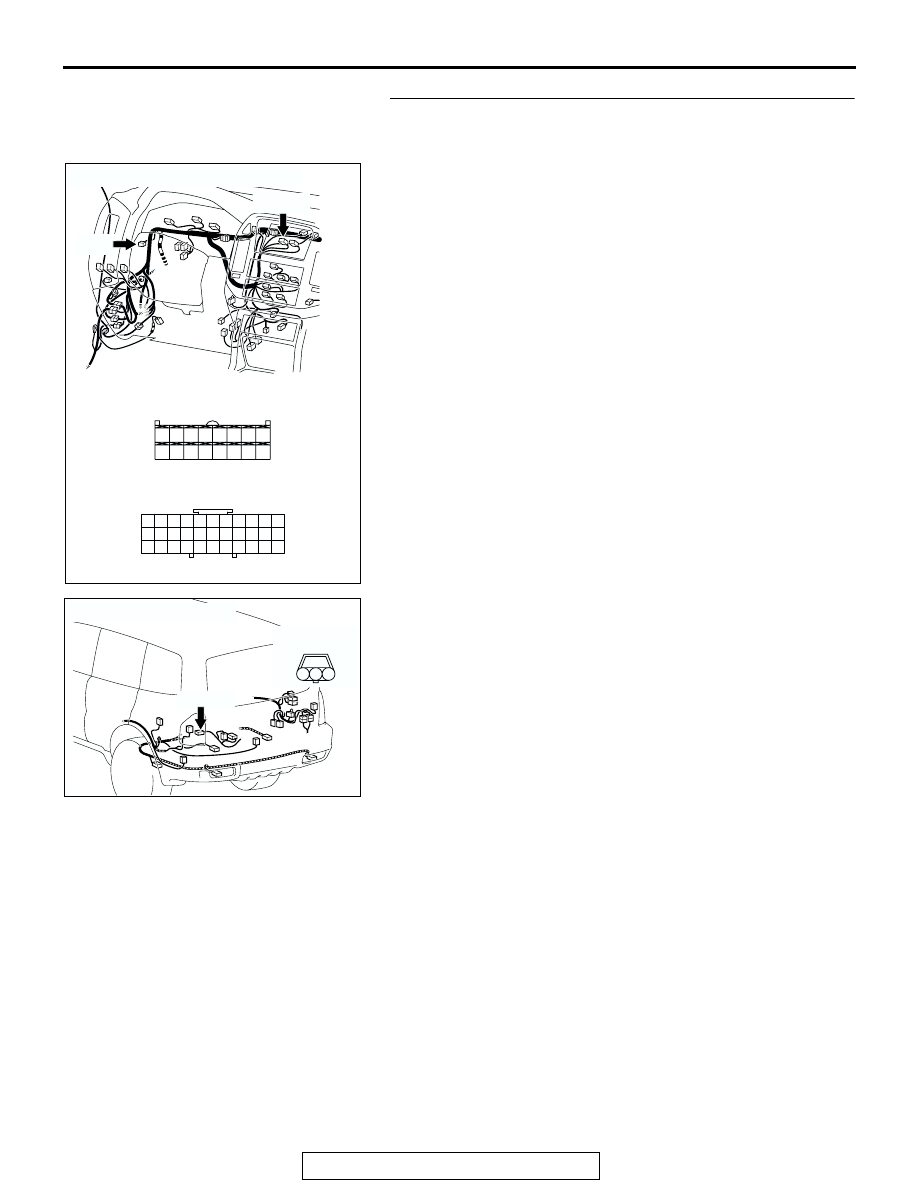

STEP 5. Check the harness wires between RV meter
connected D-07 (terminal 33) and fuel level sensor
connector G-03 (terminal 1).

AC204188

CONNECTORS: D-07, D-29

D-29

BS

D-29

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

HARNESS SIDE

HARNESS SIDE

D-07(B)

D-07(B)

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

AC204179

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-216

NOTE: After inspecting intermediate connector F-07, D-111
and joint connector D-29, inspect the wires. If intermediate con-
nector F-07, D-111 and joint connector D-29 are damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

.

Q: Are the harness wires between RV interconnected D-07

(terminal 33) and fuel level sensor G-03 (terminal 1) in
good condition?
YES : Go to Step 6.
NO :  Repair them. The RV meter should operate normally.

STEP 6. Recheck for malfunction.
Q: Is a malfunction eliminated?

YES : If no malfunctions are not found in all steps, an

intermittent malfunction is suspected. Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunction

P.00-6

.

NO :  Replace the RV meter.

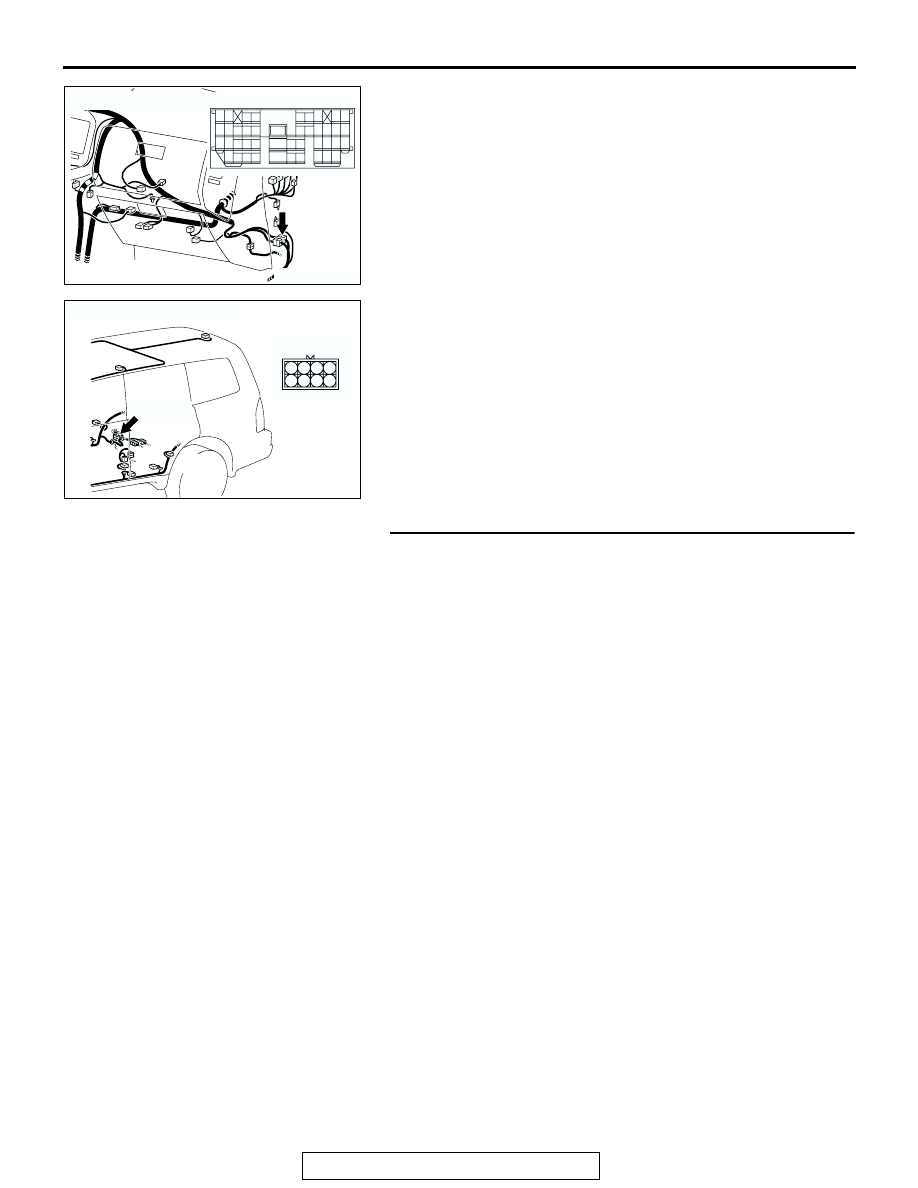

AC204171

CONNECTOR : D-111

AQ

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204178

CONNECTOR : F-07

AN

F-07(B)

F-07(B)

7

6

5

1 2 3 4

8

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-217

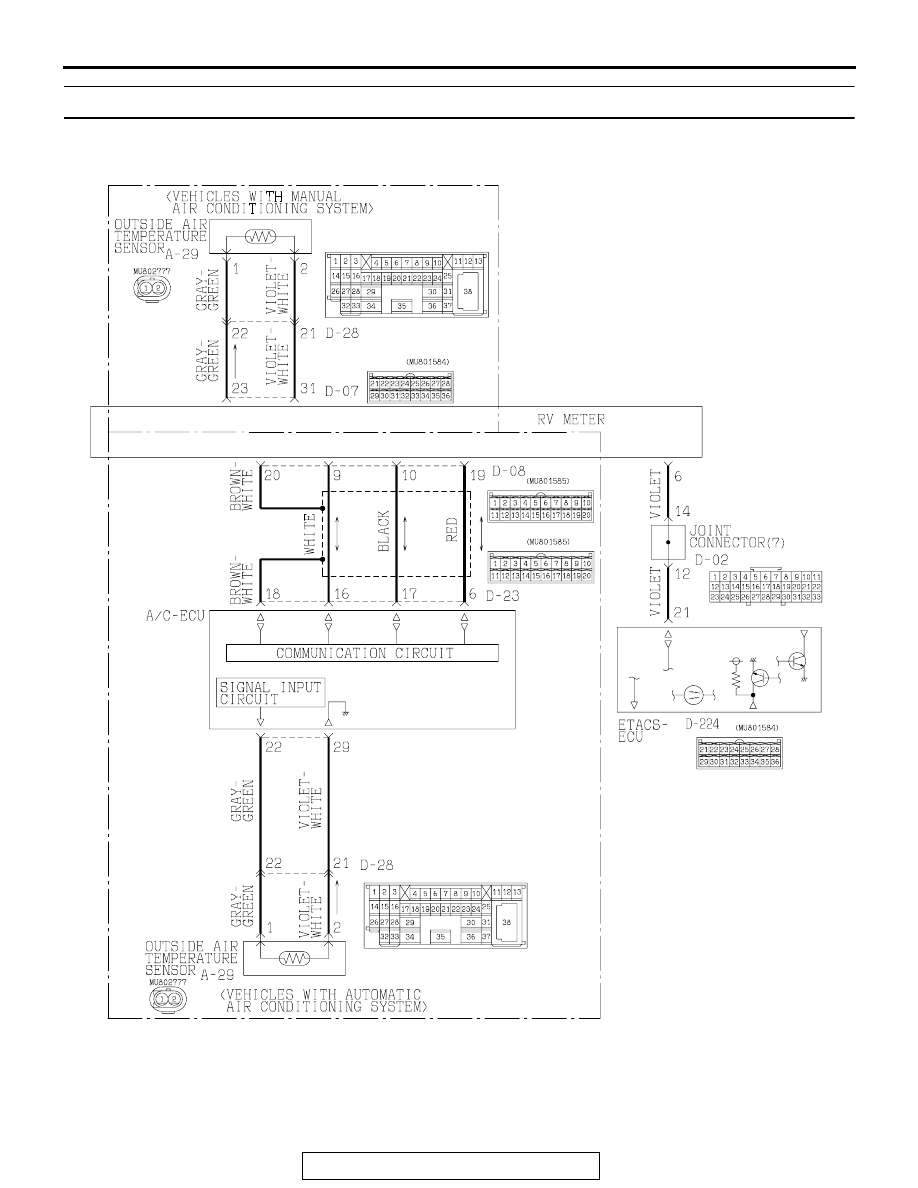

INSPECTION PROCEDURE 4: The outside air Temperature is not Displayed Normal.

ACX01725AB

Outside Air Temperature Sensor Circuit

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-218

.

CIRCUIT OPERATION
The RV meter calculates the outside air temperature
using the outside air temperature sensor fitted on the
vehicle side.

.

TECHNICAL DESCRIPTION (COMMENT)
When other indications are normal, the malfunction
of outside air temperature sensor is considered.

.

TROUBLESHOOTING HINTS

• Malfunction of the outside air temperature sensor

• Damaged harness wires and connectors

.

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

STEP 1. Check the communication and connection (M-
BUS) of the service function.
(1) Press the adjusting switch with the ignition switch at the

"LOCK" (OFF) position. While holding the switch on the
pressed condition, turn the ignition switch to "ACC" position.

(2) When the adjusting switch is continuously pressed for more

than five seconds, the service function is activated at the
same time with the reception signal sound (pip sound) and
the service mode screen is displayed.

(3) Check the communication and connection

P.52A-7

.

Q: Isn't there any abnormality on the M-BUS?

YES : Go to Step 2.
NO :  Go to Step 3.

STEP 2. Check the communication and connection of the
service function (SWS).
Q: Isn't there any abnormality on SWS?

YES : the RV meter display should operate normally.
NO :  Refer to Group 54B, SWS Symptom Procedure

P.54Bb-55

.

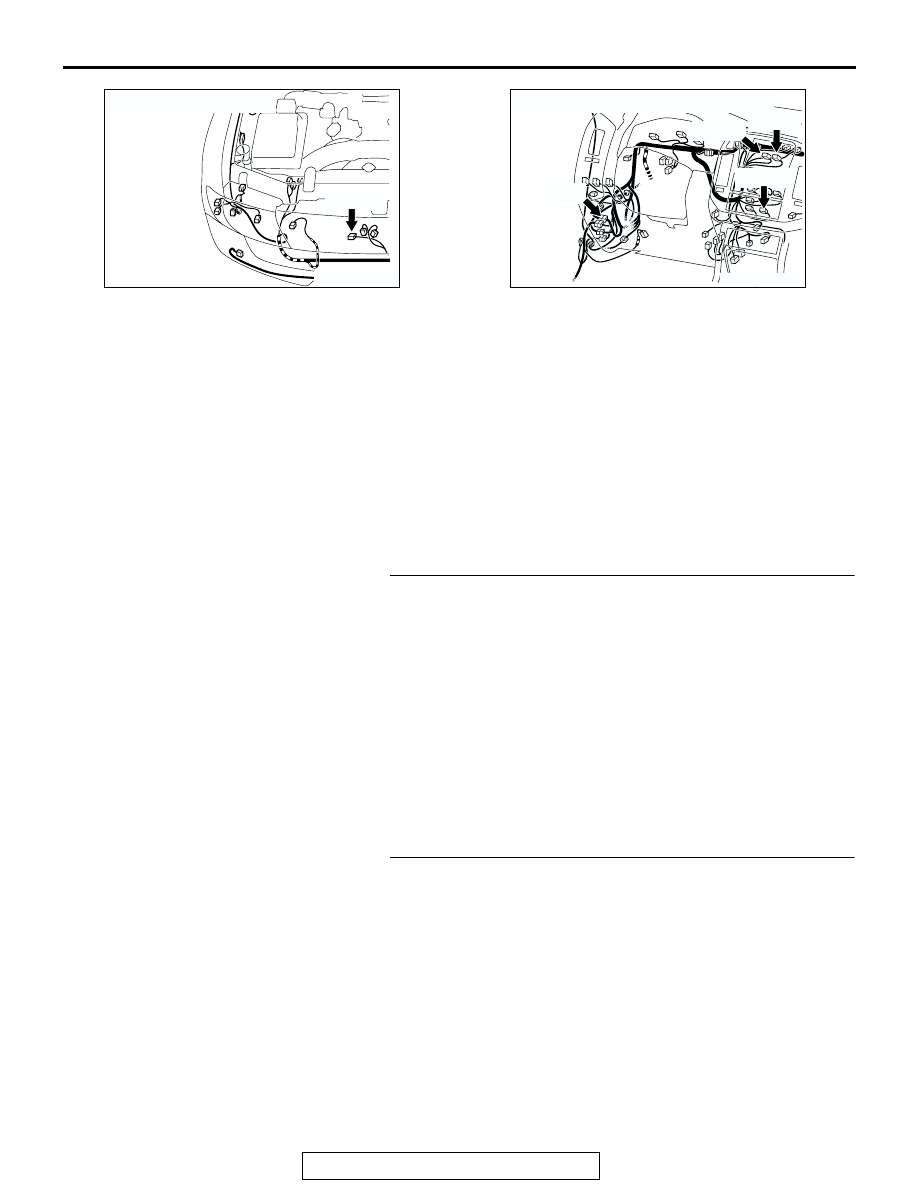

AC204166

CONNECTOR : A-29

AQ

A-29(B)

AC204170

CONNECTORS : D-07, D-08, D-23, D-28

DK

D-23(B)

D-08(B)

D-07(B)

D-28
