SENSOR

TSB Revision

COMPONENT LOCATIONS

70-15

ACX01224 AB

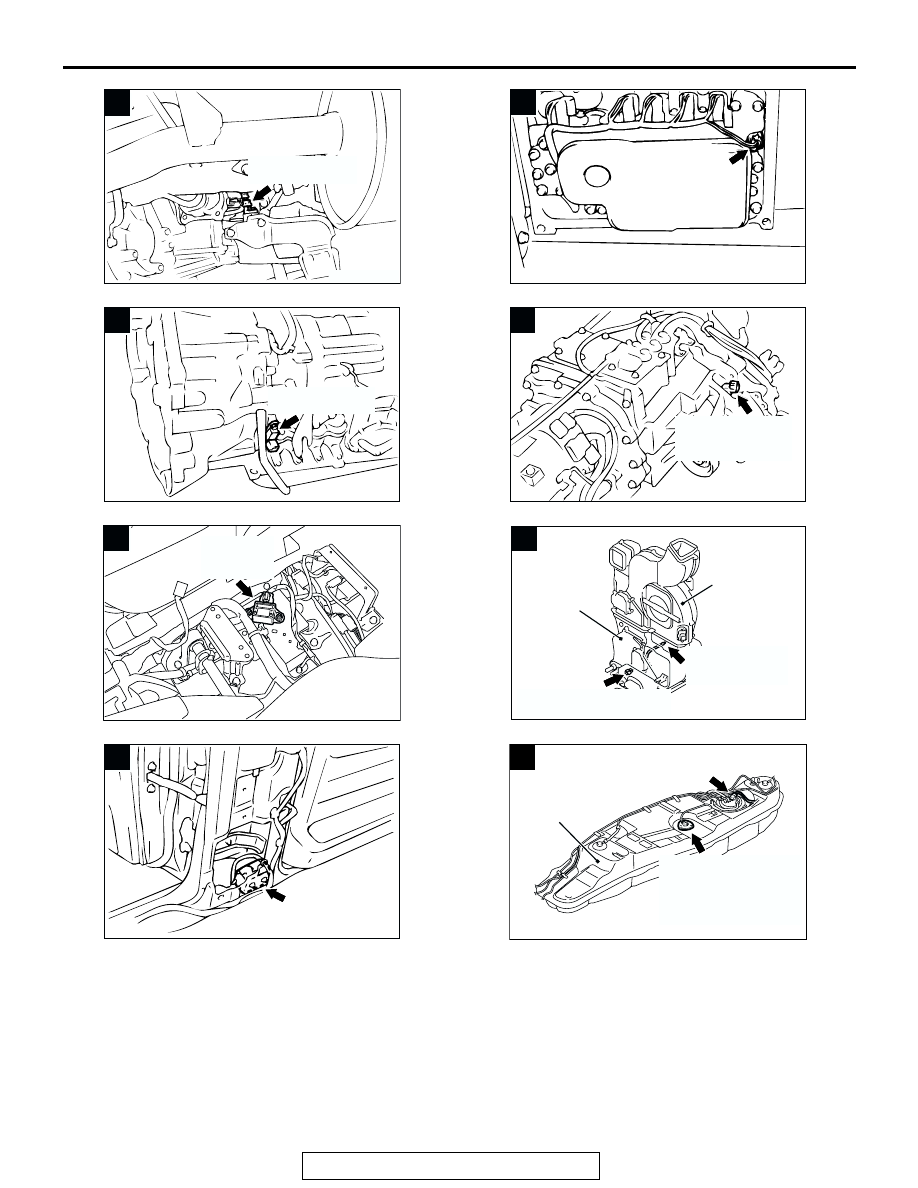

VEHICLE SPEED
SENSOR

U

ACX01230 AF

TRANSMISSION
FLUID
TEMPERATURE
SENSOR

V

ACX01225 AB

INPUT SHAFT
SPEED SENSOR

W

ACX01229AB

FRONT PROPELLER
SHAFT SPEED
SENSOR

X

AC204288

AB

Y

G AND
YAW RATE
SENSOR

AB

AC203929AB

AIR
CONDITIONING
SENSOR

REAR A/C
UNIT OR
REAR
COOLER
UNIT OR
REAR
HEATER
UNIT

Z

AIR CONDITIONING
SENSOR CONNECTOR

RAER
BLOWER
ASSEMBLY

ACX02224

a

AB

SIDE IMPACT
SENSOR

AC100780

b

AC

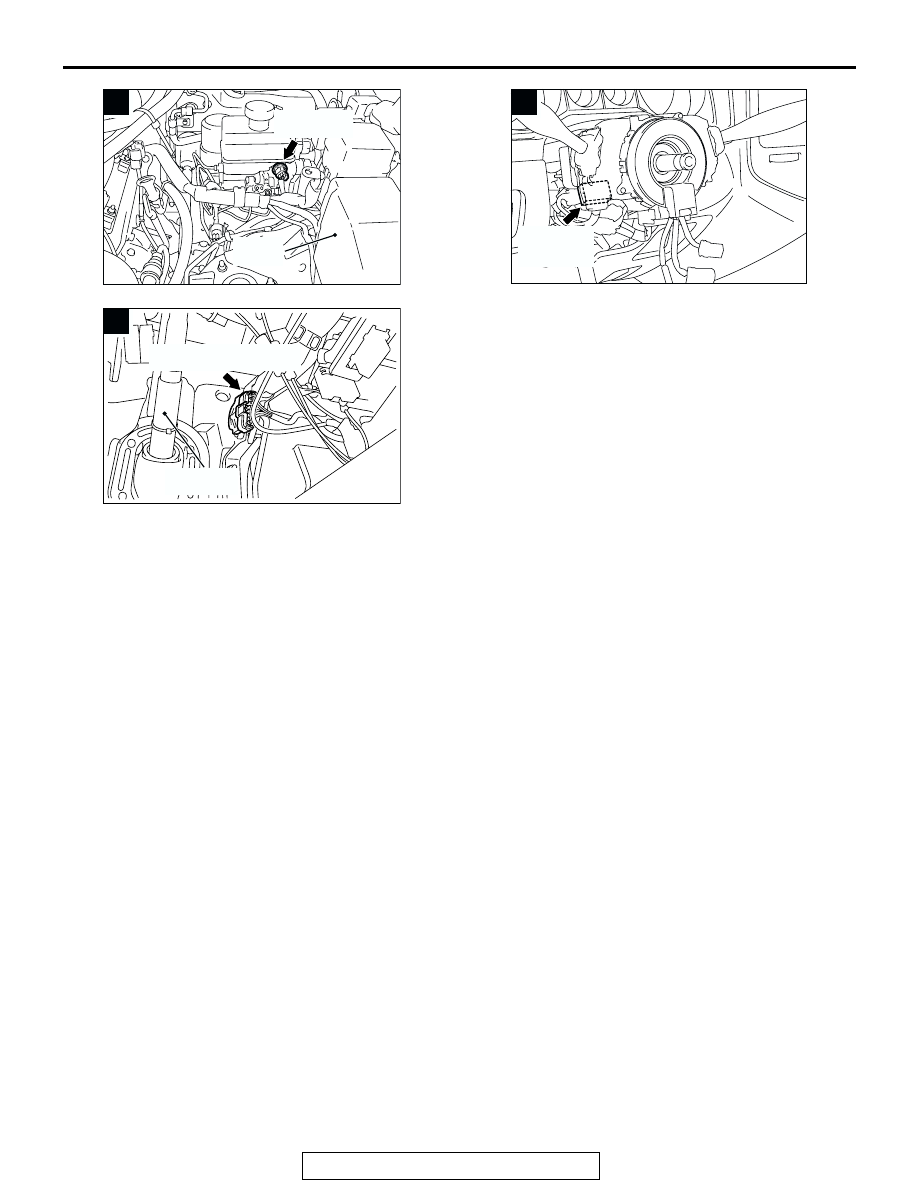

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

FUEL LEVEL SENSOR
(INCORPORATING
FUEL TANK
TEMPERATURE
SENSOR)

FUEL TANK

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-16

AC203912AB

c

PRESSURE
SENSOR

RELAY
BOX

AC203913AB

STEERING
WHEEL
SENSOR

d

AC203914

AB

e

ACCELERATOR PEDAL
POSITION SENSOR

STEERING
SHAFT

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-17

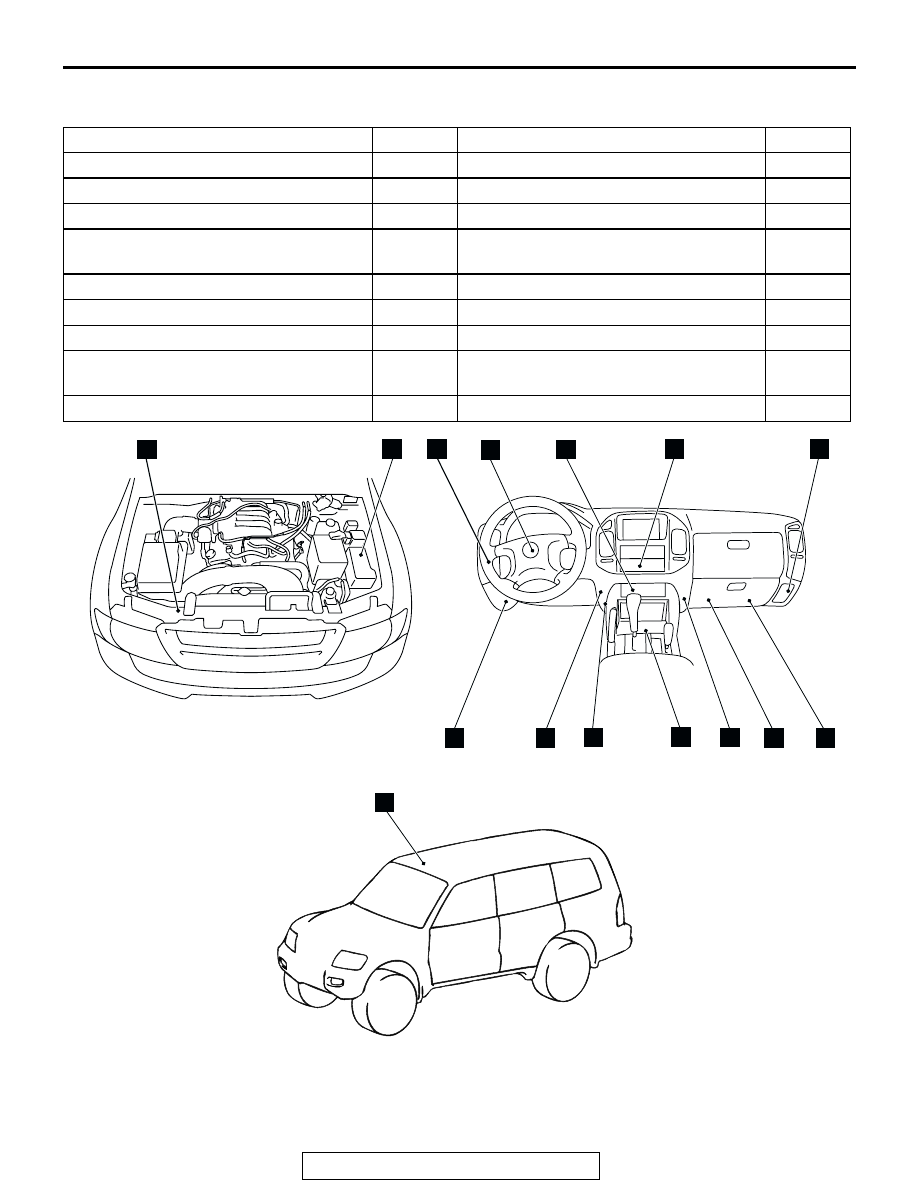

CONTROL UNIT

M1701000700285

NAME

SYMBOL NAME

SYMBOL

A/C-ECU

D

Motor antenna-ECU

L

ASTC-ECU

C

Powertrain control module

E

Automatic compressor controller

G

Rear A/C control unit

J

Column switch (Incorporating column-
ECU)

B

Rear cooler control unit

J

DRL-ECU

N

Rear heater control unit

J

ETACS-ECU

F

Side step light-ECU

O

Front-ECU

A

SRS-ECU

I

Heater blower controller unit

K

Sunroof motor assembly (Incorporating
sunroof-ECU)

M

Immobilizer-ECU

H

Transfer-ECU

C

AC203894

AG

A

B

D

E

F

G

H

I

J

K

L

C

AG

N

O

ACX01213 AB

M

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-18

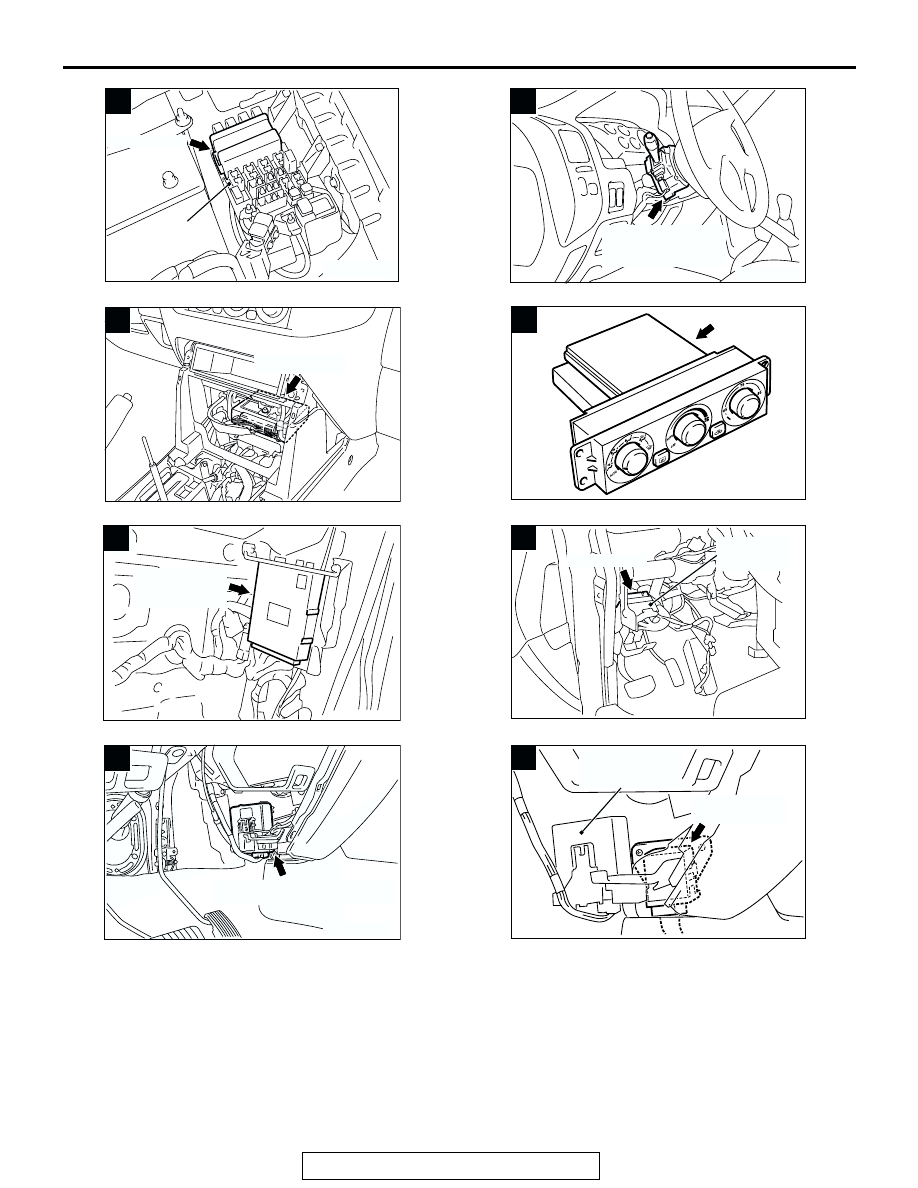

ACX01472AC

FRONT-ECU

A

RELAY
BOX

ACX01466AB

COLUMN SWITCH
(INCORPORATING
COLUMN-ECU)

B

AC203901AB

C

M-ASTC-ECU

ACX01476AB

A/C-ECU

D

AC203898AB

E

POWERTRAIN
CONTROL
MODULE

ACX01477AD

ETACS-ECU

F

JUNCTION
BLOCK

ACX00214AC

AUTOMATIC COMPRESSOR
CONTROLLER

G

ACX01568

AE

IMMOBILIZER-
ECU

H

AUTOMATIC
COMPRESSOR
CONTROLLER
