GROUNDING CABLE

TSB Revision

COMPONENT LOCATIONS

70-7

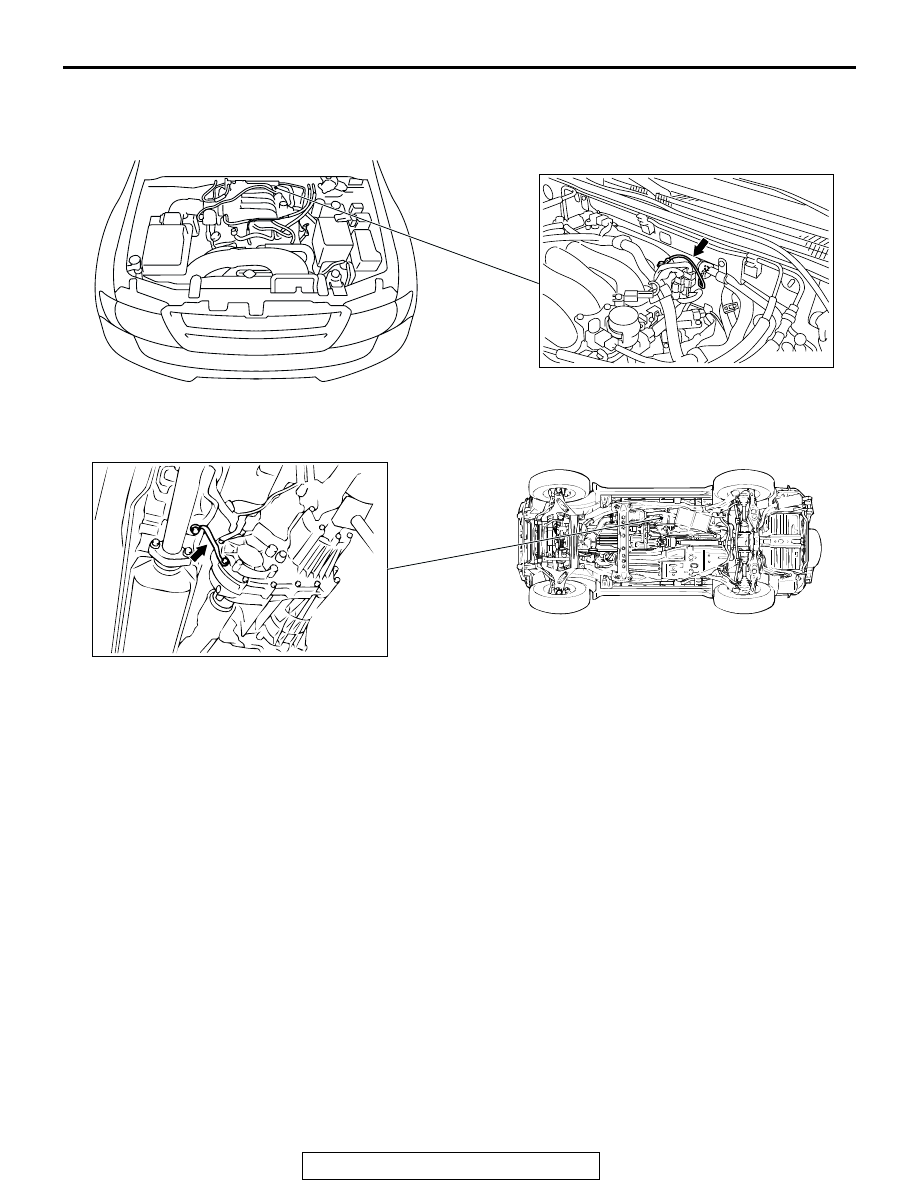

GROUNDING CABLE

M1701001000256

AC203897AB

ACX01822 AB

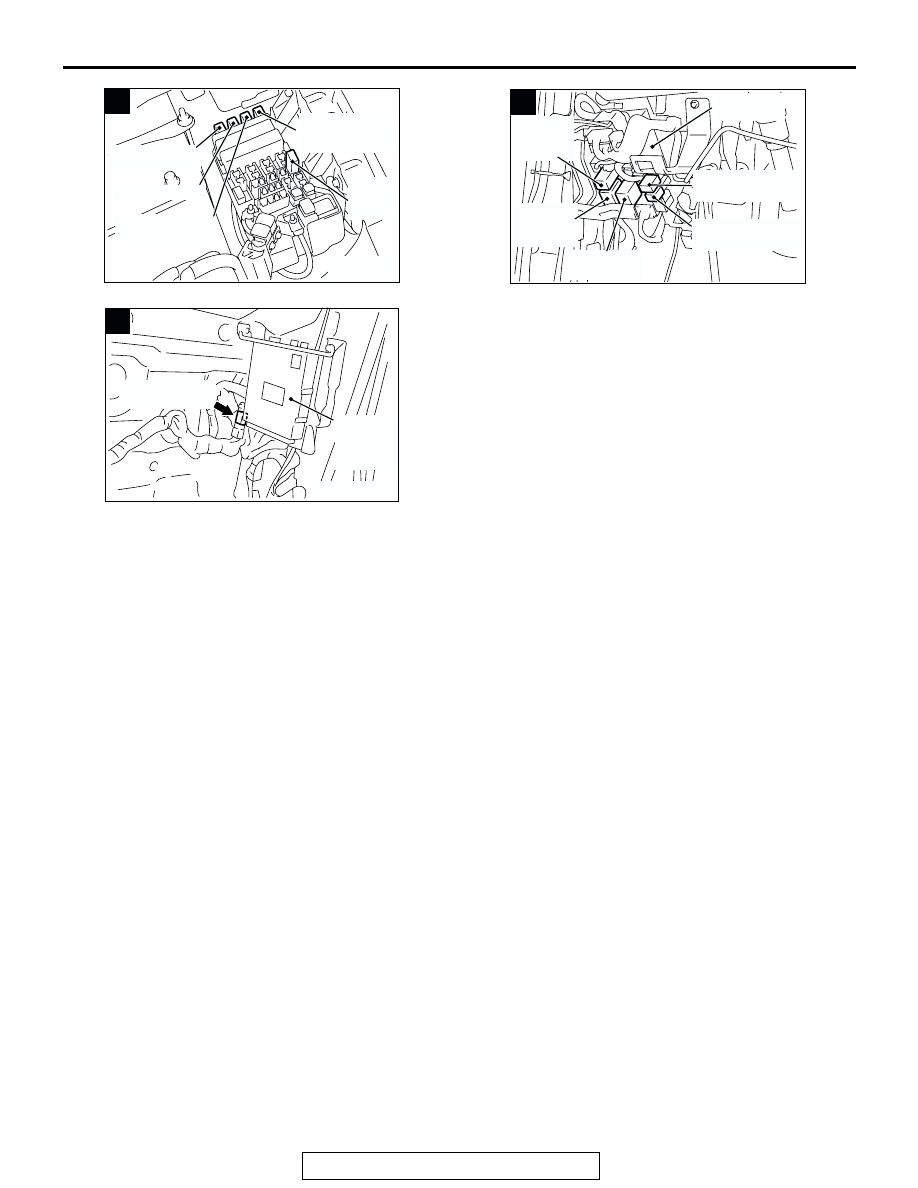

RELAY

TSB Revision

COMPONENT LOCATIONS

70-8

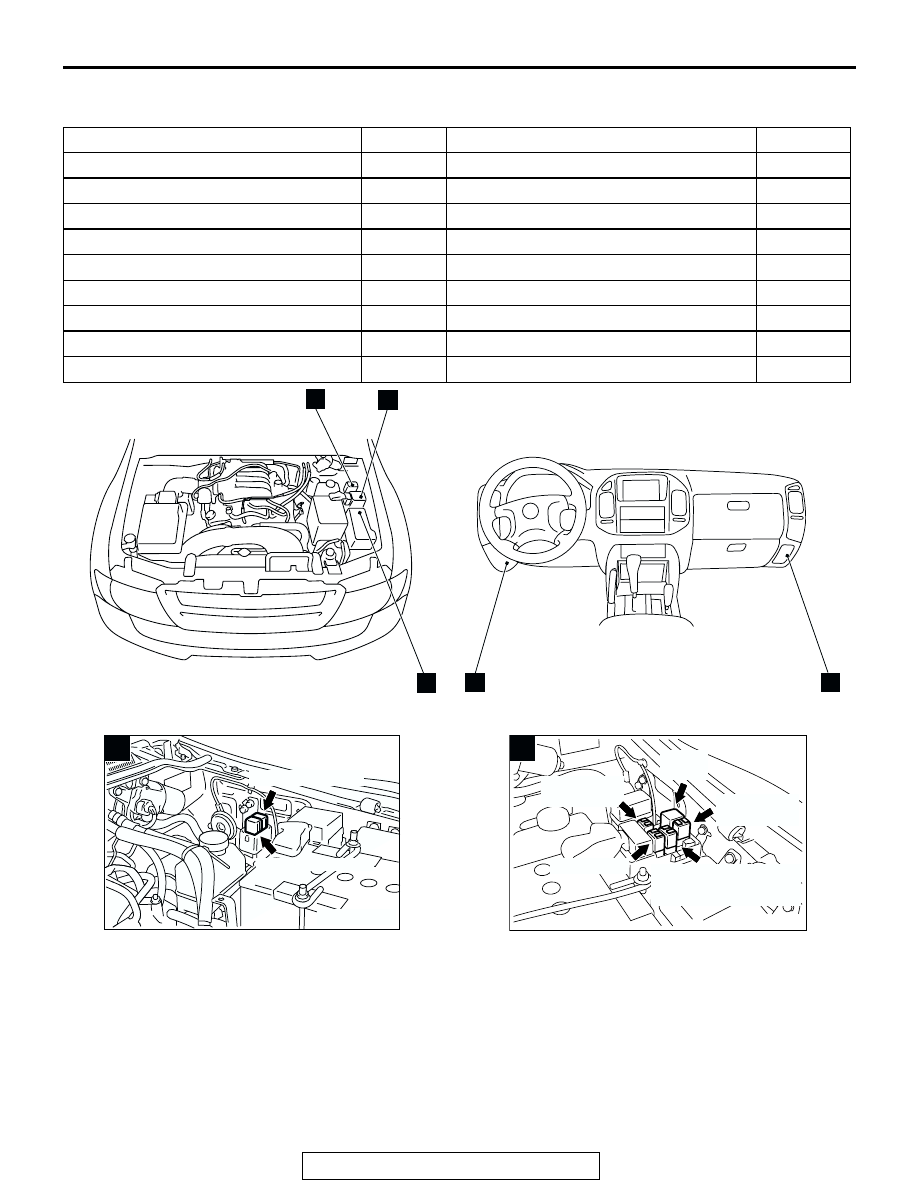

RELAY

M1701000400284

NAME

SYMBOL NAME

SYMBOL

Accessory socket relay

D

Horn relay

C

A/C compressor relay

C

MFI relay

B

A/T control relay

E

Motor relay A

A

Condenser fan relay

C

Motor relay B

A

Defogger relay

D

Power window relay

D

Fog light relay

C

Rear blower relay

D

Front blower relay

D

Theft-alarm horn relay

C

Fuel pump relay (1)

B

Throttle actuator control motor relay

B

Fuel pump relay (2)

B

Valve relay

B

AC203894

A

B

D

E

C

AE

AC204329AB

MOTOR RELAY B

MOTOR RELAY A

A

AC203908

AB

VALVE
RELAY

MFI RELAY

FUEL PUMP
RELAY (1)

B

FUEL PUMP
RELAY (2)

THROTTLE ACTUATOR
CONTROL MOTOR
RELAY

RELAY

TSB Revision

COMPONENT LOCATIONS

70-9

ACX01471AD

FOG
LIGHT
RELAY

THEFT-ALARM
HORN RELAY

CONDENSER
FAN RELAY

HORN RELAY

A/C
COMPRESSOR
RELAY

C

ACX01474 AD

POWER
WINDOW
RELAY

FRONT
BLOWER
RELAY

DEFOGGER
RELAY

REAR
BLOWER RELAY

ACCESSORY
SOCKET RELAY

D

JUNCTION
BLOCK

ACX01473 AG

A/T CONTROL
RELAY

E

POWER
TRAIN
CONTROL
MODULE

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-10

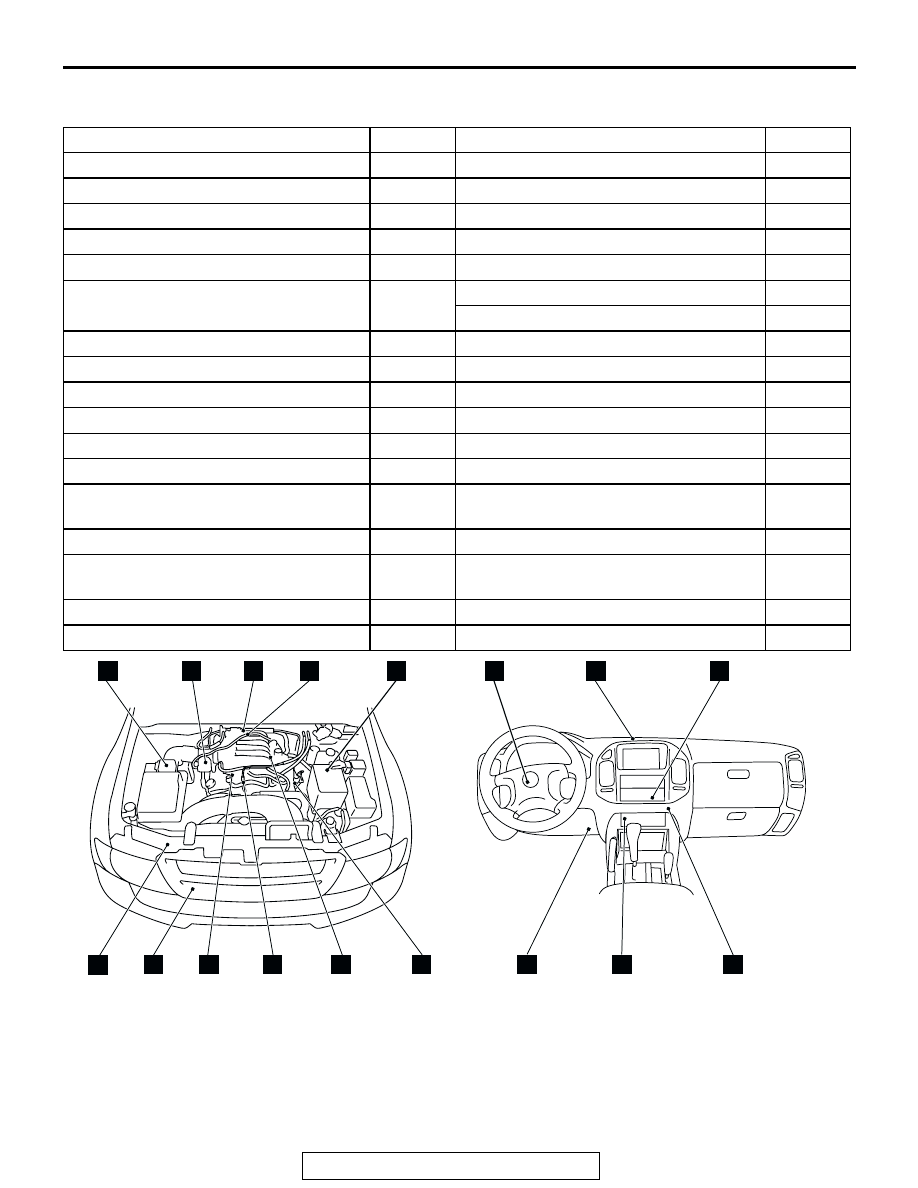

SENSOR

M1701000600329

NOTE:
*: equipped at both right and left sides.

NAME

SYMBOL NAME

SYMBOL

ABS sensor (front)

P*

Knock sensor

J

ABS sensor (rear)

R*

Left bank heated oxygen sensor (front)

O

Accelerator pedal position sensor

e

Left bank heated oxygen sensor (rear)

O

Air conditioning sensor <Automatic A/C> M

Lock sensor

H

Air conditioning sensor <Manual A/C>

N

Manifold differential pressure sensor

D

Air conditioning sensor <Rear cooler,
rear heater and rear A/C>

Z

Output shaft speed sensor

S

Outside air temperature sensor

F

Camshaft position sensor

C

Photo sensor

K

Crankshaft position sensor

I

pressure sensor

c

Engine coolant temperature sensor

G

Rear propeller shaft speed sensor

T

Front impact sensor

E*

Right bank heated oxygen sensor (front) Q

Front propeller shaft speed sensor

X

Right bank heated oxygen sensor (rear)

Q

Fuel tank differential pressure sensor

b

Side impact sensor

a*

Fuel level sensor (Incorporating fuel tank
temperature sensor)

b

Steering wheel sensor

d

G and yaw rate sensor

Y

Throttle position sensor

B

Heater water temperature sensor
<Automatic A/C>

M

Transmission fluid temperature sensor

V

Input shaft speed sensor

W

Vehicle speed sensor

U

Inside air temperature sensor

L

Volume airflow sensor

A

AC203894

A

B

D

E

F

G

H

I

J

C

K

L

M

N

*

AF

c

d

e
