SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-463

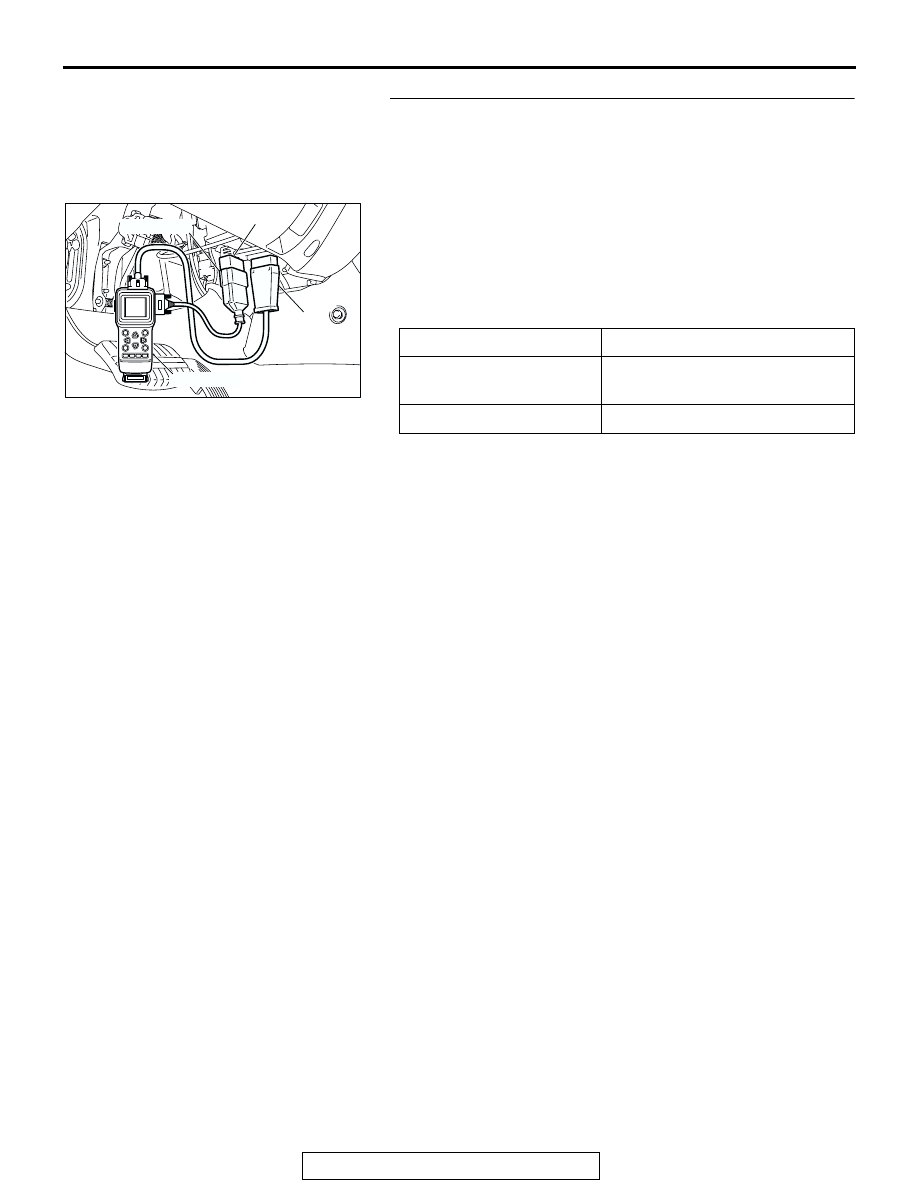

STEP 4. Check the input signal (by using the pulse check
mode of the monitor.)
Check the following switches and input signals:

• Key reminder switch

• All door switches

Operate scan tool MB991502 according to the procedure below
to display "PULSE CHECK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "PULSE CHECK."

Check if scan tool MB991502 sounds or not.

Q:  When the key reminder switch and each door switch

are operated, does scan tool MB991502 sound in each
case?
YES : Replace the ETACS-ECU. Verify that the dome light

illuminates normally.

NO :

• Scan tool MB991502 does not sound when the

ignition key is removed and reinserted: Refer to
Inspection Procedure P-1 "ETACS-ECU does not
receive any signal from the key reminder switch

P.54Bc-49

."

• When one of the doors is opened and closed,

scan tool MB991502 does not sound: Refer to
Inspection Procedure P-4 "ETACS-ECU does not
receive any signal from all the door switches

P.54Bc-62

."

ITEM NAME

CONDITION

key reminder switch

Remove and reinsert the ignition
key

Each door switch

Open or close one of the doors

AC204222AB

16-pin

13-pin

MB991502

MB991862

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-464

INSPECTION PROCEDURE M-3: Interior Light: The ignition key hole illumination light does not
illuminate or go out normally.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991502 and SWS monitor kit
MB991862. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54Ba-8

."

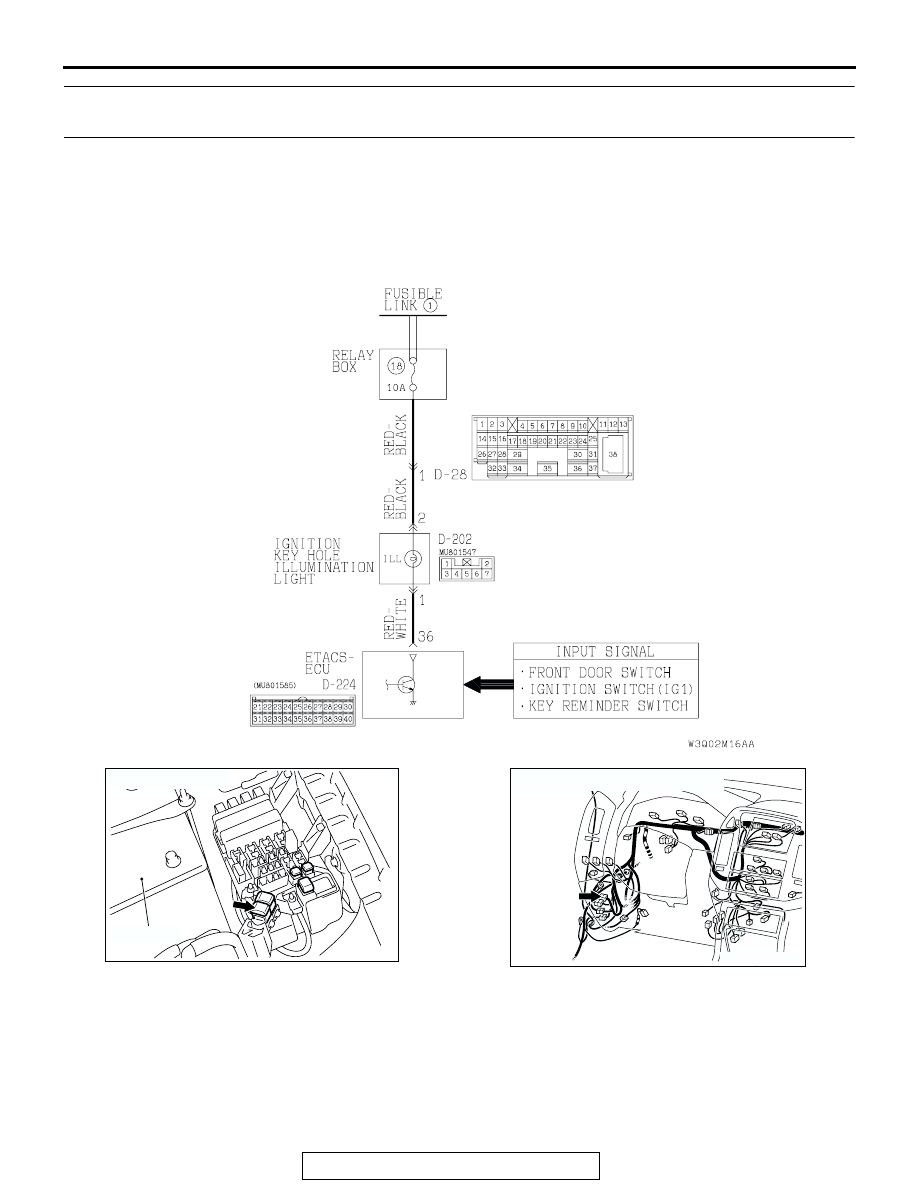

Ignition Key Hole Illumination Light Circuit

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204170

CONNECTOR : D-28

BB

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-465

.

CIRCUIT OPERATION

• When the driver's door is opened with the ignition

switch at "ACC" position, the ETACS-ECU illumi-
nates the ignition key hole illumination light.

• The ignition key hole illumination light goes out in

30 seconds after the driver's door is closed. The
ignition key hole illumination light remains illumi-
nated for 30 seconds after the ignition key is
pulled out.

• The ETACS-ECU operates the ignition key hole

illumination light according to the input signals
from the following switches:

• Ignition switch (IG1): OFF

• Key reminder switch: OFF

• Vehicle condition

• Ignition switch: ACC position

• Ignition key is inserted in the ignition key cyl-

inder

.

TECHNICAL DESCRIPTION (COMMENT)
Is the ignition key hole illumination light does not illu-
minate, the input circuits from the switches described
in "CIRCUIT OPERATION", the key reminder switch
(ignition key hole illumination light bulb) or the
ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The driver's door switch may be defective

• The key reminder switch (key reminder switch or

ignition key hole illumination light bulb) may be
defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

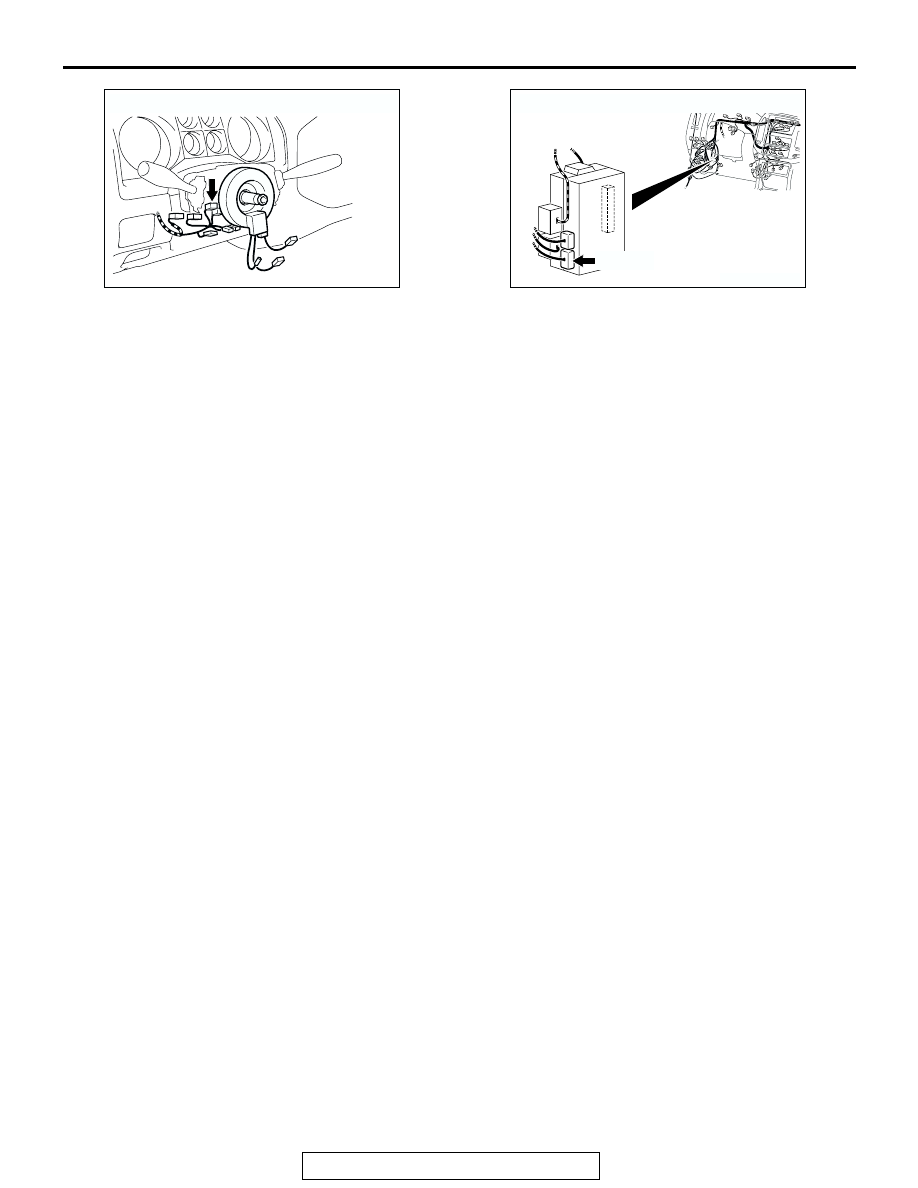

AC204172

CONNECTOR : D-202

AF

AC204174

CONNECTOR : D-224

D-224(B)

AG

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-466

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

• MB991862: SWS monitor kit

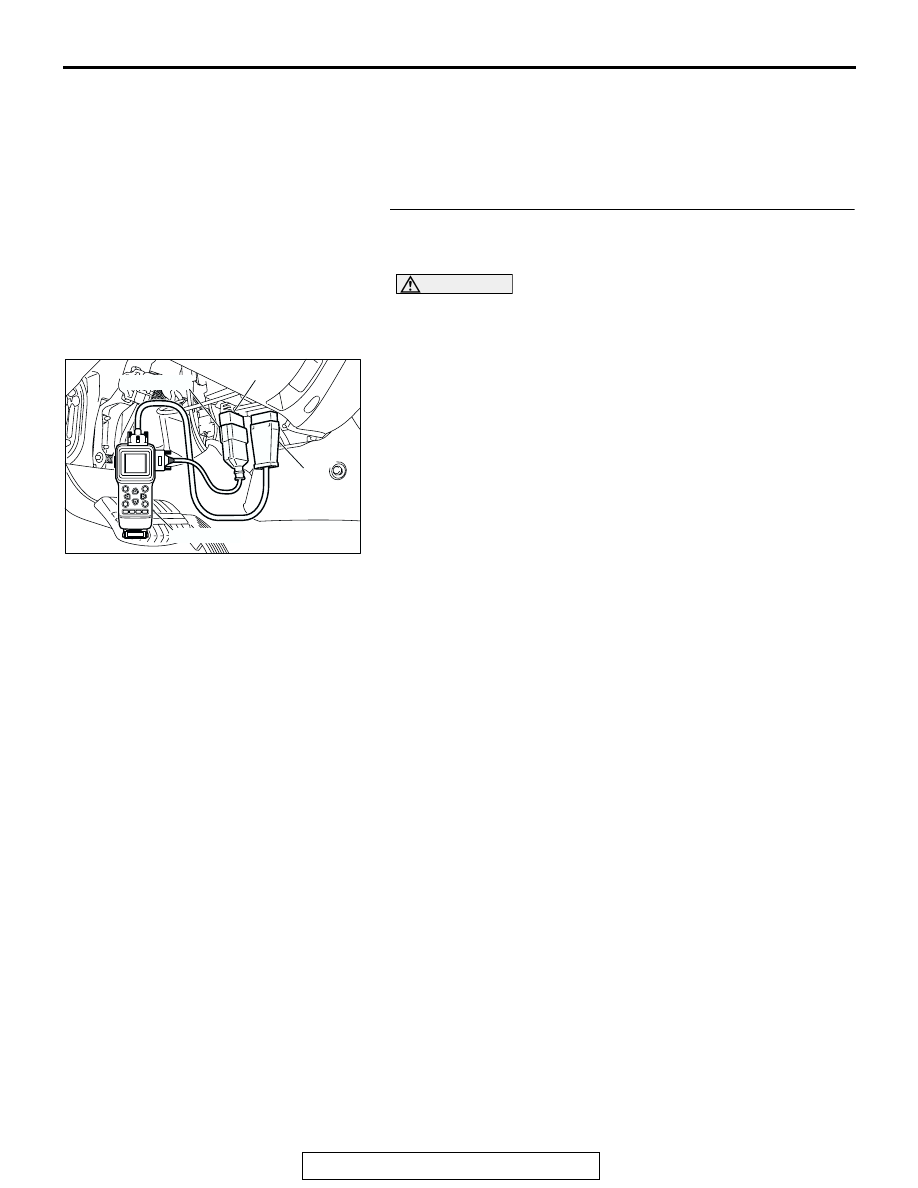

 STEP 1. Use scan tool MB991502 to select "ECU COMM
CHK" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector

(16-pin).

(2) Connect SWS monitor kit MB991862 to the data link

connector (13-pin).

(3) Turn the ignition switch to the "LOCK" (OFF) position.
(4) Operate scan tool MB991502 according to the procedure

below to display "ECU COMM CHK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

(5) Scan tool MB991502 should show "OK" on the "ECU

COMM CHK" menu for the "ETACS ECU" menu.

Q:  Is "OK" displayed on the "ETACS ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-3 "Communication

with ETACS-ECU is not possible

P.54Bb-25

."

AC204222AB

16-pin

13-pin

MB991502

MB991862
